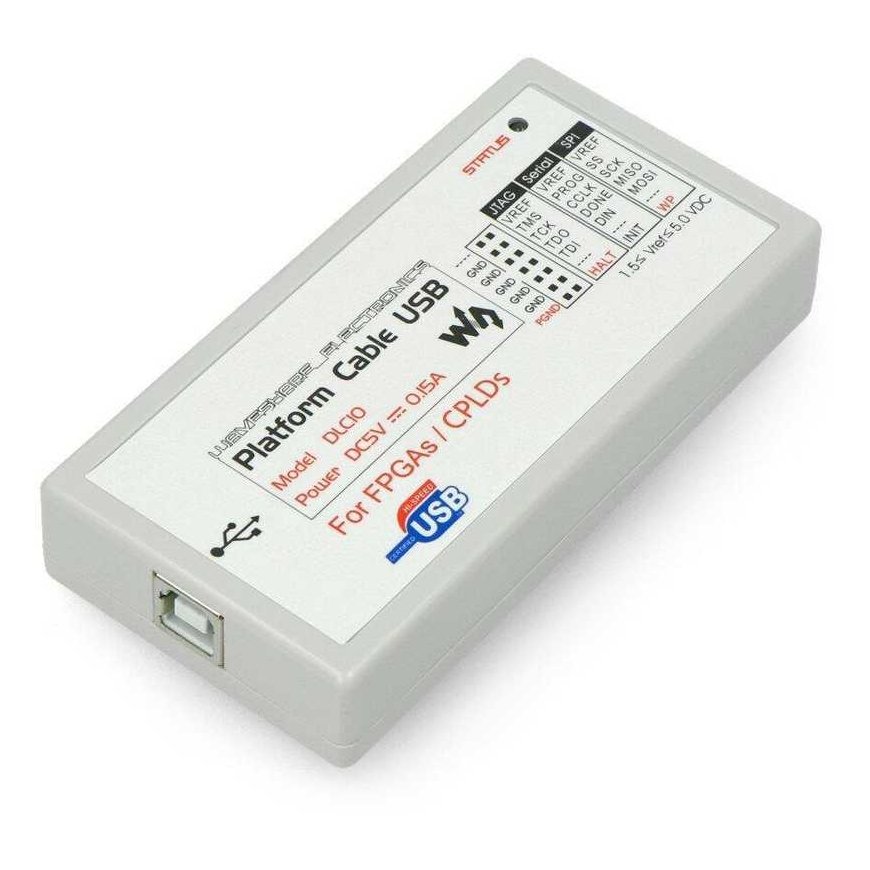

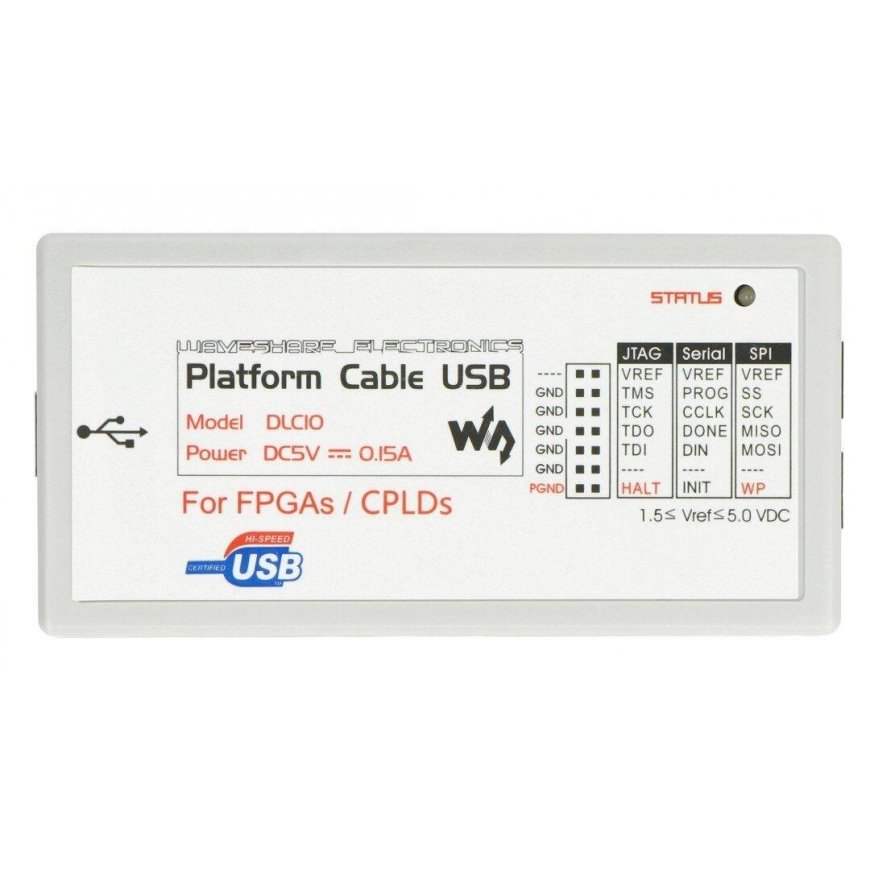

USB programmer and debugger for Xilinx devices, Waveshare 6530
69.01 €
Monthly payment from 2,68 €
3721267 AN-16398
5904422344450
Shipping 8-15 b.d.
You are interested in this product?
All about the product
A platform that allows programming and debugging Xilinx devices via USB. The device is based on CY7C68013A + FPGA chip, which is compatible with original Xilinx platforms. It supports programming via JTAG, Slave-Serial, and SPI interfaces. It operates at 1.5 V / 1.8 V / 2.5 V / 3.3 V / 5 V voltage.
Main features:
- Based on CY7C68013A + FPGA
- Allows programming of any Xilinx FPGA / CPLDS / ISP PROM device
- Supports JTAG / Slave-Serial / SPI programming
- Supports voltages such as: 1.5 V / 1.8 V / 2.5 V / 3.3 V / 5 V
- Allows changing the clock frequency, automatically adjusts the Xilinx software frequency
- Automatically updates the firmware, thus supporting other Xilinx devices
- Antistatic and multilayer signal isolation
- Includes adapters and cables for connecting to the official board or circuit
- Supports the following software:
- Xilinx ISE
- iMPACT
- ChipScope
- Vivado
- Compatible devices:
- Xilinx FPGA: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.
- Xilinx CPLD: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.
- Xilinx PROM: XCF00S / XCF00P / XL, etc.
- It has status LEDs:
- Red: USB connected
- Yellow: USB connected and powered Vref (target board)
Included:
- Xilinx USB programmer and debugger

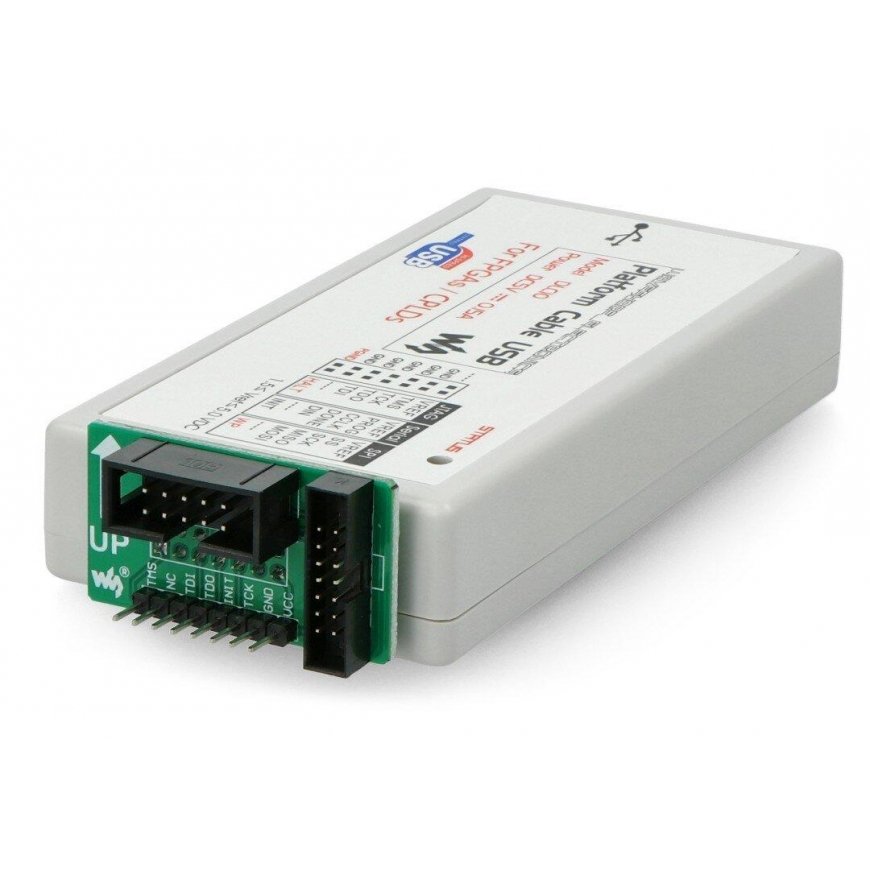

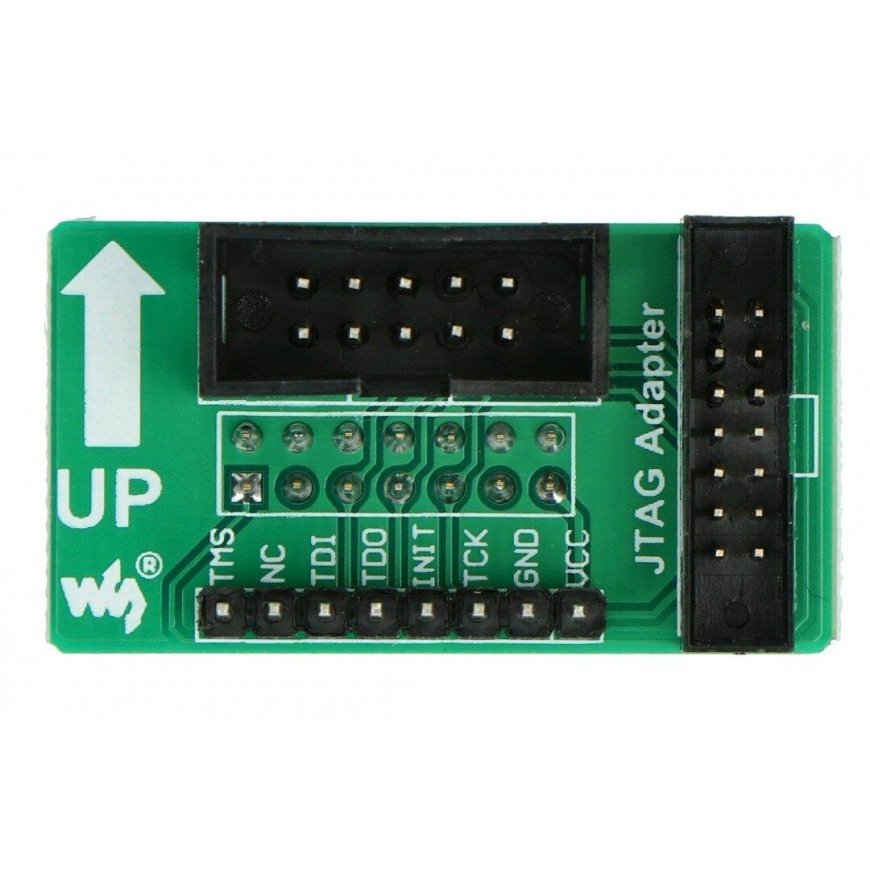

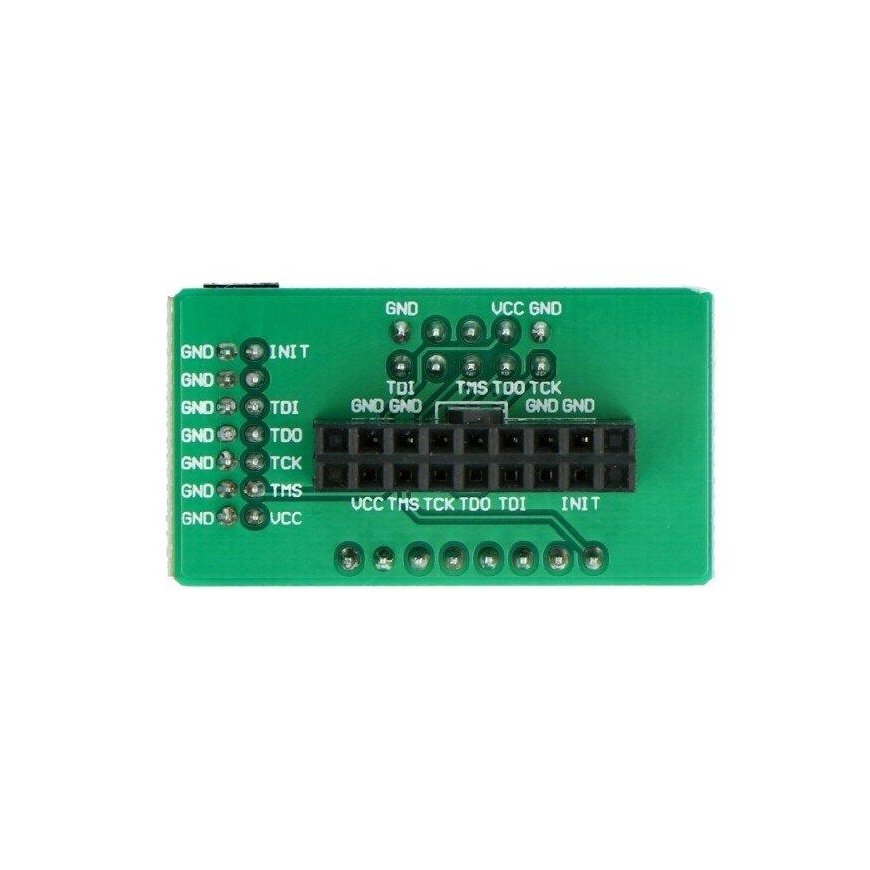

- JTAG adapter
- USB cable
- 7-wire cable with 8-pin connector
- 6-wire cable with 8-pin connector
- JTAG 14-pin cable, 2.54 mm
- JTAG 14-pin cable, 2 mm
- JTAG 10-pin cable, 2.54 mm
