Servo 2040 - 18 channel servo controller - Pimoroni PIM613

All about the product

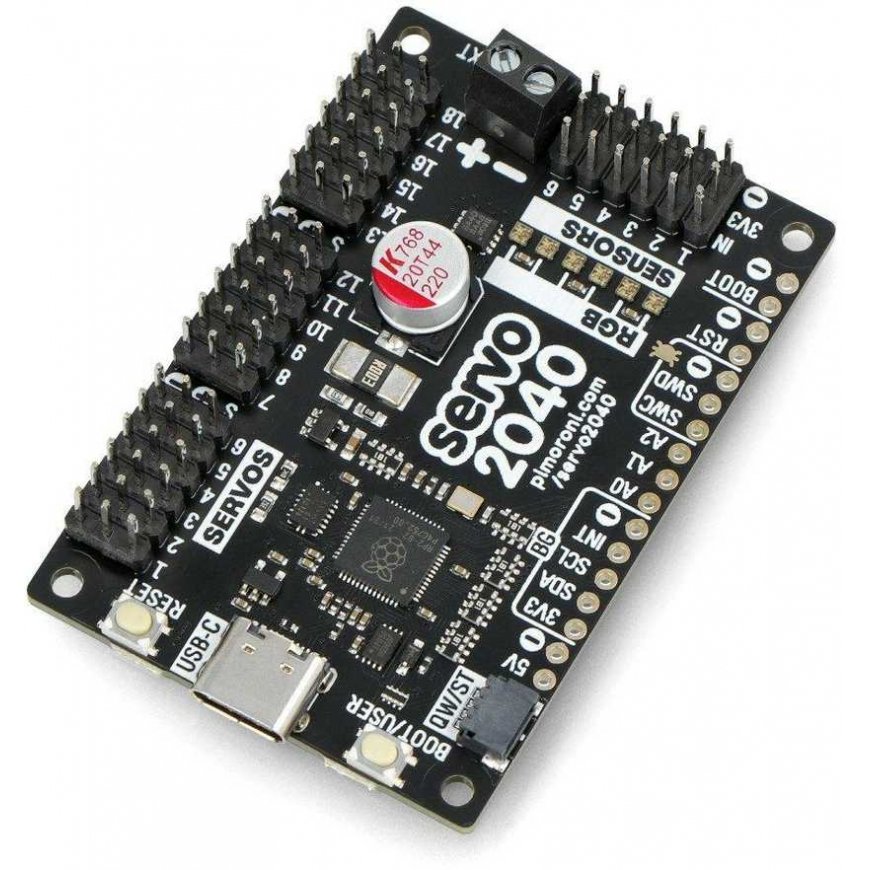

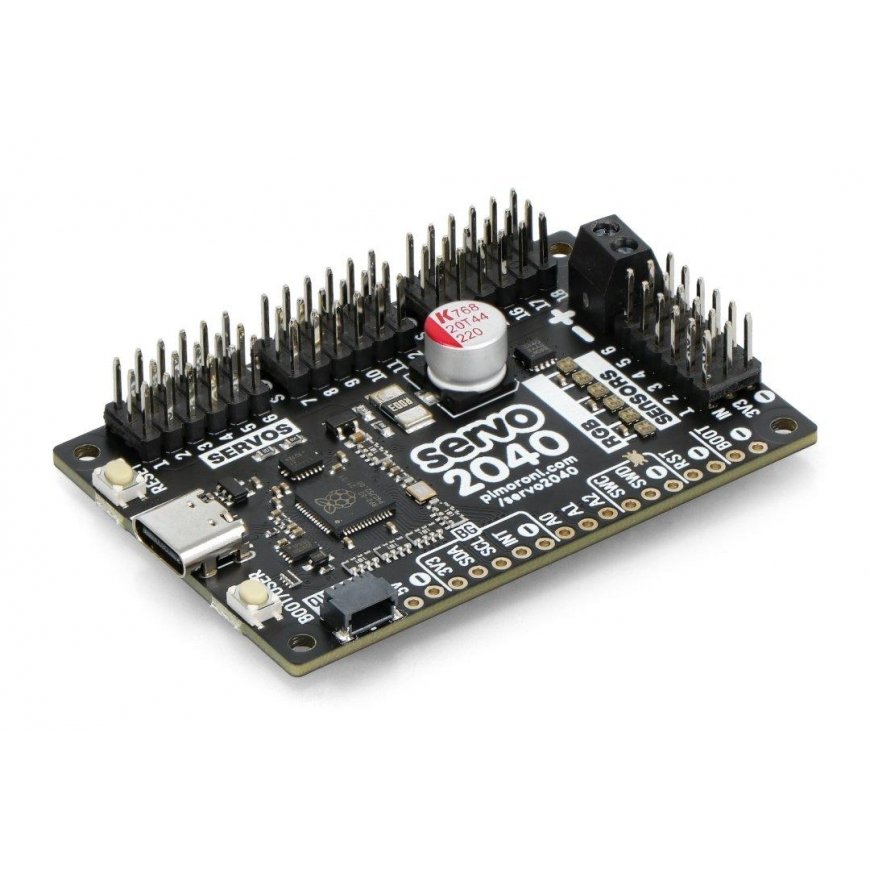

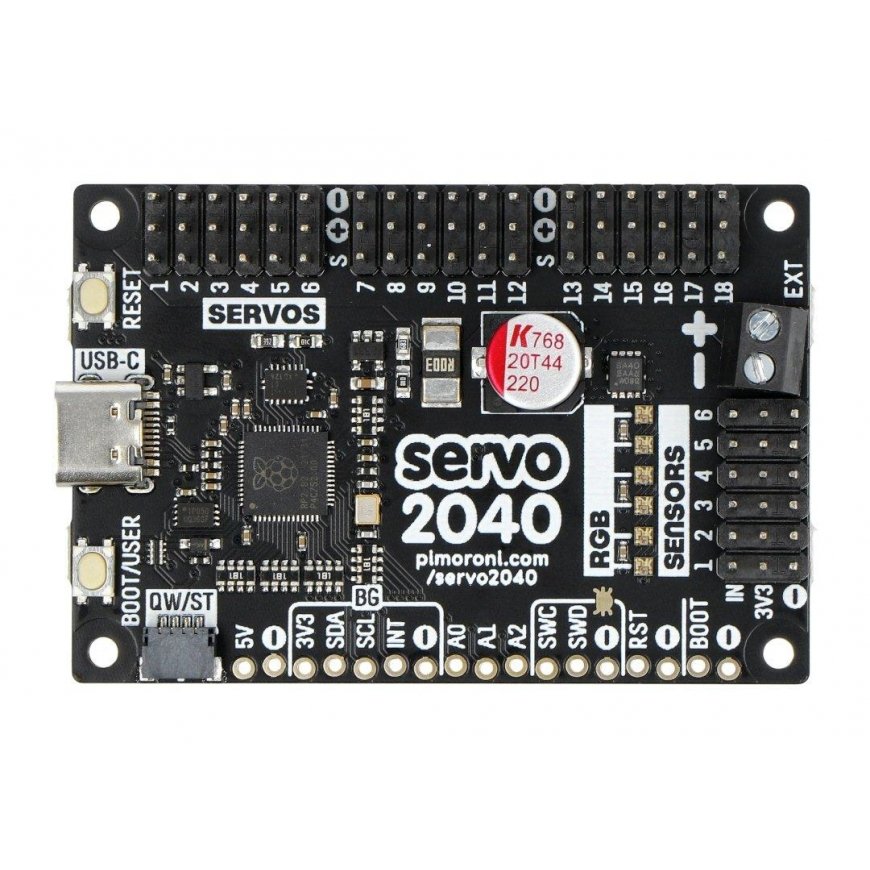

The Servo 2040 is a servo controller manufactured by PiMoroni. It has 18 channels, allowing control of up to 18 servos simultaneously. Additionally, it also supports servos operating at higher voltage ranges (up to 11 V). The Servo 2040 is equipped with 2 MB of QSPI Flash memory, supporting XiP, a USB Type-C connection for programming and power, 6 addressable RGB / Neopixel LEDs, and even 6 additional 3-pin headers for connecting analog sensors.

Key Features:

• Based on the Raspberry Pi RP2040 system
• Equipped with 2 MB of QSPI Flash memory, supporting XiP
• It has 3-pin outputs described from 1 to 18 for easy connection of up to 18 different servos

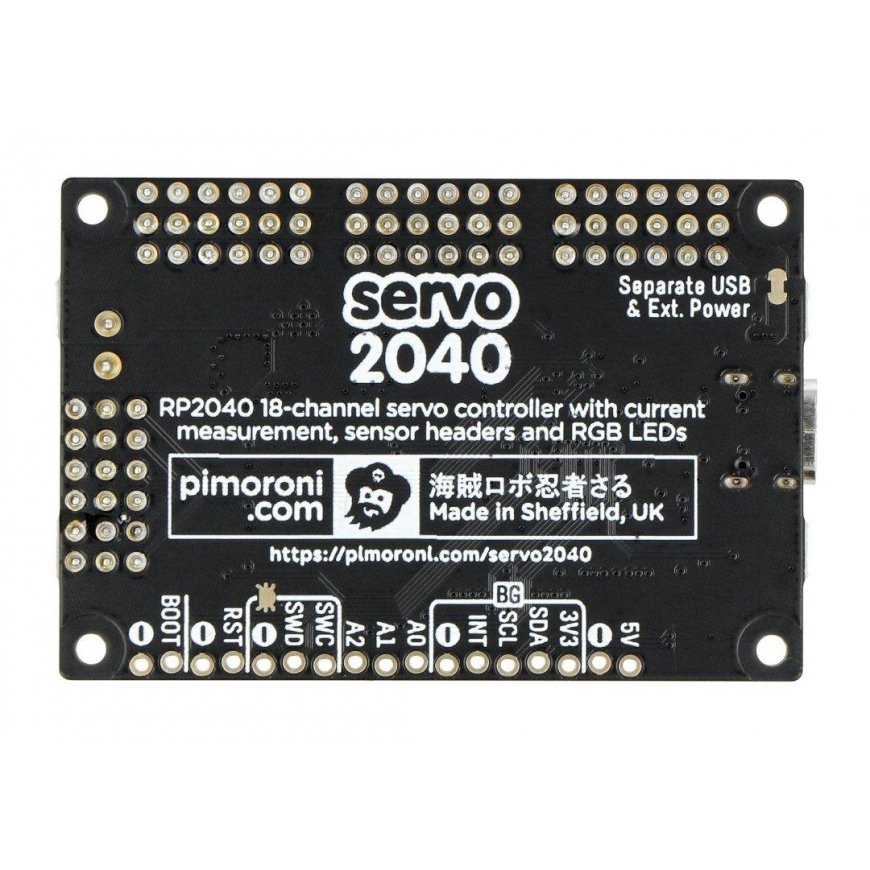

• Supports higher voltage servos up to 11 V – if you want to control servos with a voltage higher than 5 V, you need to cut the power jumper Separate USB and Ext. Power (located at the back of the board) to protect the RP2040 from excess voltage. If you cut the jumper, you will need separate power for the board logic (via USB or 5 V)
• Equipped with 6 addressable RGB / Neopixel LEDs
• It even has 6 additional 3-pin headers for connecting analog sensors
• Reset button and BOOT button (the BOOT button can also be used as a user button)
• USB Type-C connection for programming and power (max. 3 A)
• Screw terminals for external power supply (protected against reverse polarity) - maximum continuous current is 10 A
• Fully assembled and no soldering required

• Module type: servo controller
• Number of channels: 18
• Integrated chip: Raspberry Pi RP2040 (Dual Arm Cortex M0 + clock frequency up to 133 MHz with 264 KB of SRAM memory)
• QSPI Flash memory: 2MB (supports XiP)
• Dimensions: 62 x 42 x 12 mm
• Mounting holes: M2.5
