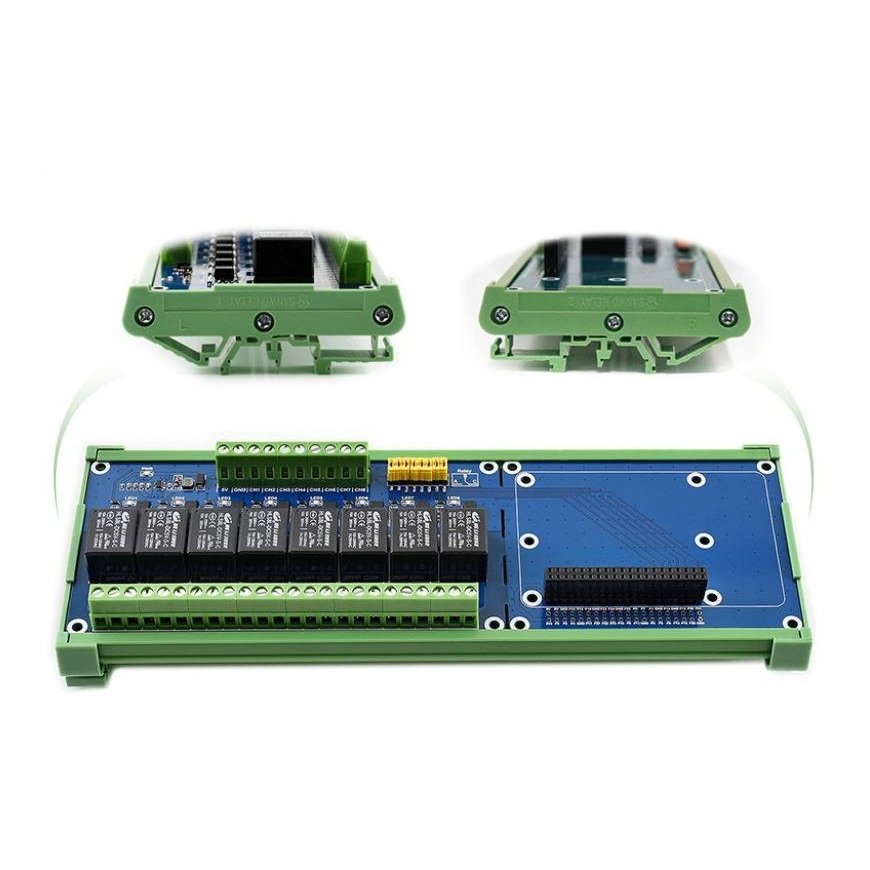

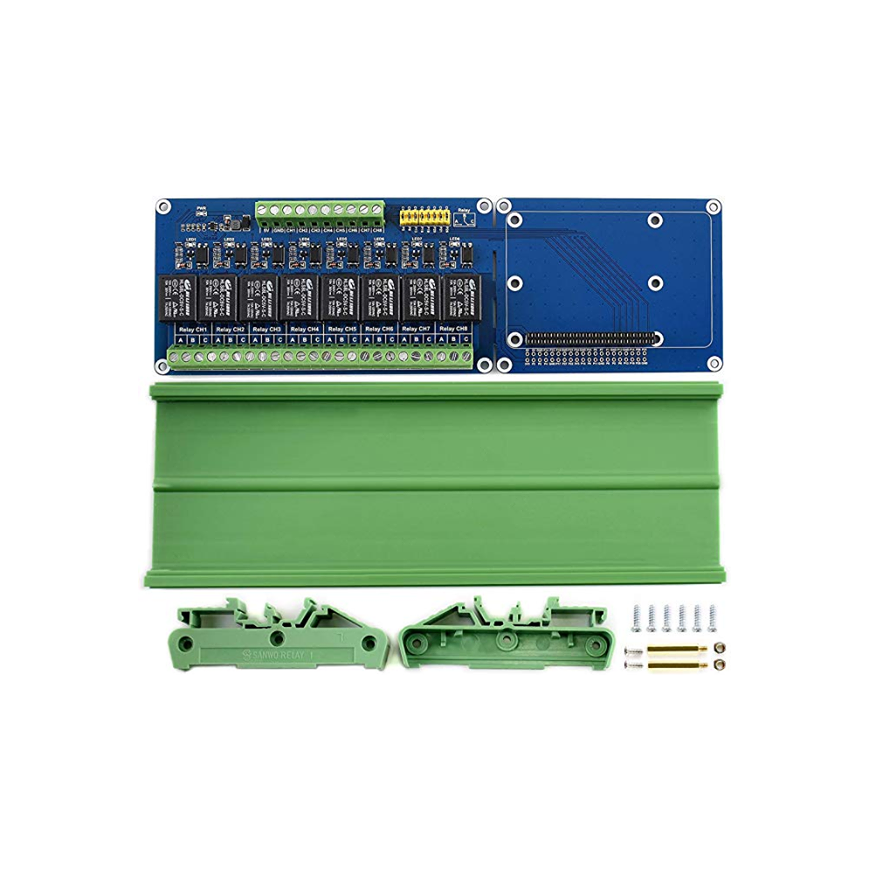

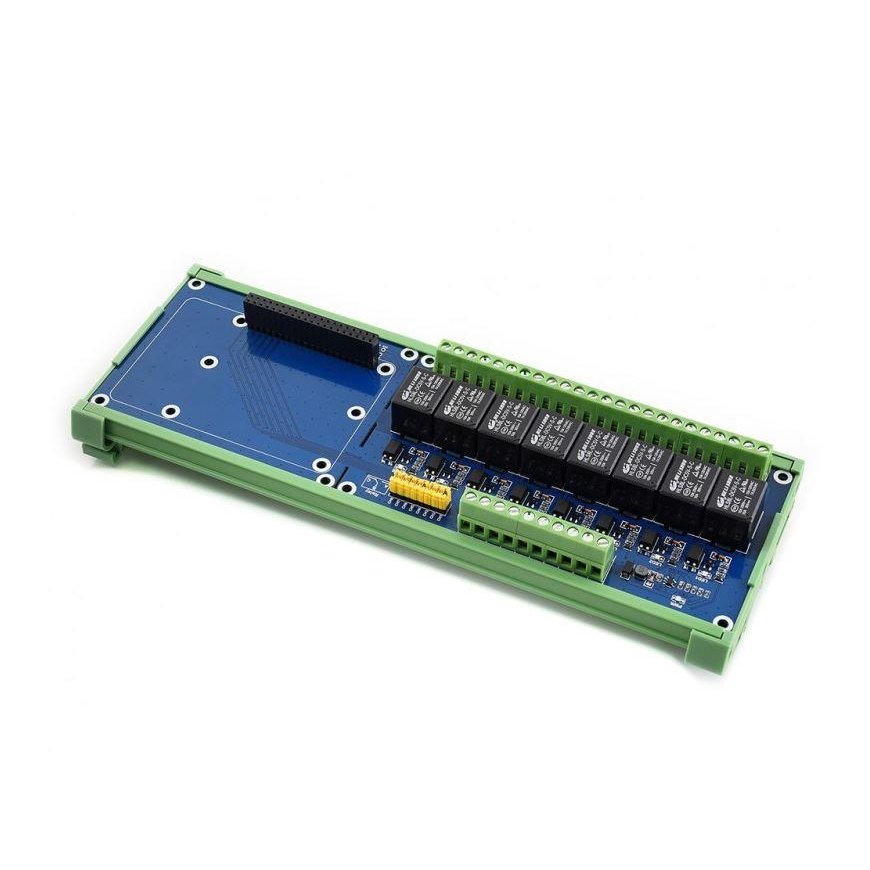

8-channel relay module Waveshare for Raspberry Pi
3711200 AN-13301
0614961953253
Shipping 9-14 b.d.
All about the product
Do you want to control home electrical network devices using Raspberry PI? With the Waveshare 8-channel relay module, you can do this and automate your home. It is suitable for Raspberry PI and Jetson Nano microcontrollers, and the module uses high-quality electrical components, allowing it to control high current and voltage home electrical network devices.
The module has many additional features: LED lights indicate the status of the relays and the board, physical jumpers allow you to change which Raspberry digital signal pins change the relay status, and the control board is specially isolated from the noise caused by the alternating current flowing through the relays, ensuring that the Raspberry PI control signal remains stable.
The user manual contains many examples of control code: wiringPi, bcm2835, python, python-bottle, crontab.
Specifications:
- Suitable for Raspberry PI and Jetson Nano microcontrollers
- Relay controlled current: up to 250V 5A AC, or 30V 5A DC
- Module power supply voltage: 5V DC
- Signal voltage: 3.3/ 5V DC
- 8 relay channels, NC type (normally closed), SPDT-NO, 6mA per channel
- Dimensions: 232 x 72 mm
