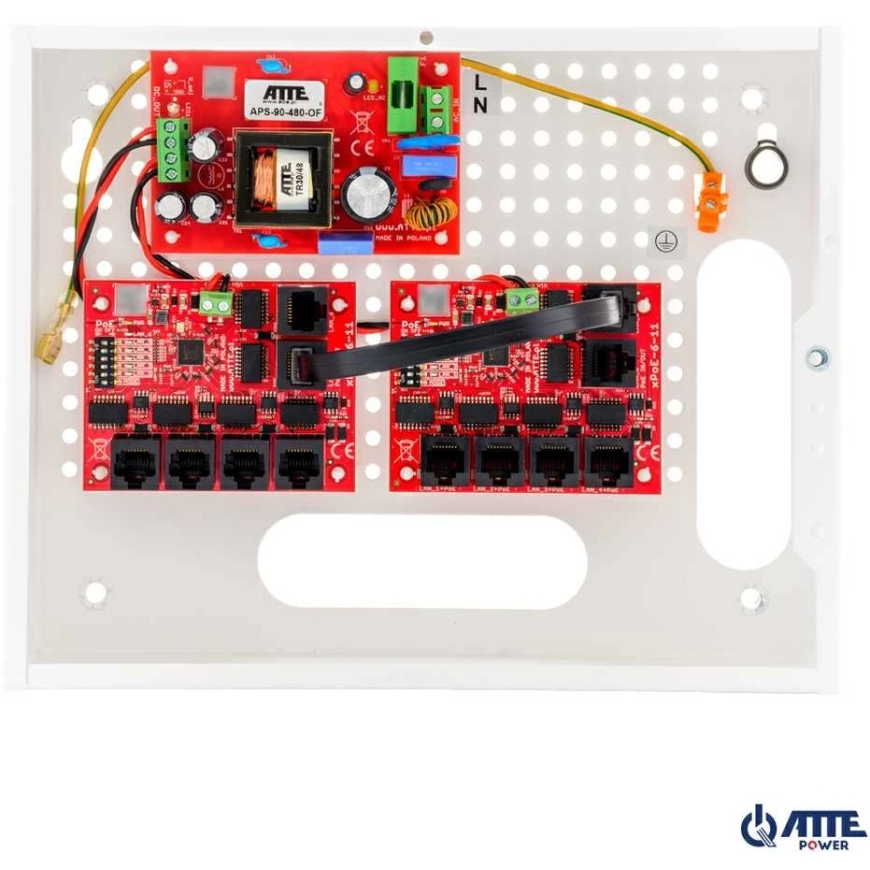

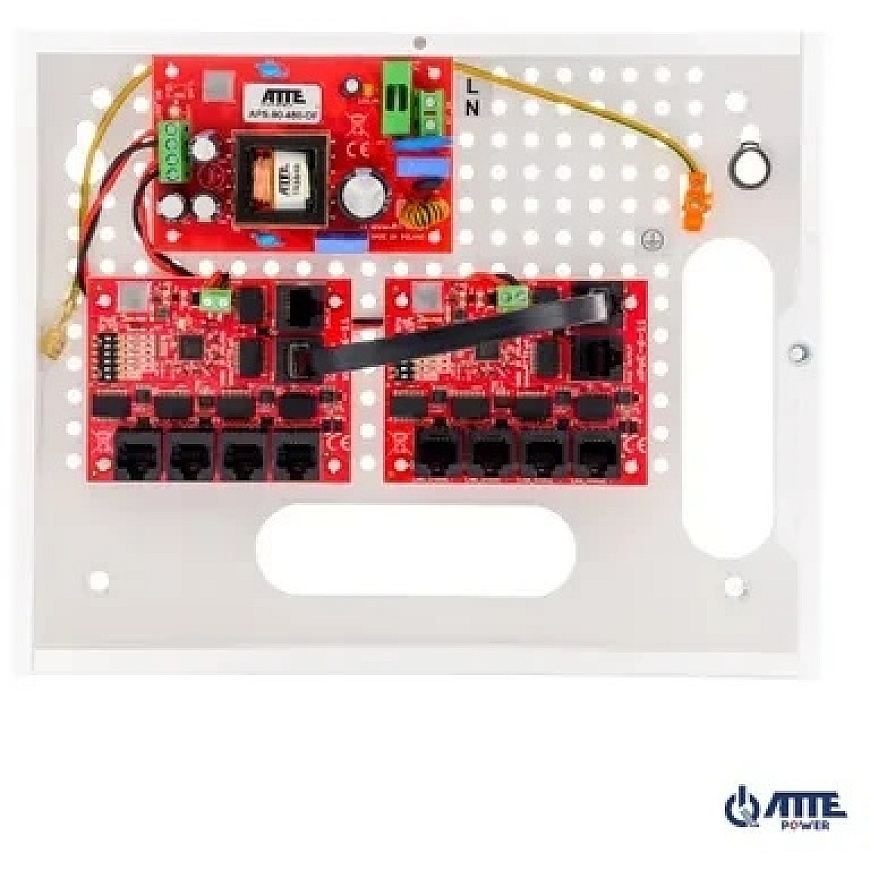

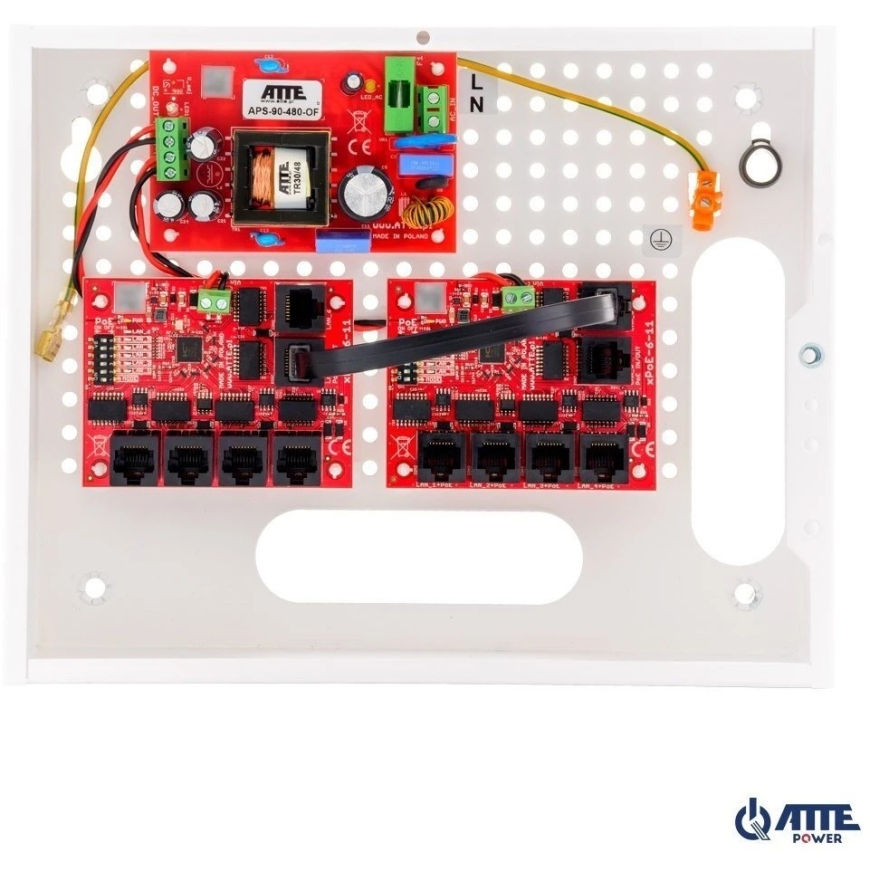

9 IP Switch PoE Camera Set 9P+1UP ATTE IP-9-11-E
5052595 IP-9-11-E
5902143690320
Shipping 8-12 b.d.
All about the product
Set for 9 IP Cameras, PoE Switch 9P+1UP ATTE IP-9-11-E
Purpose
The IP-9-11-E is a ready-to-use set designed to power an IP CCTV system consisting of nine IP cameras. The electronic PoE output protection ensures uninterrupted operation of the entire system in case of a short circuit or overload of individual power lines, and the voltage is automatically restored after a power outage. The "long-range" mode allows increasing the transmission distance up to 280 m using a standard UTP cable.
Sets with a PoE switch are designed to work with IP cameras and other network devices powered according to PoE 802.3at/af and PoE PASSIVE standards.

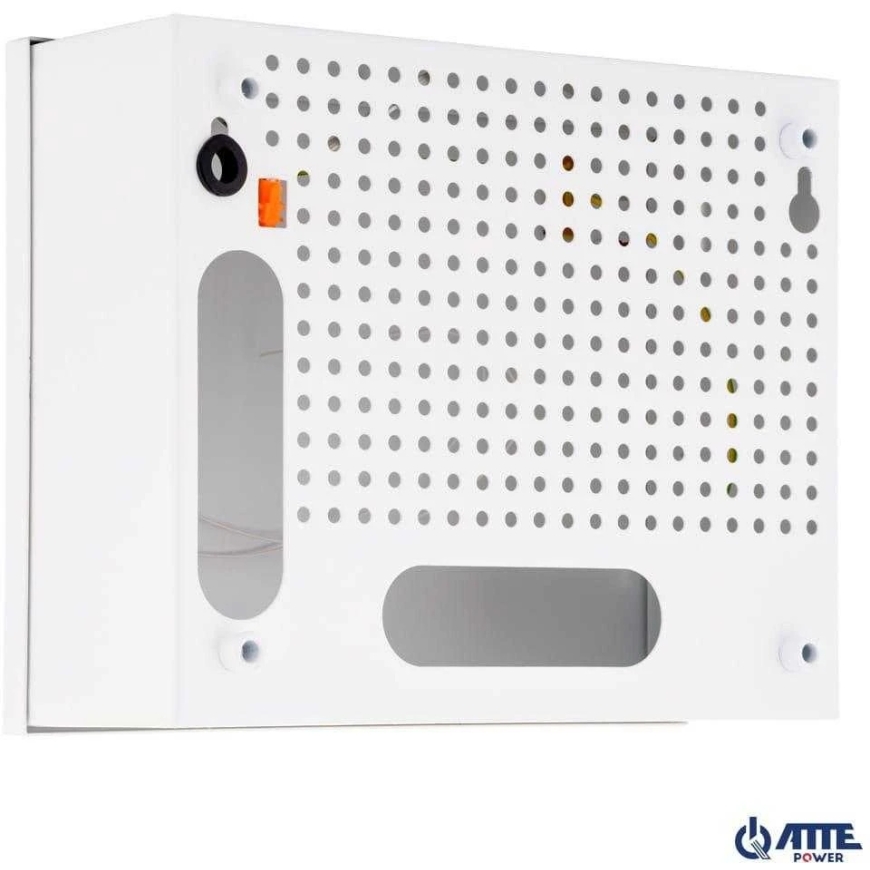

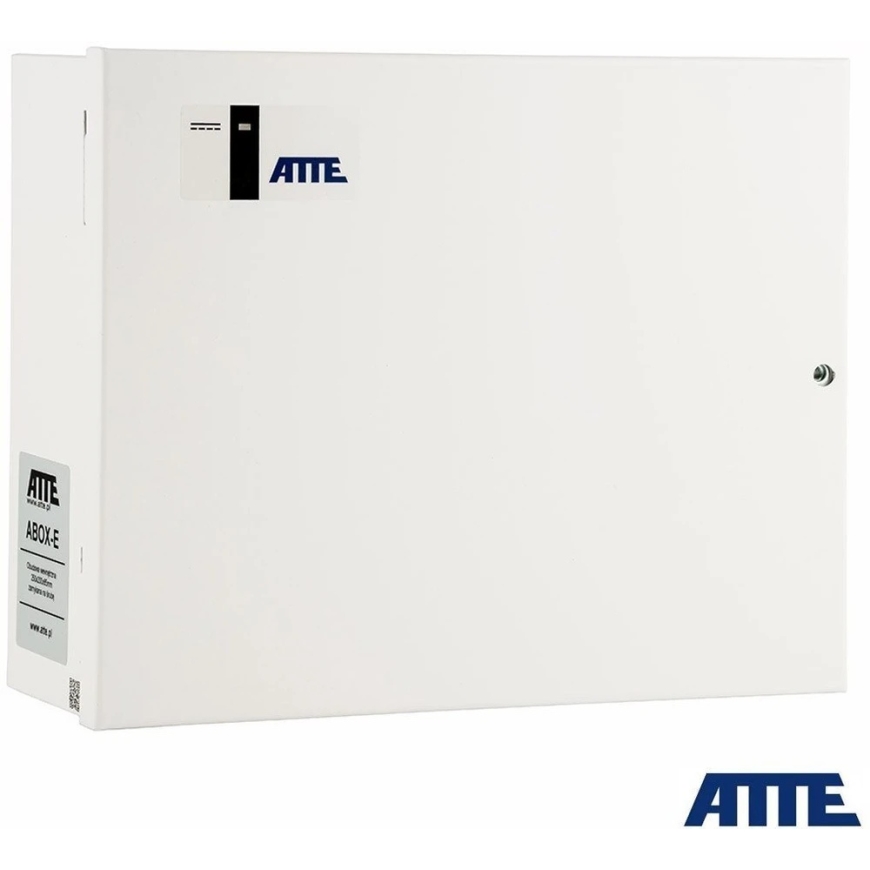

ABOX series enclosures offer a convenient solution for aesthetically pleasing device installation and internal wiring management. All enclosures are made of sheet steel coated with semi-matte white powder. Production using modern manufacturing lines ensures the highest quality and precision. Each enclosure features a screw lock, removable doors, and a tamper protection switch. Available models feature a special 10.8 mm grid layout compatible with the mounting hole spacing of built-in modules. This system allows vertical or horizontal mounting of selected devices at any pre-drilled location in the enclosure.
Main Features
- ability to power 9 PoE 802.3at/af or PASSIVE receivers
- Data transmission distance up to 280 m (in long-range mode)
- electronic fuse, independent for each PoE channel (automatic recovery)
- ability to turn off power on selected PoE ports
- clear optical indication of power and data transmission status
- up to 70 W power on LAN_5 PoE IN/OUT port
- up to 40 W power on other PoE ports
- easy and quick startup without parameter configuration
- high efficiency of the power module (>90 %)
- easy and quick installation due to modular design
- easy system expansion and scalability by adding additional xPoE / IP and IPB / IPUPS series switches
- module installation at any enclosure opening (grid system)
- ability to store spare wires inside the enclosure
- cable entries at the back of the enclosure
- distance to wall / mounting surface
Specification
| LAN Ports | 10 RJ45 ports 10/100 Mbps (9xLAN+PoE, 1xUplink) |
| Supported PoE Receivers (standard / maximum power) | 802.3af – up to 15.4 W LAN_1...LAN_5 802.3at – up to 30 W LAN_1...LAN_5 PoE PASSIVE – up to 70 W LAN_5 / up to 40 W LAN_1...LAN_4 |
| PoE Outputs (standard / power mode) | LAN_1...LAN_5 POE PASSIVE, B mode (4,5+) (7,8-) |
| PoE Output Protection (overcurrent / short circuit) | LAN_1...LAN_40.75A / electronic (automatic recovery)LAN_51.25A / electronic (automatic recovery) |
| Micro Switch SW1 | 1 "MODE" switch – switch operational mode, 2–6 "PoE ON/OFF" switches – PoE power on LAN_1–LAN_5 ports |
| "Standard" Operating Mode | 1 "MODE" switch OFF position LAN_1...LAN_6 – operational range up to 100 m (10/100 Mbps) |
| Long Range Operating Mode | 1 "MODE" switch ON position LAN_1...LAN_4 – operational range up to 280 m (10 Mbps) LAN_5...LAN_6 – operational range up to 100 m (10/100 Mbps) |
| AC Adapter (type/type) | Switching SMPS / APS-90-480-OF |
| Power Supply Output Protection (overcurrent / short circuit) | 9A, electronic (after short circuit, may need to restart power supply) |
| Power Supply Thermal Protection | TSD (thermal shutdown) 130 °C, requires reset |
| Power Supply Input Voltage Range / Input Protection | 180...240 V AC / T3,15 A fuse F1 |
| Power Supply Output Power (continuous) | 96W |
| Power Supply Efficiency | 92 % at 90 W load |
| Power Supply Output Voltage (for powering PoE cameras) | 48 V +/- 2 % |
| Enclosure Assembly | Wall-mounted, mounting holes 6 mm |
| Mounting Devices Inside the Enclosure | system hole punching 4.8 mm 10.8 mm grid |
| Operating Temperature Range | -10°C...+40°C |
| Enclosure (type / material / color / protection / cable entries) | ABOX-E / metal / white / access protection / at the back of the enclosure, distance from the wall |
| Dimensions / Net Weight / Protection Class | 250 x 200 x 85 mm / 1.52 kg / IP20 |
