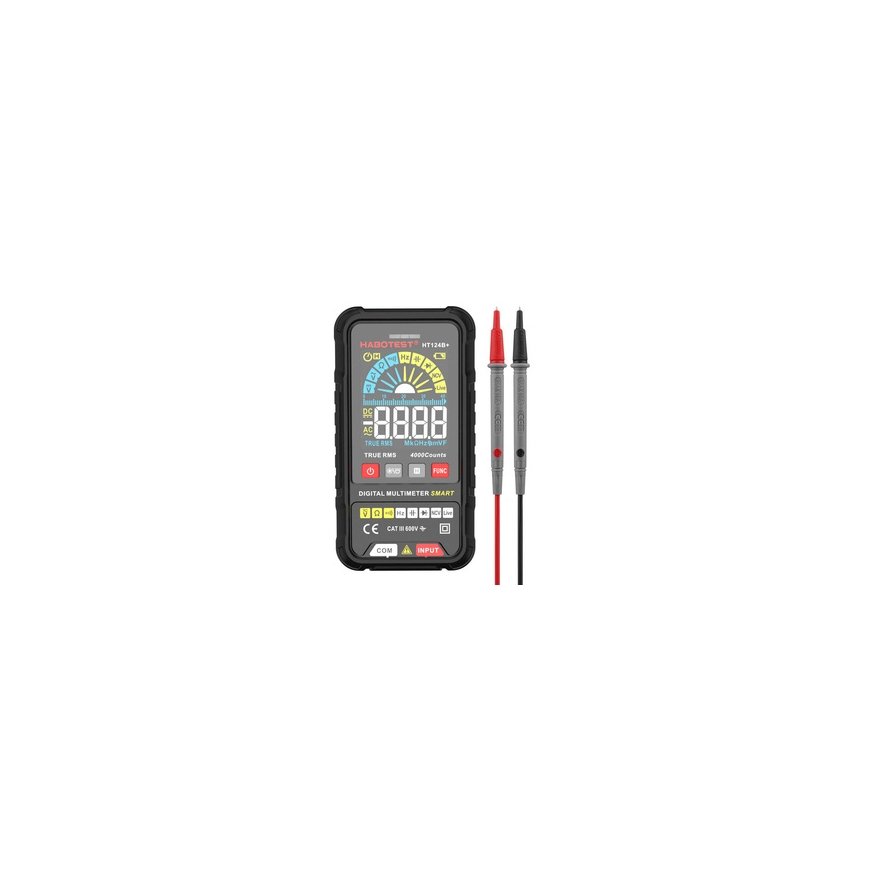

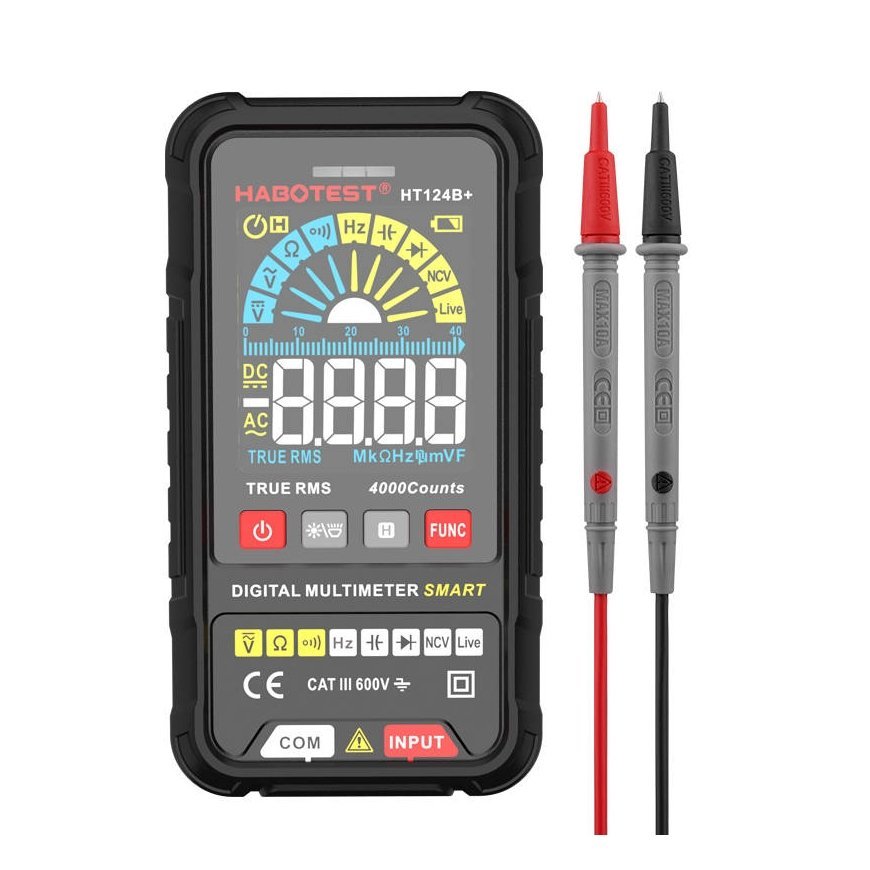

Habotest HT124B+ Digital Universal Multimeter
Habotest HT124B+ Digital Universal Multimeter

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Habotest HT124B+ Digital Universal Multimeter

39,00 €
Monthly payment from 1.90
1611045

HT124B+

5907489609470

Shipping 3-5 b.d.

Quantity
You are interested in this product?
(Read terms of service)

Habotest HT124B+ digital universal multimeter

Habotest HT124B+ digital multimeter is a multifunctional device that will prove useful during electrical work. The product allows you to measure voltage, resistance, capacitance and many other parameters. The multimeter has an easy-to-read display that allows you to conveniently read the measurement results, plus it is equipped with a flashlight and practical buttons.



Many useful functions

Habotest HT124B+ digital universal multimeter is a handy device that surprises with the enormity of its capabilities. It allows to measure with high precision AC and DC voltage, resistance, continuity or capacitance, among others. In addition, it offers a Live Test function, enables diode testing, non-contact voltage detection (NCV) and much more. Importantly, the multimeter has practical buttons with which you can efficiently select a function.



well-designed

Thanks to its small size (130 x 70 x 23 mm), the device fits well in the hand and provides high comfort. It is powered by two AAA batteries (available for sale separately), which you can easily remove and replace. The soft material housing is pleasant to the touch, plus it provides effective insulation and is drop-resistant.



Included



    • Digital universal multimeter

    • test leads

    • user's manual



Specification:


Producerhabotest
ModelHT124A+HT124B+
DC voltage measurement range400mV/4V/40V/400V/600V400mV/4V/40V/400V/600V
AC voltage measurement range4V/40V/400V/600V4V/40V/400V/600V
resistance measurement range400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ
Capacitance measurement range-4nF/40nF/400nF/4µF/40µF/400µF/4mF
frequency measurement range4Hz/40Hz/400Hz/4kHz/40kHz4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/4MHz
Live TestYes, sound and light alarmYes, sound and light alarm
NCVYes, sound and light alarmYes, sound and light alarm
diode testing-Yes, 0~2V
Continuities<50ꭥ<50ꭥ
Number of counts40004000
data storageYesYes
True RMS valueYesYes
Low battery indicatorYesYes
Automatic power off functionYesYes
illuminationYesYes
flashlightYesYes
power supply2x 1.5V AAA batteries2x 1.5V AAA batteries
SafetyEN61010-1, CAT III 600VEN61010-1, CAT III 600V
weight125g125g
dimensions130 x 70 x 23mm130x70x23mm
