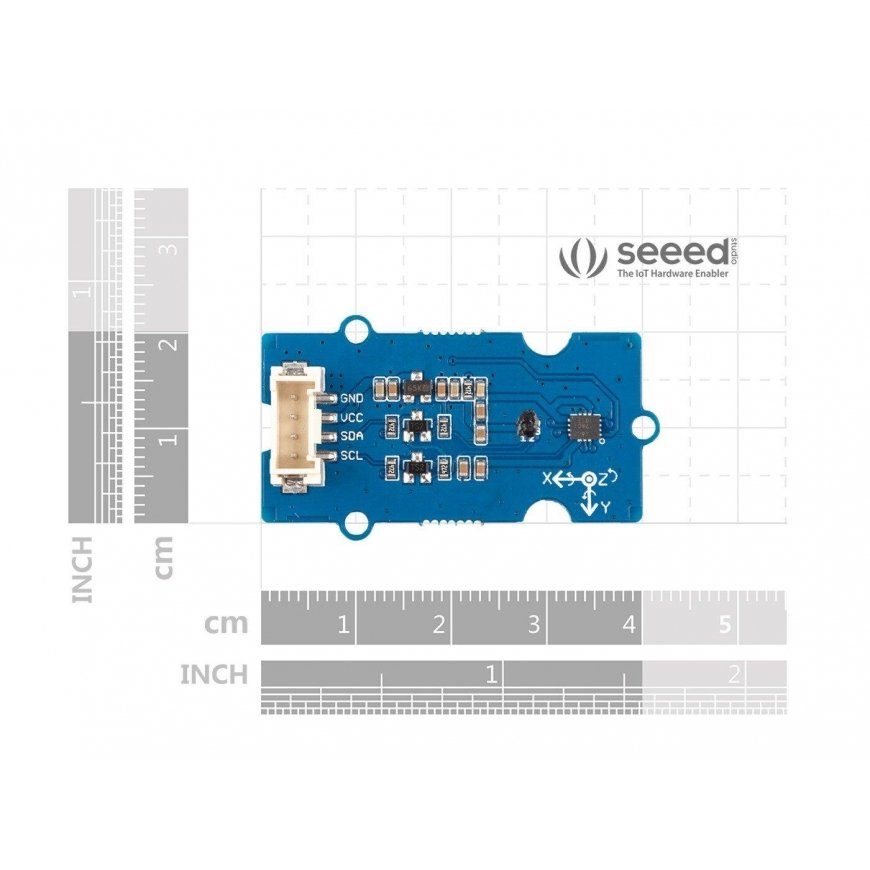

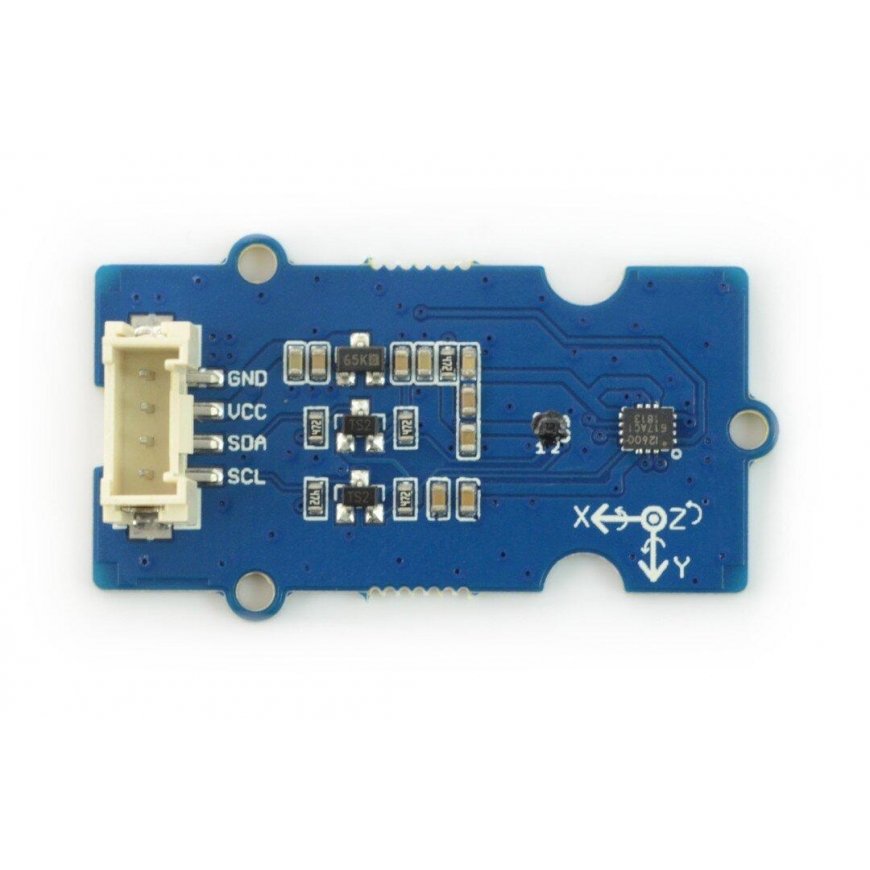

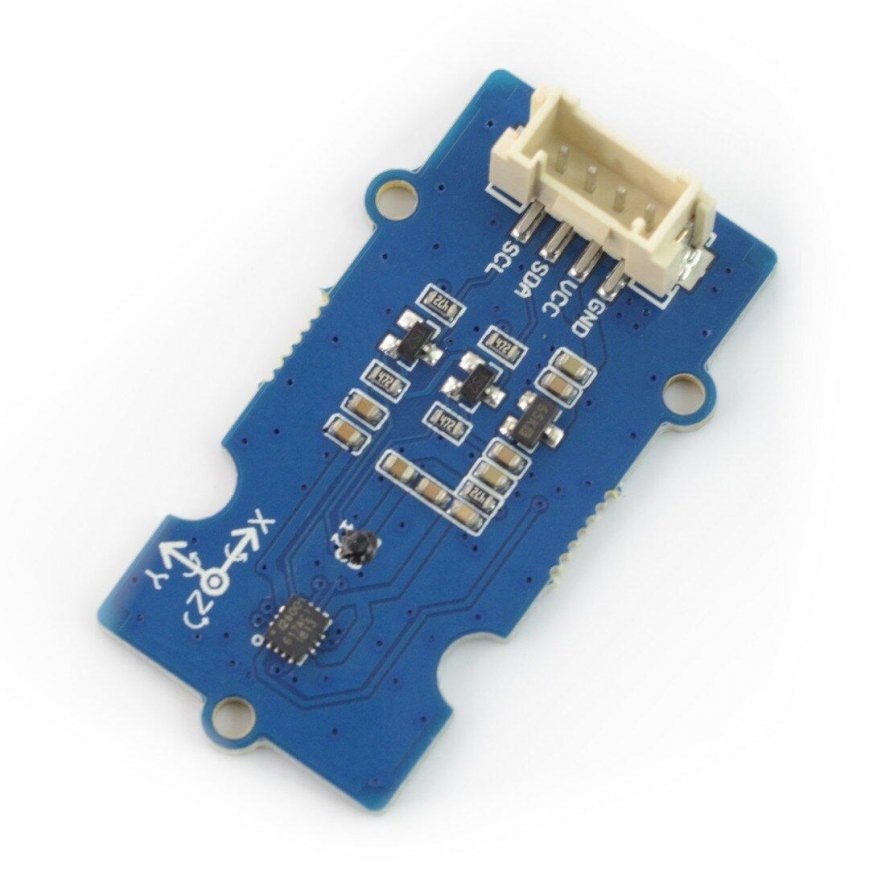

Seeed Studio Grove, 3-axis accelerometer, gyroscope and magnetometer, ICM20600 + AK09918, I2C
3557416 AN-12916
5904422341510
Доставка 11-18 р.д.
Все о продукте
Grove series module for 9-degree inertial navigation (IMU). It acts as a gyroscope, accelerometer and electronic compass. Two chips are responsible for all functions - LCM20600 and AK09918. LCM20600 is a 6-axis motion sensor consisting of a 3-axis gyroscope and a 3-axis accelerometer, and AK09918 is a 3-axis electronic compass with a highly sensitive Hall sensor (0.15 µT / LSB). This allows for 9-level navigation, i.e. angular rotation x/y/z, acceleration x/y/z and magnetic force x/y/z.
Specifications:
- Supply voltage: 3.3V/5V
- Operating temperature: -30 °C to 85 °C
- Gyroscope ranges: ±250 dps, ±500 dps, ±1000 dps ±2000 dps
- Gyroscope sensitivity for each range:
- 131 LSB/(dps) ±250 dps
- 65.5 LSB/(dps) ±500 dps
- 32.8 LSB/(dps) ±1000dps
- 16.4 LSB/(dps) ±2000dps
- Accelerometer ranges: ±2g, ±4g, ±8g, ±16g
- Accelerometer sensitivity for each range:
- 16384 LSB/g ±2g
- 8192 LSB/g ±4g
- 4096 LSB/g ±8g
- 2048 LSB/g ±16g
- Magnetic sensor range: ±4912 µT (typical)
- Magnetic sensor sensitivity: 0.15 µT (typical)
- Interface: I2C

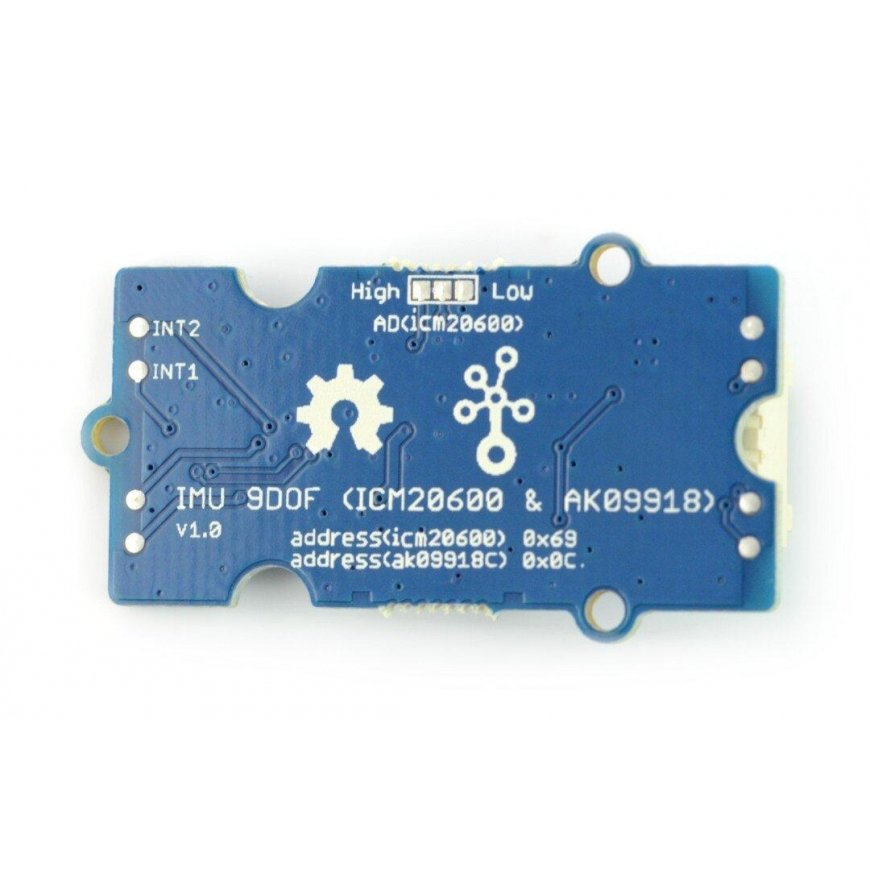

- LCM20600 I2C address: 0x69 (default), 0x68 (optional)
- AK29918 I2C address: 0x0C
Included:

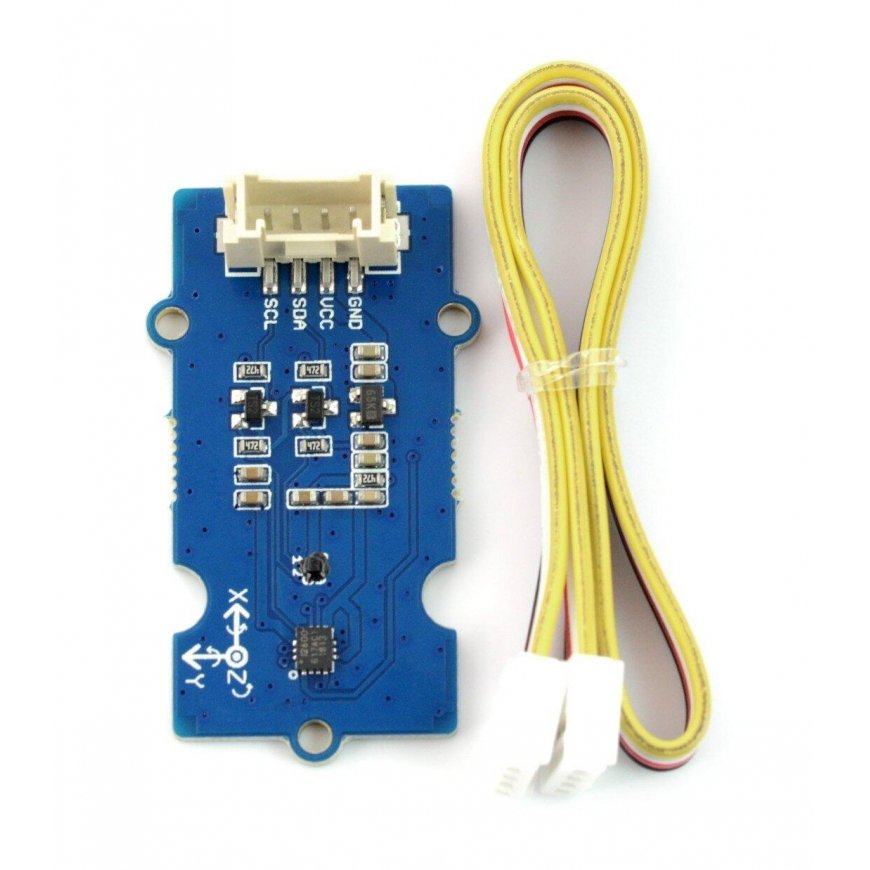

- Grove - IMU 9DOF (LCM20600 + AK09918)
- Grove Cable
