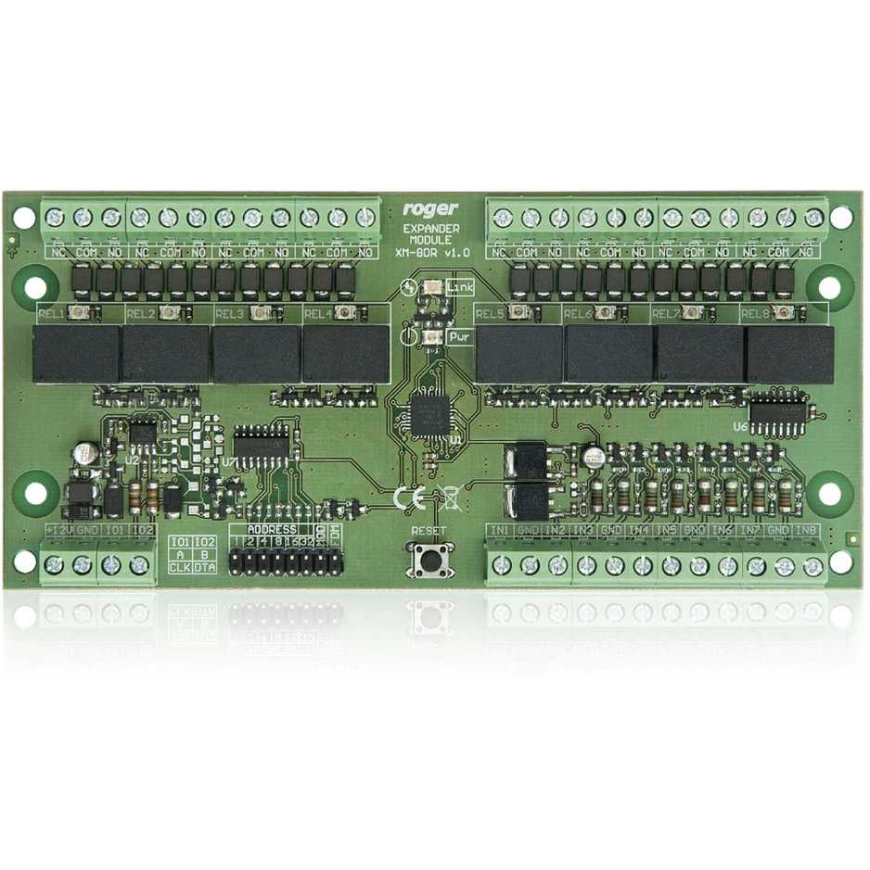

Expander Mes/mes ROGER XM-8DR-BRD

MAIN FEATURES

• Eight NO/NC inputs
• Eight relay outputs with one NO/NC contact, 1.5 A / 30 V DC
• Connection via RACS CLK/DTA protocol
• Version in the form of an embedded electronic module
• Capability to operate in standalone mode as a relay module

PURPOSE

XM-8DR-BRD is an input/output expansion module designed for devices compatible with the RACS CLK/DTA communication protocol. The device features eight NO/NC inputs and eight relay outputs with a load of 1.5 A / 30 V DC.

TECHNICAL SPECIFICATIONS

• Parameter : Value
• Power Supply Voltage : nominal 12 V DC, permissible 10–15 V DC
• Current Consumption : 25 mA plus 40 mA for each activated relay
• Relay Load : 30 V DC / 1.5 A
• Input Lines : two-state NO/NC input lines, internally connected to the power supply positive through a 5.6 kΩ resistor, switching threshold around 3 V
• Maximum Distance : between the controller and XM-8DR module: max. 150 m
• Environmental Class (according to EN 50131-1) : Class IV, -25 °C..+60 °C, humidity 10–95 % (without condensation)

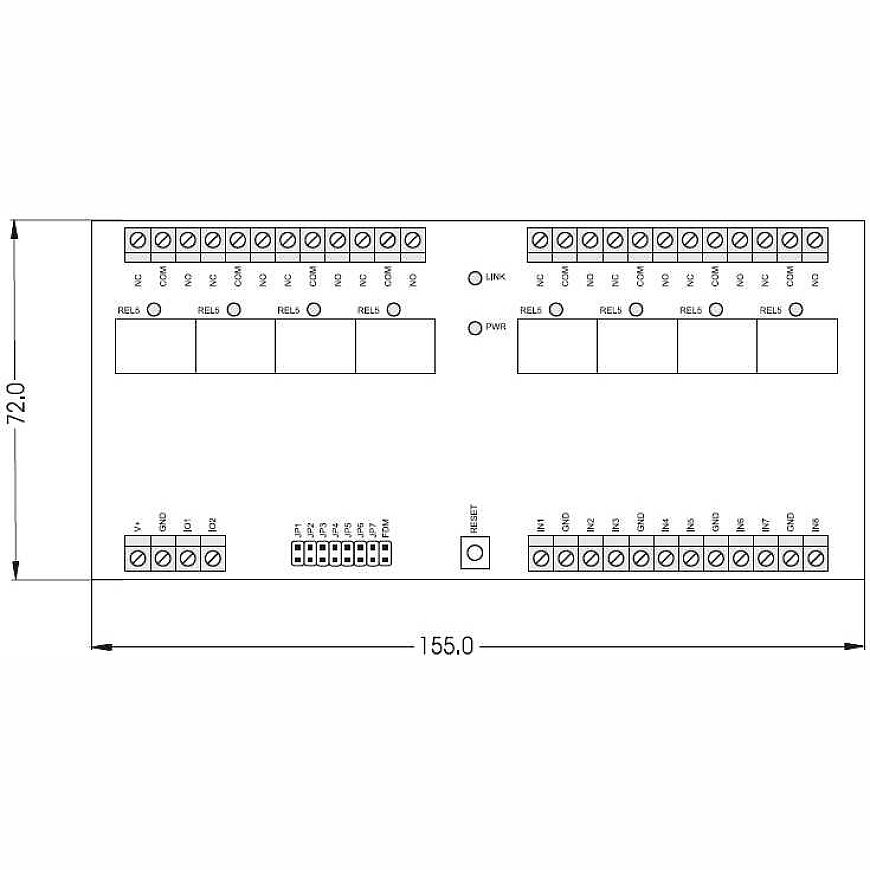

• Dimensions (height x width) : 72 x 155 mm
• Weight : 115 g
• Certificates : CE mark
