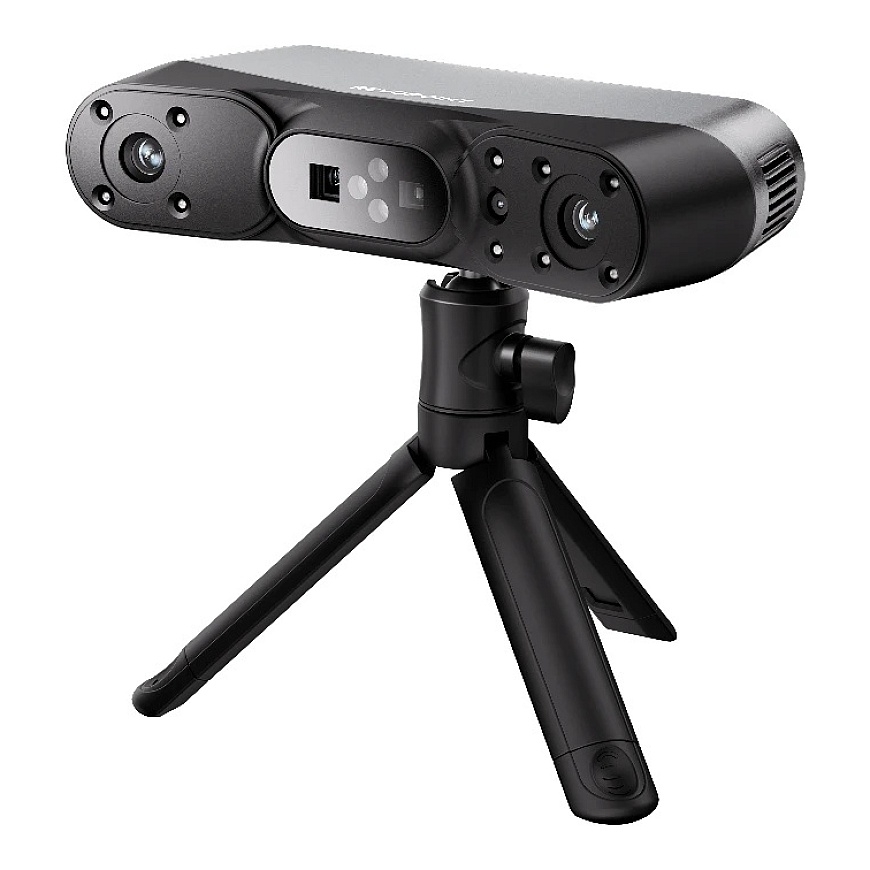

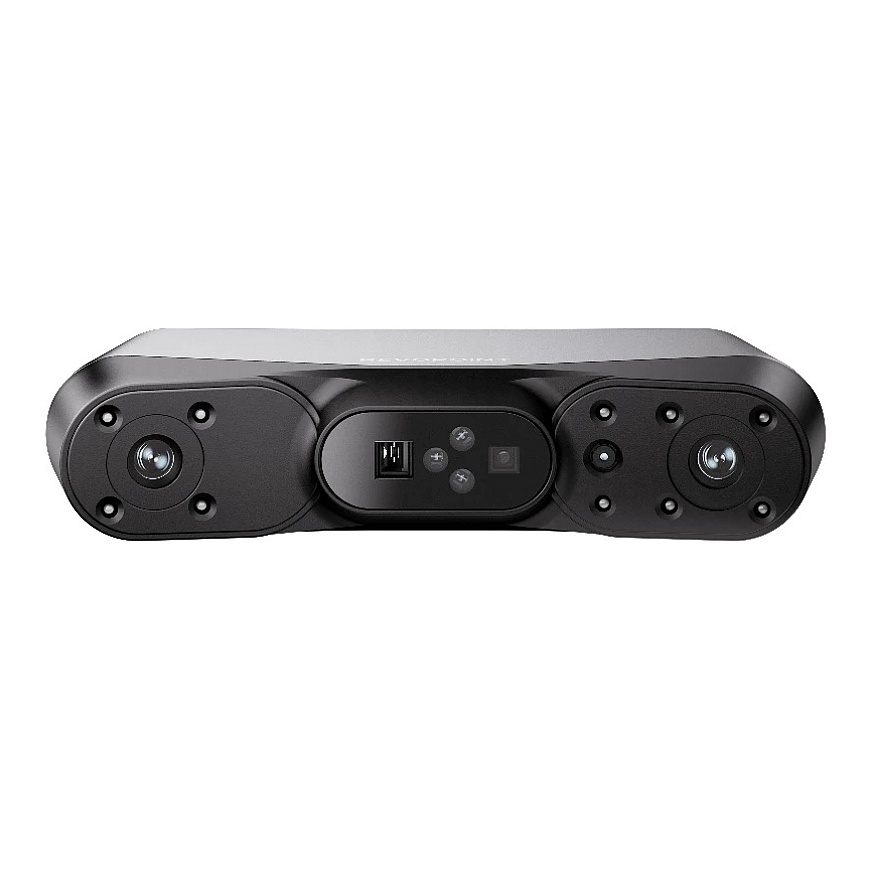

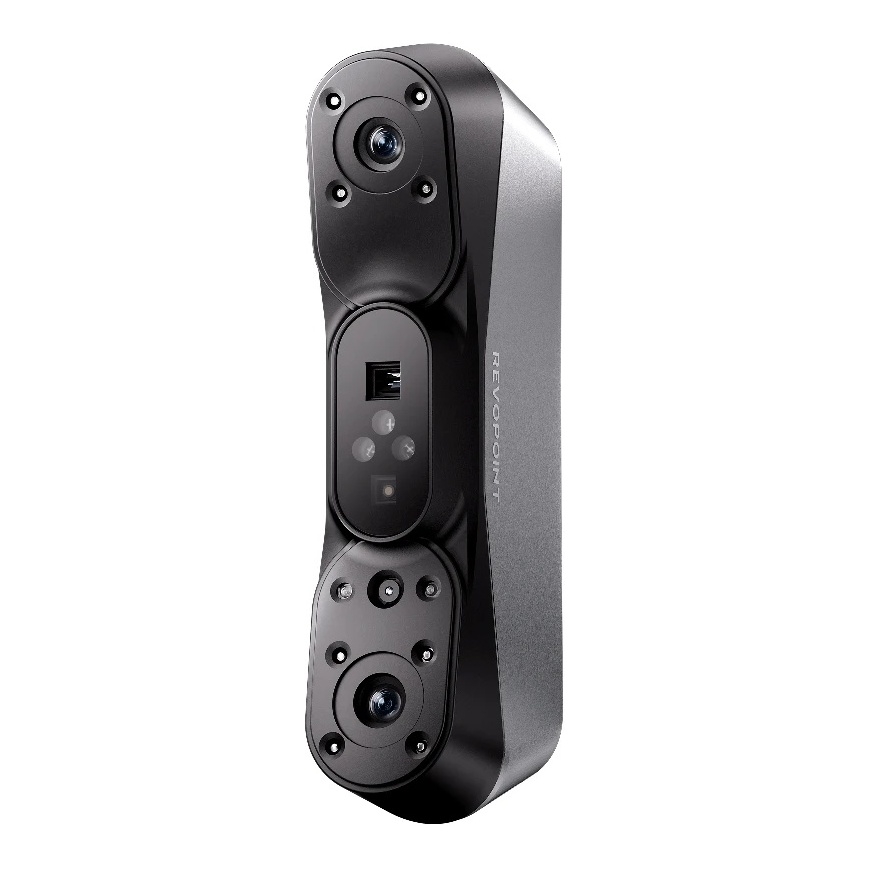

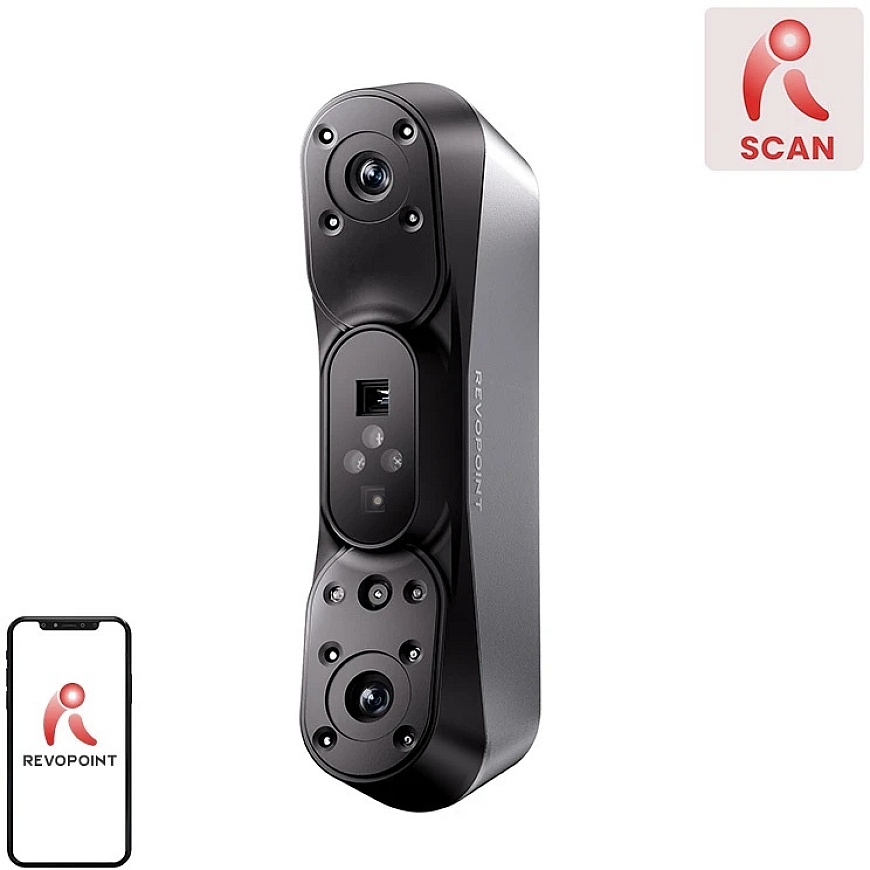

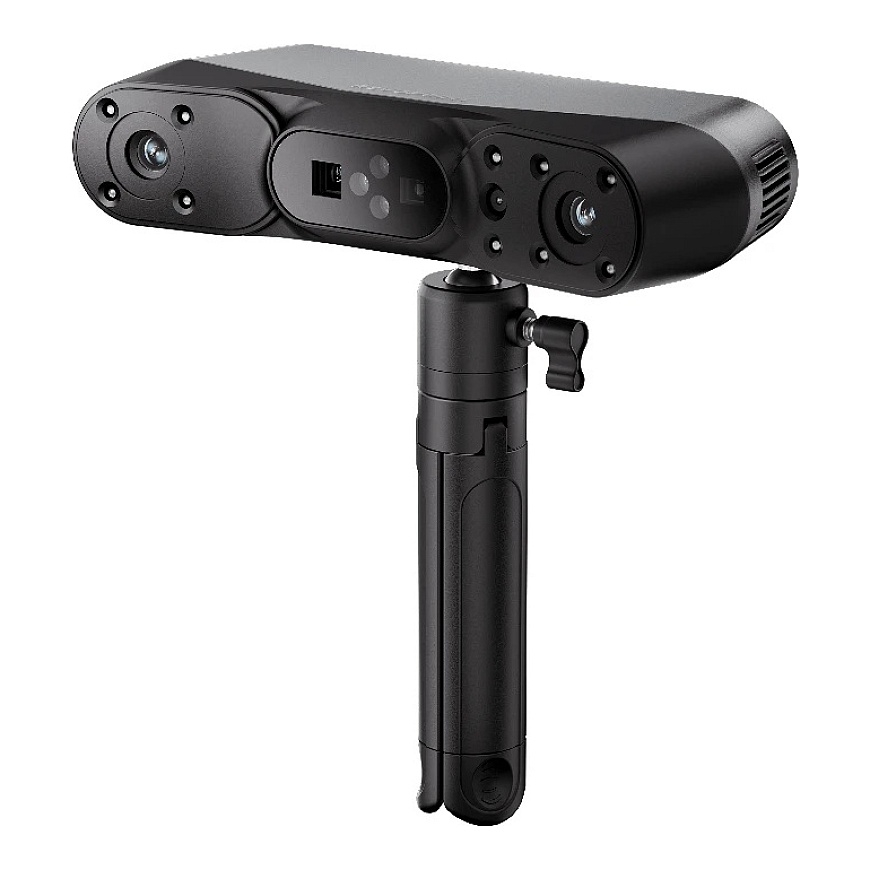

Revopoint POP 4 3D Scanner – Premium Quality Version

The Revopoint POP 4 is an advanced 3D scanner designed for both portable and desktop use, featuring three data capture technologies: blue multi-line laser, full-field infrared structured light, and VCSEL projection. The device ensures precision of up to 0.03 mm in laser mode, RGB color scanning, real-time artificial intelligence segmentation, and supports Gaussian point cloud models. Capable of handling objects from 10 × 10 × 10 mm to 2 × 2 × 2 m, with Wi-Fi 6 and USB-C connectivity and compatibility with Windows, macOS, Android, and iOS, the POP 4 is ideal for product design, reverse engineering, quality control, object digitization, and model preparation for 3D printing.

High Precision for Complex Needs

The POP 4 is designed for users requiring high-precision geometric mapping. In multi-line laser mode, the device achieves up to 0.03 mm single measurement accuracy, allowing the capture of fine details of mechanical parts, technical models, or industrial components. The point cloud density up to 0.05 mm enables the creation of detailed models ready for further processing with CAD software or 3D printing. Volumetric accuracy of 0.03 mm + 0.05 mm × L(m) is achievable only when operating in laser modes, making it a worthwhile consideration when maximum dimensional accuracy is required.

Three Scanning Technologies Tailored for Different Projects

The scanner utilizes three independent data capture technologies, allowing users to select the appropriate mode based on the object type. The multi-line laser mode with 30 crosslines is designed for scanning technical components and surfaces requiring high accuracy. Full-Field HD, using infrared structured light, allows for convenient scanning of faces, figures, and objects without markers. The VCSEL mode is optimized for larger objects and outdoor use, enabling quick data capture from a greater distance.

Photorealistic Models Created Using Gaussian Splash Technology

One of the POP 4's standout features is its support for Gaussian splash technology. Unlike traditional models based solely on meshes, this solution allows for the creation of photorealistic 3D objects with very high image quality. The technology more accurately reproduces light interaction with material surfaces, which improves the depiction of reflections, transparency, hair, fabrics, and complex textures. Completed models can be exported in SPLAT format and used in VR, AR, animation, product visualization, and digital media projects.

Real-Time Artificial Intelligence Segmentation

The POP 4 is equipped with real-time artificial intelligence segmentation functionality, which automatically analyzes the scanned scene during operation. AI algorithms recognize the object and promptly eliminate the background, working surface, and other unwanted environmental elements. The system can also detect hands holding the scanned object and remove them from the model without additional user intervention. This results in significantly cleaner models right from the scanning stage, reducing the time needed for further processing.

Fast Scanning and Smooth Object Tracking

Depending on the selected mode, the POP 4 can capture at a speed of between 15 and 105 frames per second. Laser mode allows capturing up to 2 million points per second, ensuring high precision and smooth operation. In full-field mode, the number of captured points increases to 5 million points per second, accelerating the digitization of larger objects. These parameters facilitate the scanning of both fine details and more complex structures.

Scanning Dark and Glossy Surfaces

The advanced laser projection system effectively captures many surfaces that traditionally pose challenges during 3D scanning. The POP 4 performs well with dark objects, mechanical parts, and many shiny materials, without the need for a matte spray. For transparent or highly reflective surfaces, the manufacturer still recommends using a special scanning spray to achieve the best results.

Indoor and Outdoor Use

The scanner can be used outdoors when the lighting intensity reaches up to 100,000 lux. The VCSEL mode is designed to effectively reduce the impact of ambient light on the scanning process, making the scanner usable even in strong sunlight. However, please note that the stated resistance applies to a maximum of 100,000 lux, and should not be interpreted as functioning under absolutely any lighting conditions. Additionally, using the optional outdoor blue light filter allows for detailed laser scanning even in very bright environments.

Flexible Working Range

The "POP 4" allows you to adjust the working distance according to the task at hand. In multi-line laser mode, scanning is possible from 200 to 400 mm, which facilitates capturing fine details. The Full-Field HD and Hybrid HD modes operate within the 250–500 mm range. The VCSEL technology offers the greatest range, enabling scanning from 300 to 800 mm, making it easier to digitize larger objects and human figures.

Ready-to-print Models for 3D Printing, CAD and Reverse Engineering

The device comes with "Revo Scan 6" software, allowing users to capture, edit, and export models into popular formats used in professional applications. Support for STL, OBJ, PLY, FBX, GLTF, 3MF, ASC, and SPLAT makes it easy to integrate scanned data with CAD software, design environments, and tools for preparing 3D prints. Due to its high precision and versatility, the POP 4 is used in reverse engineering, product design, quality control, animation, digital content creation, and documenting historical monuments.

Premium Version Features

The "Revopoint POP 4 KS Special Edition" is an enhanced version of the kit designed for users who often work outside of offices or workshops. In addition to all components included in the standard version, the special edition features a handle with a 5500 mAh battery, a carrying case, and magnetic outdoor blue light filters. These filters allow the precise laser scanning mode to be used even at 100,000 lux lighting, doubling the standard resistance to ambient light from 50,000 to 100,000 lux. As a result, detailed laser scans can be performed even in very bright daylight, which was previously challenging for the VCSEL mode. This equipment enhances the mobility of the kit and facilitates outdoor projects that require maximum detail recovery accuracy.

Included

• Revopoint POP 4 3D scanner
• Tripod
• USB C to C cord (2 m)
• Mini turntable
• Calibration board
• Reflective markers x 500
• Battery holder
• Power cord for battery holder
• Carrying case
• Magnetic outdoor blue filters
