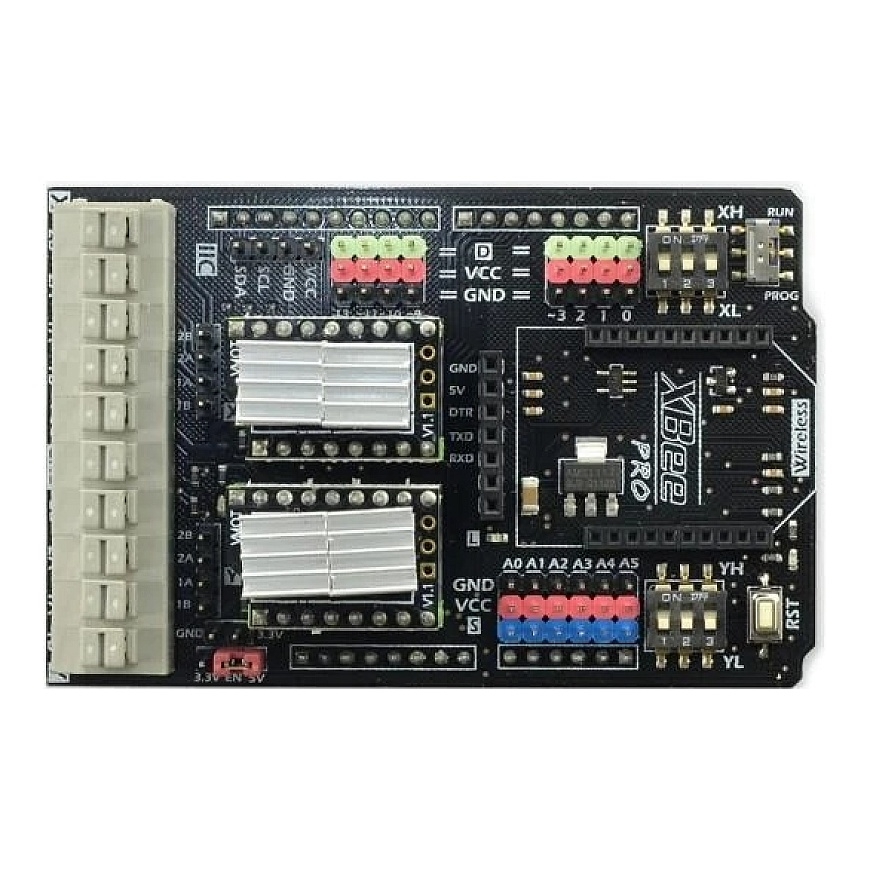

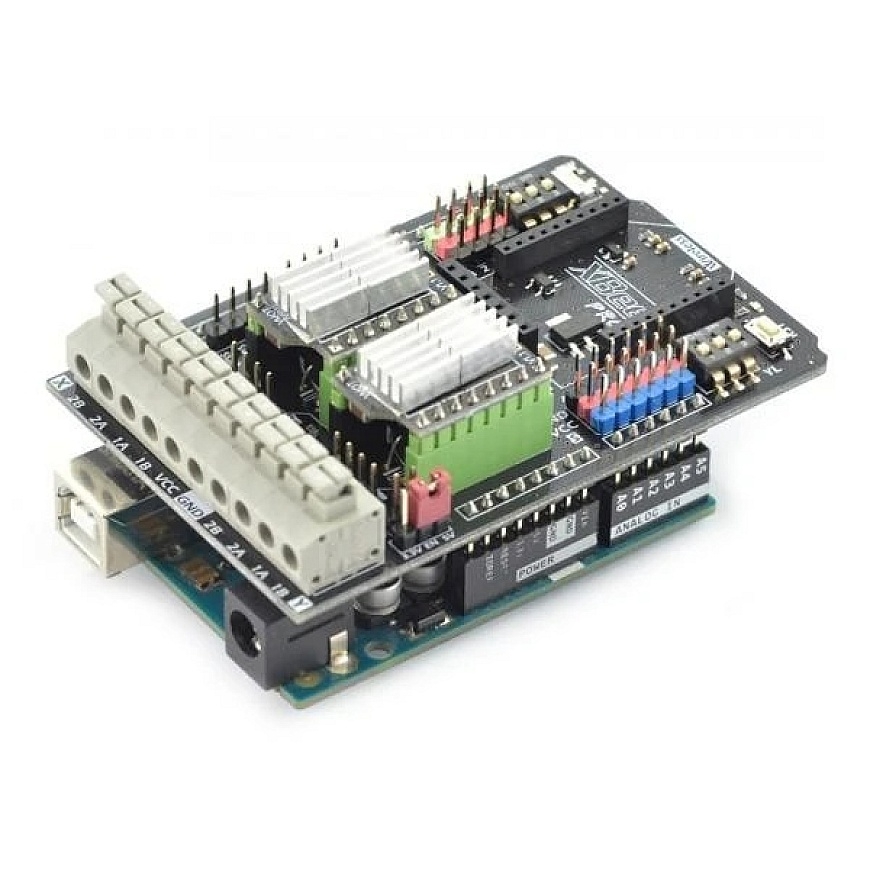

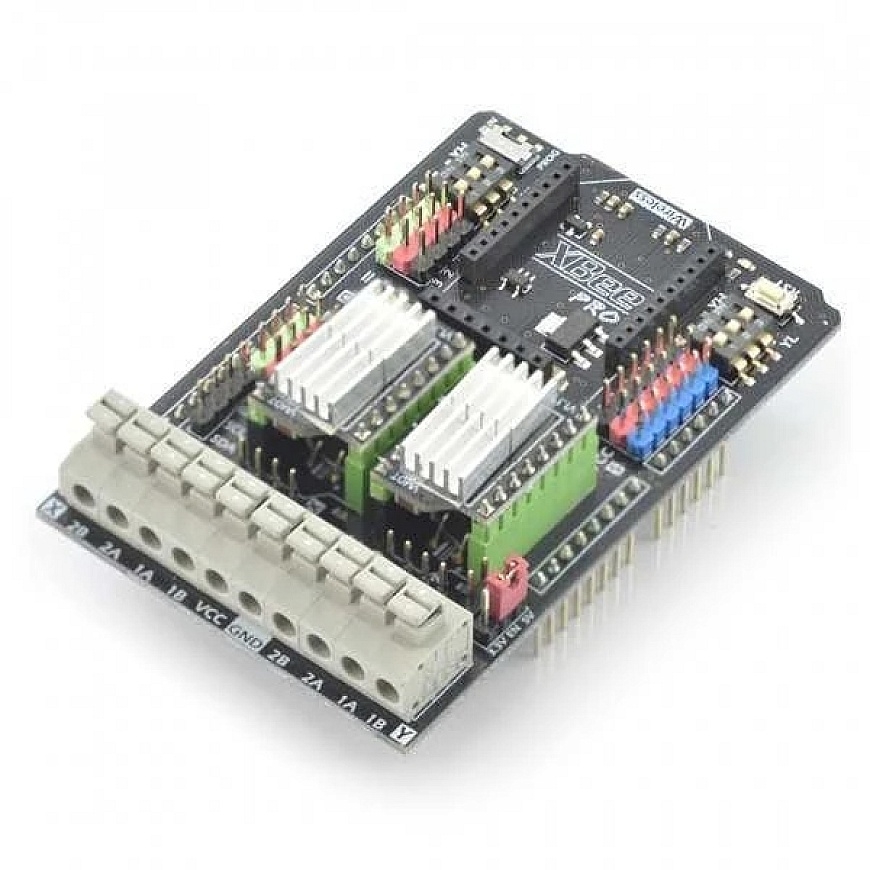

Dfrobot Gravity: Dual-axis Arduino Stepper Motor Driver (DRV8825)
5046834 AN-02690
5904422360986
Shipping 8-15 b.d.
All about the product
It is known that standard stepper motors are difficult to control, but with this stepper motor shield, you can easily control 2 stepper motors using only 6 digital input/output pins. This board is compatible with Arduino UNO R3. The shield directly supports Xbee and Xbee form factor Wi-Fi, Bluetooth, and RF modules and is easily connected via non-screw PC terminals. Each stepper motor has a switch for mode control to achieve different rotation speeds. The board interfaces include advanced 6-channel analog input/output, 8-channel digital input/output, and I2C.
Specifications:
- Input Voltage: 8.2 – 45 VDC
- Output Current: 1.6A (limited)
- Operating Voltage: 3.3/5V
- Control Pins: D4, D5, D6, D7, D8, D12
- Microstep Resolution: full, 1/2, 1/4, 1/8, 1/16, 1/32
- Supports dual bipolar stepper motor
- Supports XBee interface
- Compatible with Arduino UNO R3, Leonardo, and Mega microcontrollers
- Dimensions: 83mm x 55mm x 25mm
- Weight: 48 g
