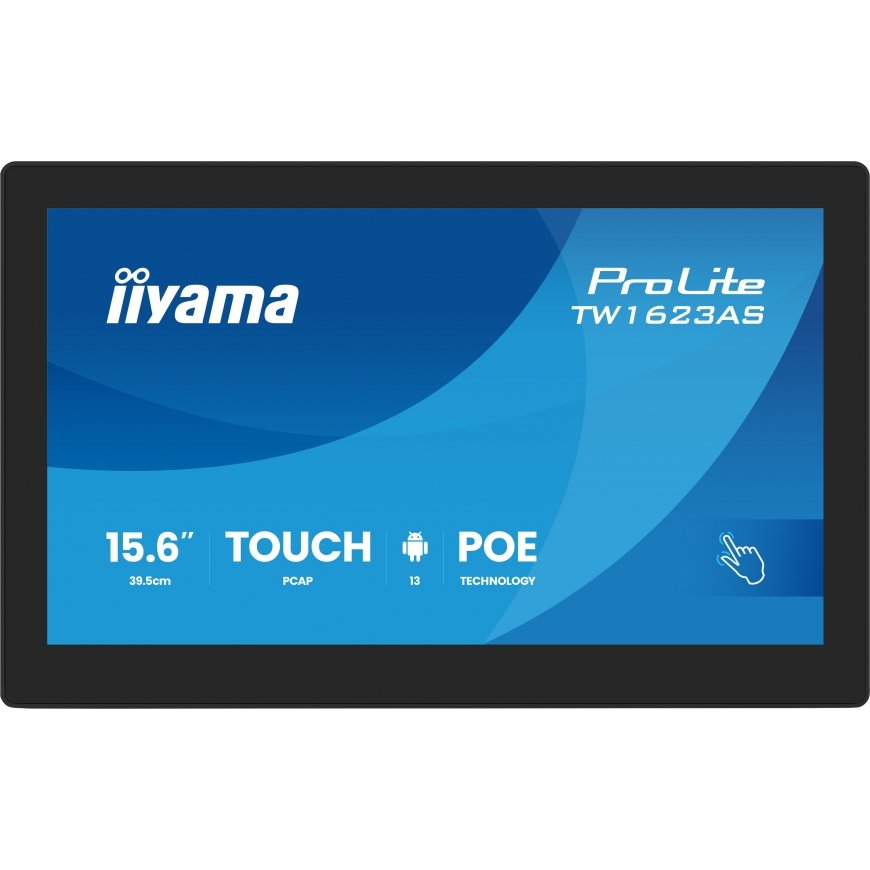

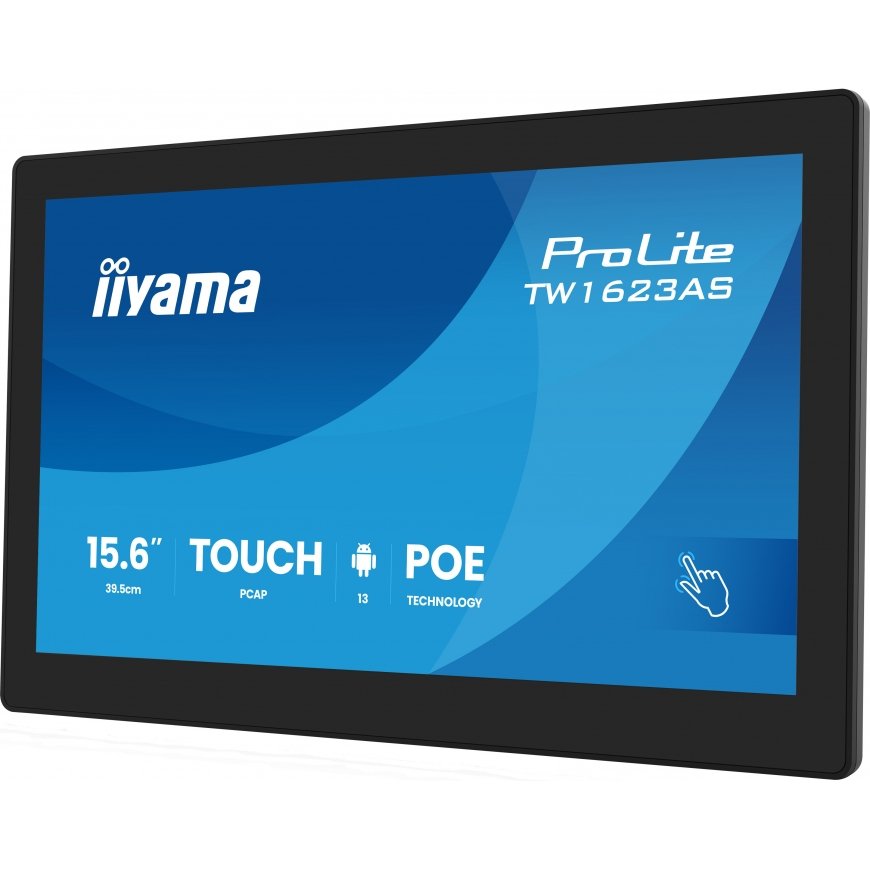

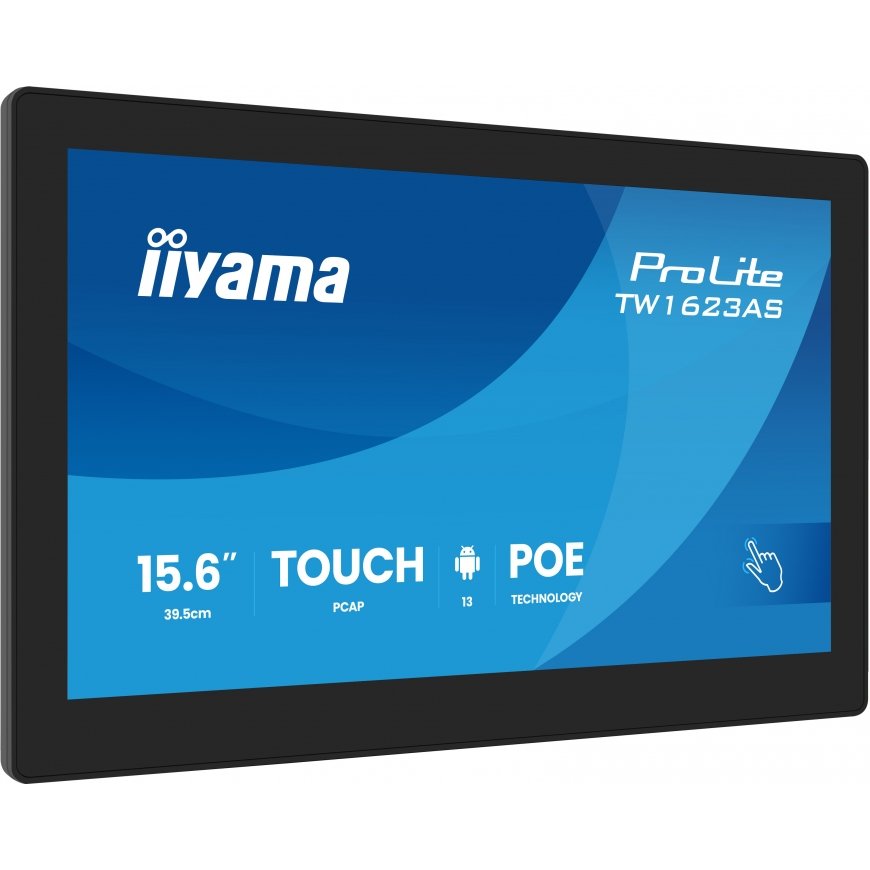

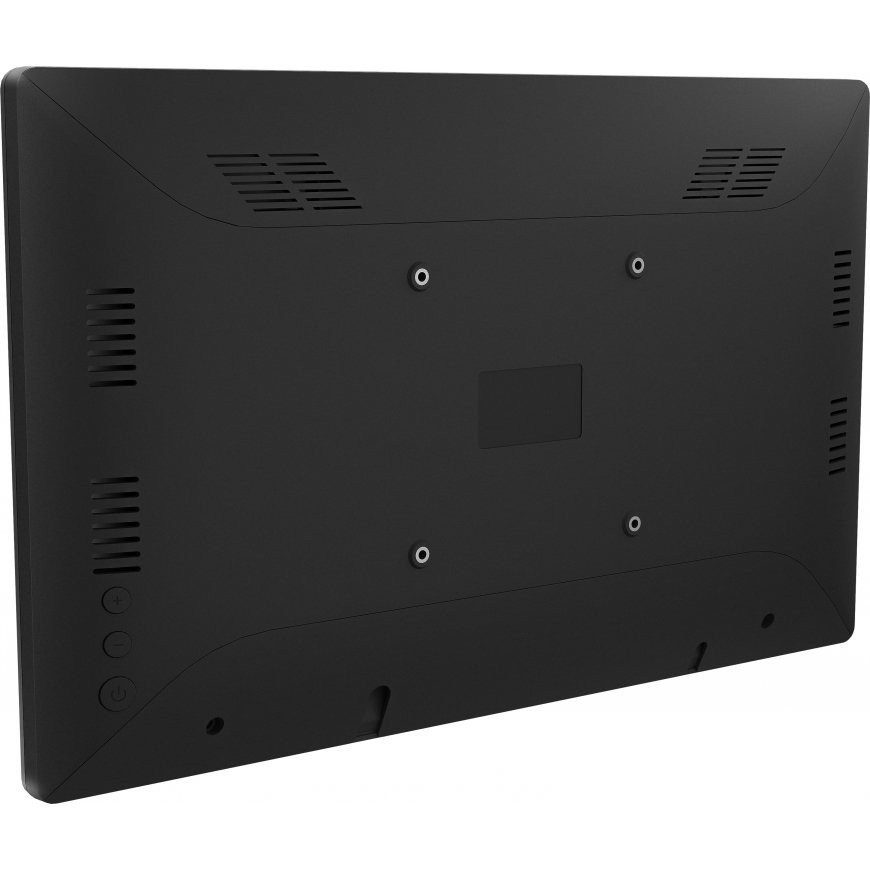

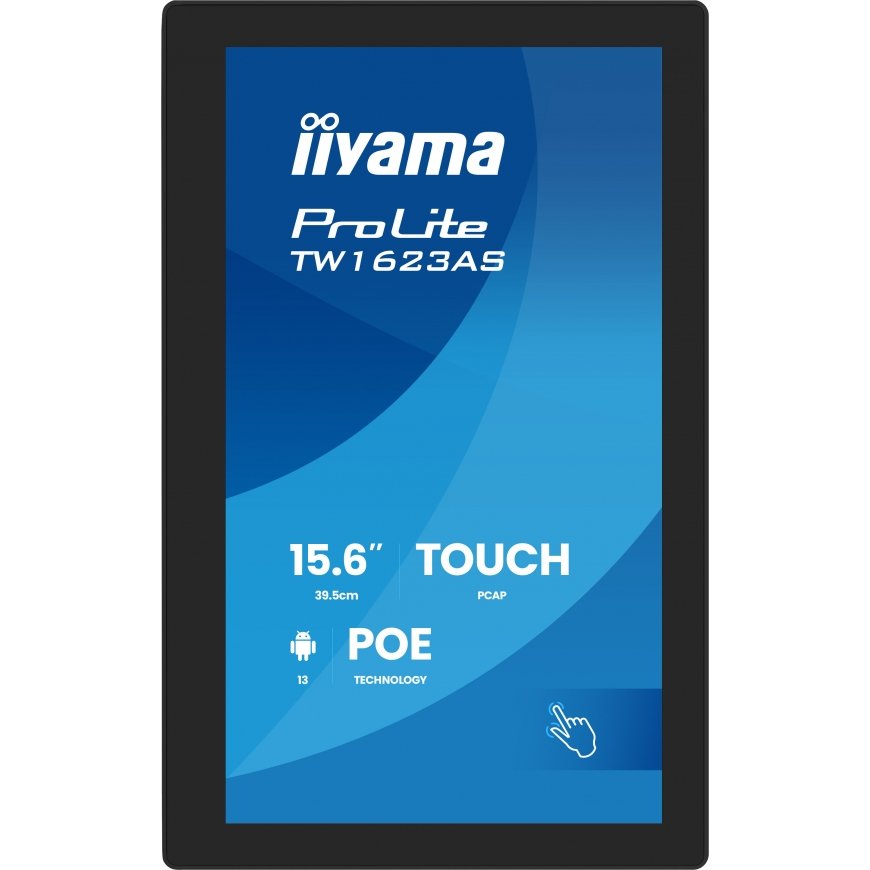

iiyama TW1623AS-B3P computer monitor 39.6 cm (15.6") 1920 x 1080 pixels Full HD LED Touchscreen Black
3919490 TW1623AS-B3P
4948570126934
Shipping 12-13 b.d.
All about the product
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Features
| Display diagonal | 39.6 cm (15.6") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Operating system installed | Android |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| HDMI ports quantity | 1 |
| Width (with stand) | 387 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 244 mm |
| Weight (with stand) | 1.5 kg |
| Touchscreen | Yes |
| Display number of colours | 16.7 million colours |
| Processor frequency | 2 GHz |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor cores | 4 |
| Compatible memory cards | SD |
| Wi-Fi standards | 802.11a; 802.11b; 802.11g; Wi-Fi 4 (802.11n); Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.2 |
| USB version | 2.0 |
| Package width | 477 mm |
| Package depth | 477 mm |
| Package height | 298 mm |
| Package weight | 2.45 kg |
| Power consumption (off) | 0.3 W |
| Quick start guide | Yes |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | Yes |
| Power consumption (typical) | 9 W |
| Built-in speaker(s) | Yes |
| USB ports quantity | 3 |
| Placement supported | Indoor |
| Display technology | LED |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Display diagonal (metric) | 39.5 cm |
| Operating system version | 13 |
| On Screen Display (OSD) | Yes |
| Cable management | Yes |
| HDCP | Yes |
| Power consumption (standby) | 0.5 W |
| Display brightness | 450 cd/m² |
| Power supply type | External |
| Built-in processor | Yes |
| Panel type | IPS |
| Display brightness (typical) | 450 cd/m² |
| Pixel pitch | 0.1792 x 0.1792 mm |
| Response time | 30 ms |
| Touchscreen technology | Projected capacitive system |
| AC adapter output voltage | 12 V |
| Glass thickness | 1.8 mm |
| Number of simultaneous touchpoints | 10 |
| USB Touch port | Yes |
| Active display area (W x H) | 344.2 x 193.6 mm |
| Audio input | Mini Jack |
| Viewable size, horizontal | 34.4 cm |
| Viewable size, vertical | 19.4 cm |
| Operating hours (hours/days) | 24/7 |
| Processor architecture | ARM Cortex-A55 |
| Surface hardness | 6H |
| Colour depth | 8 bit |
| Front bezel colour | Black |
| Mini HDMI ports quantity | 1 |
| Power adapter included | Yes |
| Multi-touch | Yes |
| Response time measurement type | GTG (Gray to Gray) |
