Hot-Swap I2C Buffer - I2C Bus Buffer Module - TCA4307 - Adafruit 5159
21.35 €
3655875 AN-20178
5903351247344
Shipping 11-18 b.d.
You are interested in this product?
All about the product

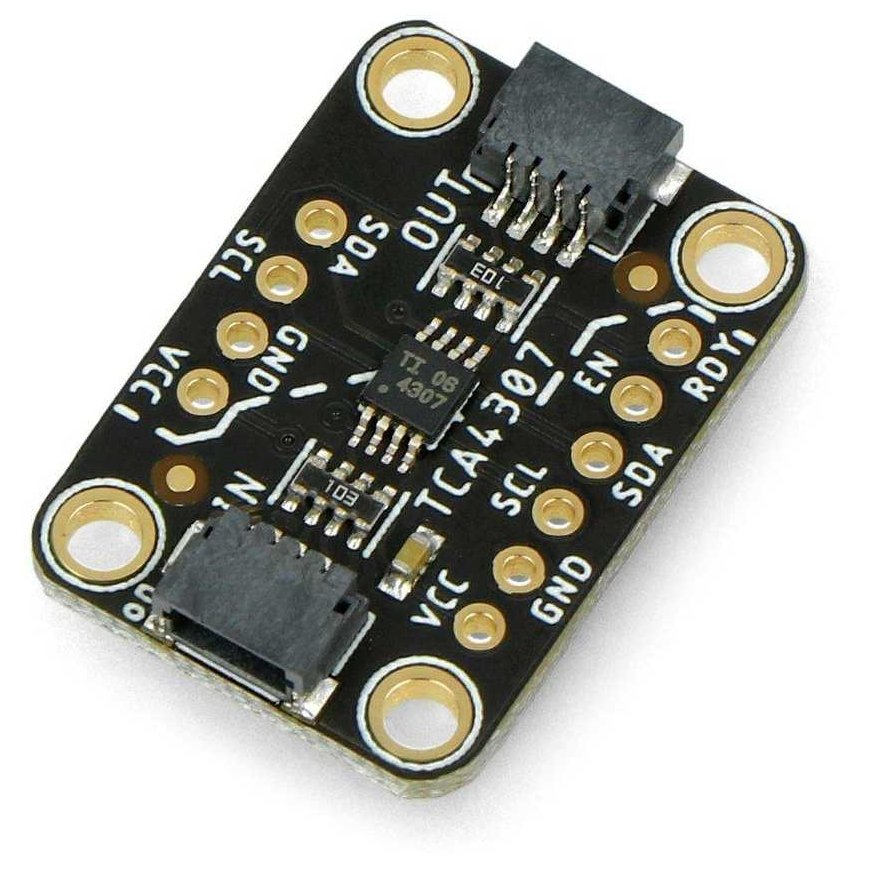

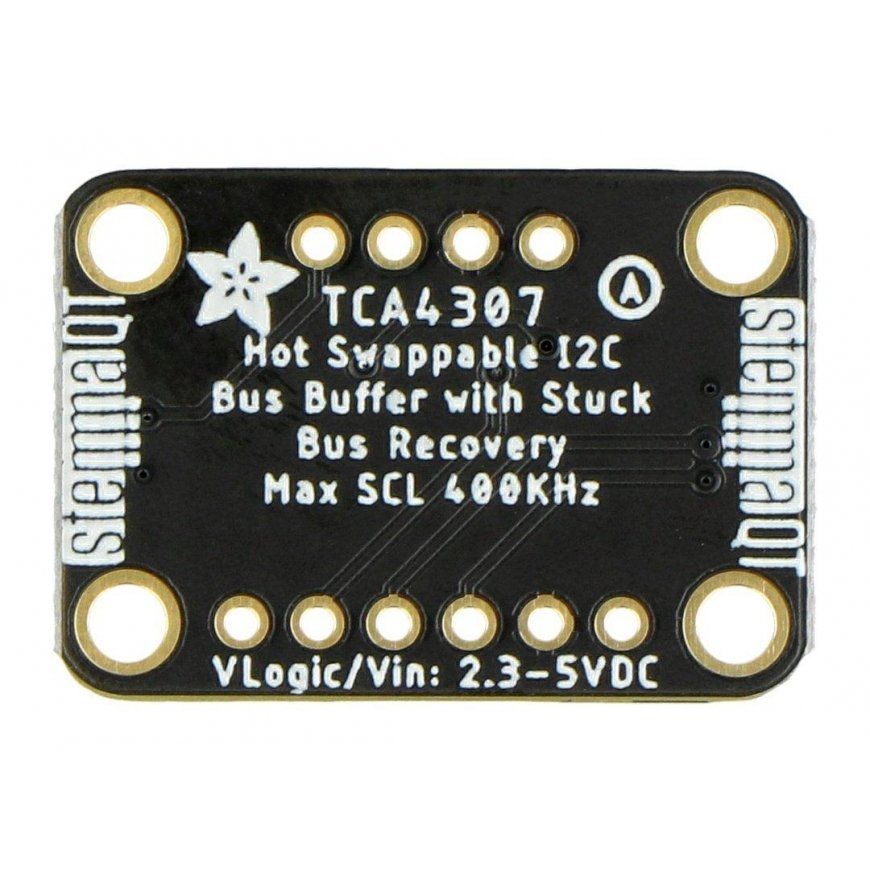

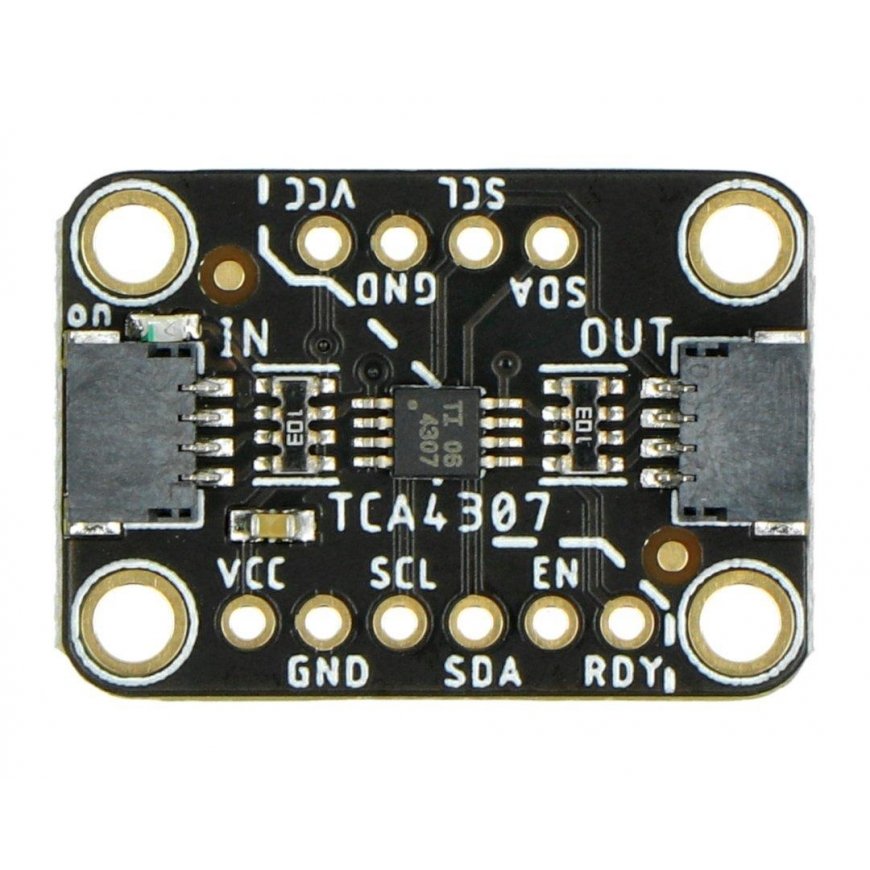

The Adafruit Hot-Swap I2C Buffer is a module with an I2C bus buffer based on the TCA4307 chip. This allows you to connect I2C devices to an active power supply without fear of stopping the transmission due to an additional SCL pulse or unexpected capacitive load. It can be used for prototyping devices where external devices are frequently connected and disconnected. The module can handle I2C clock frequencies up to 400 kHz. In addition, the Hot-Swap I2C Buffer automatically disconnects the bus if it detects that SDAOUT or SCLOUT are low.Specifications:
- Type: Module with I2C bus buffer
- Compatible with: Arduino, Raspberry Pi, Feather, etc.
- Supply voltage: 2.3 V to 5 V DC
- Integrated chip: TCA4307
- Supported I2C clock frequency: up to 400 kHz
- Interface: I2C
- Pins:
- STEMMA QT/Qwiic connectors
- Soldering pads (gold pins included for self-soldering)
- Module dimensions: 25.4 x 17.8 x 4.5 mm
- Weight: 1.7 g

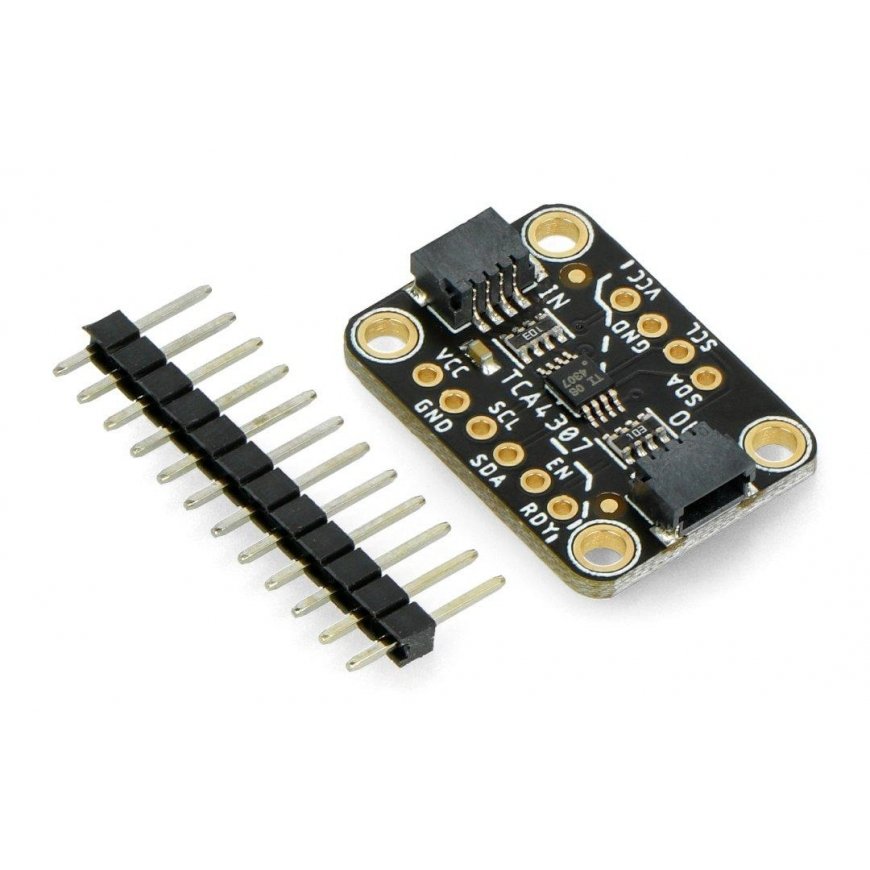

- Hot-Swap I2C Buffer - I2C Bus Buffer Module - TCA4307
- 1x12 gold pin strip - 2.54 mm pitch
