Transceiver Breakout MAX3232 3.3V/5V, RS232, UART converter, SparkFun BOB-11189
3615053 AN-19847
5904422352493
Shipping 11-18 b.d.
All about the product

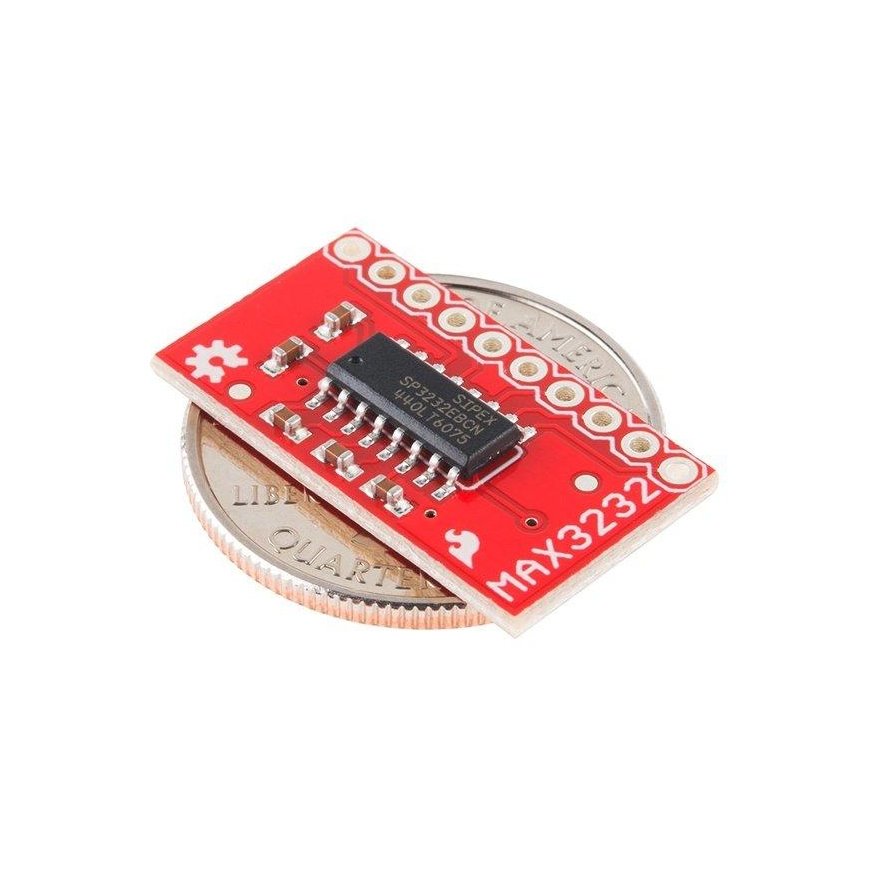

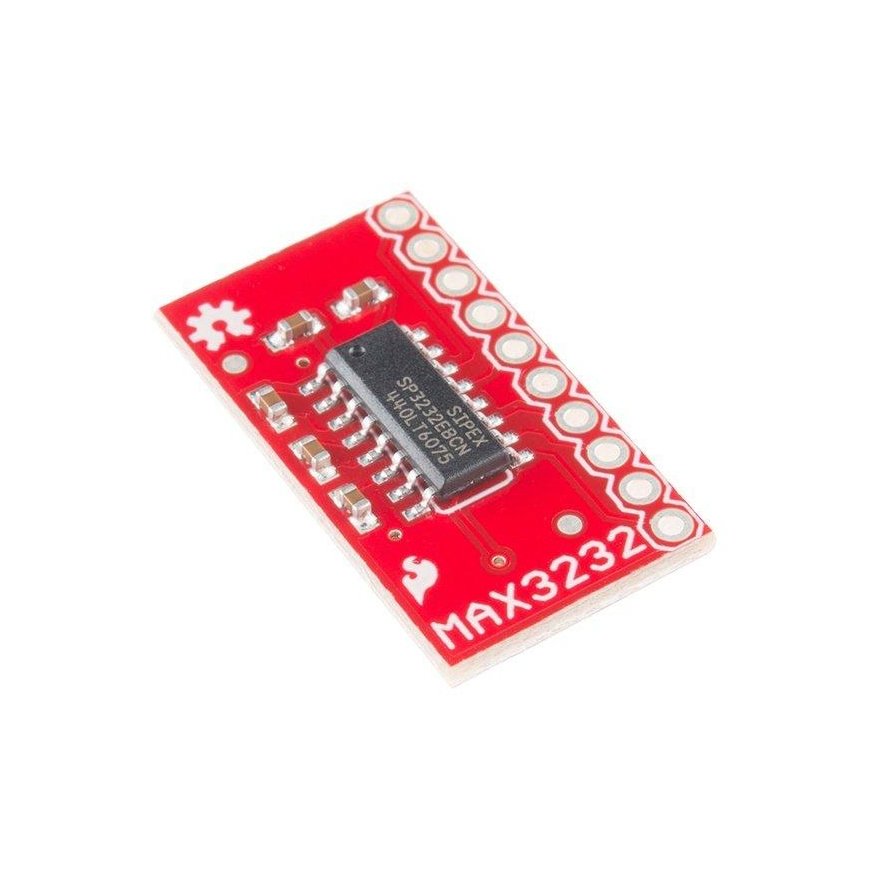

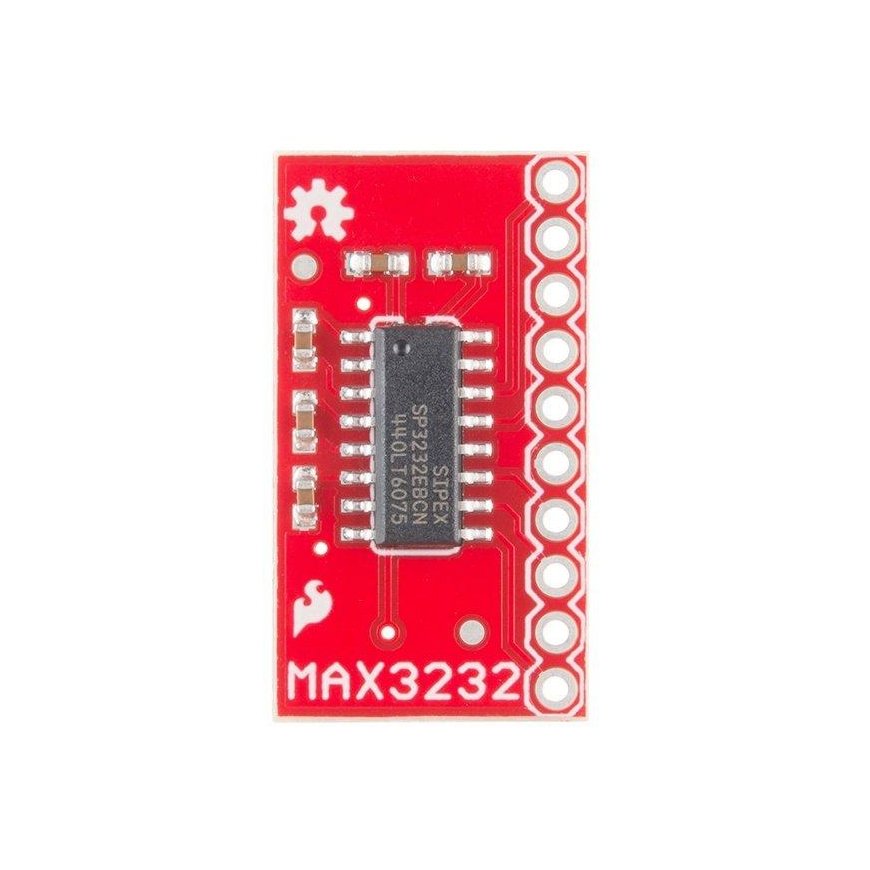

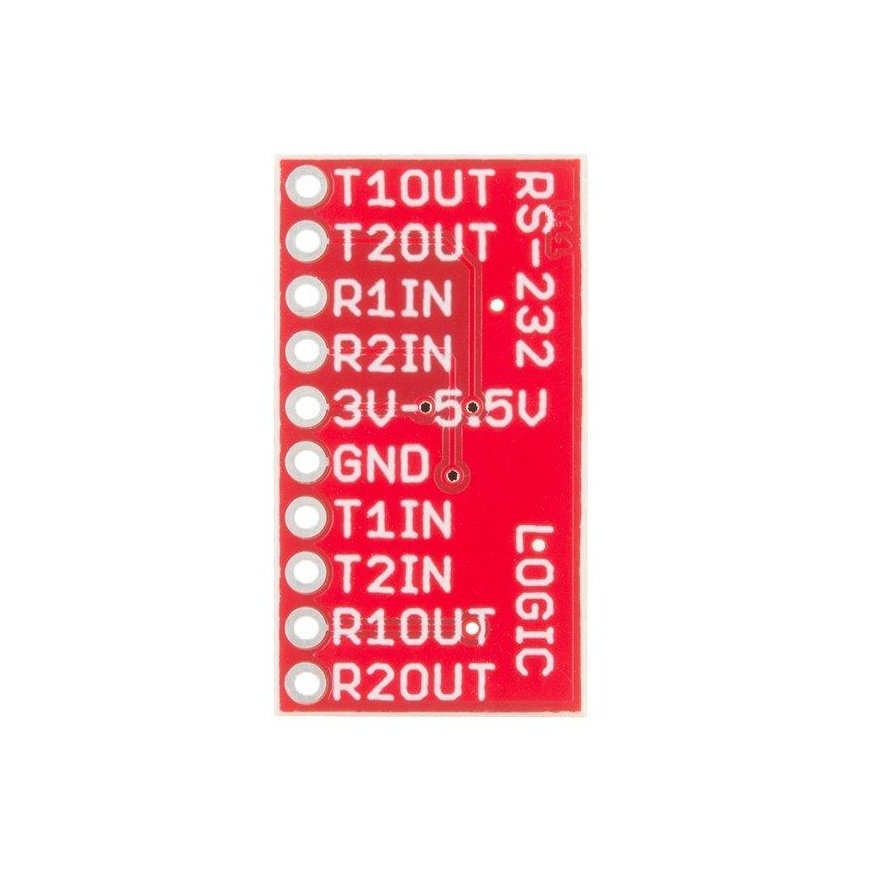

Manufactured by SparkFun, it functions as an RS232 radio transceiver. The chip is based on the popular MAX3232 converter, which converts low-voltage logic signals sent to/from the UART interface of a minicomputer into signals that conform to the voltage standard and polarity. The MAX3232-compatible SP3232 chip module is a voltage converter that allows digital systems operating from 3.3 V to 5 V to achieve the voltage levels required for serial RS232 transmission.
Specifications:
- Circuit used: SP3232 compatible with MAX3232
- Complies with EIA/TIA-232-F standards
- Interface: RS232 - UART
- Supply voltage: 3.0 V to 5.5 V
- Transmission speed: 250 kbps
