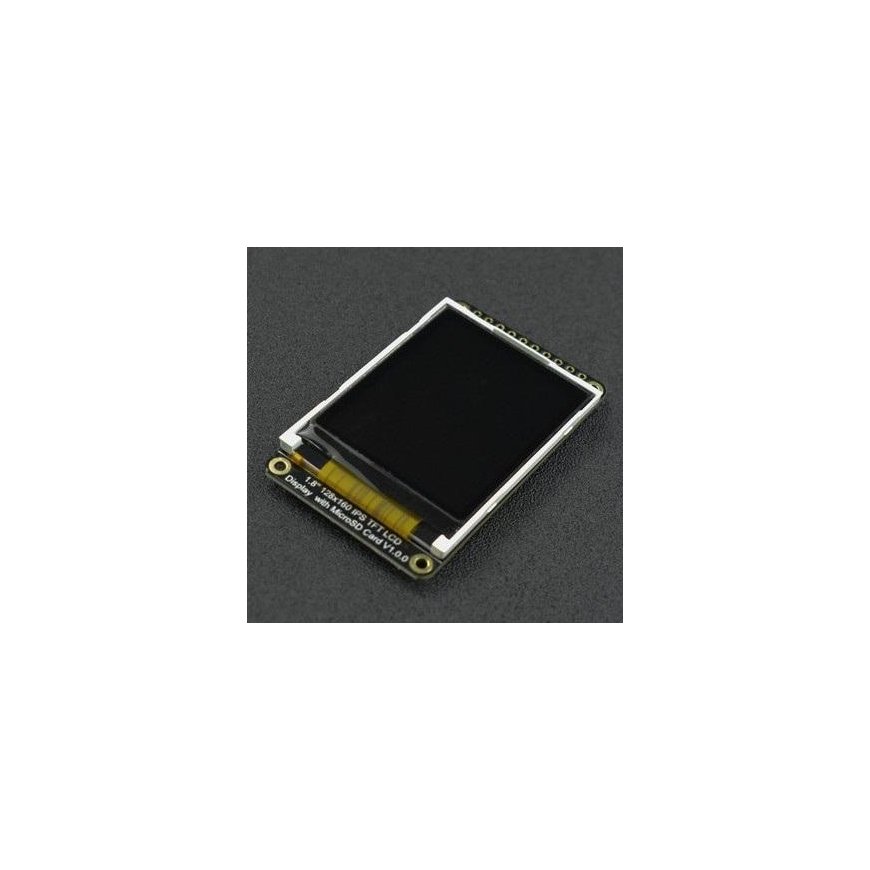

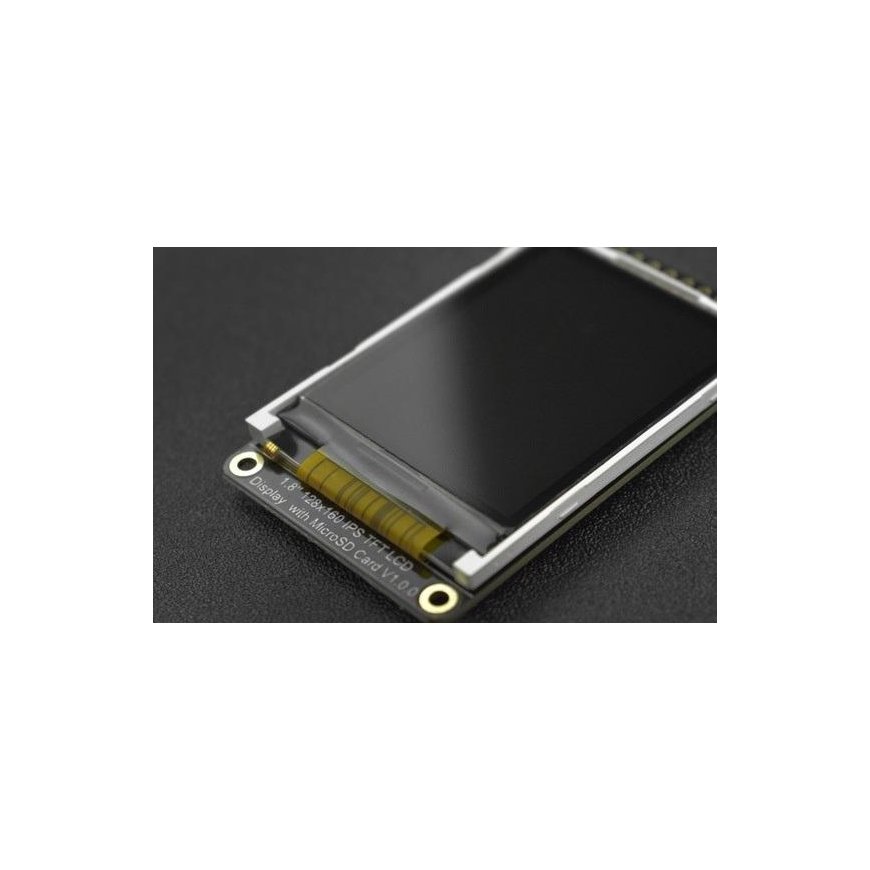

Fermion - LCD IPS TFT 1.8" 128x160px SPI screen - DFRobot DFR0928
22.03 €
3603221 AN-21698
6959420922123
Shipping 9-14 b.d.
You are interested in this product?
All about the product

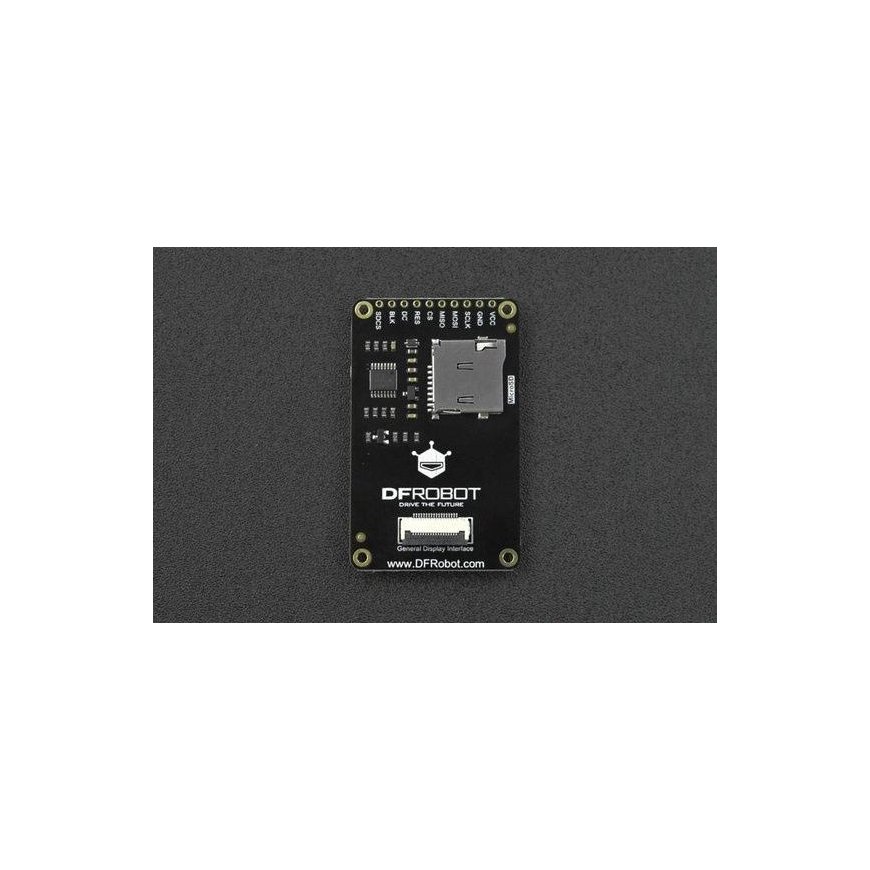

The TFT IPS LCD screen is based on the ST7735S controller, its diagonal is 1.8", and the resolution is 128x160px. A 4-pin SPI interface is used for communication. The integrated microSD memory card slot allows you to easily read color bitmaps from a memory card. The screen can be connected to the main module in two ways: standard connection via SPI or GDI (General Display Interface). The module can be easily connected to the FireBeetle using an FPC ribbon. The board operates from 3.3 V to 5 V and consumes up to 0.11 W of power.Main features:
- 128x160px resolution
- 4-wire SPI interface
- Integrated microSD card slot
- Operating voltage: 3.3V to 5V
- TFT viewing angle: 120°
- Number of pixels: 128 columns x 160 rows
- Interface: SPI
- Interface type: GDI, contact connector
- Controller chip: ST7735S
- Power consumption: 0.11 W
- MicroSD card slot
- Operating temperature range: -10 °C to 60 °C
- Screen area size: 26 x 35 mm

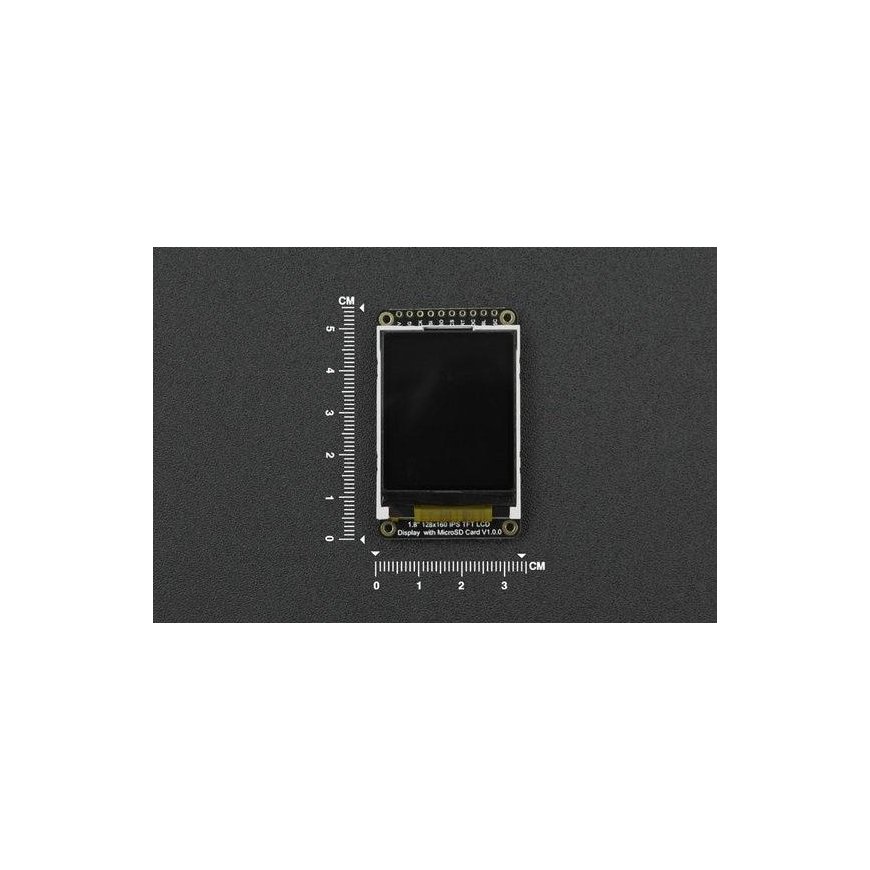

- Module dimensions: 34 x 55 mm
- Mounting hole spacing: 29 mm, 50 mm
- Mounting hole diameter: 2 mm

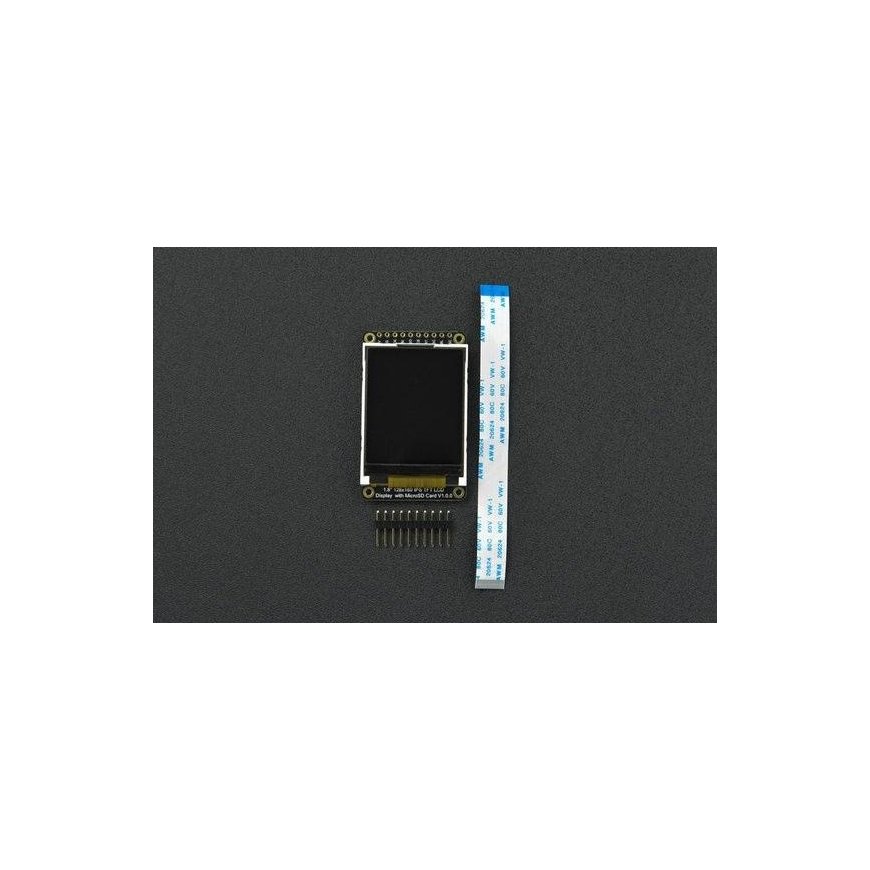

- 1x Fermion - LCD IPS TFT 1.8" 128x160px SPI screen - DFRobot DFR0928
- 1x GDI cable
- 1x 10-pin connector
