Dobot Magician Lite Robot arm
3580127 AN-15666
6970632060809
Shipping 8-12 b.d.
All about the product

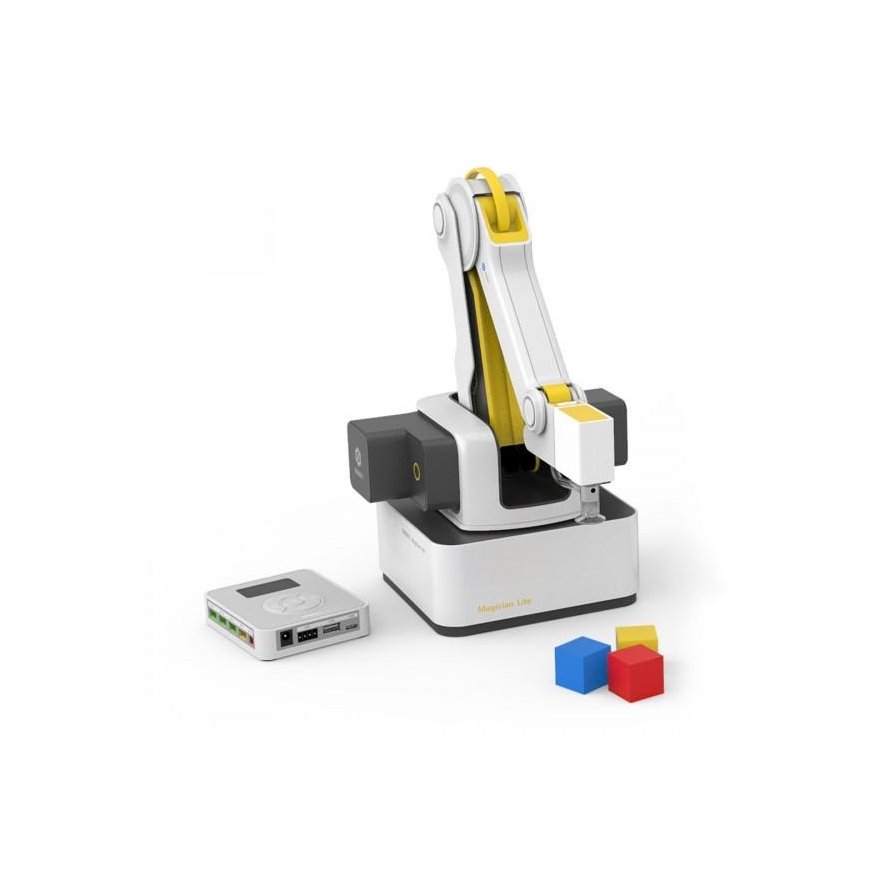

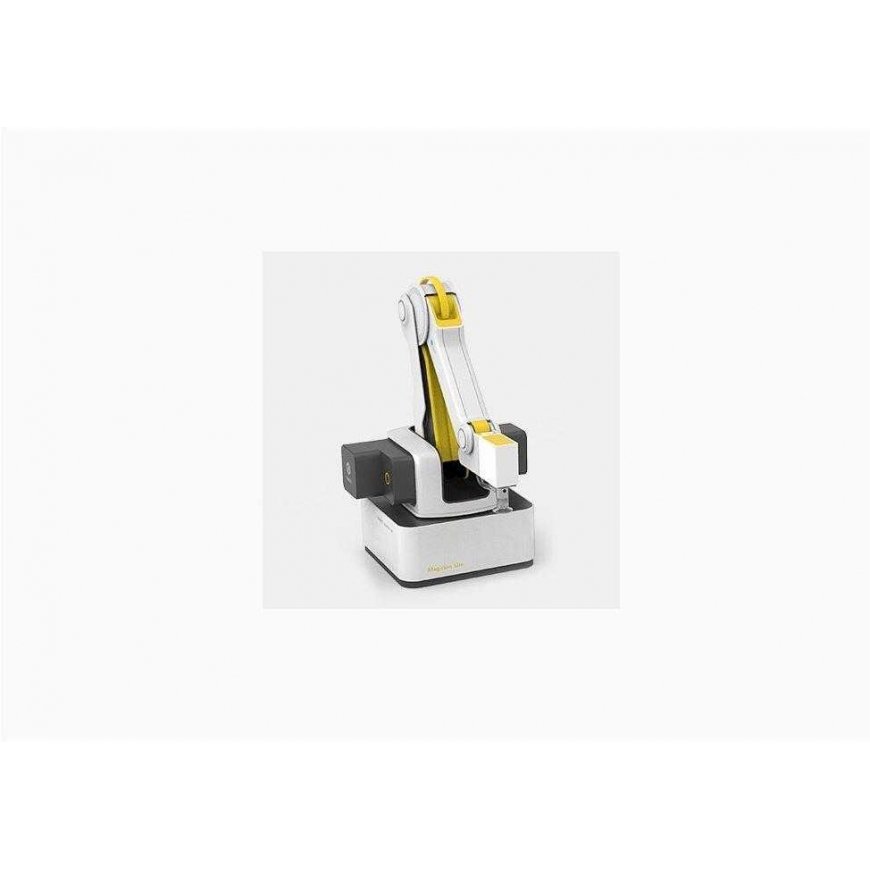

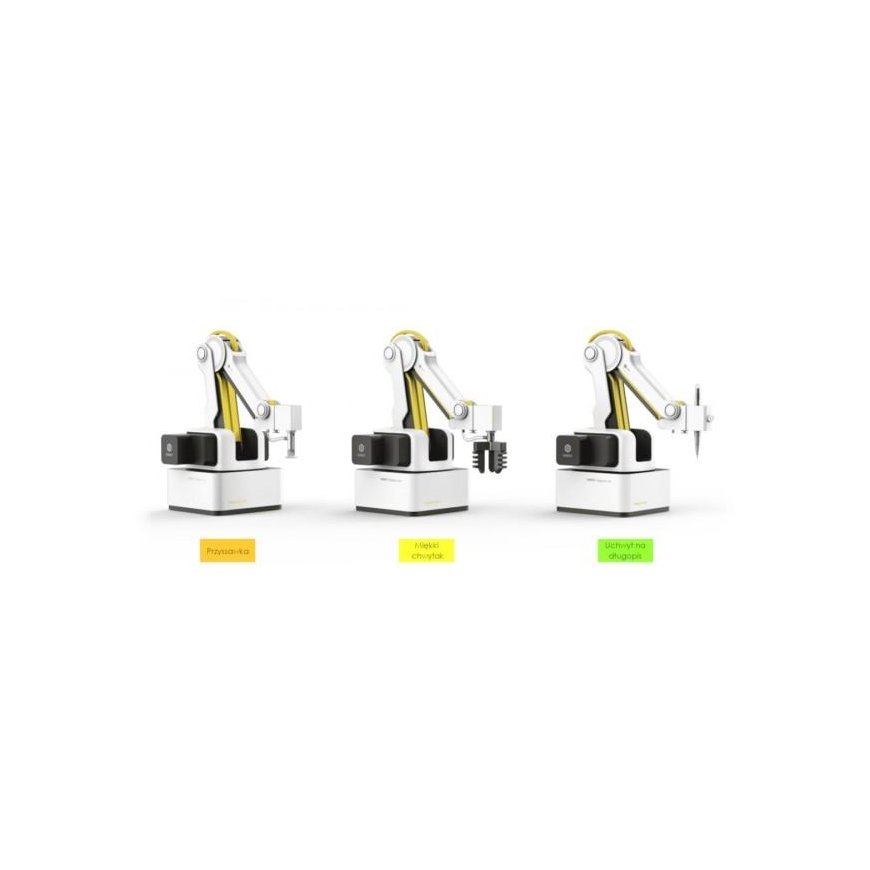

Dobot Magician Lite is a multifunctional robotic arm. It allows students to interact with both software and hardware, maximizing their freedom to create various projects. While playing and creating, students learn how artificial intelligence and robotic mechanics work. The device can be controlled, among other things, from a USB port or wirelessly using Bluetooth. The robotic arm also has interchangeable tips that can be easily changed to allow the Magician Lite to perform a variety of functions. It can be used as a suction cup, soft gripper or pen mount. Dobot Magician Lite is a compact 2.4 kg arm, which makes it portable and facilitates the creation of various application scenarios. Its position repeatability is 0.2 mm, its lifting capacity is 250 g, and its arm reach is 340 mm. The robot is equipped with a collision detection function, which ensures the safety of children playing near it.
Technical data:
- Degree of freedom 4
- Maximum payload 250 g
- Maximum arm reach 340 mm
- Position repeatability ± 0.2 mm
- Power supply voltage 100 V to 240 V AC, 50/60 Hz
- Input voltage 12 V / 5 A DC
- Operating temperature from -5°C to 45°C
- Maximum power: 60 W
- USB/Serial connection

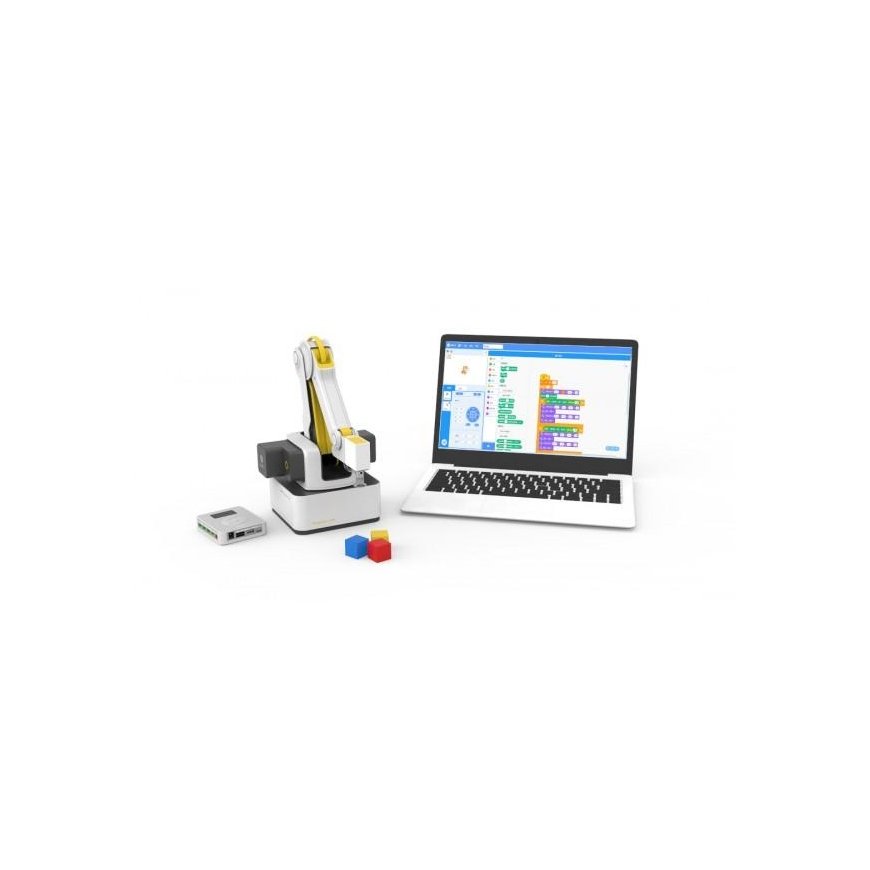

- Dobot Studio / Dobot Scratch Software
- Base dimensions 146 x 146 mm
- Arm length 150 mm
- Weight 2.4 kg
- ARM 32-bit Cortex M4 microcontroller
- 168 MHz clock frequency
- Power supply voltage 100 V to 240 V AC, 50/60 Hz
- Input voltage 12 V / 5 A DC
- Operating temperature from -5°C to 45°C
- Maximum power: 60 W
- USB/Serial/Bluetooth connection
- MicroPython programming language
- Dobot Studio / Dobot Scratch Software
- Dimensions 95 x 80 x 21.5 mm
- Weight 98 g
- Robot arm
- Pen holder
- Pump
- Gripper
