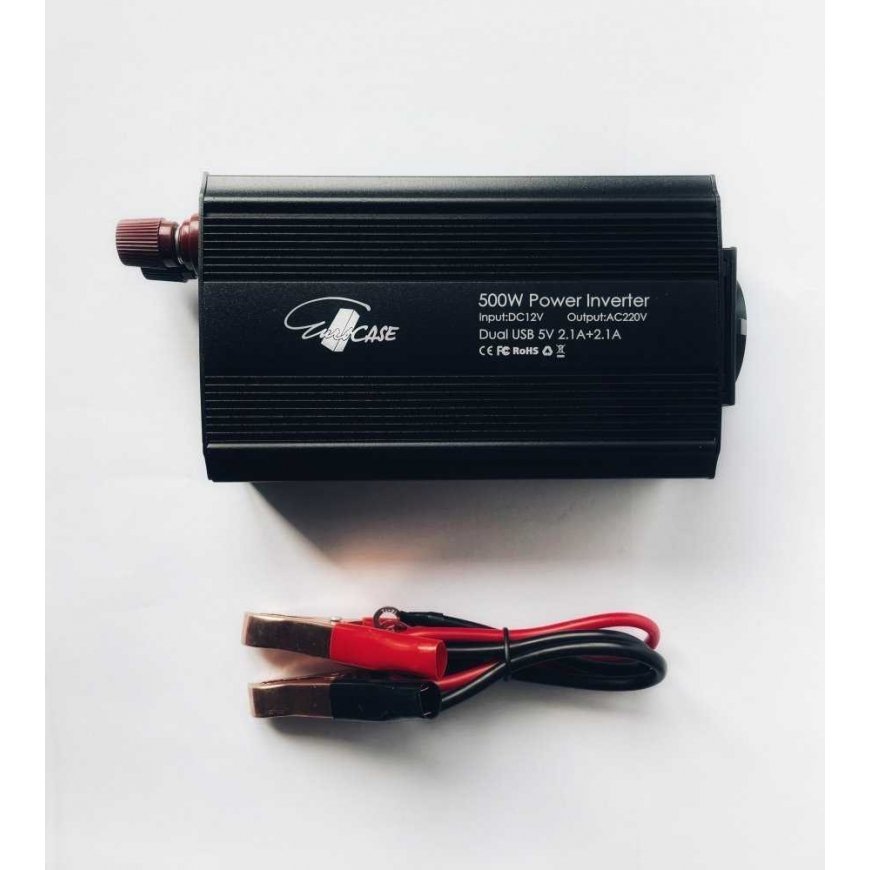

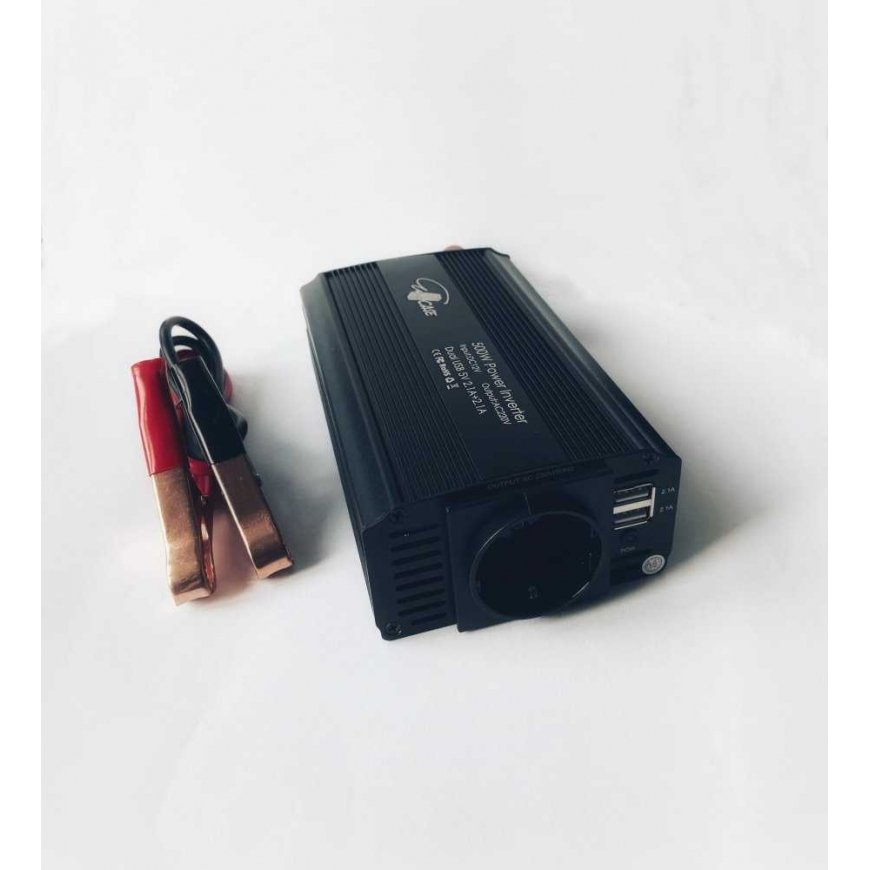

EUROCASE voltage converter DY-8109-12, AC/DC 12V/230V, 500W, USB
3576761 DY-8109-12
8592522047950
Shipping 12-16 b.d.
All about the product
http://partis.cz/index.php?gid=2860
The voltage converter converts the input DC voltage DC 12V (or DC 24V, depending on the model) into the output AC voltage AC 230V / 50Hz. It can be used to power various electrical devices designed to be powered from the mains. For example, mobile phone or laptop chargers, computers, lamps, televisions, power tools, etc., if the power consumption of these devices is within the power range of the voltage converter. The inverter input is protected against overvoltage and undervoltage (protects, for example, from excessive discharge of the power battery). A fan is installed to cool the inverter electronics (depending on the model). The inverter electronics have a built-in thermal protection. The inverter input power is handled by terminals, the cables are part of the package. The 230 V output is controlled by a standard socket
| Input voltage | 12V DC |
| Rated power | 500W |
| USB 5V output | YES |
| Efficiency | >89% |
| Output voltage curve | modified sine |

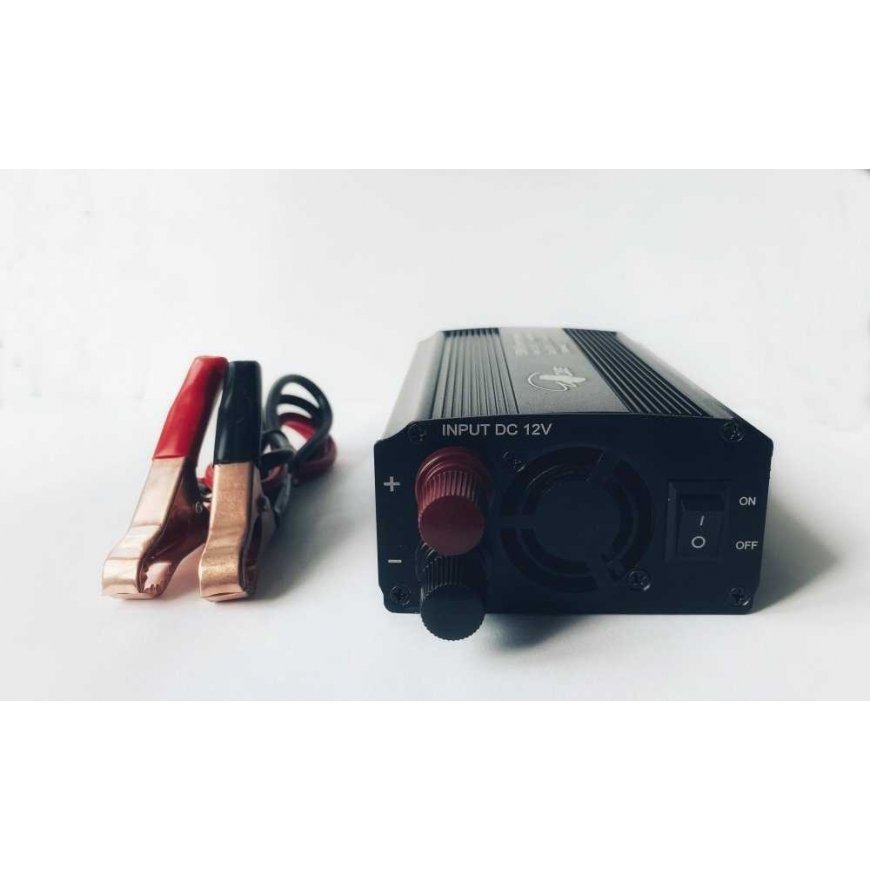

| Input voltage range | 10-15V (20-32V) |

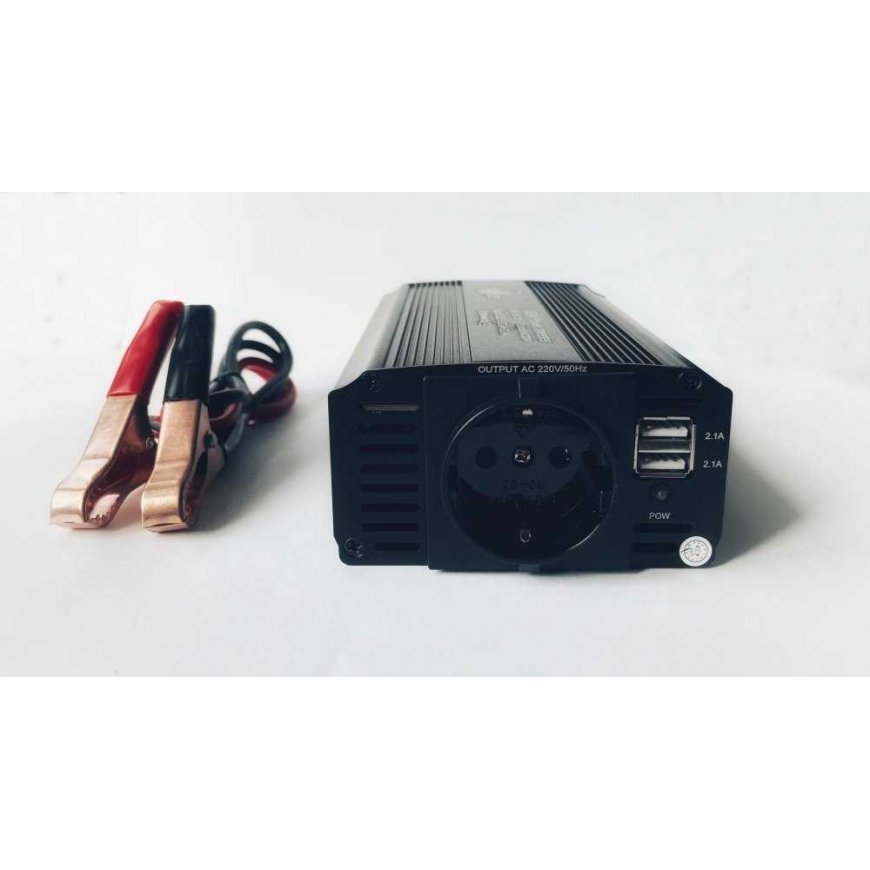

| Output voltage | 230V AC / 50Hz / socket type E 1 pc. |
| Cables | 50 cm, single, M8 bolt |
| Product weight | 560g |
| Dimensions (LxWxH) | 177x89x65mm |
