Encoder for Rotation Measurement 4.8 V - 24V DFRobot 400P/R

49.00 €
Monthly payment from 2,16 €
3567546

AN-09381

5904422366636

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

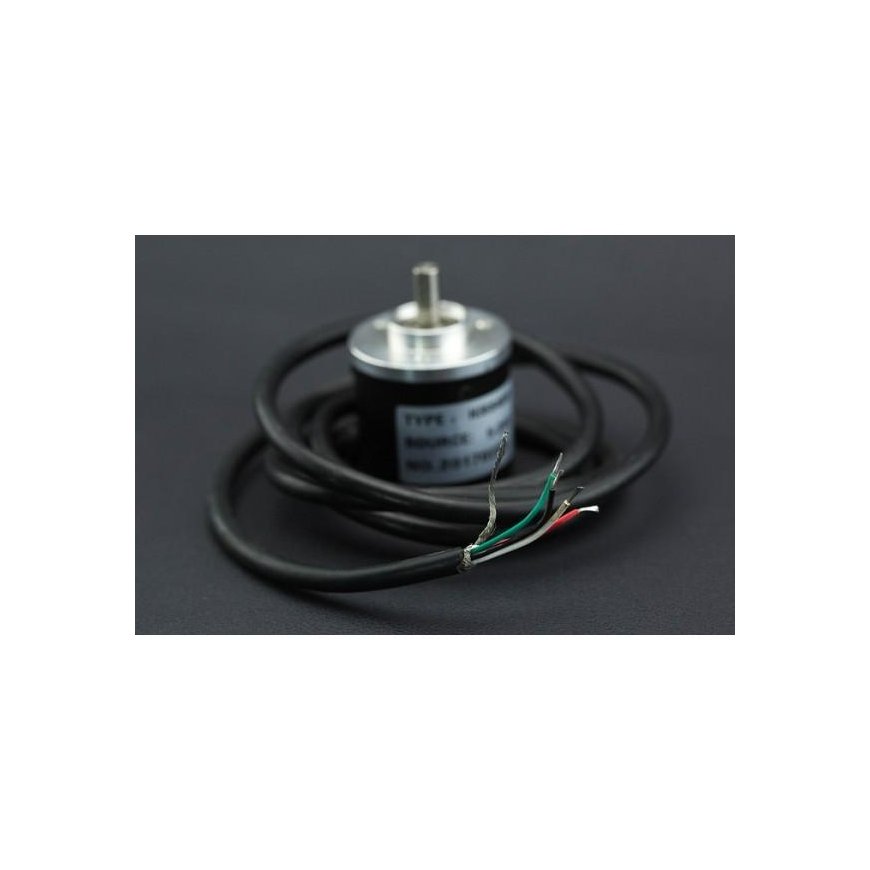

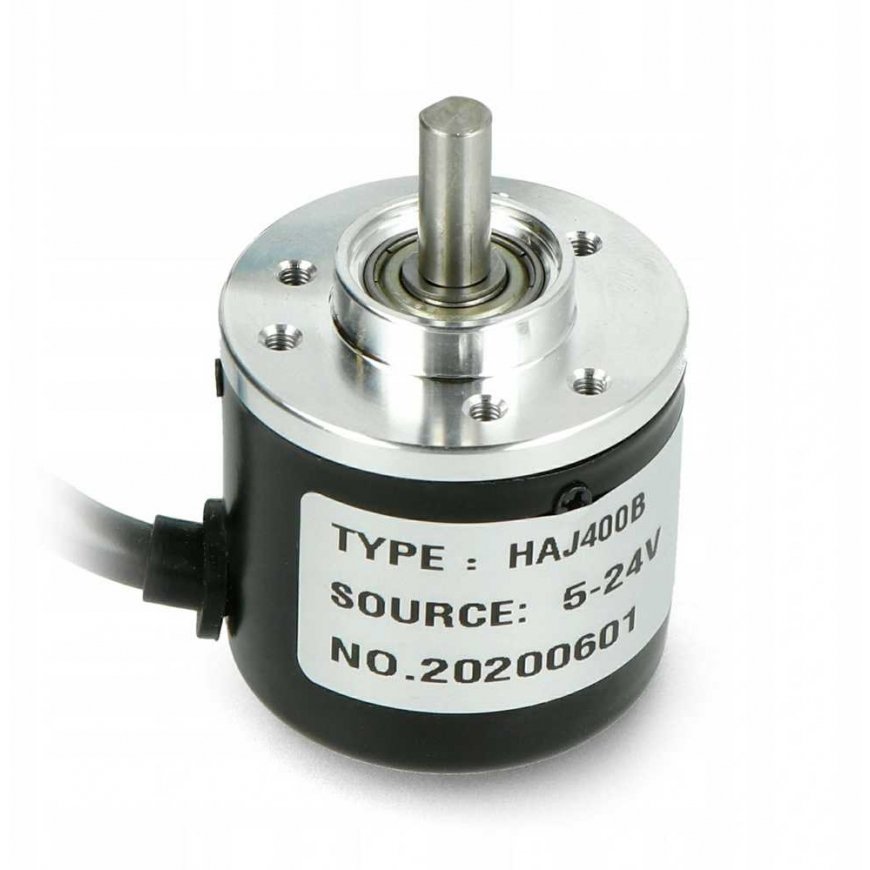

The encoder generates a biphasic rectangular pulse signal (Fig. AB). The resolution is 400 pulses per revolution in each phase, which allows for 1600 pulses per revolution using both signals. The maximum encoding speed is 5000 R/min.

encoder-for-rotation-measurement-48-v-24v

The output of the system is an NPN transistor in an open collector configuration, which means you need a pull-up resistor. The module includes a 750L05 voltage regulator, powered from 4.8 V to 24 V DC. The encoder is compatible with Arduino, STM32, PLC and other types of microcontrollers.

Specification

  • Supply voltage: 4.8 V to 24 V
  • Encoder size: Φ 39 x 36.5 mm
  • Shaft diameter: Φ 6 x 13 mm
  • External shaft platform: Φ20 x 4.85mm
  • Screw fixing: M3
  • Weight: 234 g

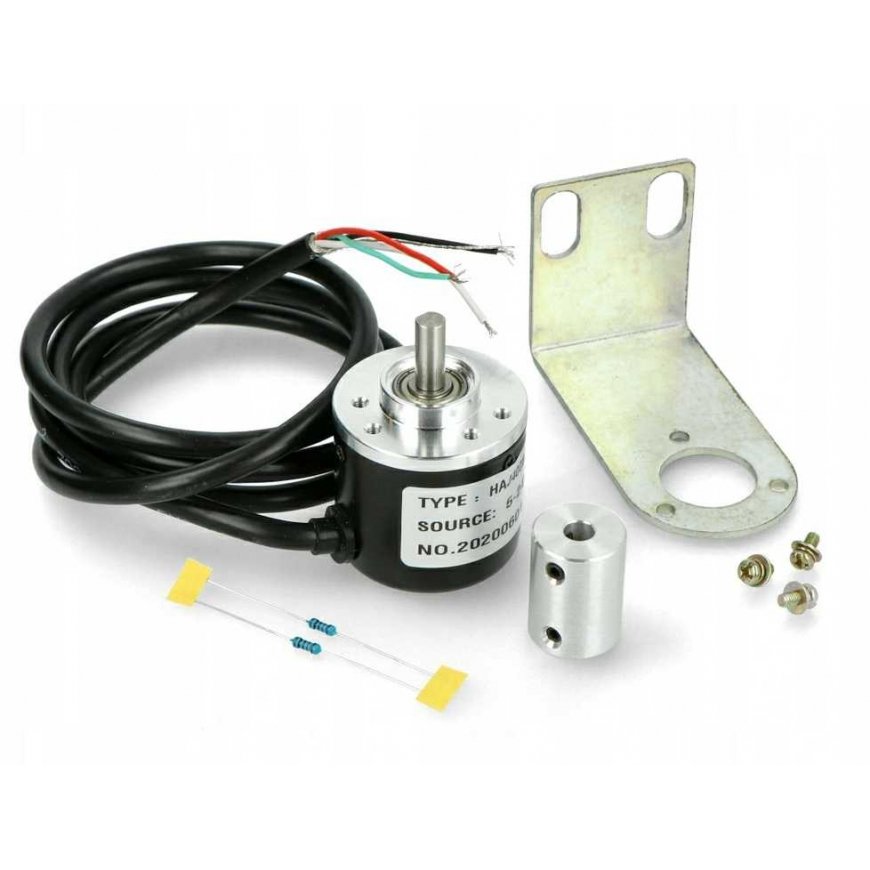

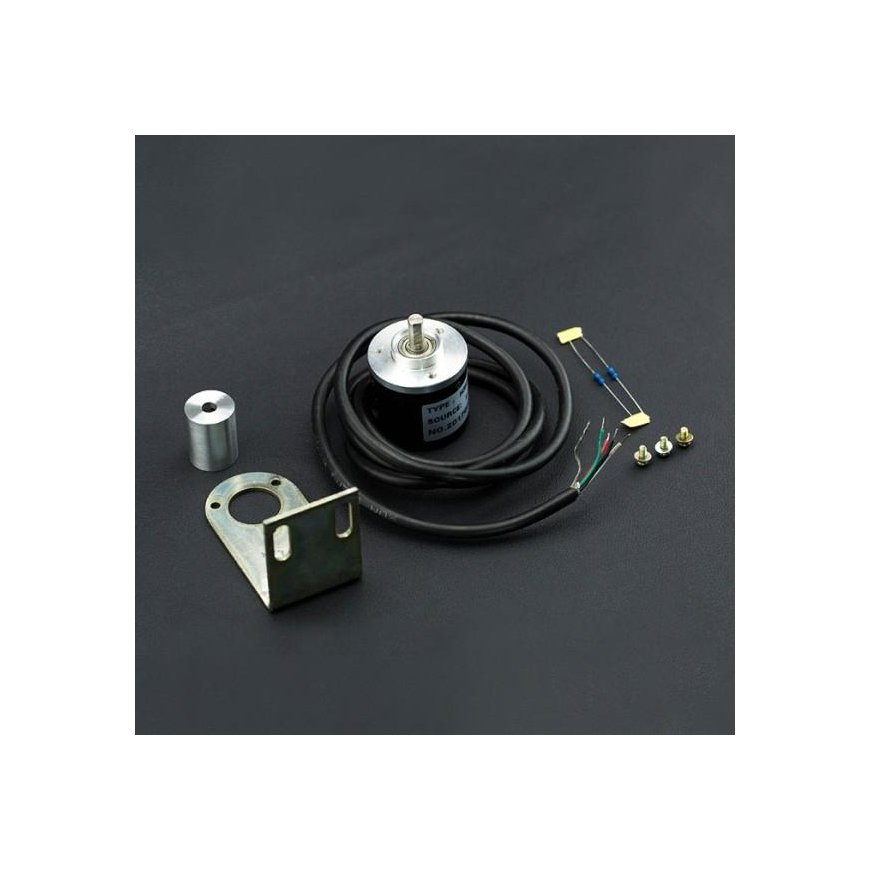

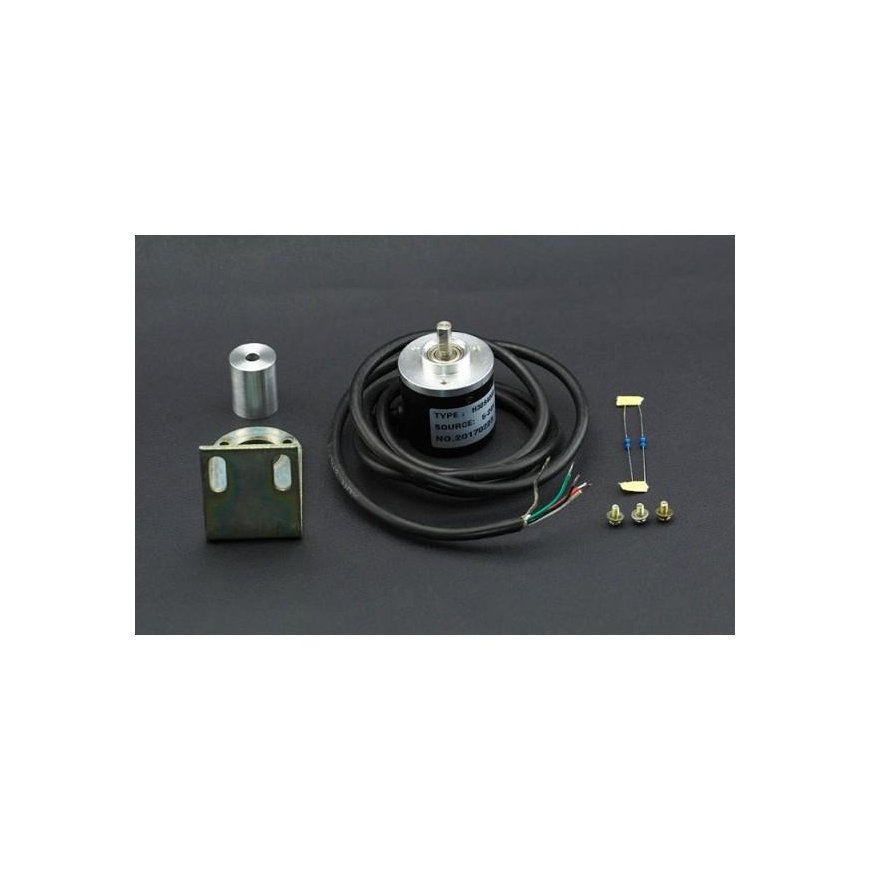

Included:

  • Encoder
  • Mounting bracket
  • Mounting screws
  • 2 x 10K resistors
