ATEN HDMI Extender (T+R) over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B)

196,83 €
193.83 €
Monthly payment from 5,89 €
1520828

VE801-AT-G

2000001254684, 4719264642715

Shipping 12-13 b.d.

You are interested in this product?
(Read terms of service)

All about the product

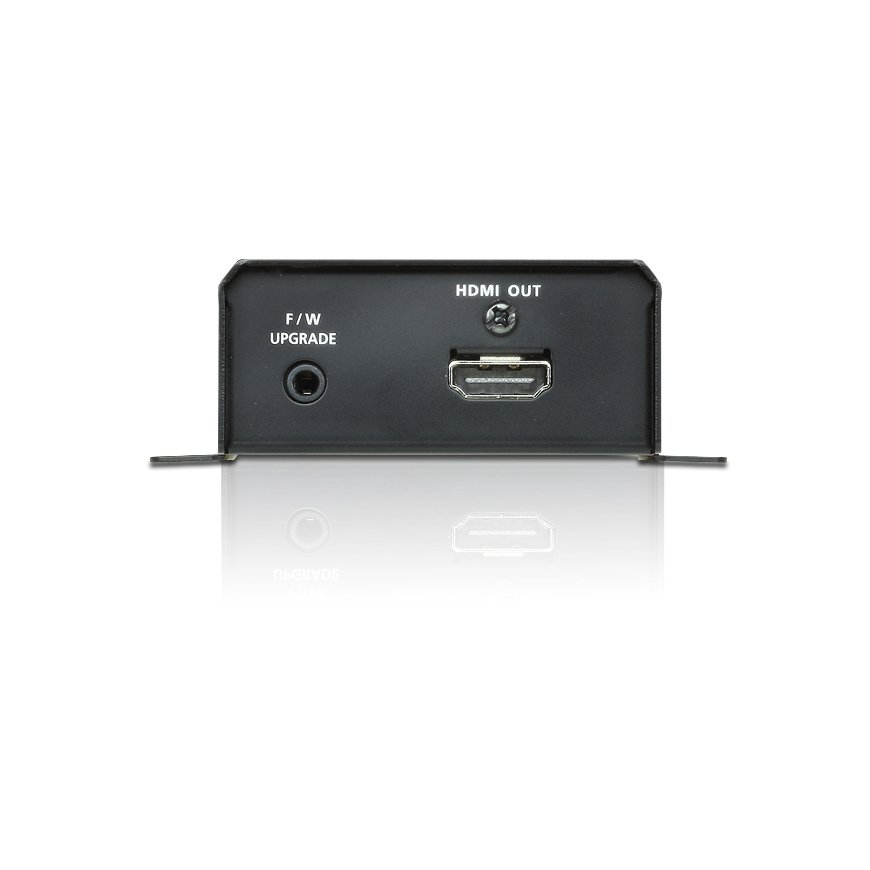

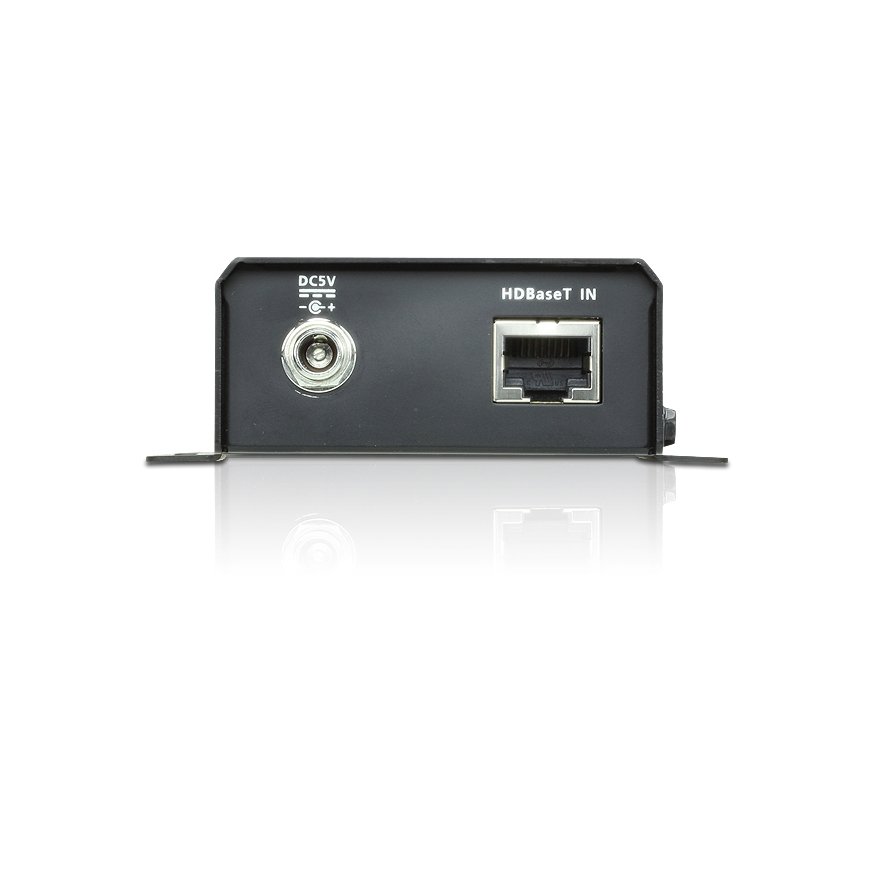

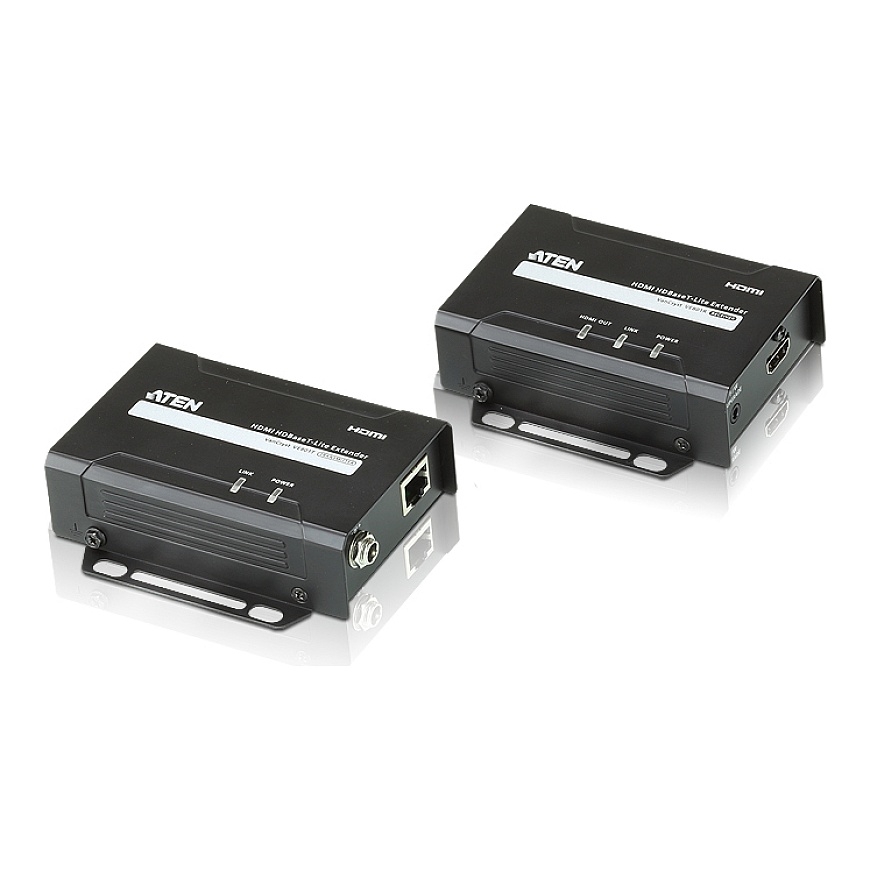

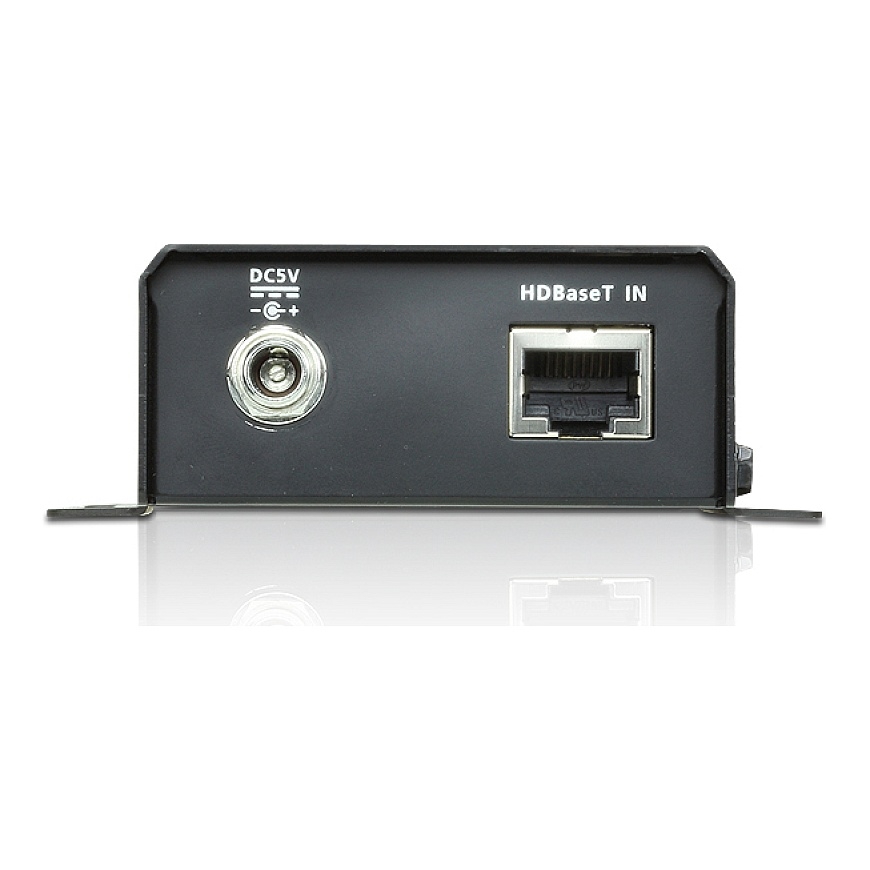

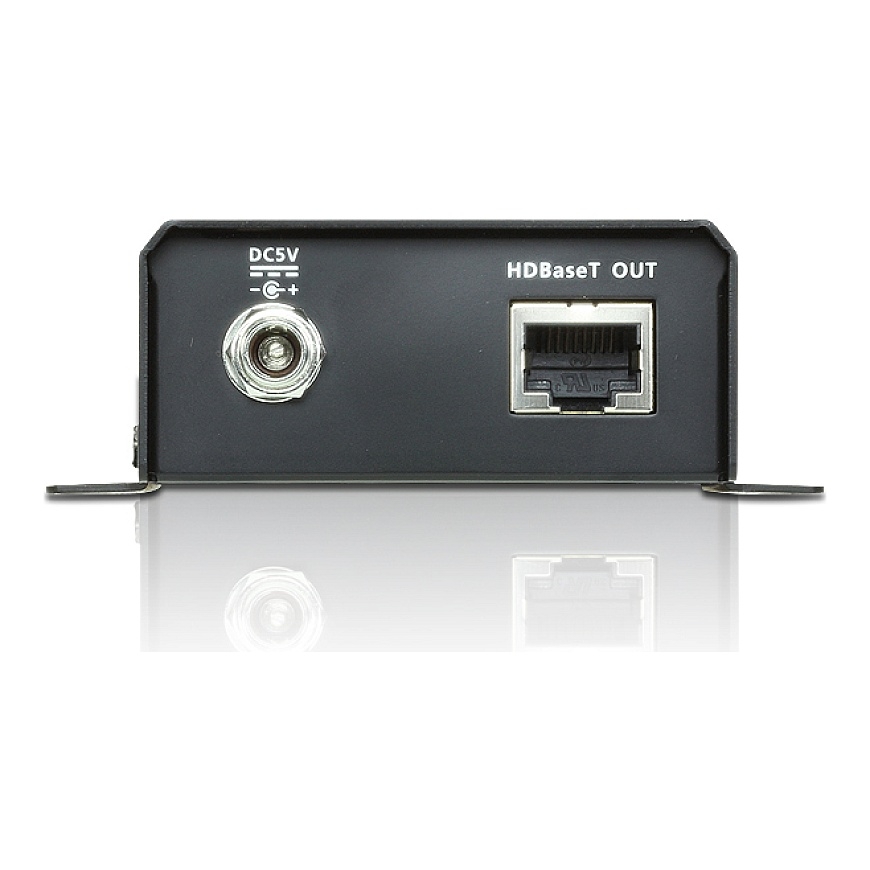

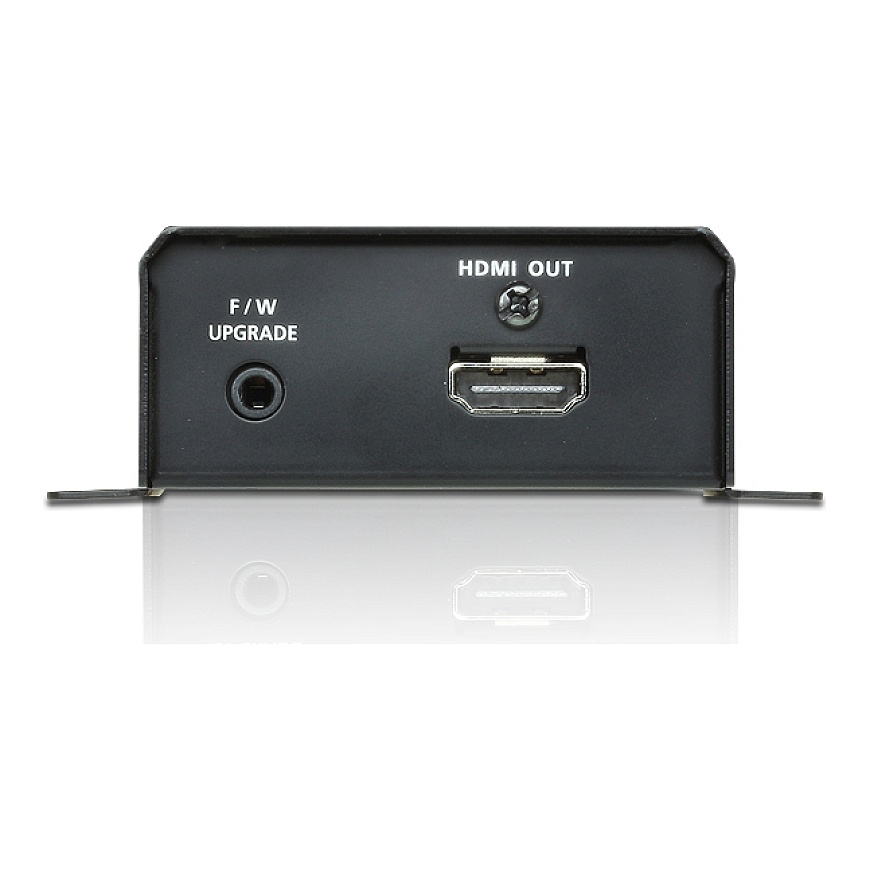

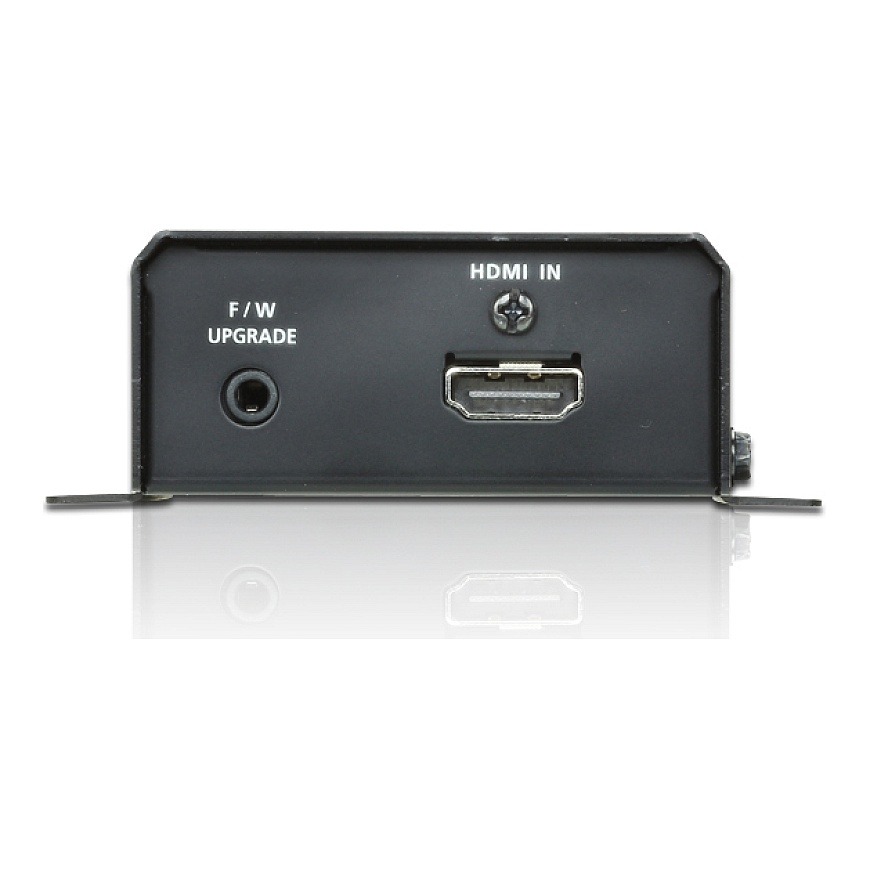

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
1x VE801T/R HDMI HDBaseT-Lite Extender
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions
Features
Product colour Black
Maximum resolution 3840 x 2160 pixels
HDCP Yes
Maximum transfer distance 70 m
Supported video modes 1080p
Packaging data
Package height 160 mm
Package width 59 mm
Package weight 841 g
Package depth 239 mm
Weight & dimensions
Weight 780 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Logistics data
Master (outer) case gross weight 4.6 kg
Products per master (outer) case 5 pc(s)
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Master (outer) case net weight 3.9 kg
Technical details
Material Metal
Packaging content
AC adapter included Yes
Other features
LED indicators Yes
DC-in jack Yes
Bandwidth 340 MHz
Certificates
Compliance certificates RoHS
