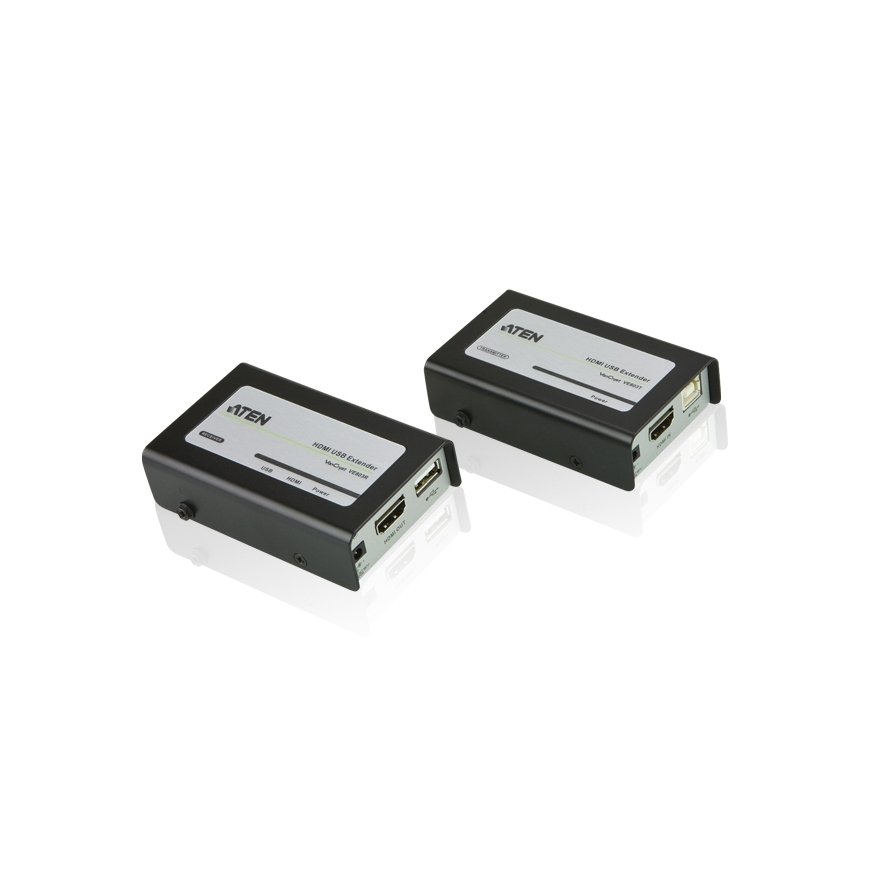

ATEN USB & HDMI Extender CAT5e/6, USB2.0 Full Speed (12Mbit/s) 1080P (40m) / 1080i (60m)
127.35 €
Monthly payment from 4,18 €
707079 VE803-AT-G
4710423779716, 5057103064977
Shipping 3-7 b.d.
You are interested in this product?
All about the product
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
Features
| Product colour | Black |
| USB connector type | USB Type-A; USB Type-B |
| Weight | 495 g |
| AC adapter included | Yes |
| Cables included | USB |
| Type | AV transmitter & receiver |
| Material | Metal |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| 3D | Yes |
| Supported video modes | 1080p; 1080i |
| Maximum resolution | 1920 x 1200 pixels |
| Package weight | 652 g |
| Connectivity technology | Wired |
| Manual | Yes |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 13.5 kg |
| Products per master (outer) case | 20 pc(s) |
| Supported graphics resolutions | 1024 x 768 (XGA); 1920 x 1080 (HD 1080); 1920 x 1200 (WUXGA); 640 x 480 (VGA); 800 x 600 (SVGA); 1280 x 1024 (SXGA); 1600 x 1200 (UXGA) |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| DC-in jack | Yes |
| Master (outer) case net weight | 9.9 kg |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Storage relative humidity (H-H) | 0 - 80% |
| Mounting kit | Yes |
| Receiver dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Receiver weight | 160 g |
| Bandwidth | 6.75 Gbit/s |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 m |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Extended display identification data (EDID) | Yes |
| Transmitter weight | 160 g |
| Transmitter dimensions (WxDxH) | 90 x 57.4 x 24 mm |
| Electrostatic Discharge (ESD) protection | Yes |
| Power consumption (TX) | 1.04 W |
| Power consumption (RX) | 0.75 W |
