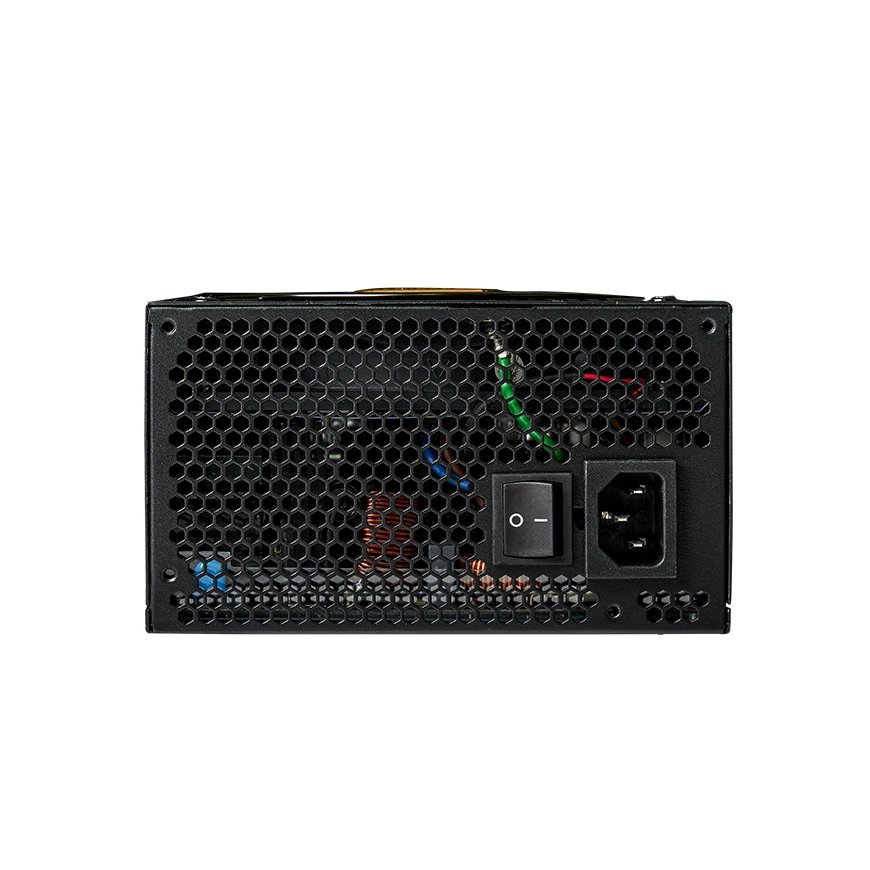

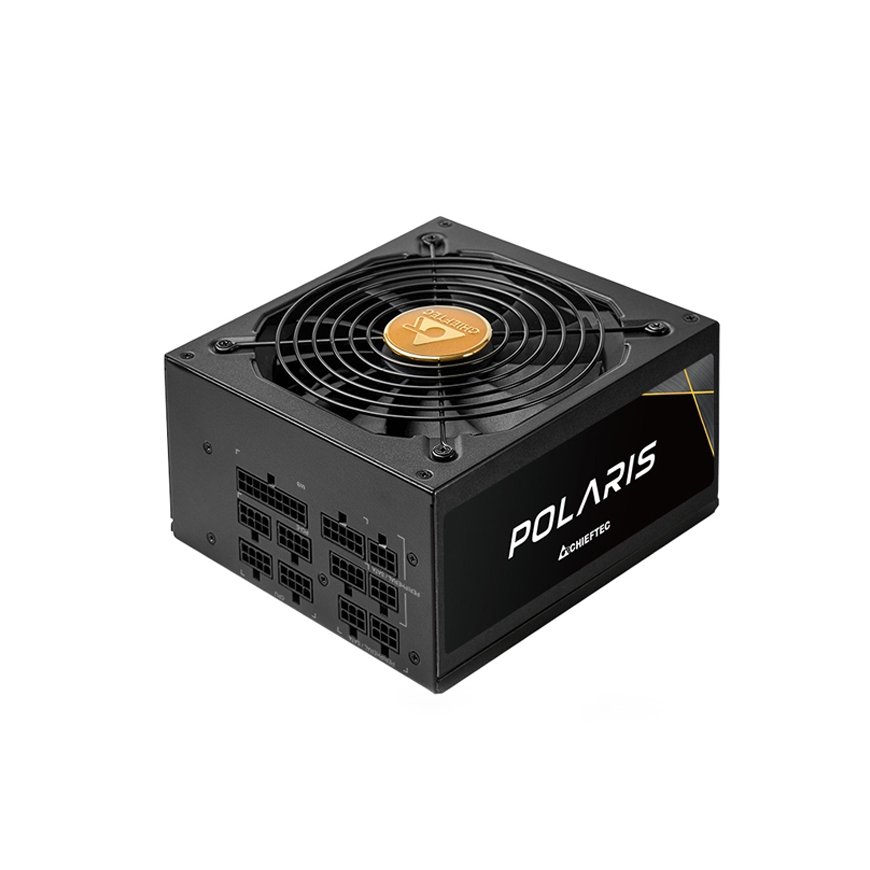

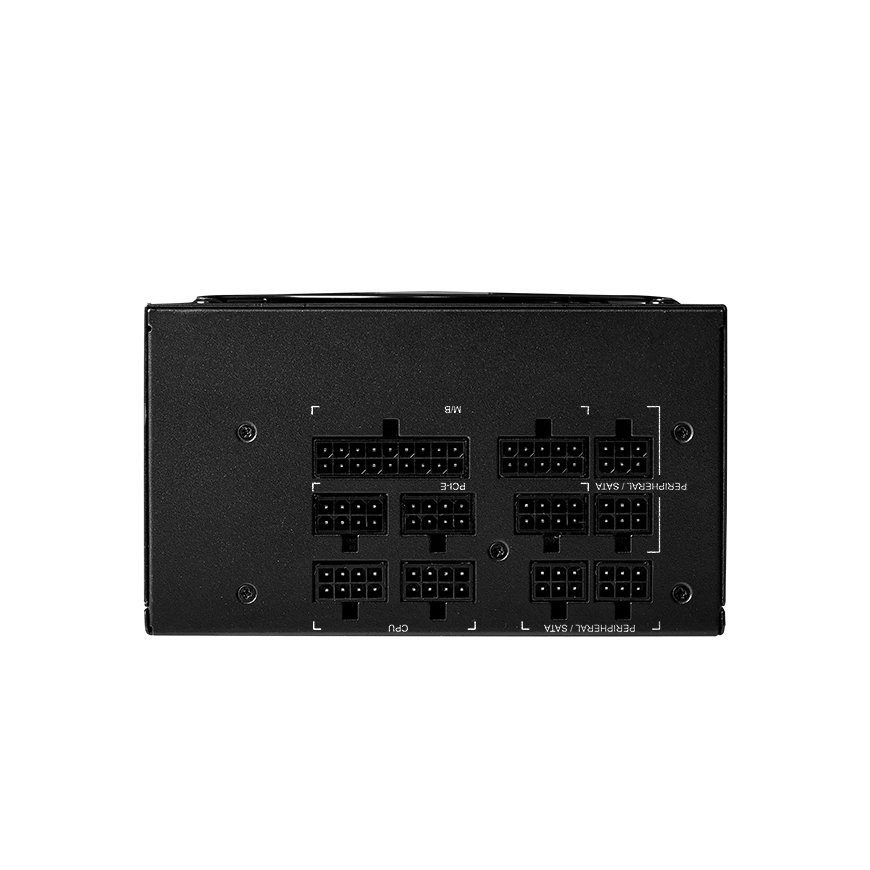

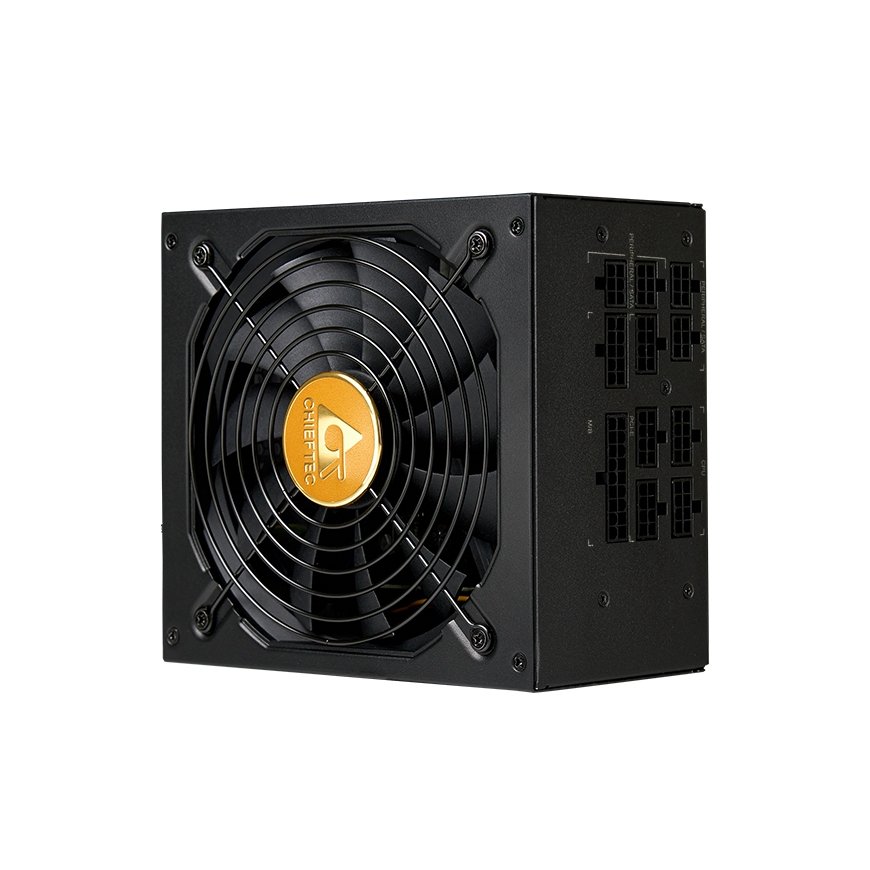

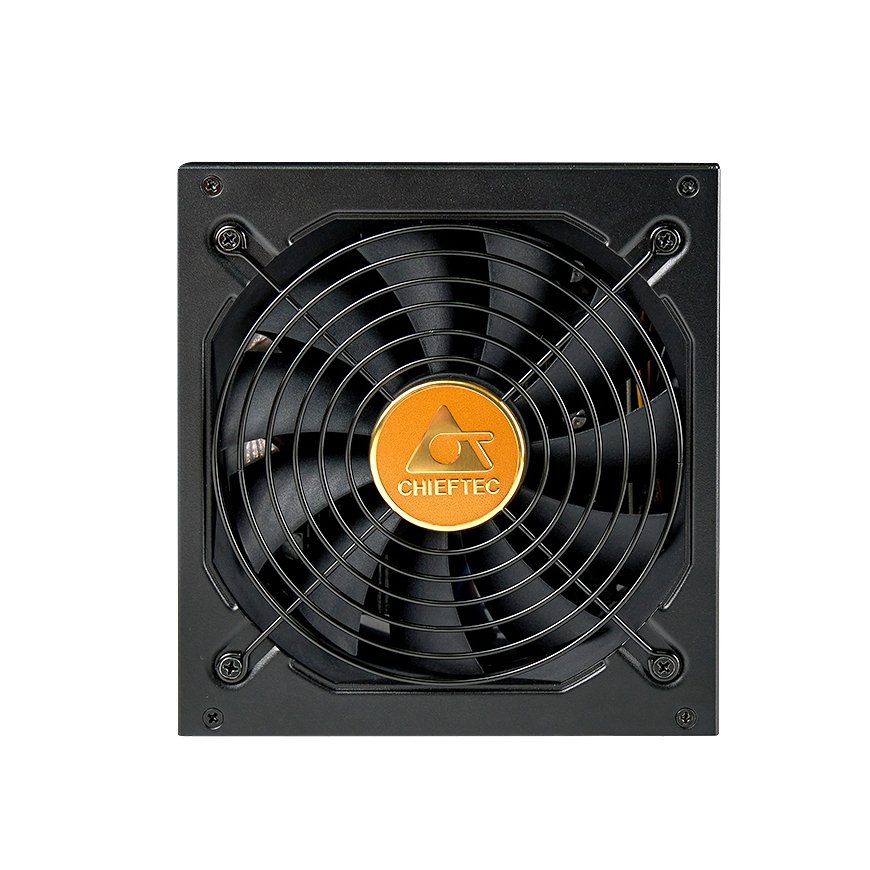

Chieftec Polaris PPS-1050FC power supply unit 1050 W 20+4 pin ATX ATX Black
199.00 €
Monthly payment from 6,02 €
967300 PPS-1050FC
0753263077363, 7532630773632
Shipping 15-16 b.d.
You are interested in this product?
All about the product
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.Cable lengths of 650mm ensure that these power-supplies can be used evenin large builds.
Power | |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 1050 W |
Performance | |
| ATX version | 2.3 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 6 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 550, 100 |
| Peripheral (Molex) power cable length | 550, 100 |
| PCI Express power cable length | 60 cm |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Weight | 2.6 kg |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 3.4 kg |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
