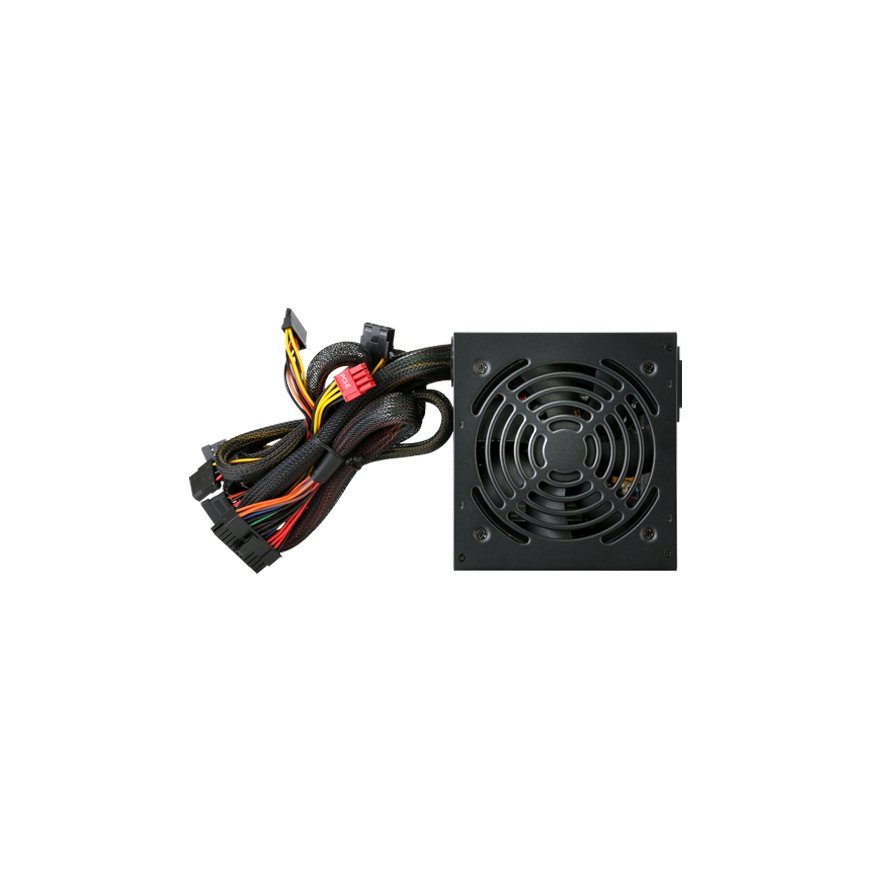

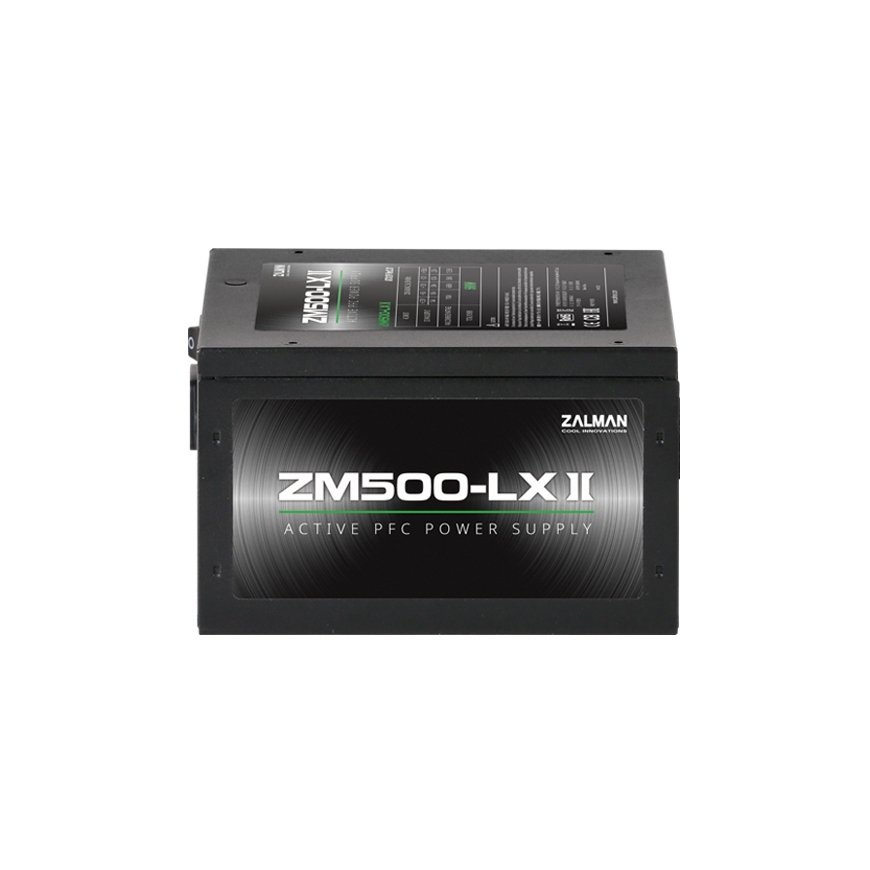

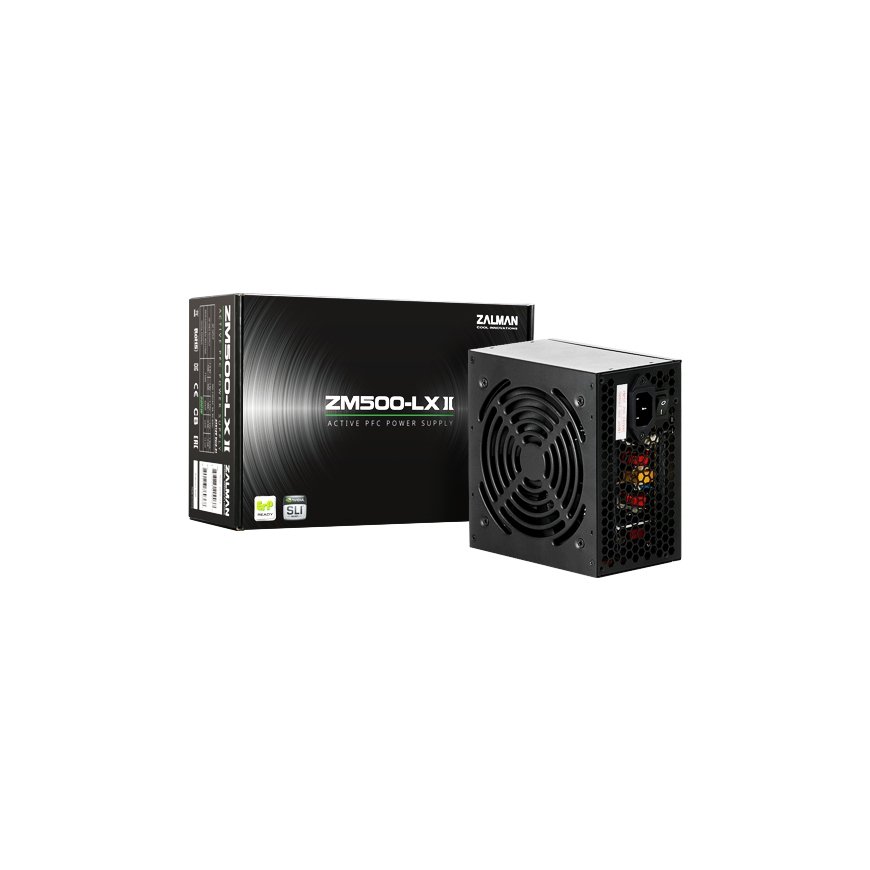

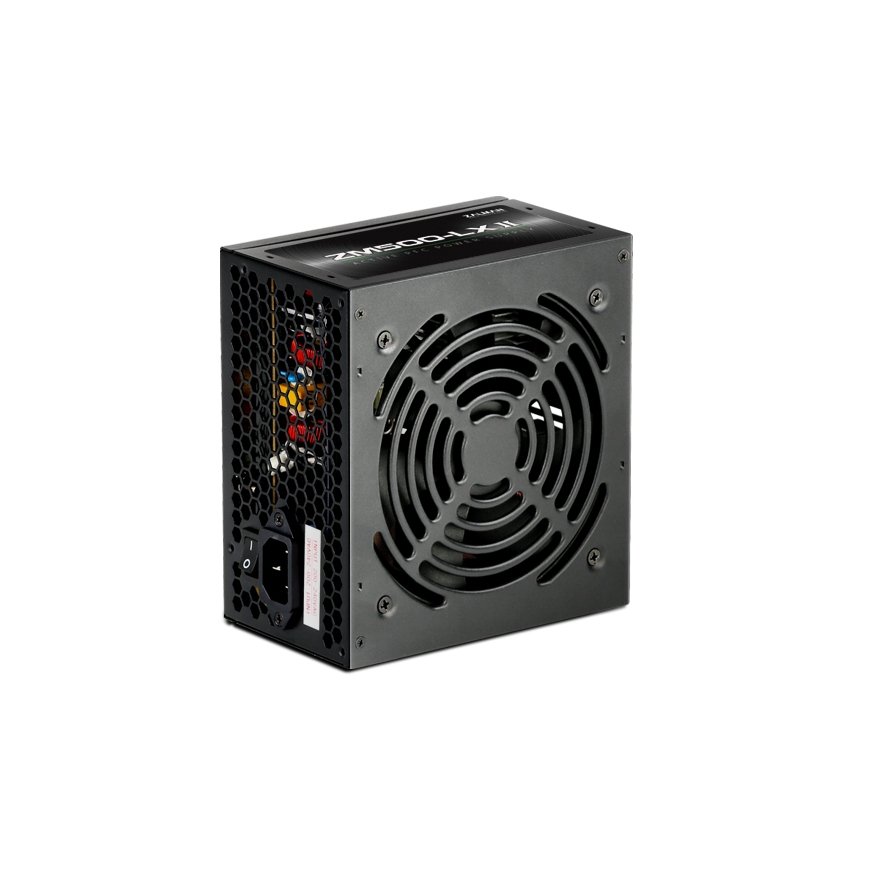

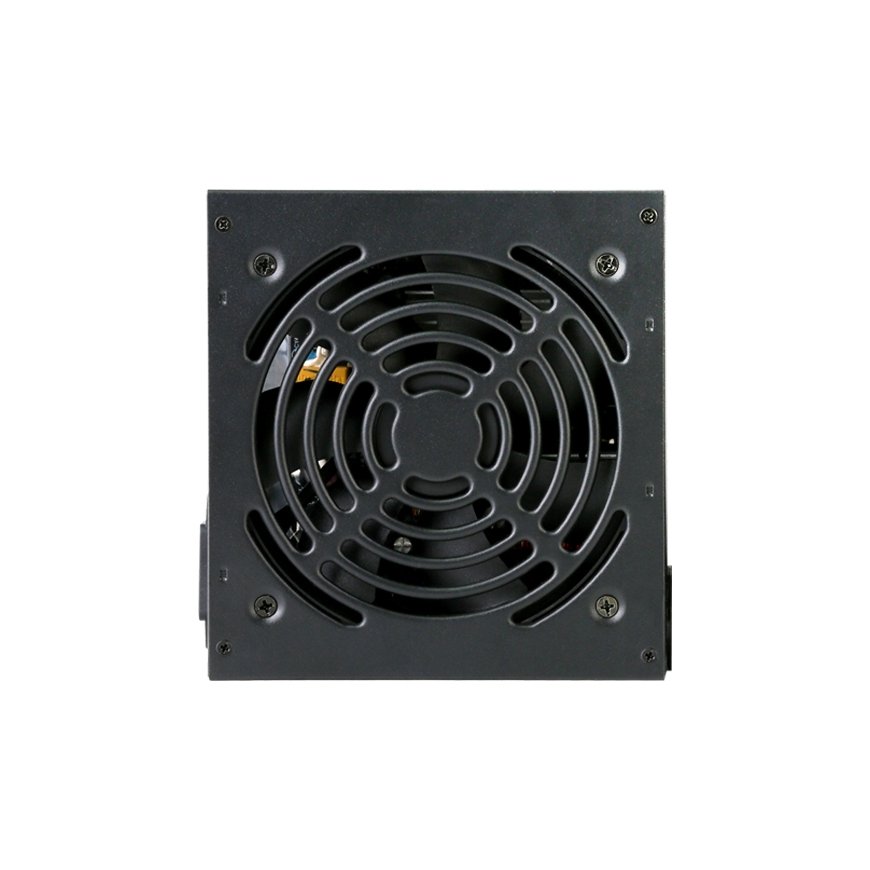

Zalman ZM500-LXII power supply unit 500 W 20+4 pin ATX ATX Black
48.40 €
Monthly payment from 2,15 €
962243 ZM500-LXII
8809213769368, 0823884209037
Shipping 2-3 b.d.
You are interested in this product?
All about the product
Active PFC system with a maximum power factor of 99% providing consistent and stable outputs as well as high energy efficiency. High efficiency ensures safe, stable system operation with low component noise, less heat from parts,Power | |
| Efficiency | 85% |
| Input current | 5 A |
| Power protection features | Overload, Over voltage, Overheating, Short circuit |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 500 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 50 cm |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power cable length | 450 mm |
| PCI Express power cable length | 50 cm |
| CPU power cable length | 60 cm |
| EPS power connector (4+4 pin) | Yes |
Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 1.94 kg |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 1.98 kg |
| Package type | Box |
| Package height | 100 mm |
| Package width | 180 mm |
| Package depth | 270 mm |
Packaging content | |
| Cables included | AC, SATA, CPU, PCIe, Peripheral (Molex) |
Certificates | |
| Certification | CB, CE, KC, CCC, RoHS |
| Compliance certificates | RoHS |
