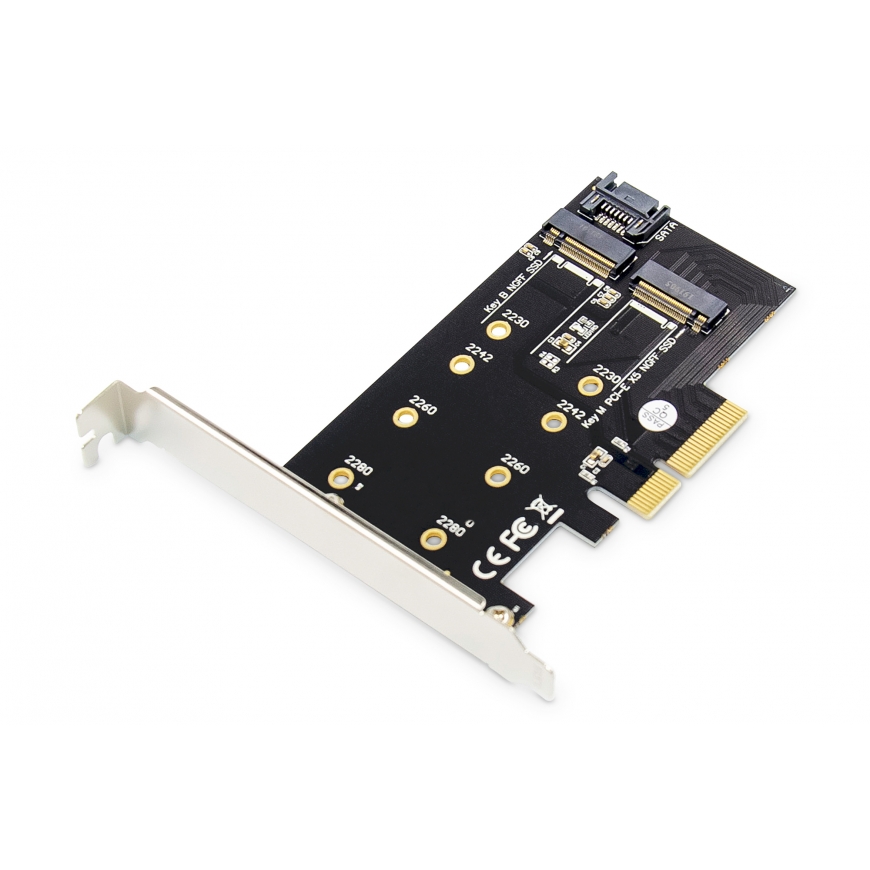

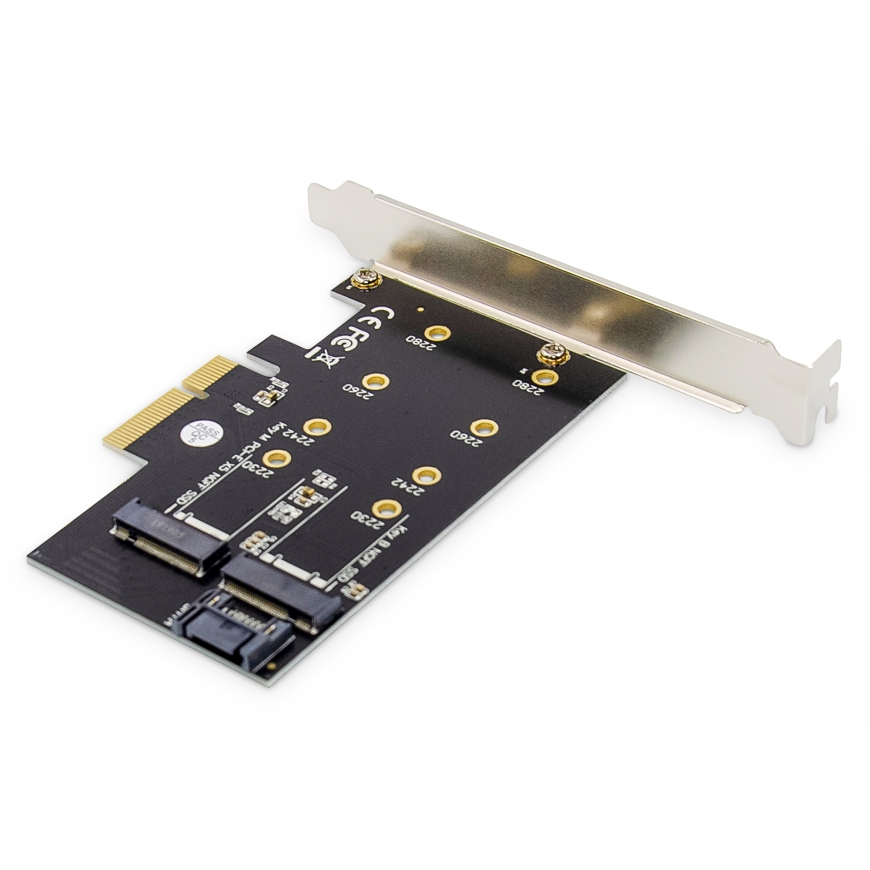

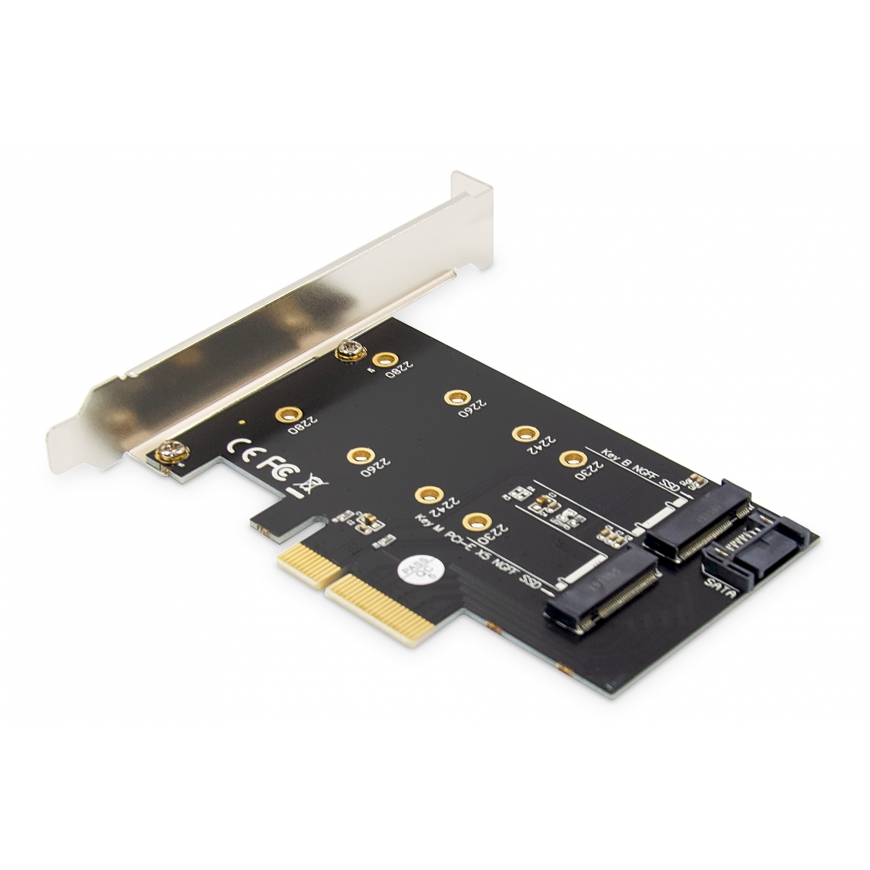

Digitus M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-On Card
19.00 €
917286 DS-33170
4016032464419
Shipping 3-5 b.d.
You are interested in this product?
All about the product
Use M.2 NGFF/NVMe SSDs at PCIe x4 slots on the mainboard – B & M key- NGFF/NVMe SSD M.2 adapter card for PCIe slots: x4/x8/x16
- Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
- Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD
- Ultra-fast PCI express V3.0 data transfer at up to 6 Gbps / 32 GT/s
- Supports PCIe 3.0 / SATA 3.0
- Low-profile slot bracket included
This PCIe x4 adapter card is suitable for M.2 / NGFF storage media (NVMe) with B, M, B+M key and the dimensions 2230, 2242, 2260 & 2280. Together with the x4 interface and PCIe 3.0 standard, data transfers of up to 6 Gbps (32 GT/s) are possible. Storage media can either be connected via the integrated SATA interface for M.2 SATA SSDs, or via the PCI interface for NVMe PCIe SSDs. Go into turbo mode with the multi-functional M.2 PCIe 3.0 add-on card from DIGITUS®.
Features
| Product colour | Black |
| Weight | 41.2 g |
| Width | 114 mm |
| Depth | 70 mm |
| Height | 20 mm |
| Cables included | SATA |
| Package weight | 145.5 g |
| Country of origin | China |
| Host interface | PCIe |
| Quick installation guide | Yes |
| Quantity | 1 |
| Internal | Yes |
| NVMe | Yes |
| Harmonized System (HS) code | 84733020 |
| Number of M.2 (M) slots | 2 |
| Mounting brackets included | Yes |
| Output interface | M.2 |
| Expansion card standard | PCI 3.0 |
| Data transfer rate (max) | 6 Gbit/s |
| SATA revision | 3.0 |
