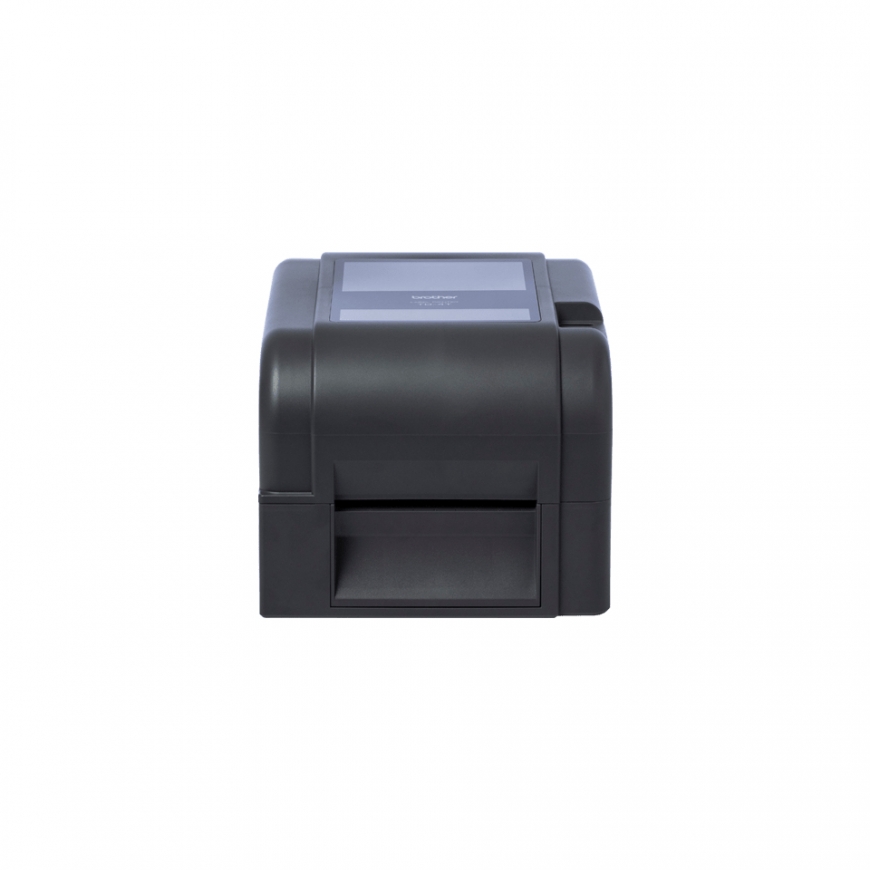

Brother TD-4420TN label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN
896331 TD-4420TN
4977766798556, 0012502655305, 3234424420022, 4977766799218
Shipping 12-13 b.d.
All about the product
Thermal transfer printing for ultimate flexibility
An industry standard 203dpi print resolution gives you crisp, easy-to-read logos, images and barcodes on coated and uncoated label stock using thermal transfer media and ink ribbons.
Thermal transfer print ribbons in wax or resin material to suit your application
Standard or premium high capacity ribbons of up to 300 metres can be used, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.
Supports industry standard printer commands
In addition to printing from Windows using the standard printer driver, you can integrate the Brother TD-4420TN label printer into your legacy systems thanks to ZPL/ZPL2 or EPL printer commands.
High print speed to improve efficiency
Printing at speeds up to 152mm/second (6 inches per second) ensures staff will have their labels almost immediately, and can spend their time being more productive.
Wired connectivity to meet your exact needs
USB, Ethernet and Serial ports are included as standard, ensuring the Brother TD-4420TN will connect to your current equipment and infrastructure without problem.
A range of accessories to improve staff efficiency
Improve productivity by adding an optional label peeler, label cutter or external roll holder to use much larger capacity rolls and reduce printer downtime.
Printing | |
| Colour | No |
| Print technology | Direct thermal / Thermal transfer |
Features | |
| Page description languages | ZPL II, DPL, EPL, ZPL |
| Maximum resolution | 203 x 203 DPI |
| Bluetooth | No |
| Product colour | Black |
| Flash memory | 128 MB |
| Operating temperature (T-T) | 10 - 90 °C |
| Print speed | 6 lpm |
Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
Performance | |
| Internal memory | 64 MB |
| Built-in display | No |
| LED indicators | Yes |
Logistics data | |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 48 pc(s) |
| Pallet gross weight | 211.9 kg |
| Pallet gross height | 16.2 cm |
| Harmonized System (HS) code | 84433210 |
Design | |
| Display | No |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output current | 2 A |
System requirements | |
| Windows operating systems supported | Windows 7, Windows 8, Windows 10, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra, Mac OS X 10.10 Yosemite |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2008 |
Weight & dimensions | |
| Weight | 3.15 kg |
| Width | 275 mm |
| Depth | 405 mm |
| Height | 245 mm |
| Package weight | 3.93 kg |
Packaging data | |
| AC adapter included | Yes |
Packaging content | |
| Cables included | AC, USB |
| Quick start guide | Yes |
| Warranty card | Yes |
Technical details | |
| Master (outer) cases per pallet | 48 pc(s) |
| Layers per pallet | 6 pc(s) |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Pallet type | 800 x 1200 mm |
Other features | |
| Maximum print length | 25.4 m |
| Print speed | 152 mm/sec |
| Spare part retention | 5 year(s) |
| Languages support | German, English, Spanish, French, Italian, Portuguese, Danish, Dutch, Finnish, Norwegian, Swedish |
Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 40% |
| Storage relative humidity (H-H) | 25 - 85% |
Paper handling | |
| Maximum roll diameter | 12.7 cm |
