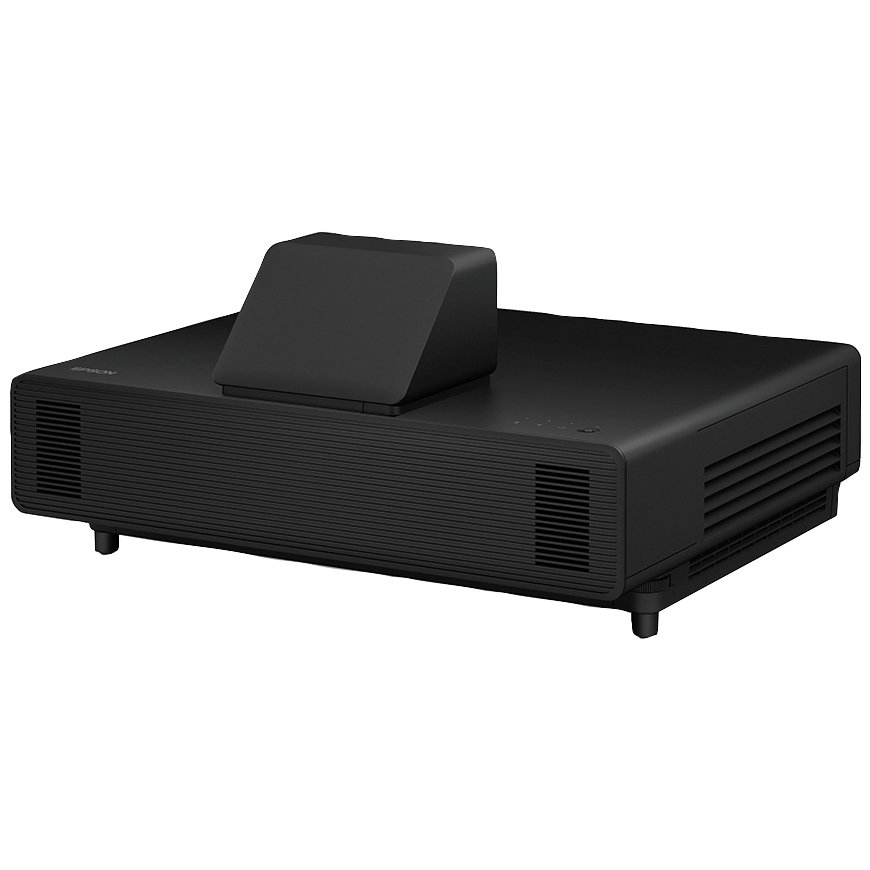

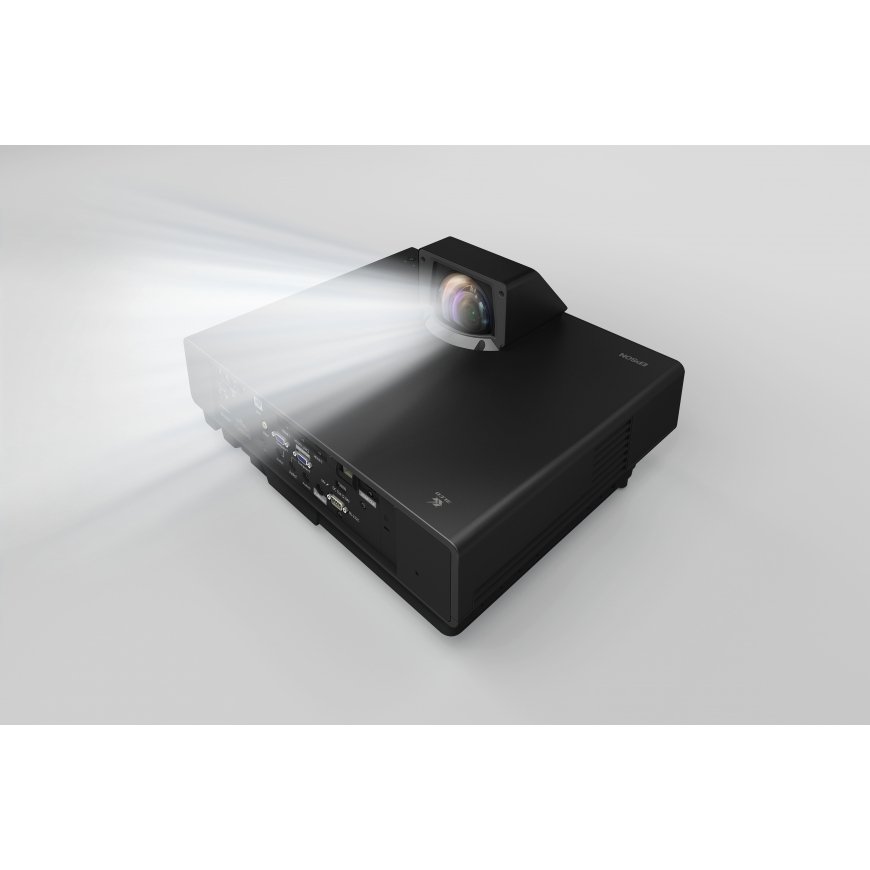

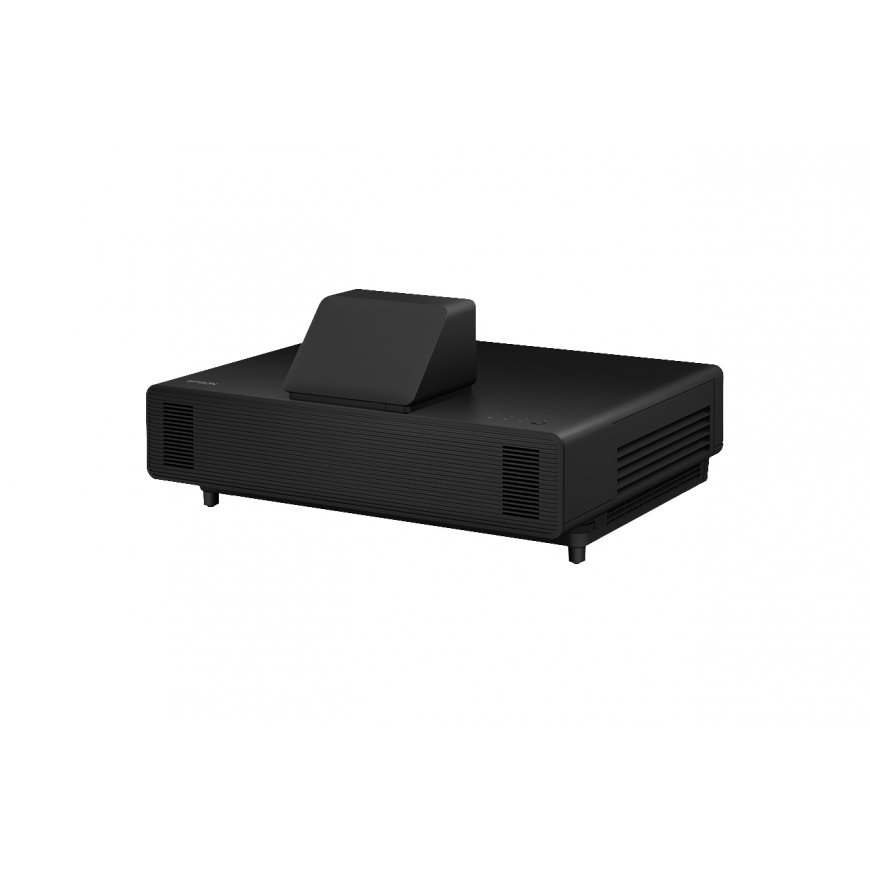

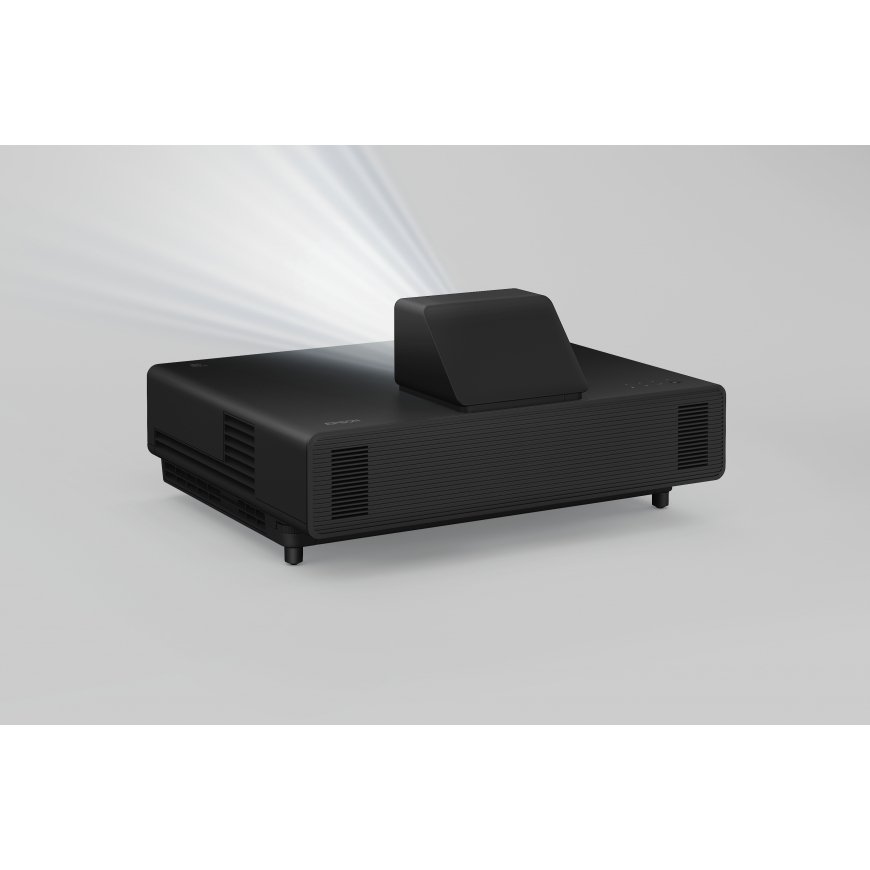

Epson EB-805F Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) Black
3 793.76 €
Monthly payment from 98,59 €
895197 V11H923640
8715946688695, 5715063701881
Shipping 3-7 b.d.
You are interested in this product?
All about the product
EB-805FThis laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.
Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.
Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.
Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.
Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
Projector | |
| Projection technology | 3LCD |
| Projector brightness | 5000 ANSI lumens |
| Contrast ratio (typical) | 2500000:1 |
| Vertical scan range | 192 - 240 Hz |
| Heat dissipation | 1244 BTU/h |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Screen size compatibility | 1651 - 3302 mm (65 - 130") |
| Projector brightness (economic mode) | 3500 ANSI lumens |
| Matrix size | 1.57 cm (0.62") |
| Native aspect ratio | 16:9 |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.8 m |
| Projector native resolution | 1080p (1920x1080) |
| White light output | 5000 ANSI lumens |
| Colour light output | 5000 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Country of origin | China |
Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system | |
| Throw ratio | 0.27 - 0.37:1 |
| Zoom ratio | 1.35:1 |
| Focus | Manual |
| Fixed focal length | 3.9 mm |
| Zoom type | Auto |
Video | |
| Full HD | Yes |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Blackboard, Presentation, sRGB, DICOM simulation mode, Multi-projection |
Technical details | |
| Serial interface type | RS-232C |
| Sustainability certificates | TCO |
| Pallet gross weight | 0 g |

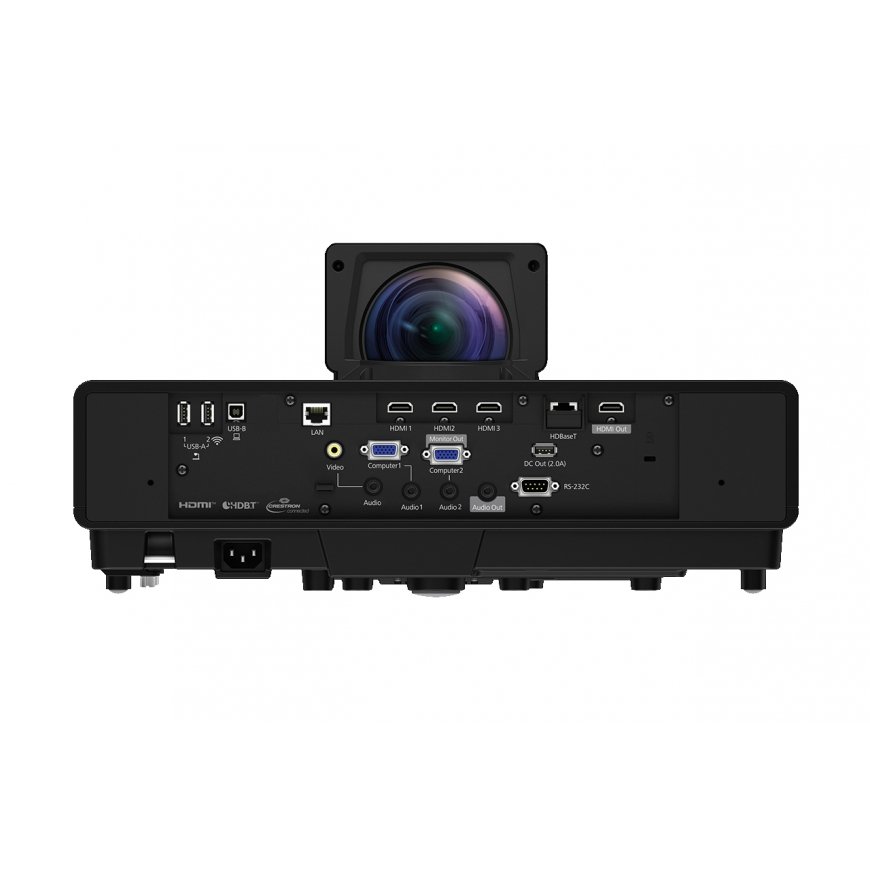

Ports & interfaces | |
| Audio (L/R) in | 3 |
| Audio (L/R) out | 1 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 4 |
| VGA (D-Sub) ports quantity | 2 |
| HDMI connector type | Full-size |
| USB 2.0 Type-B ports quantity | 1 |
Features | |
| Noise level | 36 dB |
| Noise level (economic mode) | 27 dB |
| Password protection | Yes |
Multimedia | |
| RMS rated power | 8 W |
| Built-in speaker(s) | Yes |
Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Ultra short throw projector |
| Placement | Desktop, Wall, Ceiling |
Colour | |
| Product colour | Black |
Operational conditions | |
| Power consumption (typical) | 366 W |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Power | |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 262 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 220-240 V |
Packaging data | |
| Package weight | 13.2 kg |
| Package width | 535 mm |
| Package depth | 595 mm |
| Package height | 350 mm |
| Quantity per pack | 1 pc(s) |
Weight & dimensions | |
| Weight | 9.4 kg |
| Height | 210 mm |
| Depth | 375 mm |
| Width | 458 mm |
Packaging content | |
| Remote control included | Yes |
| Cables included | AC |
| Bundled software | Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management |
| Batteries included | Yes |
| Warranty card | Yes |
| WLAN adapter included | Yes |
Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
Other features | |
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
Logistics data | |
| Products per pallet | 12 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
Software | |
| Software support | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
