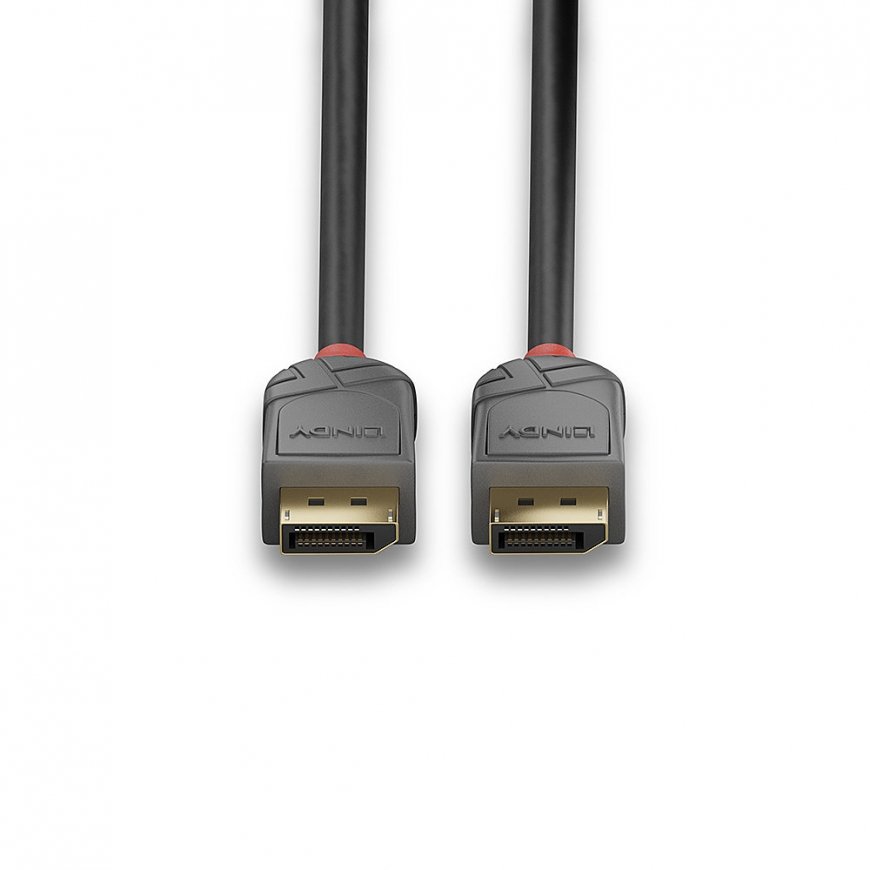

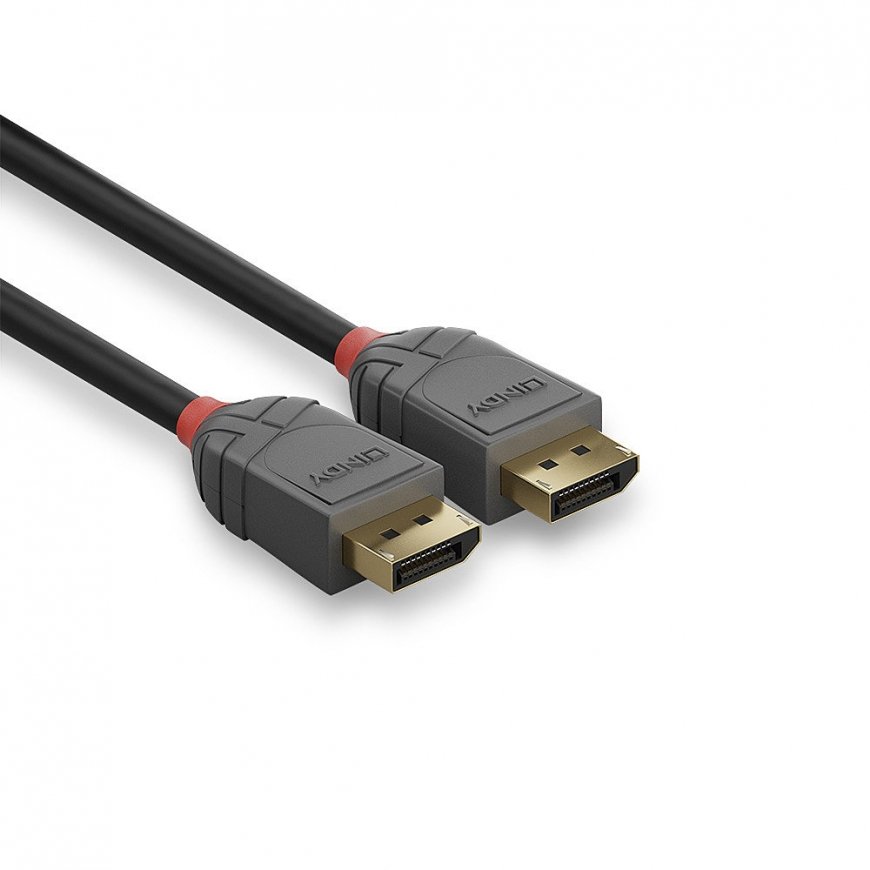

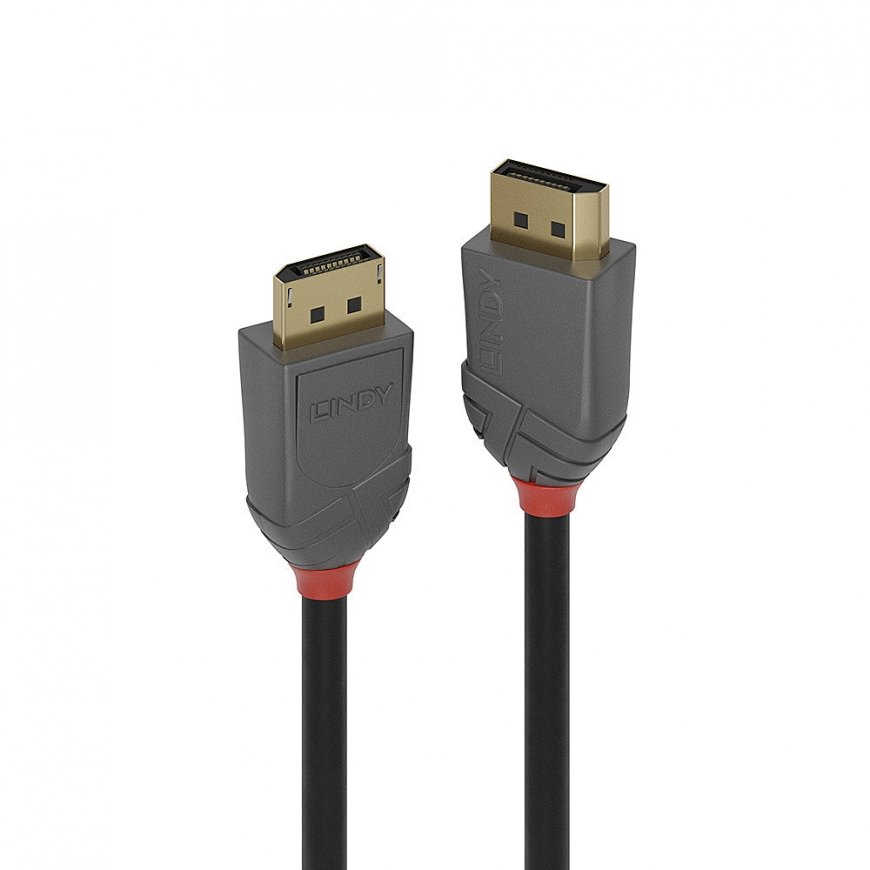

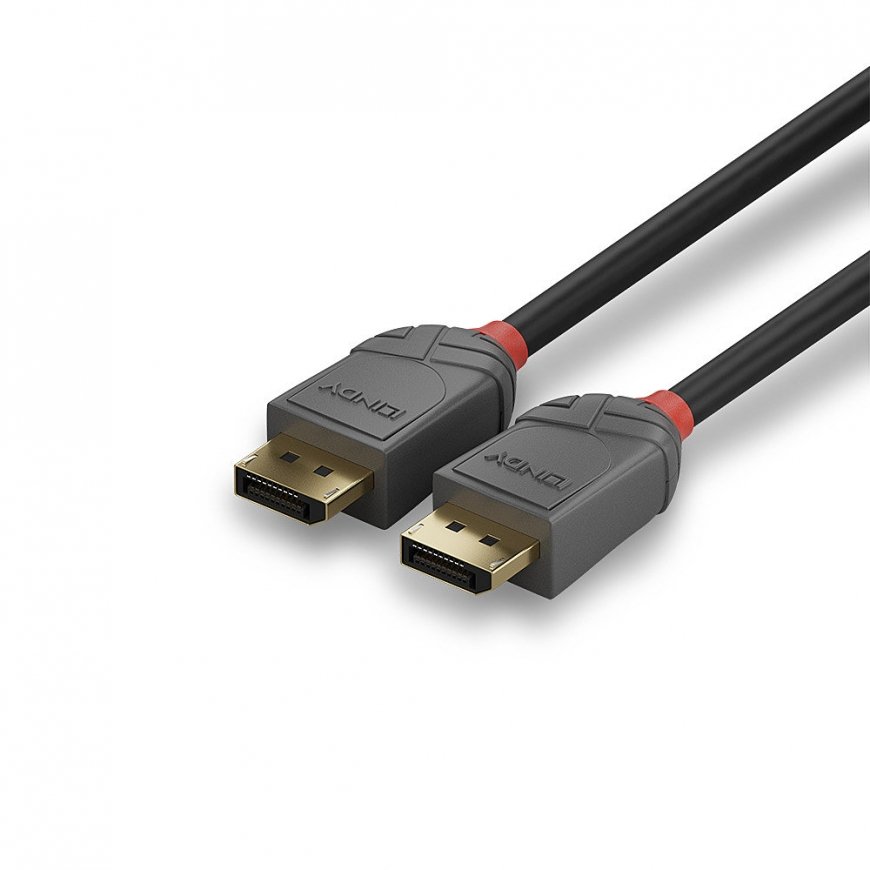

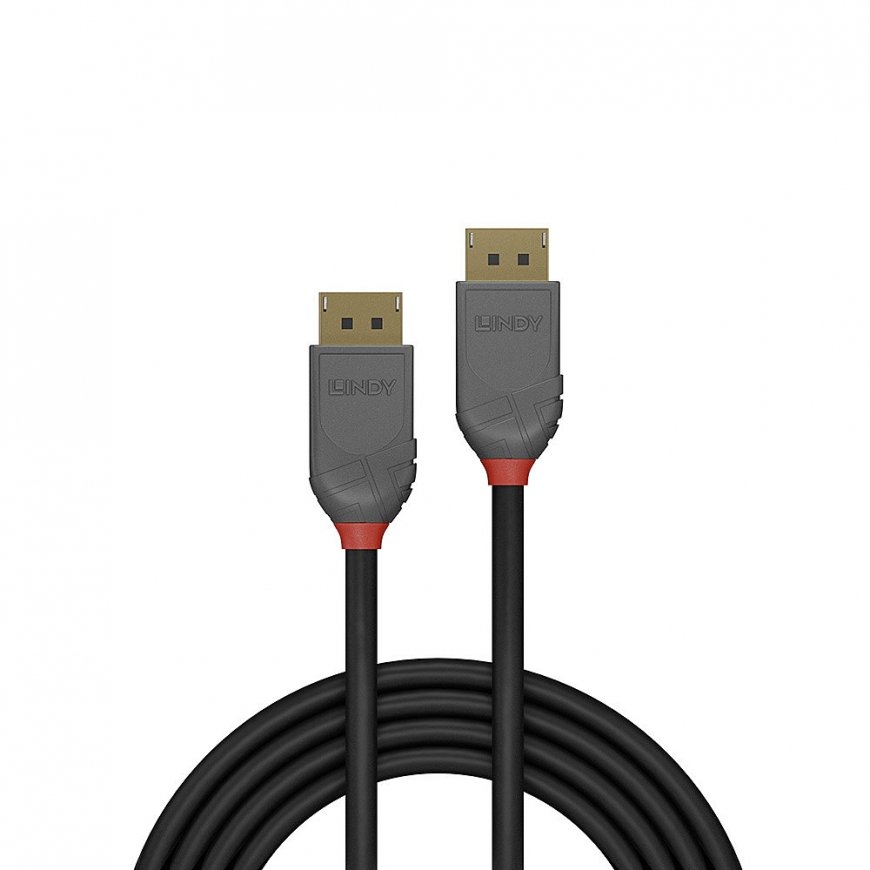

Lindy 1m DisplayPort 1.4 Cable, Anthra Line
14.55 €
871529 36481
4002888364812
Shipping 2-3 b.d.
You are interested in this product?
All about the product
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
Features
| Product colour | Black; Grey |
| Maximum refresh rate | 60 Hz |
| Cable length | 1 m |
| Cable shielding | Copper |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum resolution | 7680 x 4320 pixels |
| Plug and Play | Yes |
| Cable diameter | 7.3 mm |
| Cable type | Round cable |
| Supported graphics resolutions | 4096 x 2160; 7680 x 4320 |
| Certification | RoHS, REACH, UL |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Data transfer rate | 32.4 Gbit/s |
| DisplayPort version | 1.4 |
| Harmonized System (HS) code | 84733080 |
| Cable material | Tinned copper |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Bend radius (min) | 5.84 cm |
| Colour sampling | 4:2:2 |
| Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
