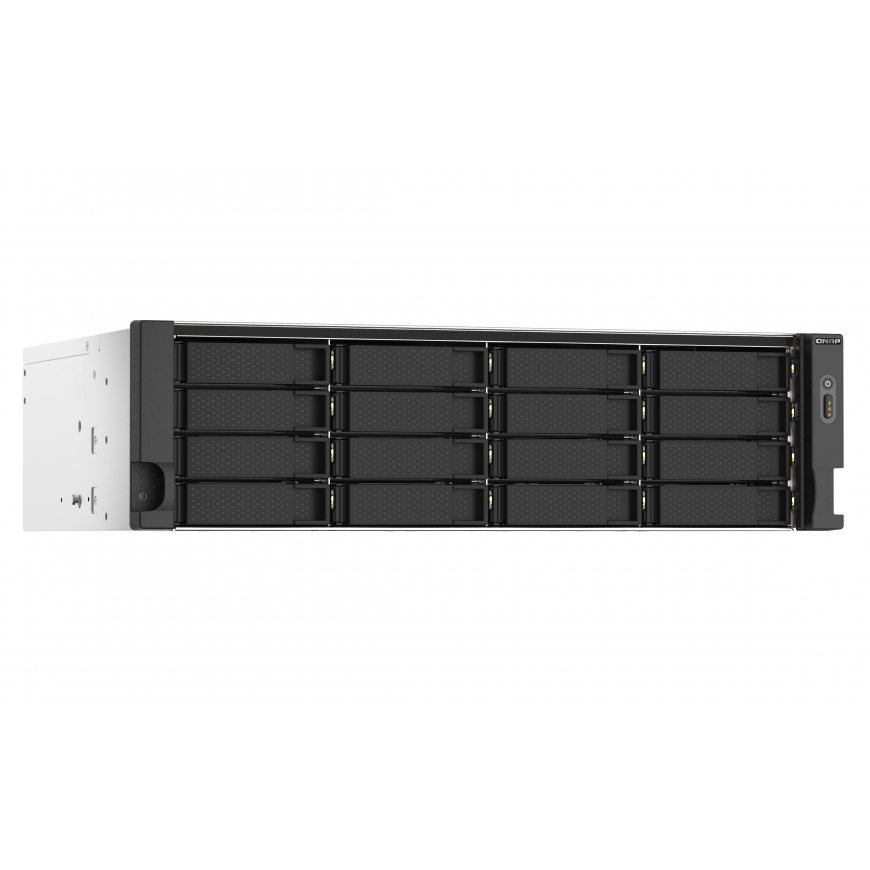

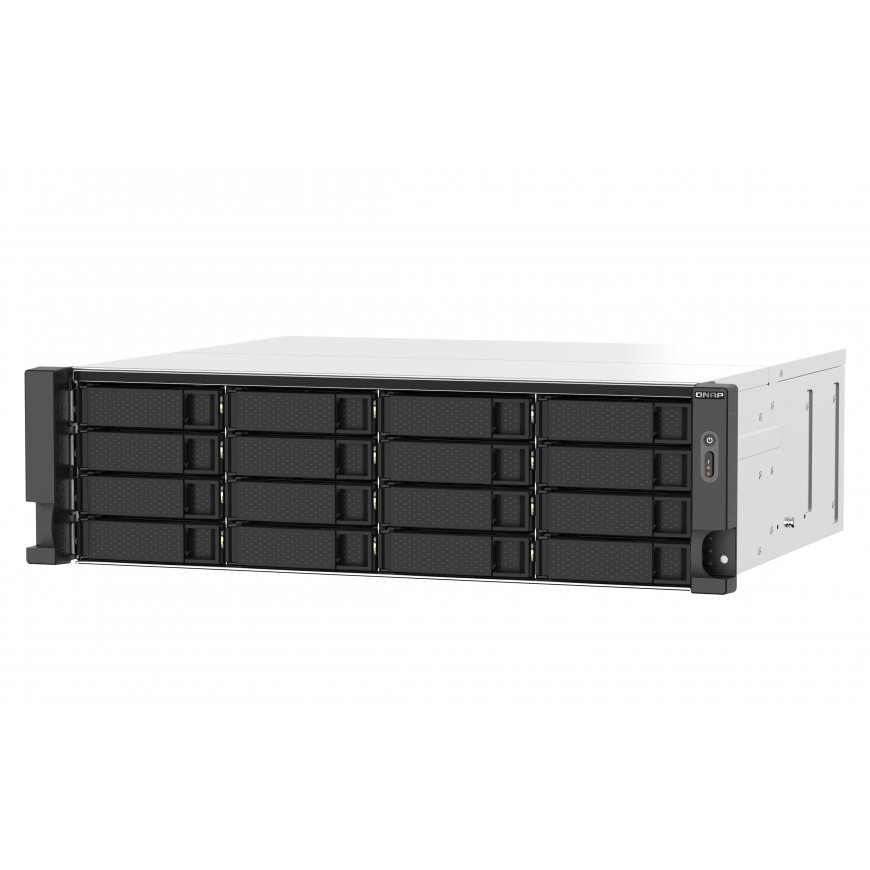

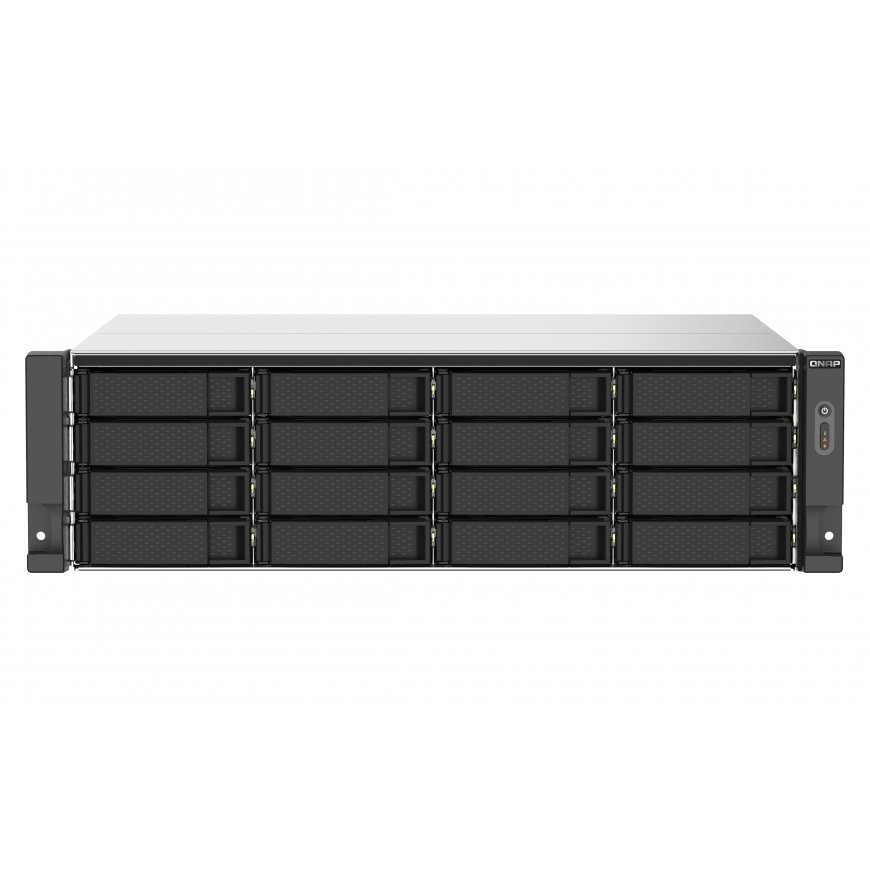

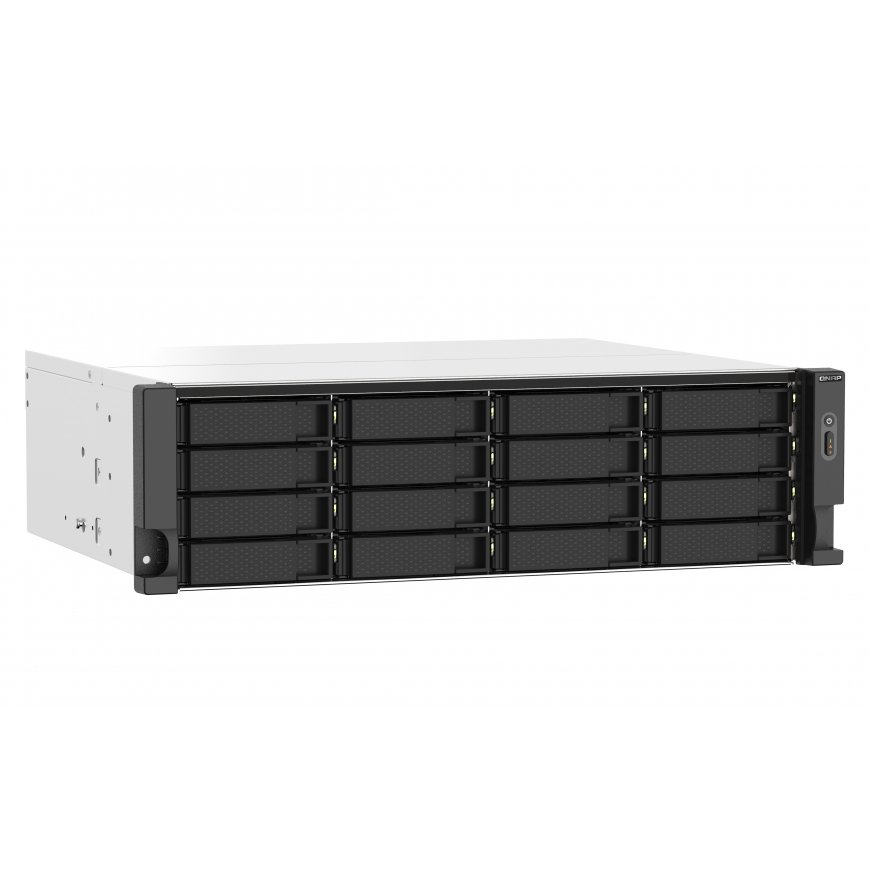

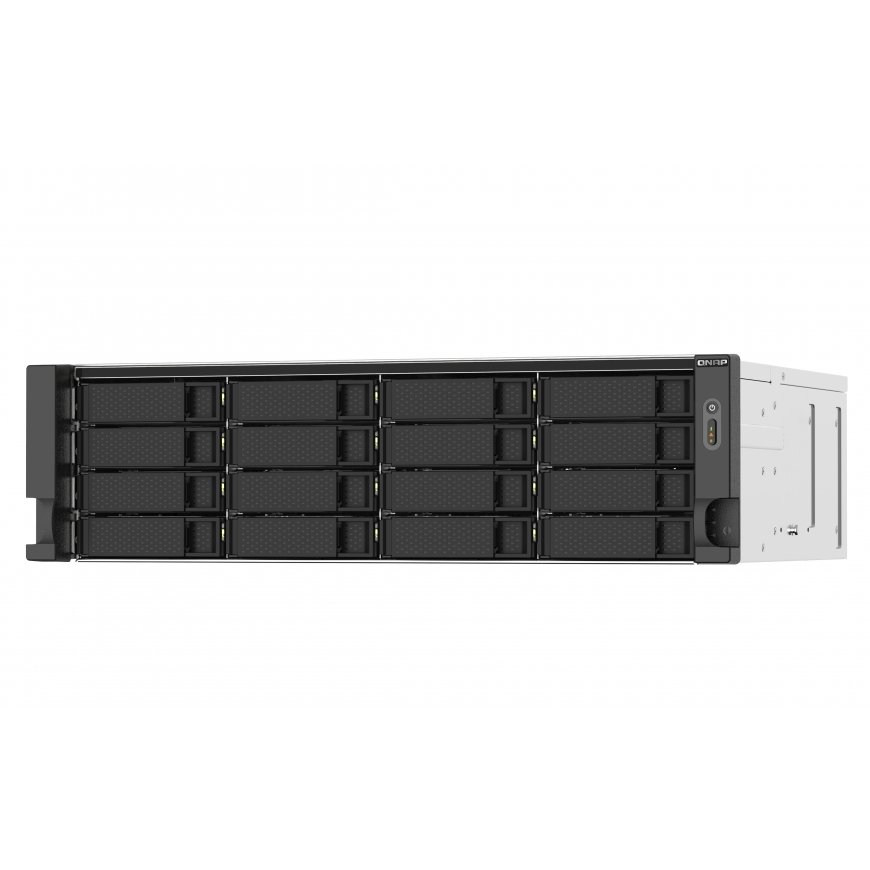

QNAP TS-1673AU-RP-16G NAS/storage server Rack (3U) Ryzen Embedded V1500B 16 GB DDR4 0 TB QNAP QTS Black, Grey
866353 TS-1673AU-RP-16G
4713213517895, 0885022019915
Shipping 15-16 b.d.
All about the product
HybridMount file-based cloud gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD cloud block-based cloud gateway
VJBOD Cloud supports mounting object cloud storage as a block-based volume or LUN on a NAS. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes. This is ideal for enterprise-level applications with large file transfer requirements (such as databases, VM volumes, and videos).
Windows® and Mac® backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Time Machine® is also supported for backing up Mac® computers.
Features
| Operating system installed | QNAP QTS |
| Product colour | Black; Grey |
| USB 2.0 ports quantity | 0 |
| Processor frequency | 2.2 GHz |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor cores | 4 |
| USB port | Yes |
| Weight | 12 kg |
| Width | 430 mm |
| Depth | 371 mm |
| Height | 132 mm |
| Cables included | AC; LAN (RJ-45) |
| Type | NAS |
| Package type | Box |
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Memory form factor | UDIMM |
| Cooling type | Active |
| Package width | 595 mm |
| Package depth | 593 mm |
| Package height | 305 mm |
| Package weight | 17.1 kg |
| Windows operating systems supported | Windows 7; Windows 8; Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan; Mac OS X 10.12 Sierra; Mac OS X 10.14 Mojave; Mac OS X 10.13 High Sierra; Mac OS X 10.15 Catalina; Mac OS X 10.10 Yosemite; Mac OS X 10.15.3 Catalina |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10; 100; 1000; 2500 |
| LED indicators | Power; USB; Status; LAN; HDD |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 97.34 W |
| Other operating systems supported | Solaris 10 |
| On/off switch | Yes |
| AC input frequency | 50 - 60 Hz |
| Fan diameter | 8 cm |
| Number of fans | 3 fan(s) |
| Supported storage drive interfaces | Serial ATA II; Serial ATA III |
| Number of storage drives supported | 16 |
| Operating system version | 5.0.0 |
| Security algorithms | SSH; SSL/TLS; HTTPS; 256-bit AES; SNMPv3; FIPS 140-2 |
| Buzzer | Yes |
| Number of screws | 64 |
| Linux operating systems supported | Yes |
| Flash memory | 5000 MB |
| Browser supported | Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox |
| Processor manufacturer | AMD |
| Memory slots | 2 |
| On-board graphics card model | Not available |
| Chassis type | Rack (3U) |
| Harmonized System (HS) code | 84714100 |
| Processor threads | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Storage drive sizes supported | 2.5; 3.5 |
| Supported storage drive types | HDD & SSD |
| Reset button | Yes |
| Web-based management | Yes |
| Jumbo frames support | Yes |
| Access Control List (ACL) | Yes |
| Fan voltage | 12 V |
| Dynamic DNS (DDNS) | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Power consumption (sleep) | 47.75 W |
| Number of storage drives installed | 0 |
| Server operating systems supported | Windows Server 2008 R2; Windows Server 2012; Windows Server 2012 R2; Windows Server 2016; Windows Server 2019; Windows Server 2012 x64; Windows Server 2016 x64; Windows Server 2008 R2 x64; Windows Server 2012 R2 x64 |
| Number of power supply units | 2 |
| RAID levels | 0; 1; 5; 6; 10; 50; 60; JBOD |
| S.M.A.R.T. support | Yes |
| Supported file systems | FAT32; NTFS; ext3; ext4; HFS+ |
| iSCSI support | Yes |
| L3 cache | 4 MB |
| RAID support | Yes |
| Storage drives installed | Yes |
| Total installed storage capacity | 0 TB |
| Installed storage drive type | No |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud; iSCSI LUN |
| Power supply location | Built-in |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Maximum RAM supported | 32 GB |
| Multilingual support | Yes |
| Third-party support | Yes |
| Snapshot | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| Hot spare | Yes |
| Share folder | CIFS/SMB |
| Power supply unit (PSU) capacity | 550 W |
| Bad block scan | Yes |
| Built-in iTunes server | Yes |
| L2 cache | 2 MB |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Warranty period | 3 year(s) |
