Axagon CLR-M2 computer cooling system M.2 NVMe SSD, Solid-state drive Heatsink/Radiator Black, Red 1 pc(s)
19.00 €
863862 CLR-M2
8595247903976
Shipping 1-3 b.d.
You are interested in this product?
All about the product

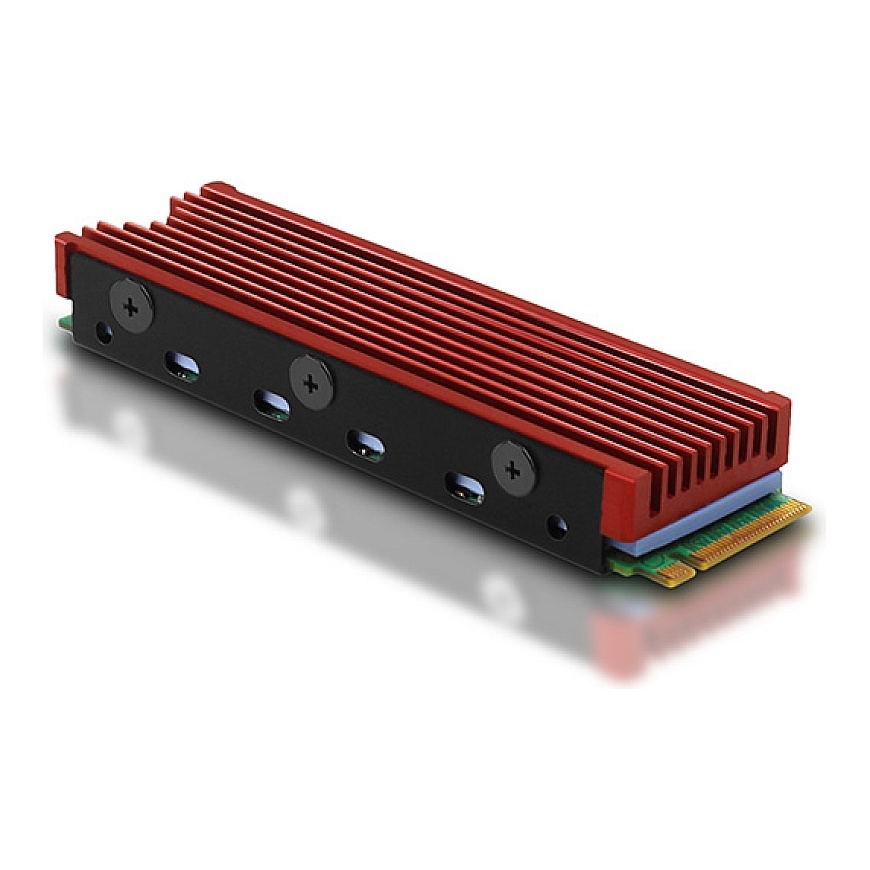

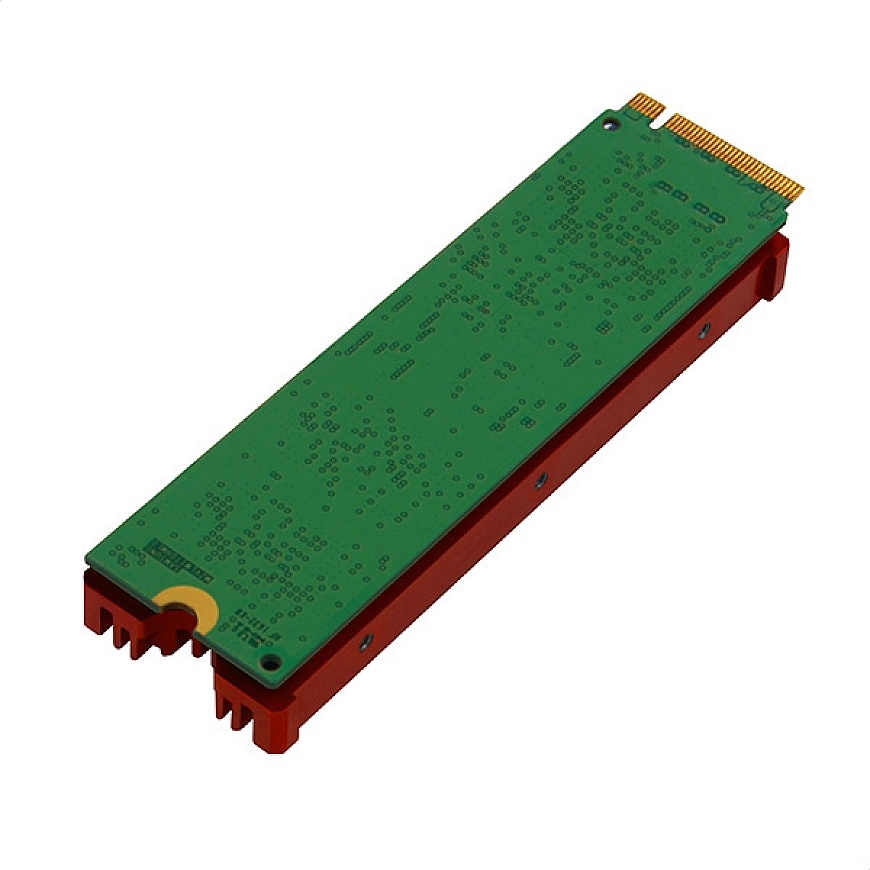

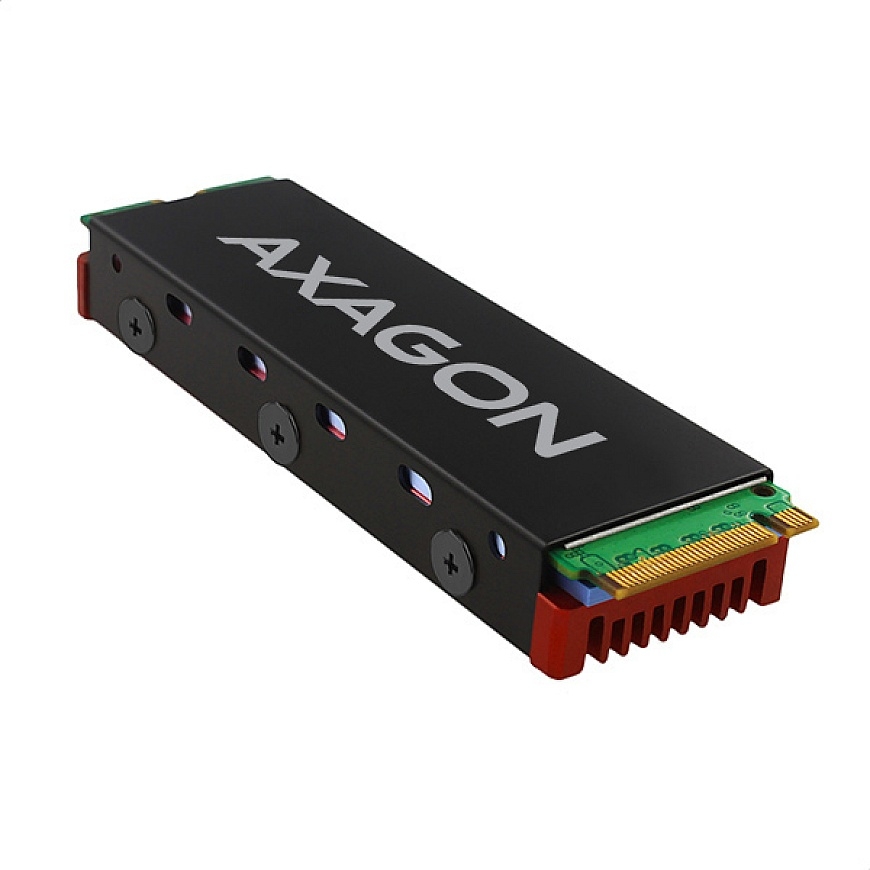

AXAGON CLR-M2 ALU passive cooler for ideal cooling of high performance M.2 SSDs.The versatile passive cooler can be used for M.2 cards, size 22 x 80 mm.

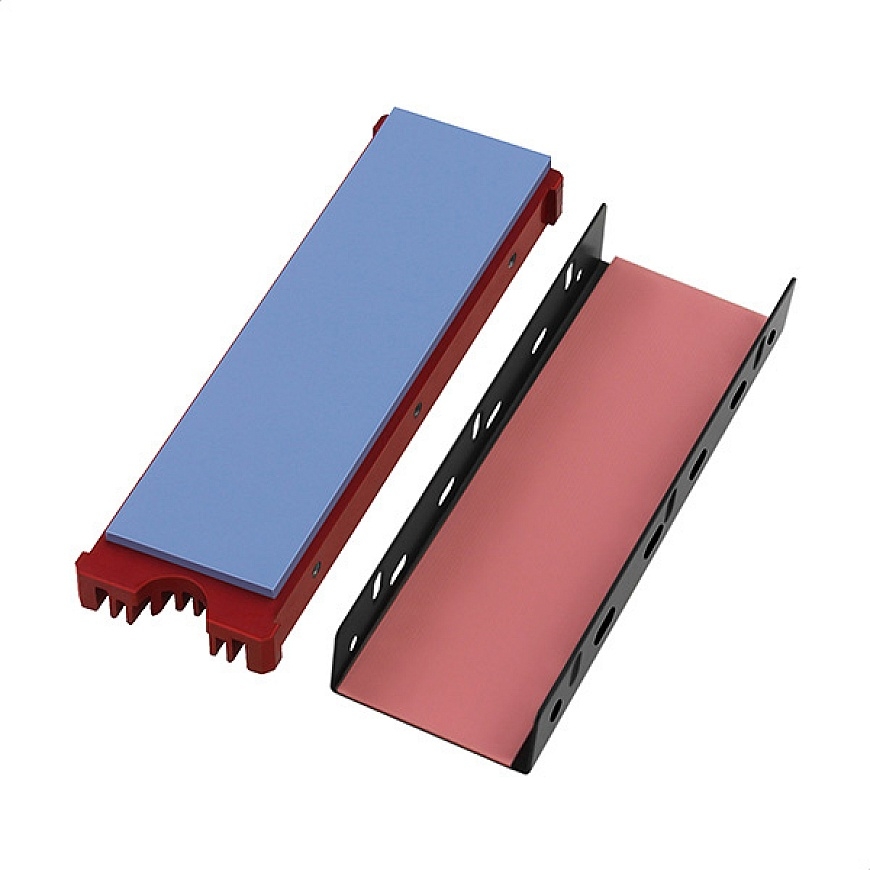

Three delivered thermally conductive pads with a different thickness will allow to install the cooler for all one-sided as well as double-sided M.2 SSDs.
The 8mm aluminium finned cooler assists in a better discharge of heat generated during the M.2 SSD operation, thus allowing to reduce the drive temperature by as much as 25°C.
Thanks to its easy installation and compact dimensions, the cooler can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc.
Features:
• Support of M.2 drives of any capacity.
• Support of both one-sided and double-sided M.2 drives.
• Support of M.2 drives, size 22 x 80 mm.
• Support of SATA (AHCI) as well as NVMe (PCI-Express) M.2 drives.
• Aluminium cooler body.
• 3 thermally conductive pads can be deliberately combined and used for both one-sided and double-sided SSDs with various heights.
• Compact dimensions 76 x 24 x 10 mm.
• Weight 21 g.

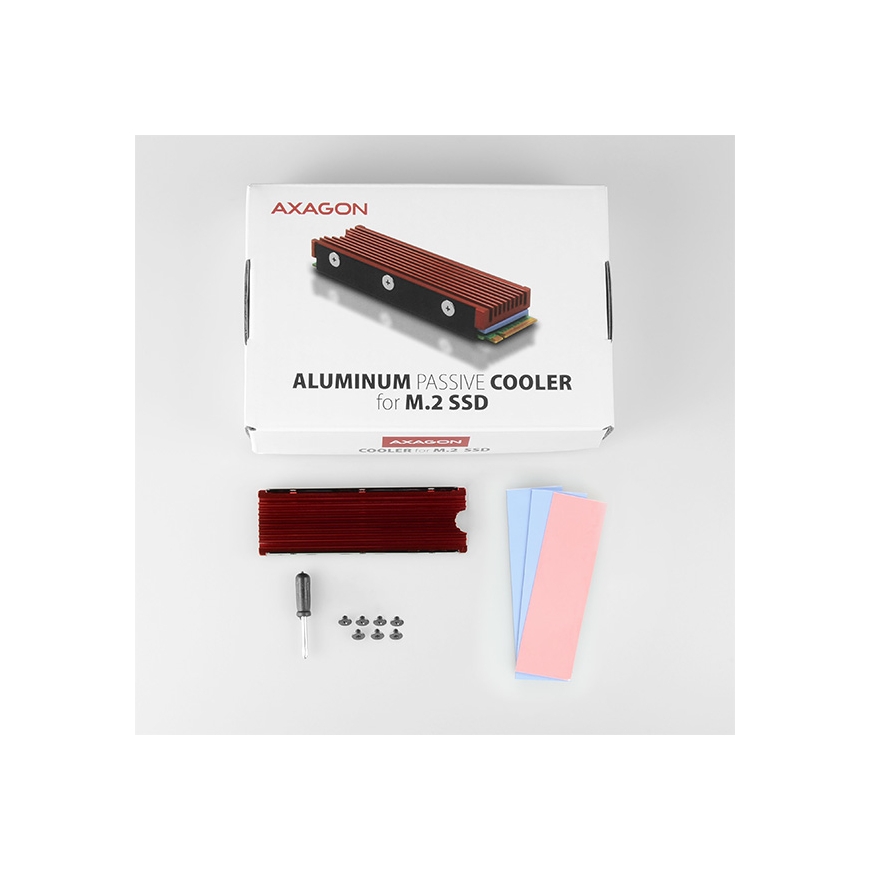

Package contains:
• 1 passive cooler,
• 3 thermally conductive pads,
• mounting material and a screwdriver,
• packed in a cardboard box.
Performance | |
| Supported processor sockets | Not supported |
| Type | Heatsink/Radiator |
| Fan diameter | N |
| Noise level (low speed) | 0 dB |
| Compatible products | M.2 2280 |
| Quantity per pack | 1 pc(s) |
| Suitable location | Solid-state drive, M.2 NVMe SSD |
Design | |
| Product colour | Black, Red |
| Material | Aluminium |
| Number of fans | 0 fan(s) |
| Radiator material | Aluminum |
Weight & dimensions | |
| Weight | 21 g |
| Package weight | 75 g |
| Height | 10 mm |
| Width | 76 mm |
| Depth | 24 mm |
| Package height | 27 mm |
| Package width | 90 mm |
| Package depth | 130 mm |
Technical details | |
| Compliance certificates | RoHS |
Packaging content | |
| Screws included | Yes |
| Thermal pad included | Yes |
| Package type | Box |
| Installation instruction | Yes |
