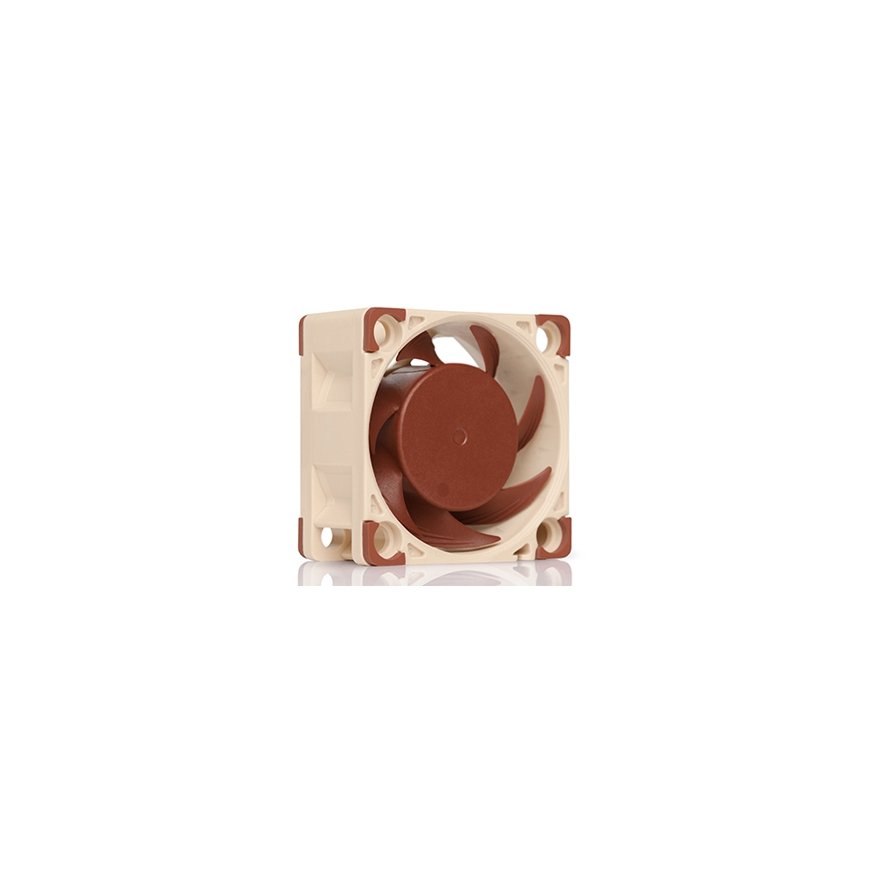

Noctua NF-A4X20 5V PWM computer cooling system Computer case Fan 4 cm
27.01 €
859864 NF-A4X20 5V PWM
9010018100136
Shipping 10-15 b.d.
You are interested in this product?
All about the product
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A4x20 5V PWM is a PWM enabled 5V variant of Noctua’s highly optimised, premium quality quiet 40x20mm fan. The custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin™ Adaptor Set and 6 years manufacturer’s warranty, the NF-A4x20 5V PWM is a premium choice for demanding 5V applications that require PWM control.Performance | |
| Type | Fan |
| Mean time between failures (MTBF) | 150000 h |
| Fan diameter | 4 cm |
| Airflow | 9.4 m³/h |
| Maximum air pressure | 2.26 mmH2O |
| Noise level (high speed) | 14.9 dB |
| Rotational speed (min) | 1100 RPM |
| Rotational speed (max) | 5000 RPM |
| Suitable location | Computer case |
Design | |
| Fan connector | 4-pin |
Power | |
| Rated current | 0.1 A |
| Power consumption (typical) | 0.5 W |
| Voltage | 5 V |
Weight & dimensions | |
| Height | 40 mm |
| Width | 40 mm |
| Depth | 20 mm |
Packaging content | |
| Screws included | Yes |
Other features | |
| Mounting hole pattern (W x D) | 32 x 32 mm |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
