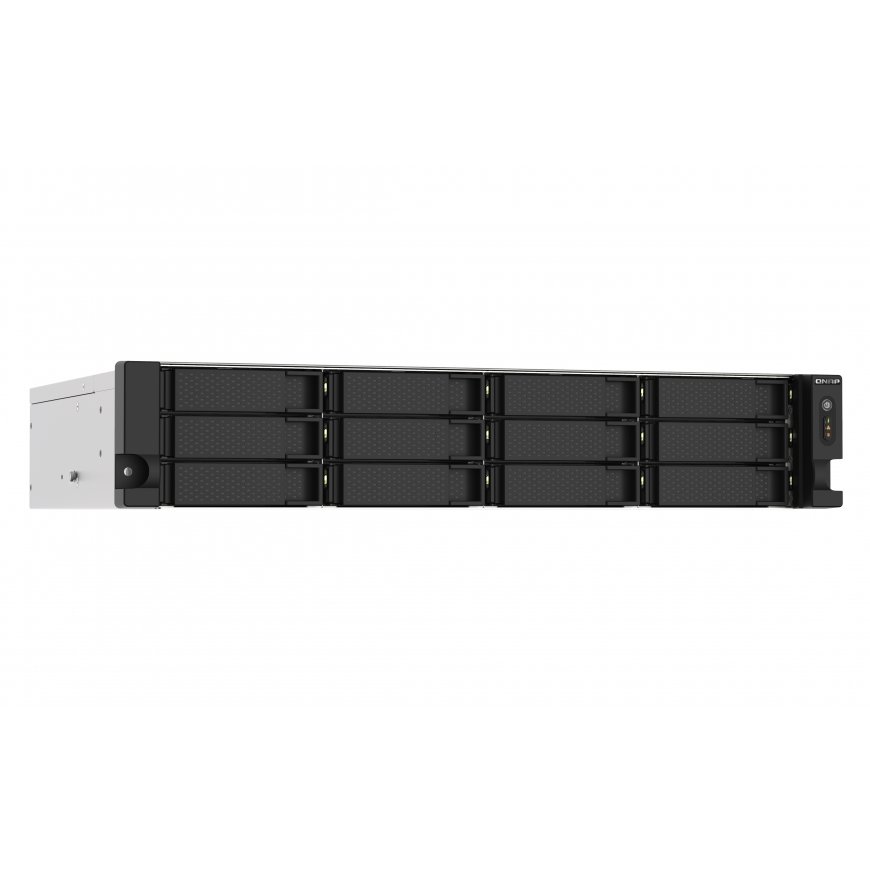

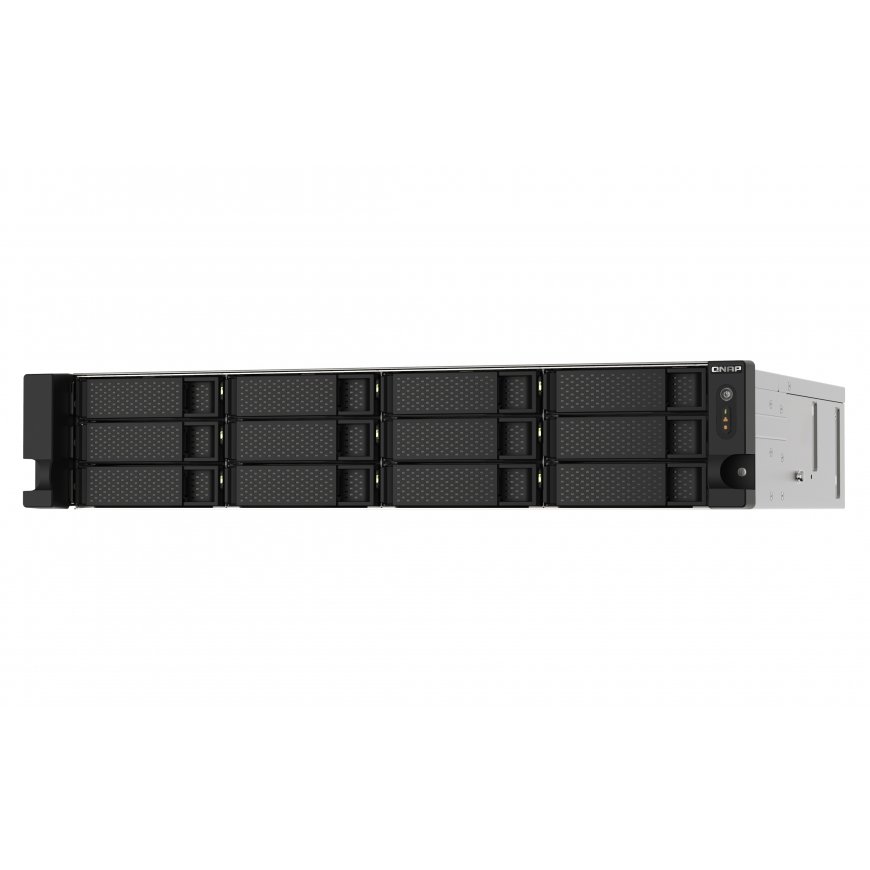

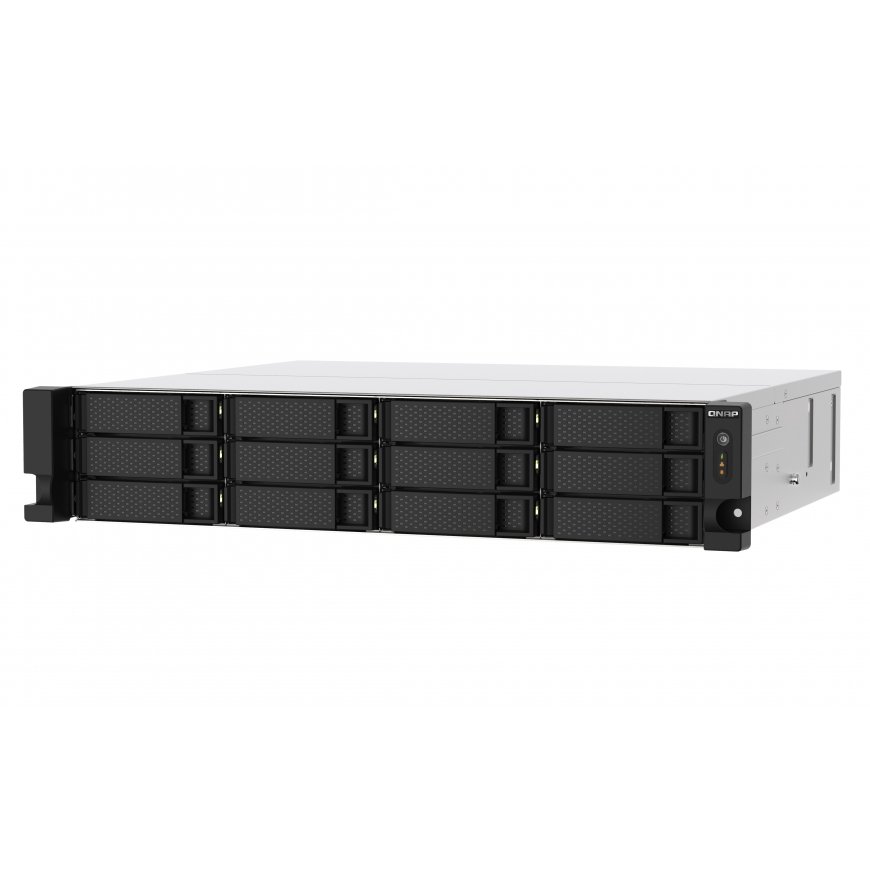

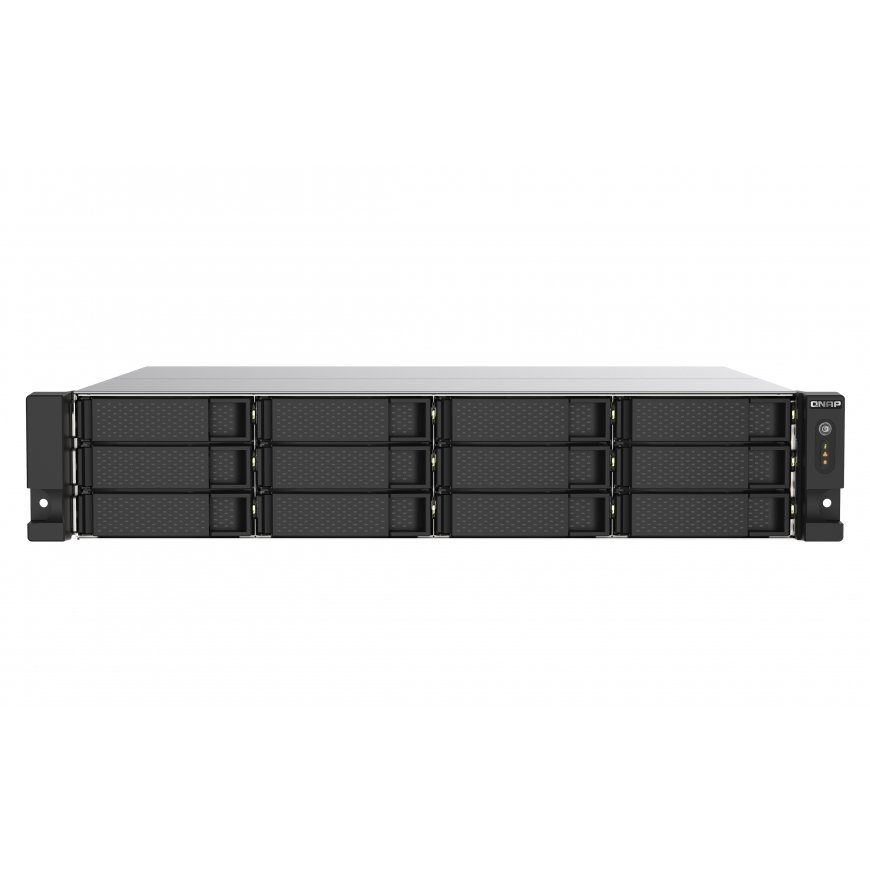

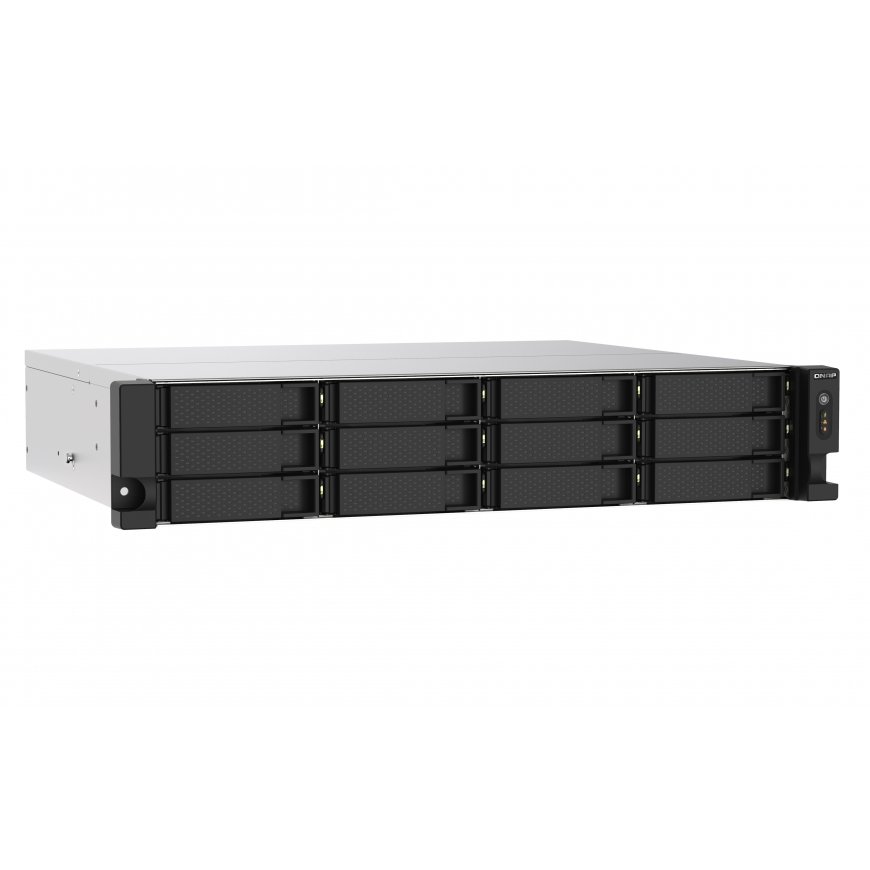

QNAP TS-1273AU-RP-8G NAS/storage server Rack (2U) Ryzen Embedded V1500B 8 GB DDR4 0 TB QNAP QTS Aluminium, Black
853534 TS-1273AU-RP-8G
4713213517901, 0885022019922
Shipping 15-16 b.d.
All about the product
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable data protection method in the face of growing ransomware threats. The TS-1273AU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
Windows® and Mac® backup
Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Time Machine® is also supported for backing up Mac® computers.
HybridMount file-based cloud gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
Features
| Operating system installed | QNAP QTS |
| Product colour | Black; Aluminium |
| USB 2.0 ports quantity | 0 |
| Processor frequency | 2.2 GHz |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor cores | 4 |
| USB port | Yes |
| Weight | 9.69 kg |
| Width | 482 mm |
| Depth | 425 mm |
| Height | 89 mm |
| Type | NAS |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Memory form factor | DIMM |
| Cooling type | Active |
| Package weight | 14.6 kg |
| Windows operating systems supported | Windows 7; Windows 8; Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan; Mac OS X 10.12 Sierra; Mac OS X 10.14 Mojave; Mac OS X 10.13 High Sierra; Mac OS X 10.15 Catalina; Mac OS X 10.10 Yosemite; Mac OS X 10.15.3 Catalina |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 100; 1000; 2500 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 78.92 W |
| Other operating systems supported | Solaris 10 |
| On/off switch | Yes |
| AC input frequency | 50 - 60 Hz |
| Fan diameter | 8 cm |
| Number of fans | 2 fan(s) |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | Serial ATA II; Serial ATA III |
| Number of storage drives supported | 12 |
| Operating system version | 5.0.0 |
| Security algorithms | SSL/TLS; HTTPS; 256-bit AES; SNMPv3; FIPS 140-2; SNMPv2 |
| Buzzer | Yes |
| Supported network protocols | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Linux operating systems supported | Yes |
| Flash memory | 5000 MB |
| Browser supported | Apple Safari 7+, Google Chrome, Mozilla Firefox |
| Processor manufacturer | AMD |
| Memory slots | 2 |
| Chassis type | Rack (2U) |
| Harmonized System (HS) code | 84714100 |
| Processor threads | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Storage drive sizes supported | 2.5; 3.5 |
| Supported storage drive types | HDD & SSD |
| Reset button | Yes |
| Link aggregation | Yes |
| Jumbo frames support | Yes |
| Access Control List (ACL) | Yes |
| Dynamic DNS (DDNS) | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Power consumption (sleep) | 43.67 W |
| Number of storage drives installed | 0 |
| Server operating systems supported | Windows Server 2008 R2; Windows Server 2012; Windows Server 2012 R2; Windows Server 2016; Windows Server 2019; Windows Server 2012 x64; Windows Server 2016 x64; Windows Server 2008 R2 x64; Windows Server 2012 R2 x64 |
| Number of power supply units | 2 |
| RAID levels | 0; 1; 5; 6; 10; 50; 60; JBOD |
| S.M.A.R.T. support | Yes |
| Wake-on-LAN ready | Yes |
| Load balancing system | Yes |
| Supported file systems | FAT32; NTFS; ext3; ext4; HFS+ |
| iSCSI support | Yes |
| L3 cache | 4 MB |
| RAID support | Yes |
| Storage drive interface | Serial ATA II; Serial ATA III |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Installed storage drive type | No |
| Storage drive capacity | 0 GB |
| Hot-swap drive bays | Yes |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud; iSCSI LUN |
| Power supply location | Built-in |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Maximum RAM supported | 32 GB |
| WLAN adapter supported | Yes |
| Multilingual support | Yes |
| Snapshot | Yes |
| Built-in FTP server | Yes |
| System log | Yes |
| Hot spare | Yes |
| Share folder | CIFS/SMB |
| USB copy function | Yes |
| Power supply unit (PSU) capacity | 300 W |
| Bad block scan | Yes |
| Disk roaming | Yes |
| Disk scan | Yes |
| L2 cache | 2 MB |
| Fan diameter 2 | 8 cm |
| Processor generation | AMD Ryzen Embedded V1000 Series |
