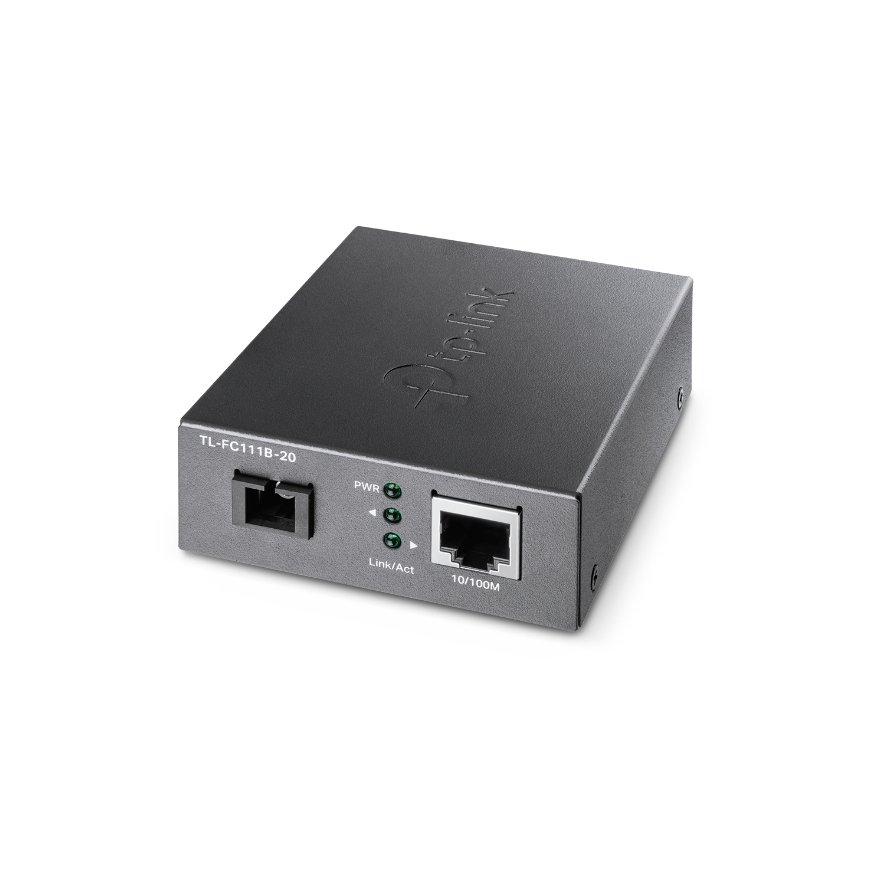

TP-Link 10/100 Mbps WDM Media Converter
27.74 €
848272 TL-FC111B-20
6935364010997, 0845973010096, 6935364010973
Shipping 10-15 b.d.
You are interested in this product?
All about the product

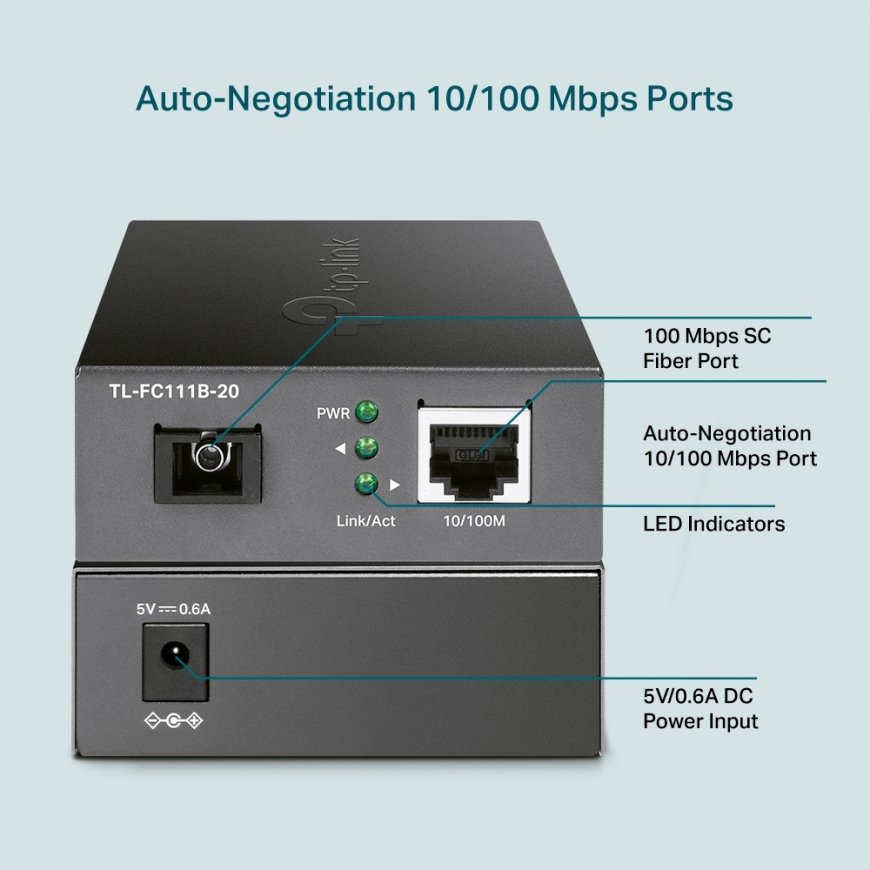

What This Product DoesTL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works

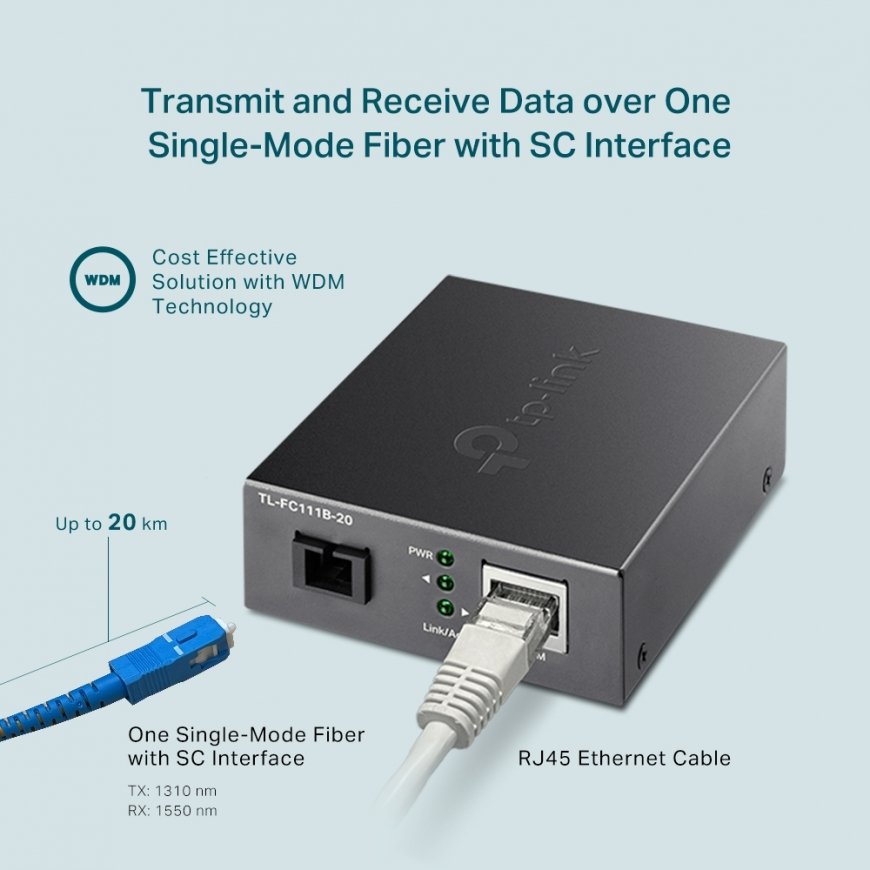

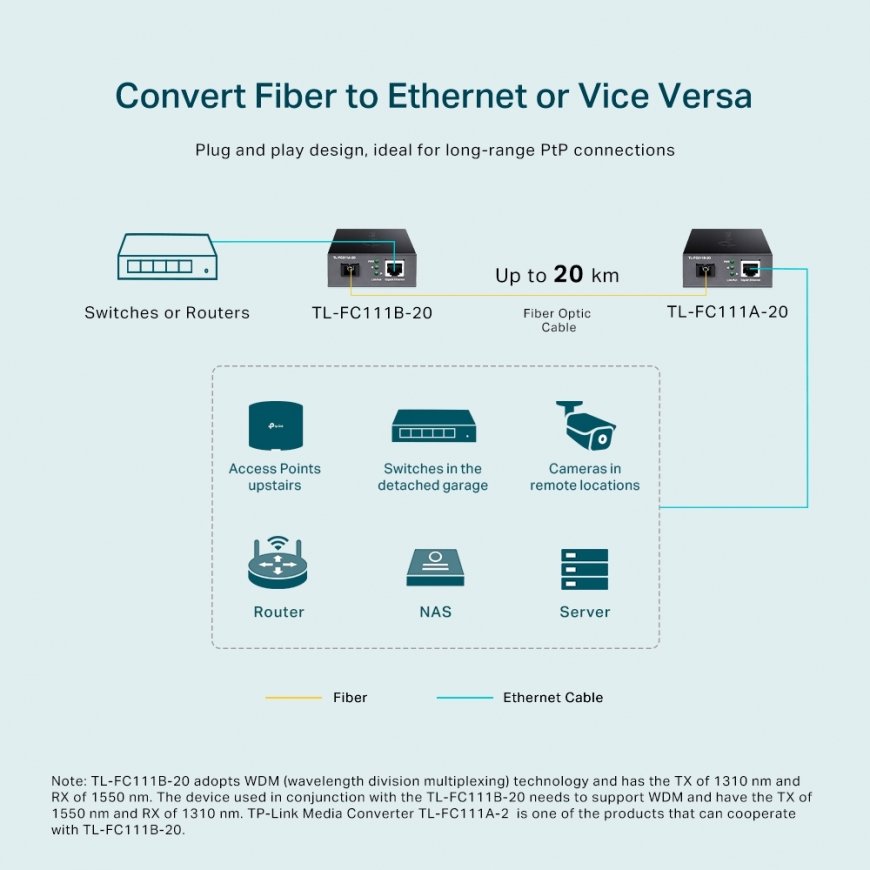

TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at a wavelength 1310nm and sending data at wavelength 1550nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
Features | |
| Data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3i |
| Product colour | Black |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber mode structure | Single-mode |
| Maximum transfer distance | 20000 m |
Packaging data | |
| Package height | 65 mm |
| Package width | 165 mm |
| Package weight | 360 g |
| Package depth | 204 mm |

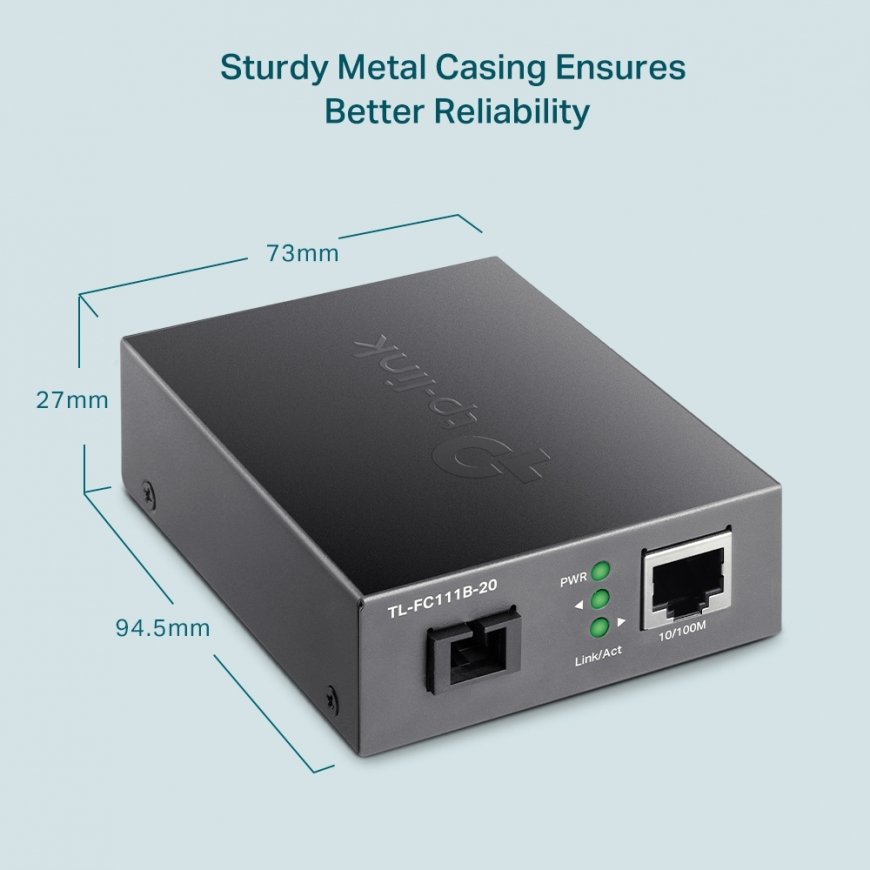

Weight & dimensions | |
| Depth | 73 mm |
| Height | 27 mm |
| Width | 94.5 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Other features | |
| LED indicators | Power, Activity, Link |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
Power | |
| Output voltage | 5 V |
Certificates | |
| Compliance certificates | RoHS |
| Certification | FCC, CE, RoHS |
