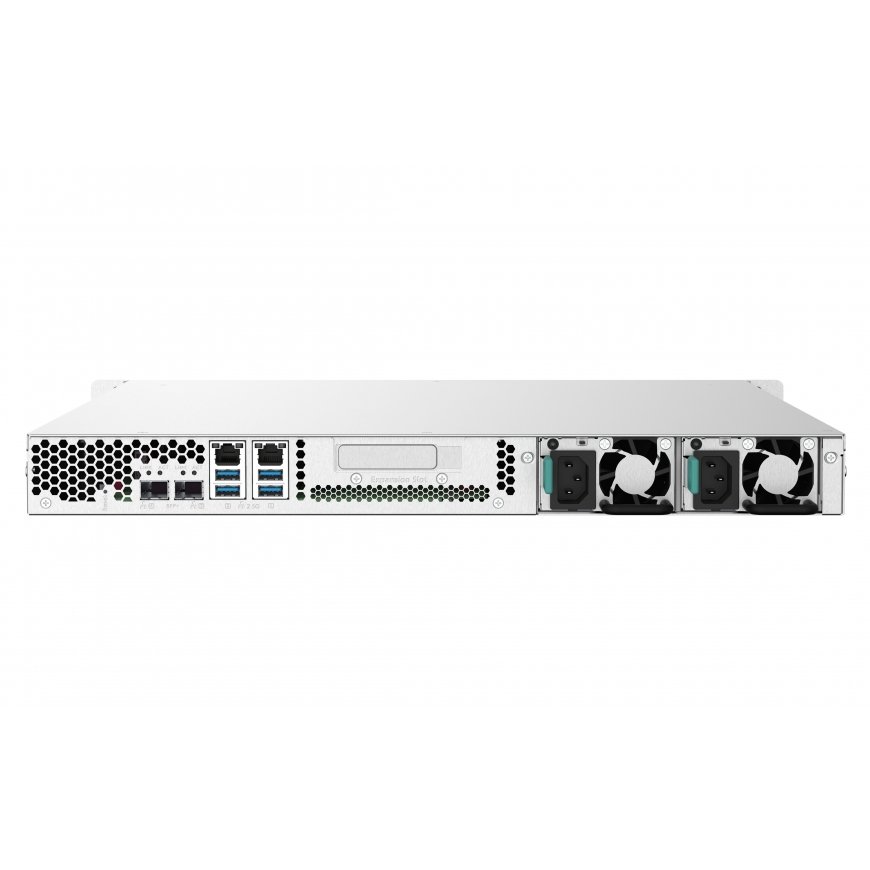

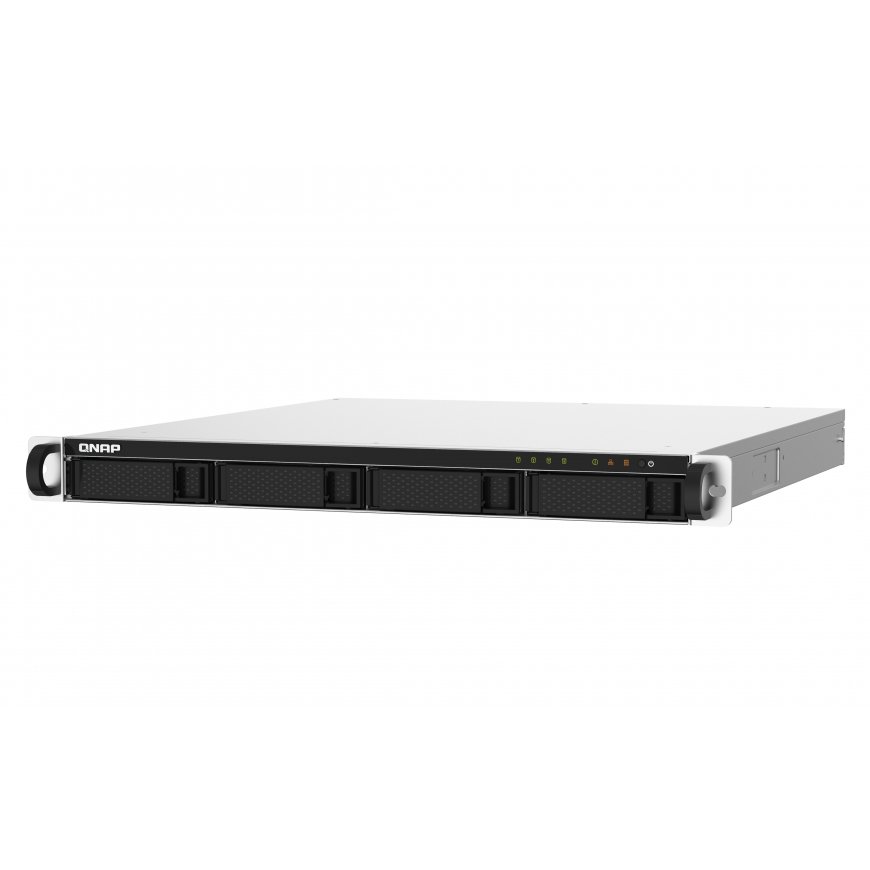

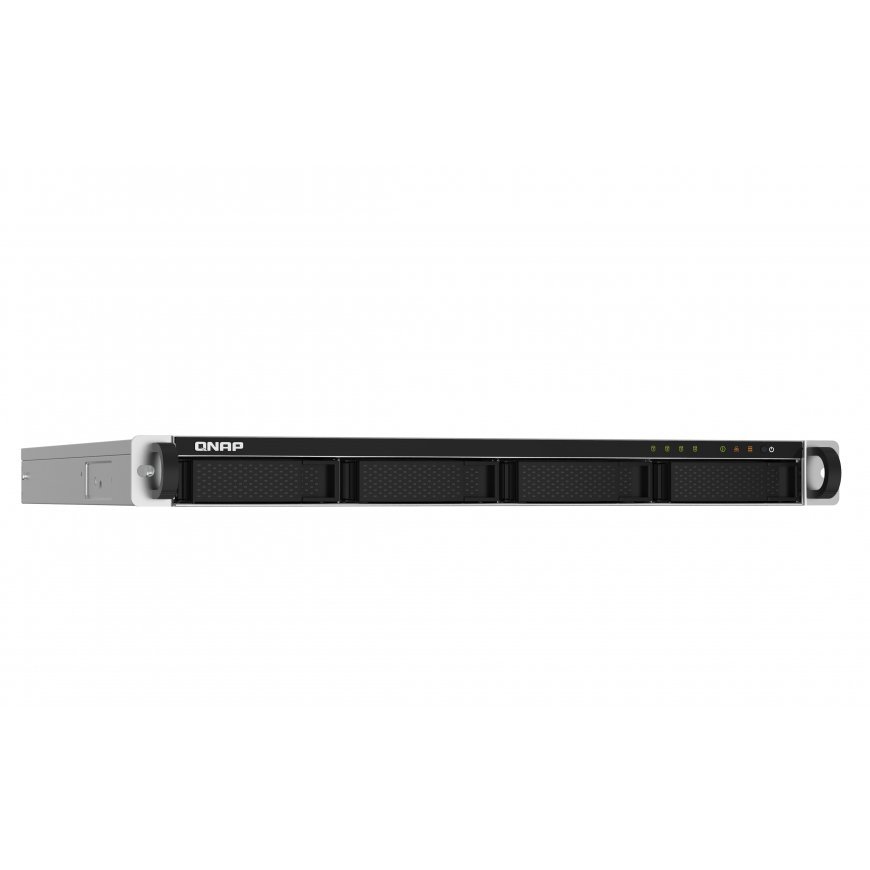

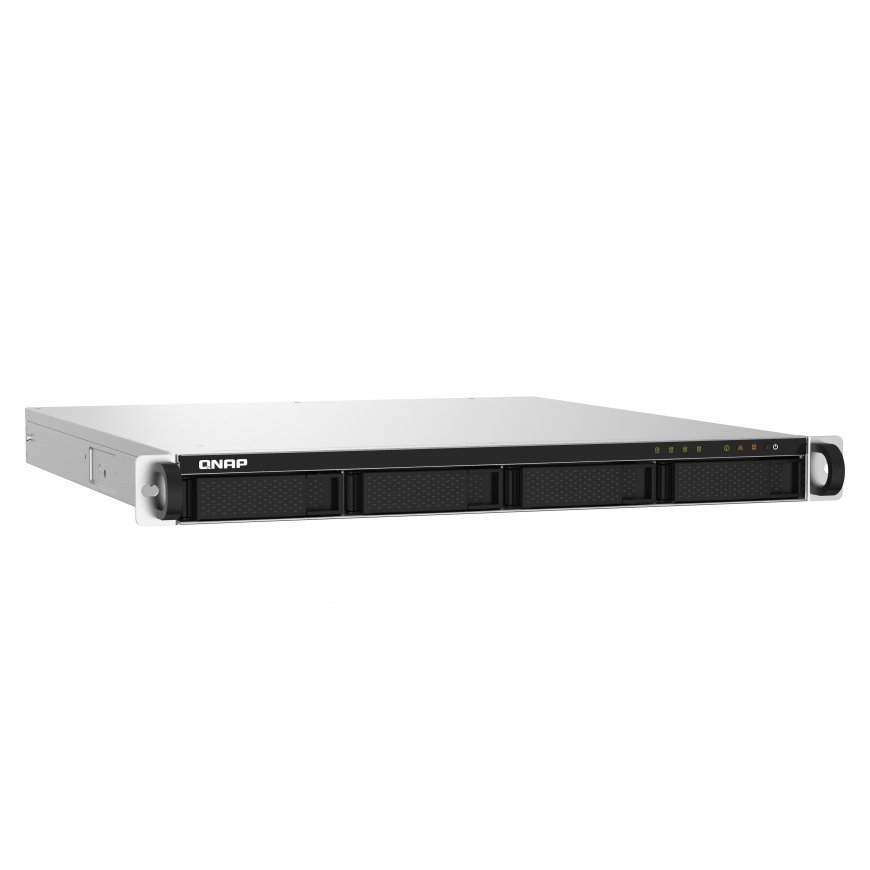

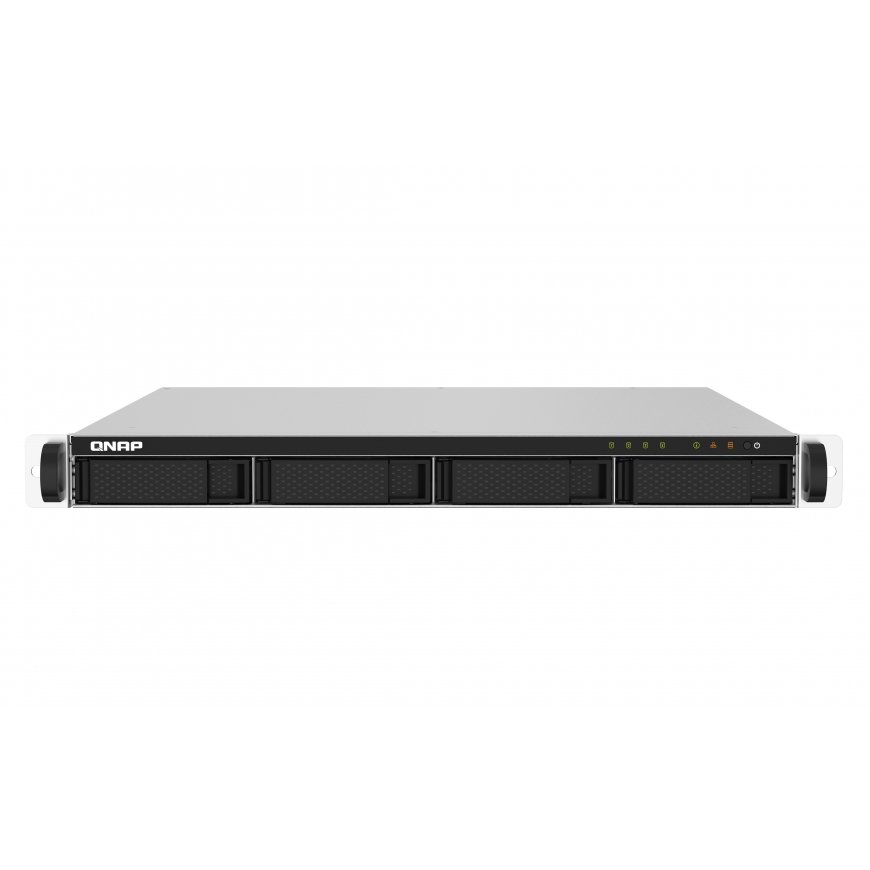

QNAP TS-432PXU-RP NAS Rack (1U) Annapurna Labs Alpine AL-324 2 GB DDR4 0 TB Black
841925 TS-432PXU-RP-2G
4713213518168
Shipping 2-3 b.d.
HybridMount File-Based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud Block-Based Cloud Gateway
VJBOD Cloud supports backing up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted. This is ideal for backing up LUN, databases, and confidential files.
Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100, 1000, 2500, 10000 |
| Load balancing system | Yes |
| Built-in FTP server | Yes |
| Jumbo frames support | Yes |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB port | Yes |
| Fiber optic connector | SFP+ |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| Backup function | Yes |
Security | |
| Security algorithms | SSH, SSL/TLS, HTTPS, 256-bit AES, FIPS 140-2 |
| Access Control List (ACL) | Yes |
Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | PPTP, L2TP/IPSec, OpenVPN, QBelt |
| Universal Plug and Play (UPnP) | Yes |
Design | |
| LED indicators | Status, LAN, HDD |
| Product colour | Black |
| On/off switch | Yes |
Features | |
| Processor cores | 4 |
| Flash memory | 512 MB |
| Processor model | Alpine AL-324 |
| Processor manufacturer | Annapurna Labs |
| Internal memory type | DDR4 |
Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 53.343 W |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 439 mm |
| Depth | 499 mm |
| Height | 44 mm |
| Weight | 8.12 kg |
System requirements | |
| Windows operating systems supported | Windows 7, Windows 8, Windows 10 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite |
| Linux operating systems supported | Yes |
| Browser supported | Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome |
Logistics data | |
| Harmonized System (HS) code | 84714100 |
Packaging content | |
| Cables included | AC, LAN (RJ-45) |
