The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

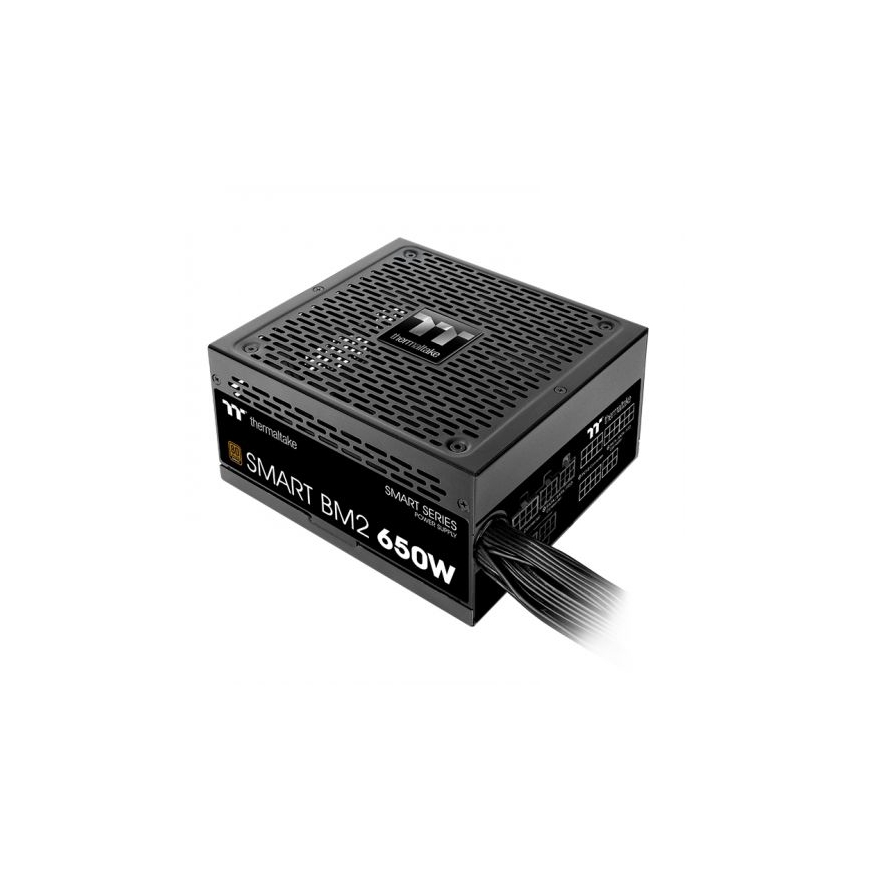

Thermaltake Smart BM2 650W - TT Premium Edition
82.71 €
Monthly payment from 3,03 €
841207 PS-SPD-0650MNFABE-1
4713227525510
Shipping 13-14 b.d.
You are interested in this product?
All about the product
Smart BM2 650W - TT Premium EditionBuilt to deliver 80 PLUS Bronze efficiency with up to 85% of it, the Smart BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle bearing fan, Japanese main capacitors and other premium components, the Smart BM2 750W delivers a continuous and stable power output at 40℃, allowing near silent operation and reliable performance.

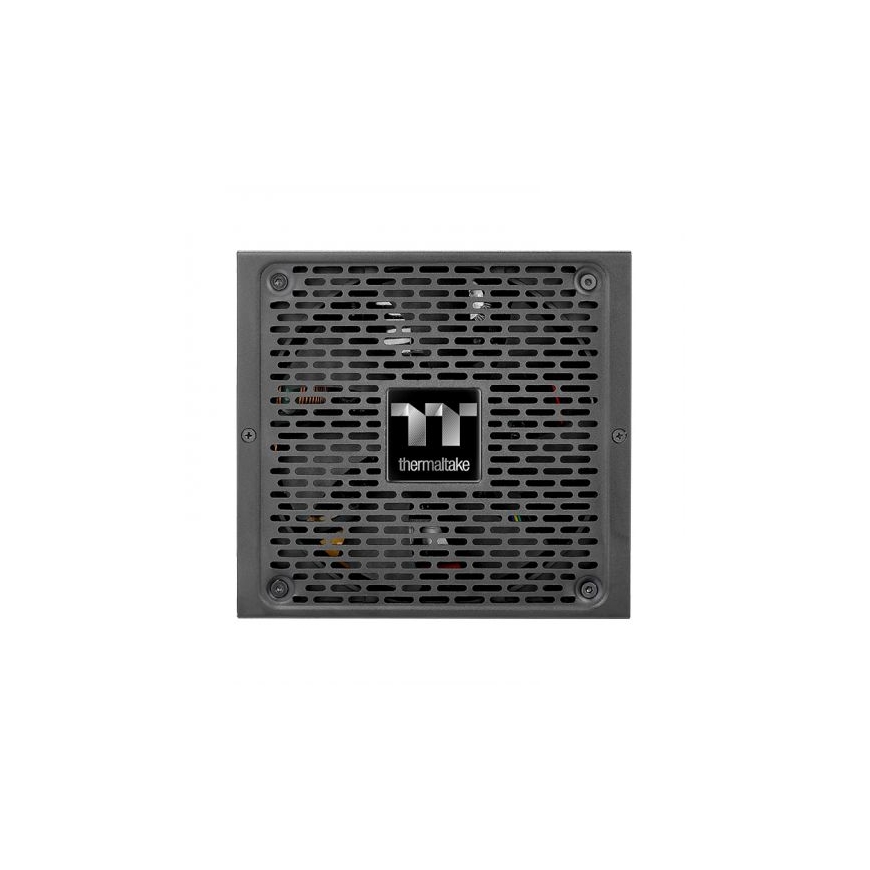

Ultra Quiet 140mm Rifle Bearing Fan
The Smart BM2 650W adopts s 140mm silent Rifle Bearing fan with intelligent preset RPM control guarantying cooling performance and silent operation.

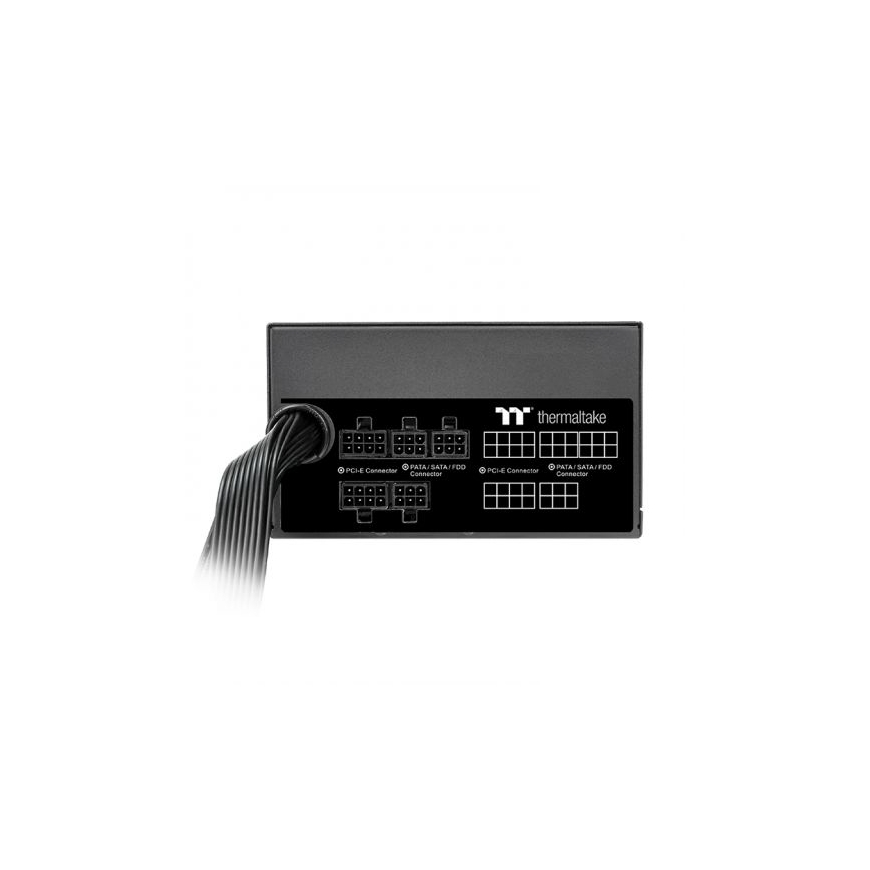

Semi Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.
Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Smart BM2 650W to have highest stability and reliability.
DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Bronze Certified and Intel C6/C7 States Ready
Smart BM2 650W saves energy through its high energy efficiency up to 85%. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.
Power | |
| Hold time | 12 ms |
| Input current | 10 A |
| Power protection features | Over current, Over voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 650 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| Fan location | Top |
| Fan speed | 0 - 2300 RPM |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Semi-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500, 150 |
| Peripheral (Molex) power cable length | 150, 500 |
| PCI Express power cable length | 50 cm |
| CPU power cable length | 60 cm |
| Floppy disk drive cable length | 15 cm |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Packaging content | |
| Cables included | AC, SATA, CPU, PCIe, Peripheral (Molex) |
Certificates | |
| Certification | CE, FCC, TUV, cTUVus, EAC, BSMI, C-TICK, CCC, S-mark |
