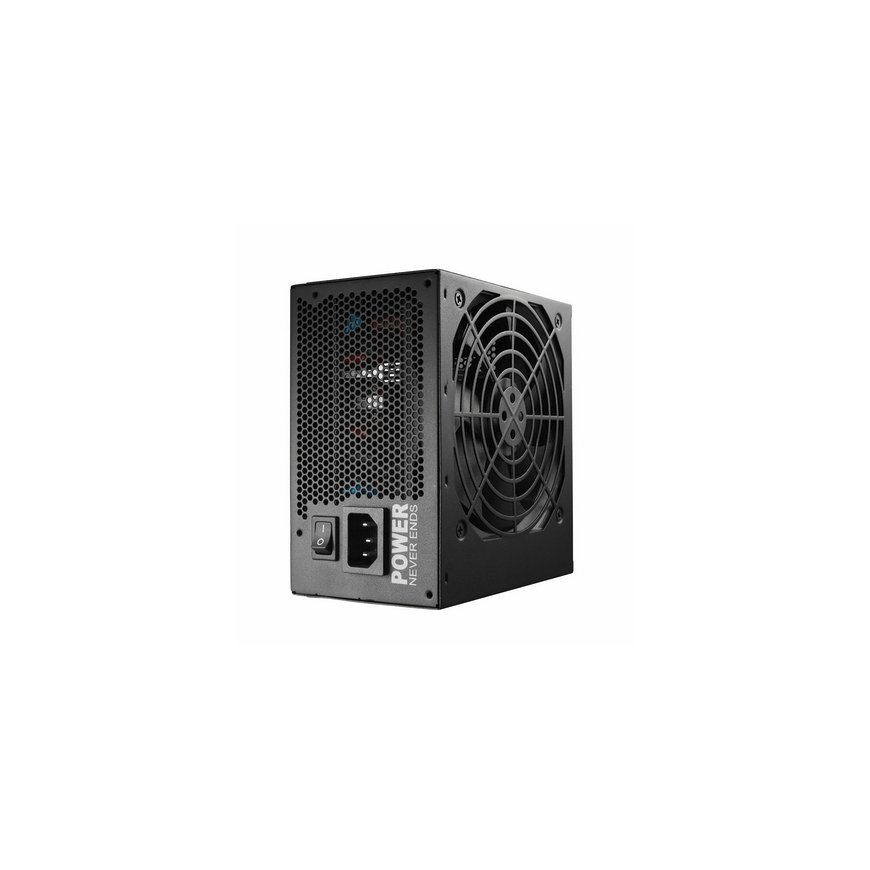

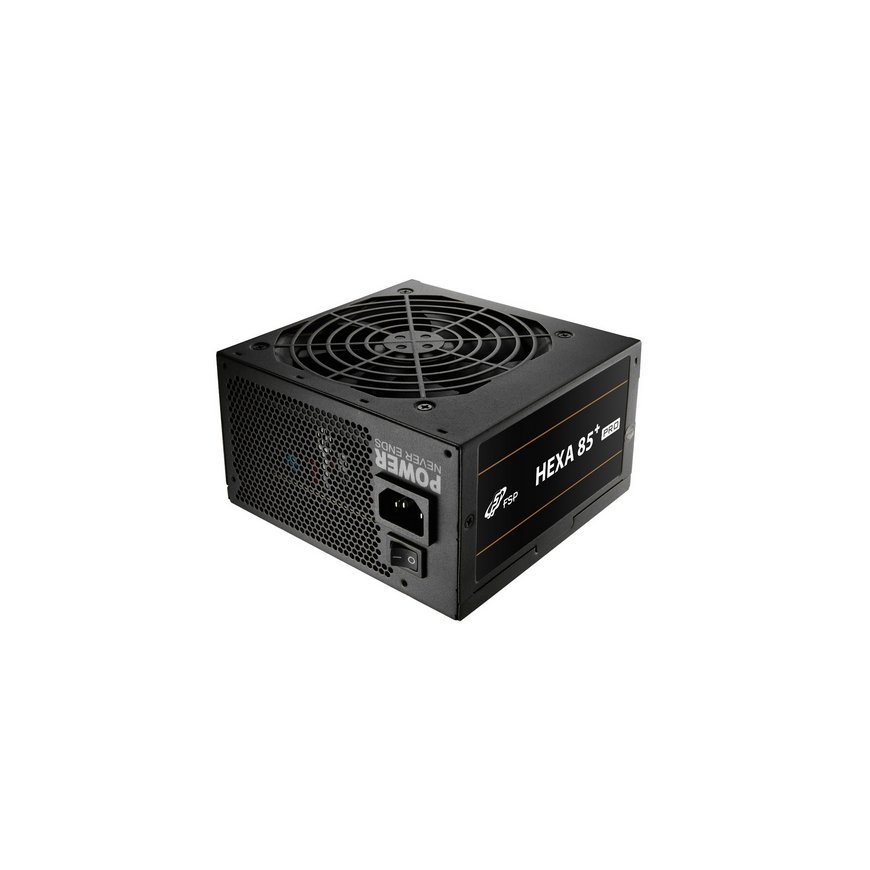

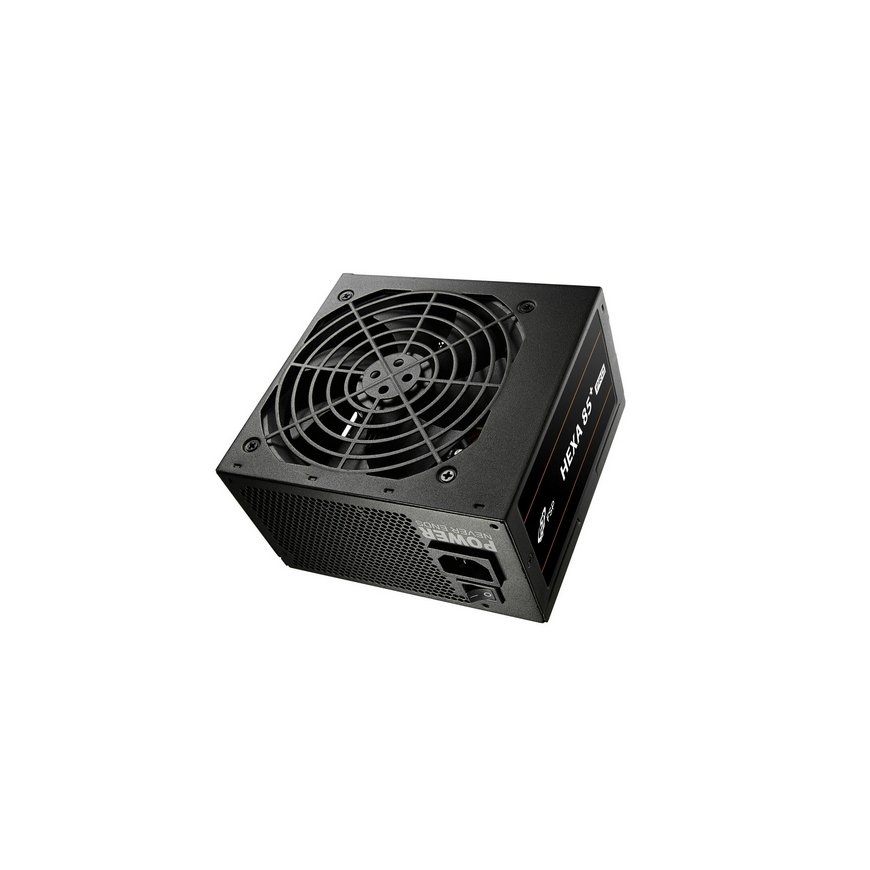

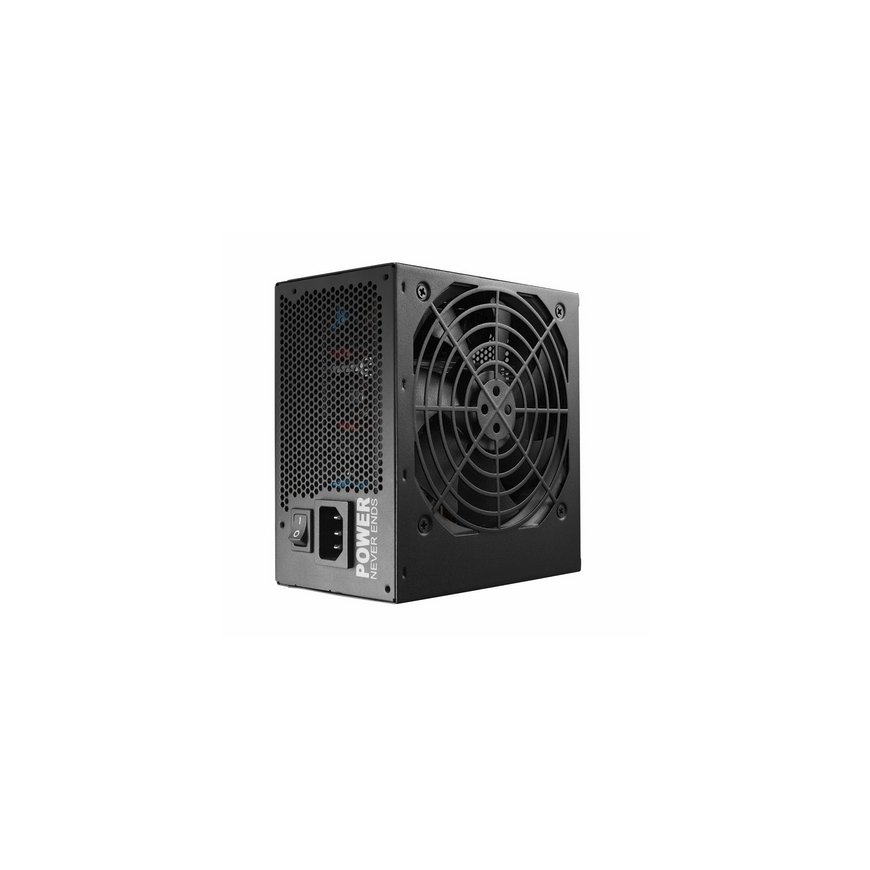

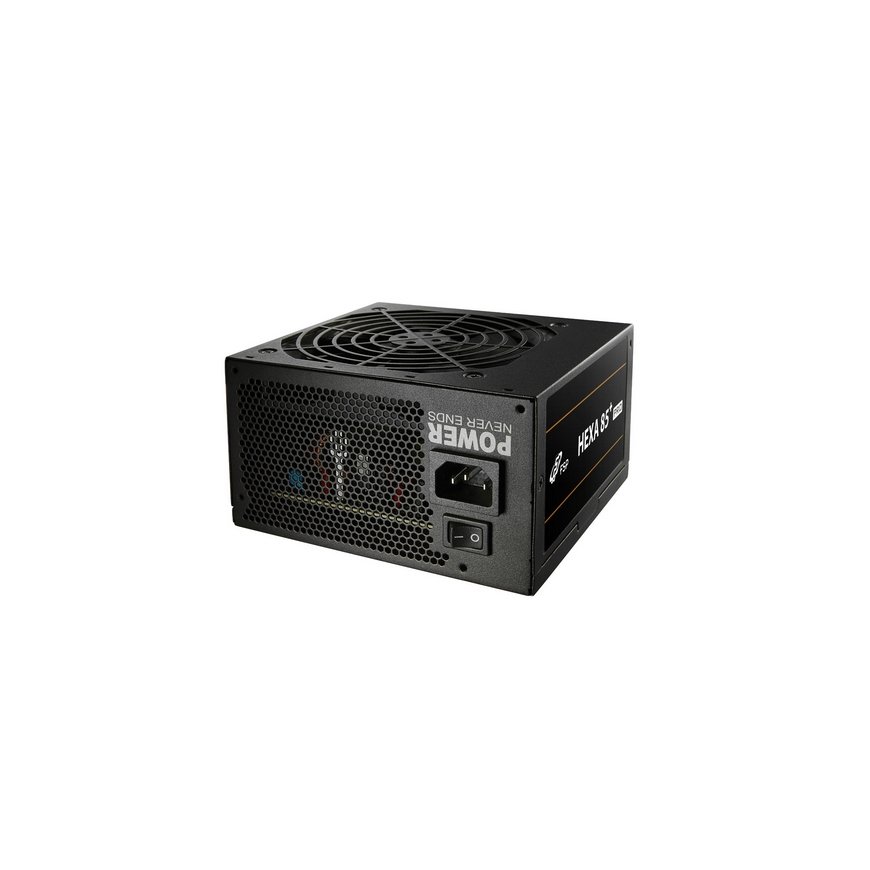

FSP HEXA 85+ PRO 650W power supply unit 20+4 pin ATX ATX Black
83.89 €
Monthly payment from 3,06 €
805328 PPA6505301
4713224522246
Shipping 12-13 b.d.
You are interested in this product?
All about the product
HEXA 85+ PRO series is ATX PSU certified with 80 PLUS® Bronze, featured with DC to DC module and +12V single-rail design, taken with full Japanese capacitors and quiet 120mm silent fan, built-in with complete protections: OCP, OVP, SCP, OPP, and approved by the latest global safety regulation 62368 . Besides, the all black-cable design saves your system an optimal airflow space that allows for easy cable management and a polished look. HEXA 85+ PRO series power ranges from 350W, 450W, 550W to 650W to satisfy various needs.Power | |
| Hold time | 17 ms |
| Efficiency | 85% |
| Input current | 9 - 4 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.16 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 650 W |
Performance | |
| ATX version | 2.5 |
| EPS version | 2.92 |
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | Sleeve |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
Weight & dimensions | |
| Weight | 1.45 kg |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Packaging content | |
| Cables included | SATA, CPU, PCIe, Peripheral (Molex) |
