The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Satel BRACKET C White 1 pc(s)
29.00 €
788164 BRACKETC
5905033336490
Shipping 11-15 b.d.
You are interested in this product?
All about the product

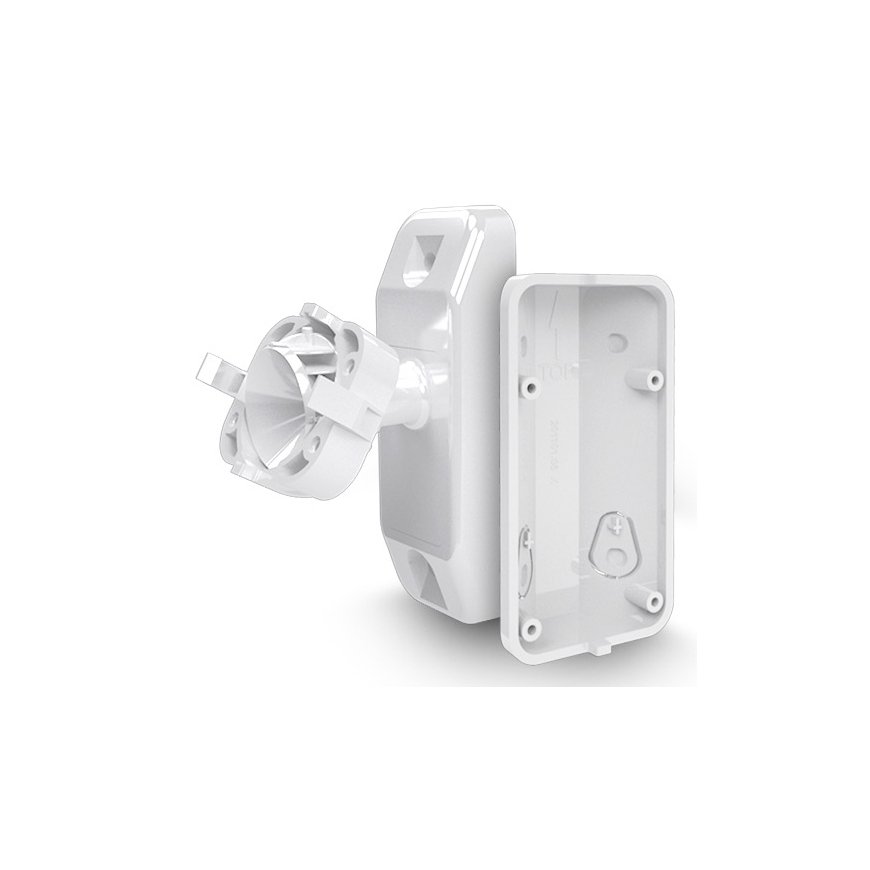

The BRACKET C set of wall brackets is designed for mounting the outdoor detectors: OPAL, OPAL Plus, OPAL Pro and AOD-200. The set consists of two types: ball-joint bracket and angle bracket. The ball-joint bracket offers the swiveling vertical range of 60° and the horizontal swiveling range of 90°. This makes it easier to find the optimal position relative to the detection zone. However, if the premises require that the detector be set permanently at an angle of 45° relative to the wall, you can use the angle bracket. Each of the brackets is also provided with a tamper switch responding to any attempt to pull the device away from the wall.The brackets are available in two color versions: white - BRACKET C, dedicated for mounting the OPAL, OPAL Plus, OPAL Pro and AOD-200 detectors, and gray - BRACKET C GY - for OPAL GY, OPAL Plus GY, OPAL Pro GY AOD-200 GY and AOD-210 GY detectors.
Angle type bracket:
- for mounting on a flat surface (rectangular pillar, wall, inside corner of two walls)
- tilt angle between detector base and bracket mounting surface: 45°
- tamper element breaking off at an attempt to detach the bracket from the wall
Ball-joint swivel type bracket:
- for mounting on a flat surface (rectangular pillar, wall)
- angle between detector base and bracket mounting surface adjustable horizontally through 90° (+/- 45°)
- angle between detector base and bracket mounting surface adjustable vertically through 60° (+/- 30°)
- tamper switch which responds to an attempt to pull the bracket away from wall, complete with 3 wires for connecting it to the NC or NO type circuit
Features
| Product colour | White |
| Width | 63 mm |
| Depth | 75 mm |
| Height | 120.9 mm |
| Quantity per pack | 1 pc(s) |
| Compatibility | OPAL , OPAL Plus , OPAL Pro , AOD-200, AOD-210 |
| Product type | Frame |
| Wall mountable | Yes |
