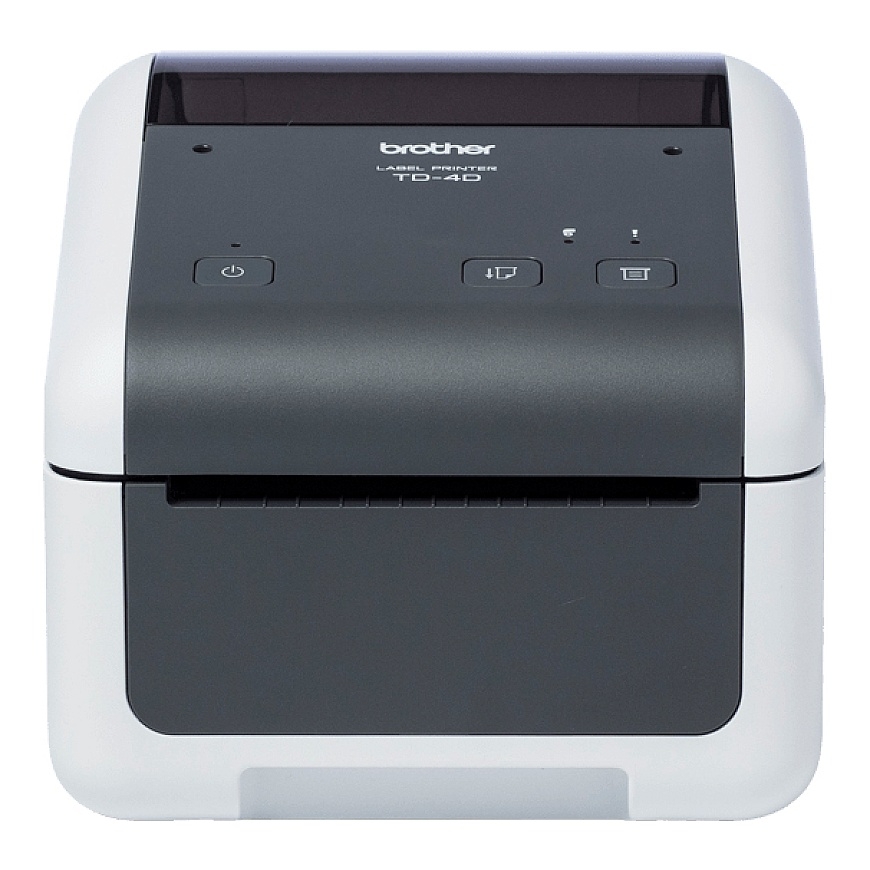

Brother TD-4420DN label printer Direct thermal 203 x 203 DPI 203 mm/sec Wired Ethernet LAN
765504 TD-4420DN
4977766798259, 0012502652441, 4977766799416, 4977766800099
This product is no longer in stock
All about the product
Software support
Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs. Software development kit's available from: https://atyourside.brother.co.uk/developer-centre
Seamless integration
Understanding that integration into legacy systems is important, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation and many more.
Print from your Windows PC
Custom labels are easily created using Brother's P-touch Editor. Add your company logo, symbols to hundreds of built-in images to the labels you create. Not to mention, linking your excel data to print large batches of labels.
Network connectivity
Increase your teams productivity with this network desktop label printer. Sharing is made easier with the integrated network port.
Printing | |
| Colour | No |
| Print technology | Direct thermal |
Features | |
| Page description languages | ZPL II, ESC P, Raster_P |
| Maximum resolution | 203 x 203 DPI |
| Bluetooth | No |
| Product colour | White, Grey |
| Flash memory | 64 MB |
| Operating temperature (T-T) | 10 - 90 °C |
| Print speed | 8 lpm |
Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
Performance | |
| Internal memory | 256 MB |
| Built-in display | No |
| LED indicators | Power, Status, Error |
Logistics data | |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 40 pc(s) |
| Pallet gross weight | 176.4 kg |
| Pallet gross height | 14.3 cm |
| Harmonized System (HS) code | 84433210 |
Design | |
| Display | No |
System requirements | |
| Windows operating systems supported | Windows 7, Windows 8, Windows 10, Windows 8.1 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2008 |
| Mobile operating systems supported | Android 4.2, Android 6.0, Android 7.0, Android 8.0, Android 9.0, Android 5.0, Android 5.1, iOS 10.0, iOS 11.0, iOS 12, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3, Android 4.1, Android 4.3, Android 4.4, Android 7.1, Android 7.1.2, Android 4.2.1, Android 4.2.2, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4 |
Weight & dimensions | |
| Weight | 3.1 kg |
| Width | 265 mm |
| Depth | 335 mm |
| Height | 256 mm |
| Package weight | 4.02 kg |
Packaging data | |
| AC adapter included | Yes |
Packaging content | |
| Cables included | AC, USB |
| Quick start guide | Yes |
| Warranty card | Yes |
Technical details | |
| Master (outer) cases per pallet | 40 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Pallet type | 800 x 1200 mm |
Other features | |
| Maximum print length | 3 m |
| Print speed | 203 mm/sec |
| Spare part retention | 5 year(s) |
| Font styles | Brougham,Brussels,Helsinki,Letter Gothic,San Diego |
| Languages support | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, Turkish, Hungarian |
Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 40% |
| Storage relative humidity (H-H) | 20 - 85% |
Paper handling | |
| Maximum roll diameter | 12.7 cm |
