The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

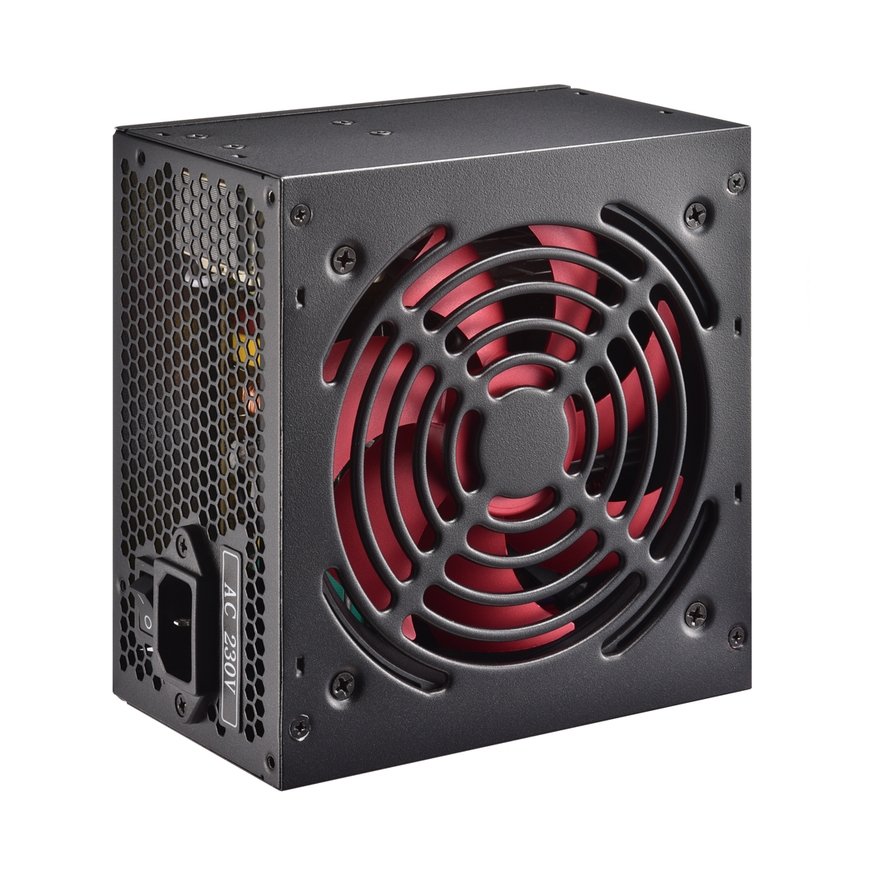

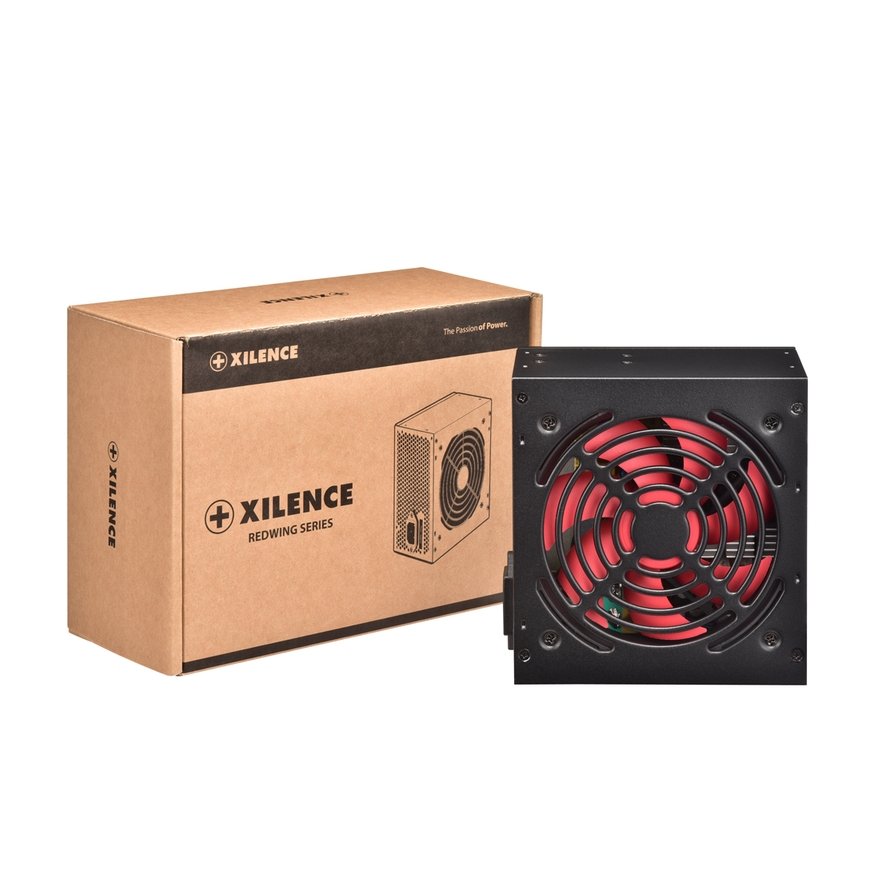

Xilence Performance A+ XN054 power supply unit 700 W 20+4 pin ATX ATX Black
42.14 €
Monthly payment from 1,98 €
752743 XN054
4044953501234
Shipping 2-3 b.d.
You are interested in this product?
All about the product
The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.Power | |
| Input current | 8 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Passive |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Total power | 700 W |
Performance | |
| ATX version | 2.31 |
| Purpose | PC |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6-pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 45 cm |
| PCI Express power cable length | 50 cm |
| CPU power cable length | 55 cm |
Packaging data | |
| Package weight | 1.84 kg |
| Package type | Box |
| Package height | 100 mm |
| Package width | 225 mm |
| Package depth | 165 mm |
Certificates | |
| Compliance certificates | RoHS, WEEE |
