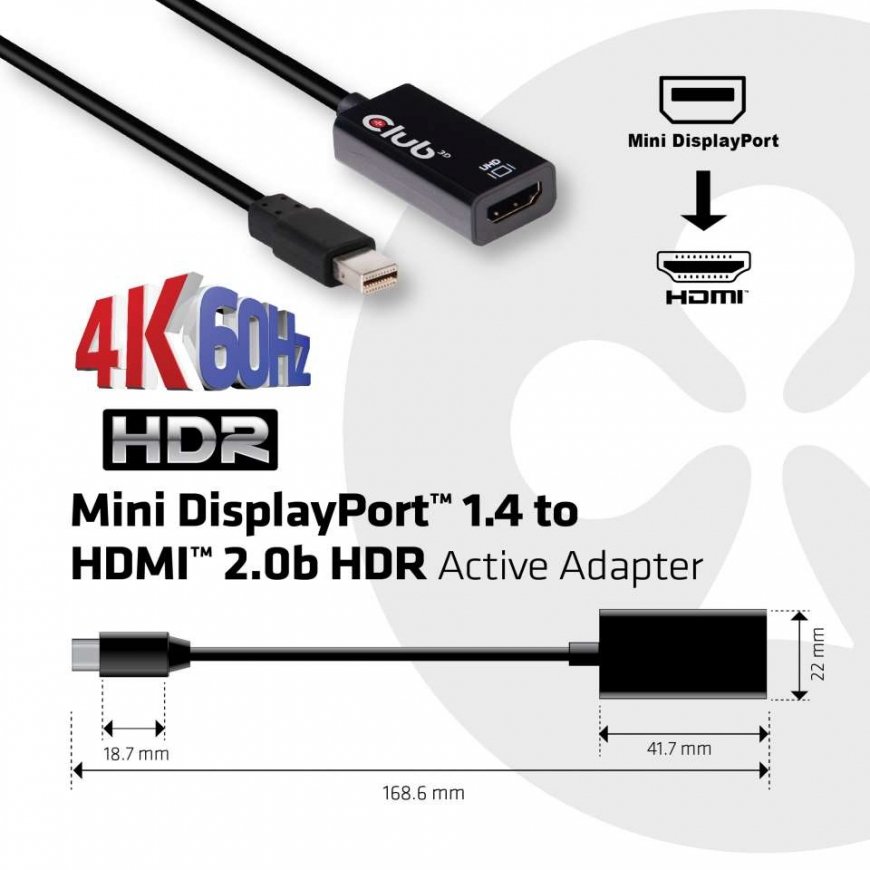

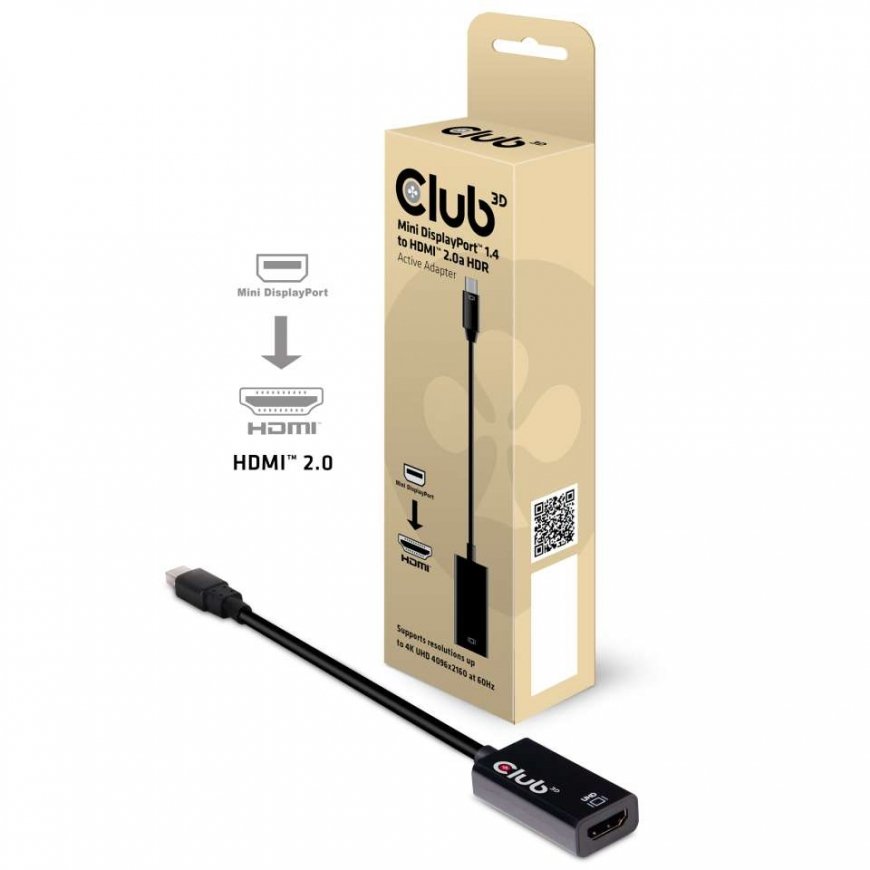

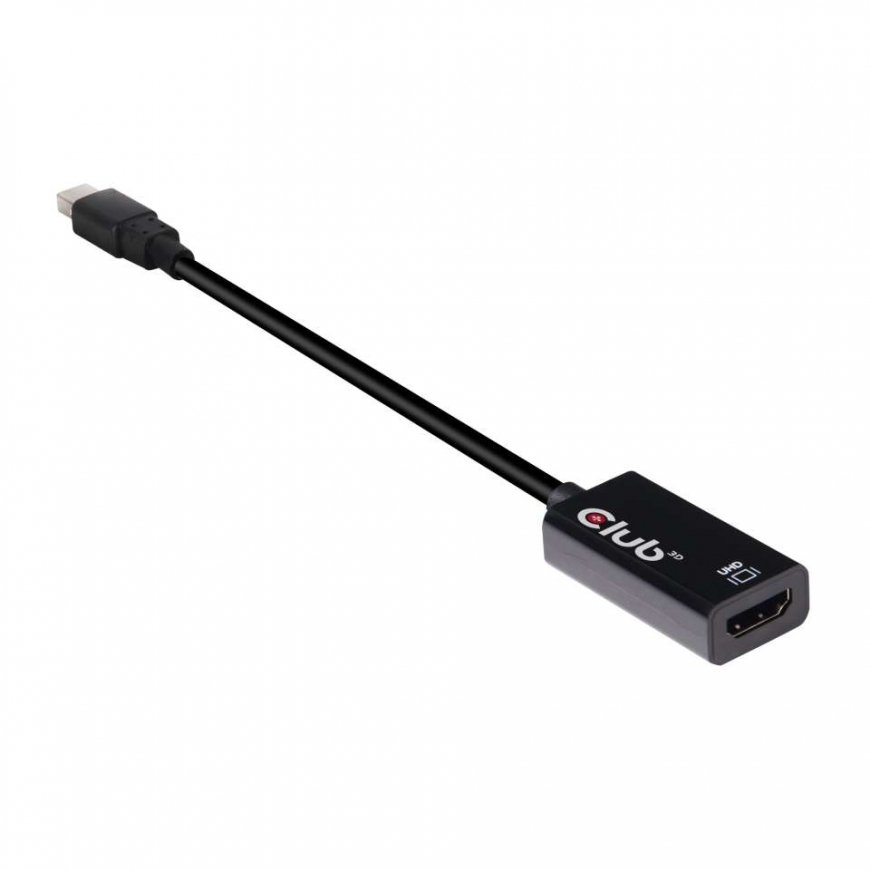

CLUB3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter
29,97 €
742234 CAC-1180
8719214470869, 0841615101054
Shipping 2-3 b.d.
You are interested in this product?
Resolution Support

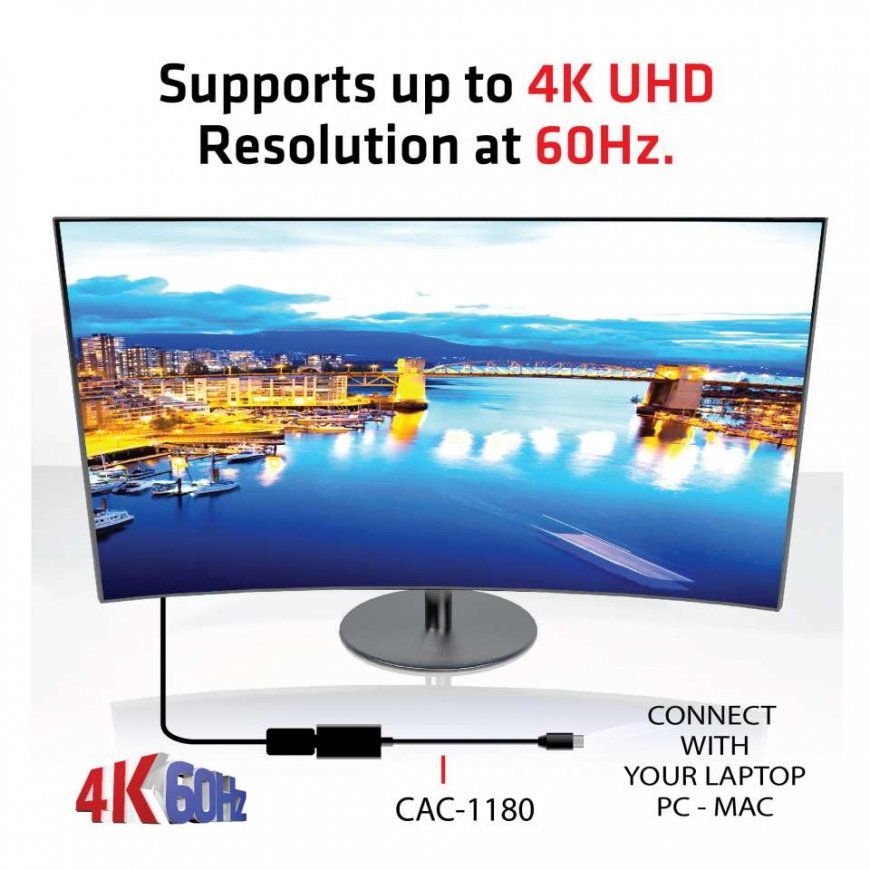

The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Weight | 30 g |
| Width | 20 mm |
| Depth | 11, 184 |
| Connector 1 | Min iDisplayPort 1.4 |
| Connector 2 | HDMI 2.0b |
| Connector contacts plating | Copper |
| Quantity per pack | 1 pc(s) |
| Package width | 60 mm |
| Package depth | 35 mm |
| Package height | 182 mm |
| Compatible operating systems | Windows 10, 8.1; Mac OS Sierra, High Sierra |
| Maximum resolution | 4096 x 2160 pixels |
| Plug and Play | Yes |
| Package weight | 10 g |
| Products per master (outer) case | 10 pc(s) |
| Country of origin | China |
| Certification | ROHS, FCC, CE EMI, WEEE |
| Data transfer rate | 18 Gbit/s |
| USB powered | No |
| Cable colour | Black |
| DisplayPort version | 1.4 |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Converter type | Active video converter |
| USB required | No |
| Compliance certificates | RoHS |
