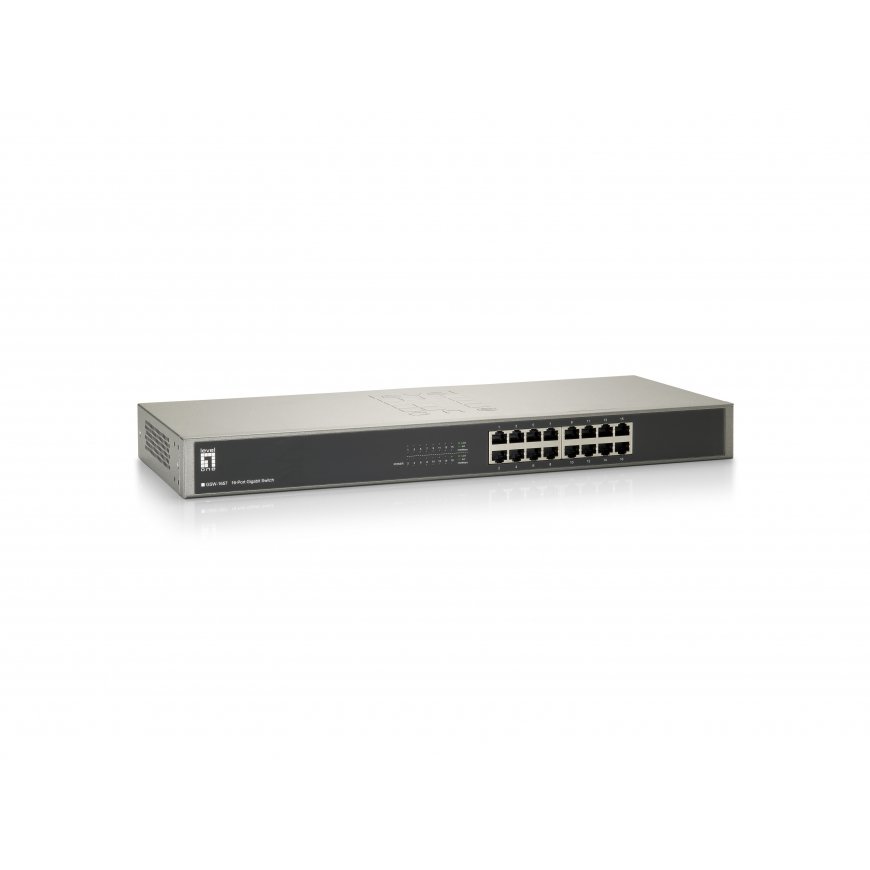

LevelOne 16-Port Gigabit Switch
90,71 €
87.71 €
Monthly payment from 3,16 €
737446 GSW-1657
4015867143117, 0878742004804, 4014619051342, 8787420048042
Shipping 6-8 b.d.
You are interested in this product?
All about the product
Gigabit Speeds: Take Your Data to the Next LevelGSW-1657 is a 16-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds all the way to your computers.
Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.
Standards-based
GSW-1657 features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput. With MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode, you have powerful features sending your data throughout the network.
Plug and Play, Flexible and Easy
GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Management features | |
| Quality of Service (QoS) support | Yes |
Security | |
| MAC address table | 8192 entries |
Design | |
| LED indicators | Activity, Link |
| Product colour | Black, Grey |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 13.3 W |
| Power over Ethernet (PoE) | No |
Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 140 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 1.48 kg |
Packaging data | |
| Package width | 224 mm |
| Package depth | 486 mm |
| Package height | 77 mm |
| Package weight | 2.15 kg |
Other features | |
| Input current | 0.6 A |
| Rack mounting | Yes |
Certificates | |
| Certification | FCC, CE, RoHS |
Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 11.8 kg |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Cables included | AC |
| Quick start guide | Yes |
