The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

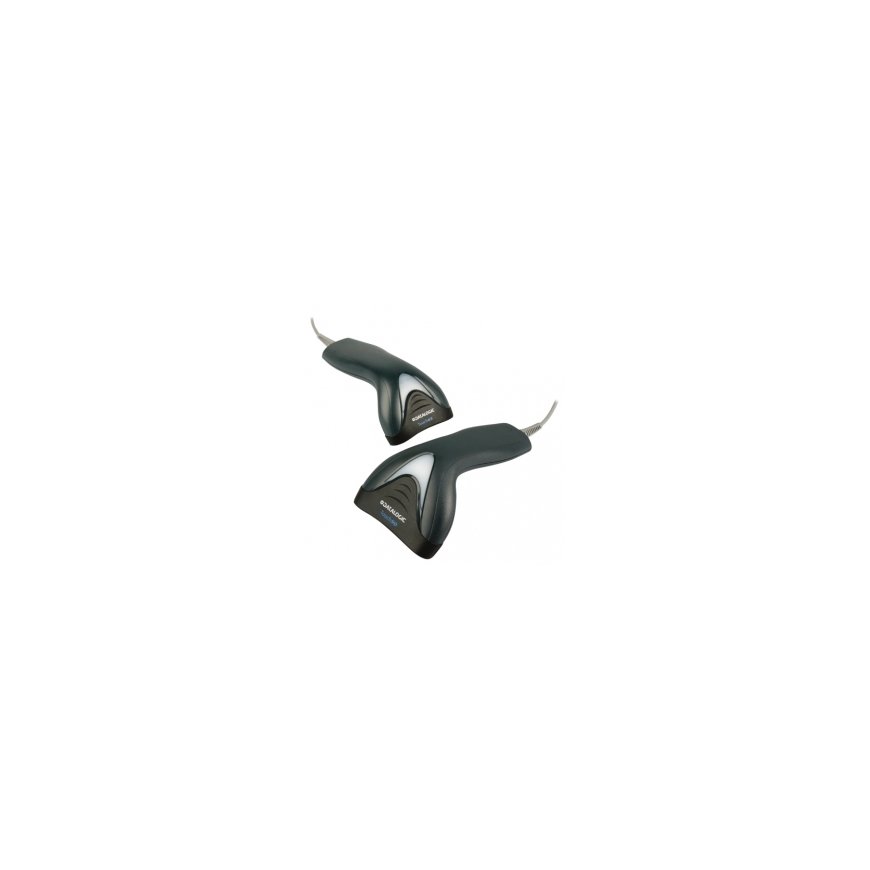

Datalogic Touch 90 Pro Black
77.65 €
Monthly payment from 2,90 €
735527 TD1130-BK-90
4052923206379, 4054318755806, 5054533208612, 5054629150009, 5711045924132
Shipping 15-16 b.d.
You are interested in this product?
All about the product
The Touch TD1100 readers are available with the option of two different sizes of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes or 9.0 cm / 3.5 in (TD1100-90) for reading wide bar codes. Both options are provided with a complete all-in-one multi-interface solution including RS-232, USB and Keyboard Wedge (TD1130) and with USB or RS-232 / Keyboard Wedge interfaces (TD1120/TD1170). All models include the new innovative 'read-through' holder. Cables, power cords and supplies are all sold separately.Technical details | |
| Working distance | 15 cm |
Scanning | |
| Wavelength | 640 nm |
| Yaw reading angle | -70 - 70° |
| Pitch reading angle | -65 - 65° |
| Tilt reading angle | -45 - 45° |
| Light levels (direct sunlight) | 0 - 20000 lx |
Paper handling | |
| Maximum scan width | 9 cm |
Ports & interfaces | |
| Standard interfaces | RS-232, USB, Keyboard wedge |
Features | |
| Product colour | Black |
Other features | |
| Certification | RoHS |
| Dimensions (WxDxH) | 104 x 67 x 170 mm |
Performance | |
| International Protection (IP) code | IP30 |
Design | |
| Buzzer | Yes |
Power | |
| Input voltage | 5 V |
| Power consumption | 100 mA |
Weight & dimensions | |
| Weight | 153 g |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data | |
| Harmonized System (HS) code | 84716070 |
