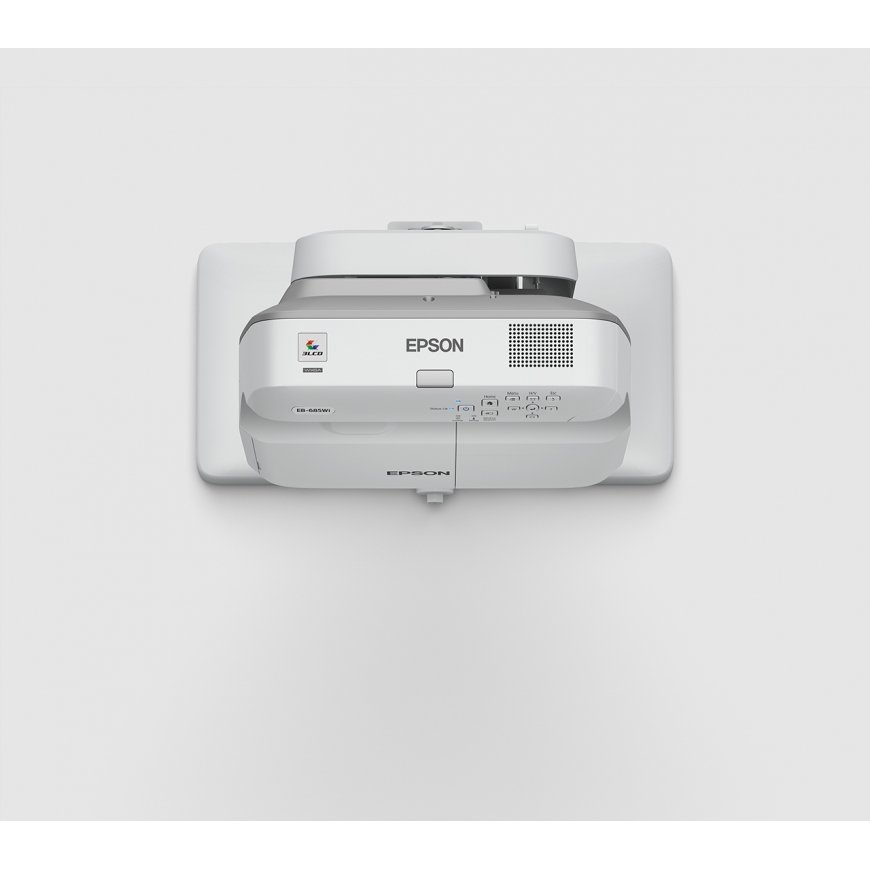

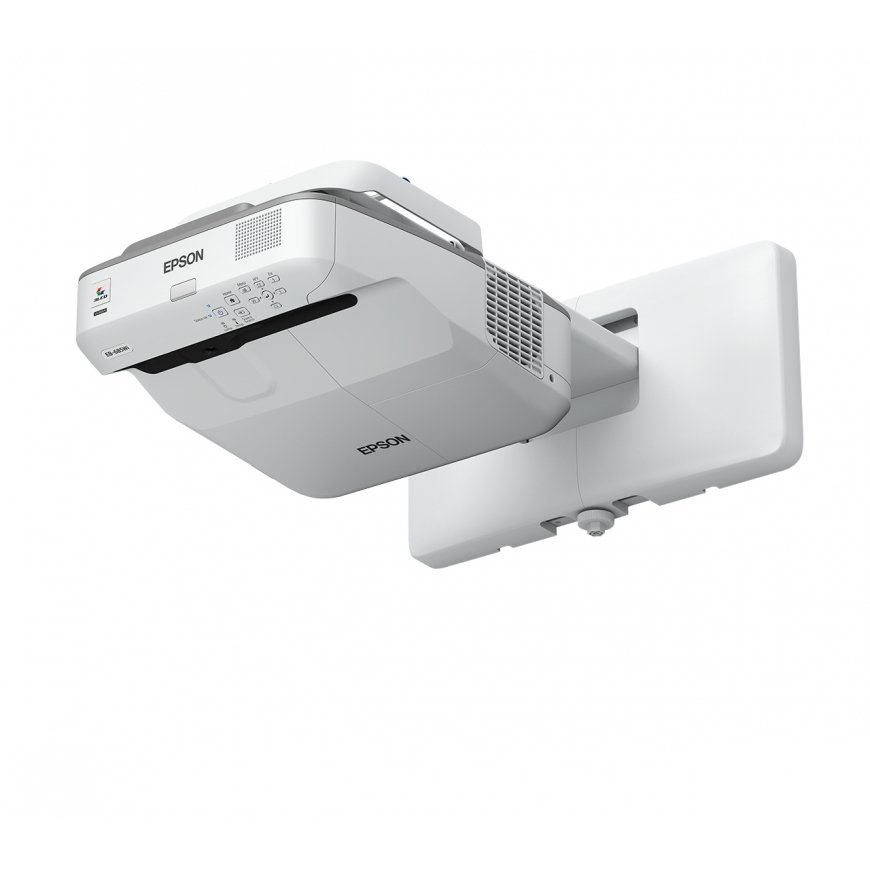

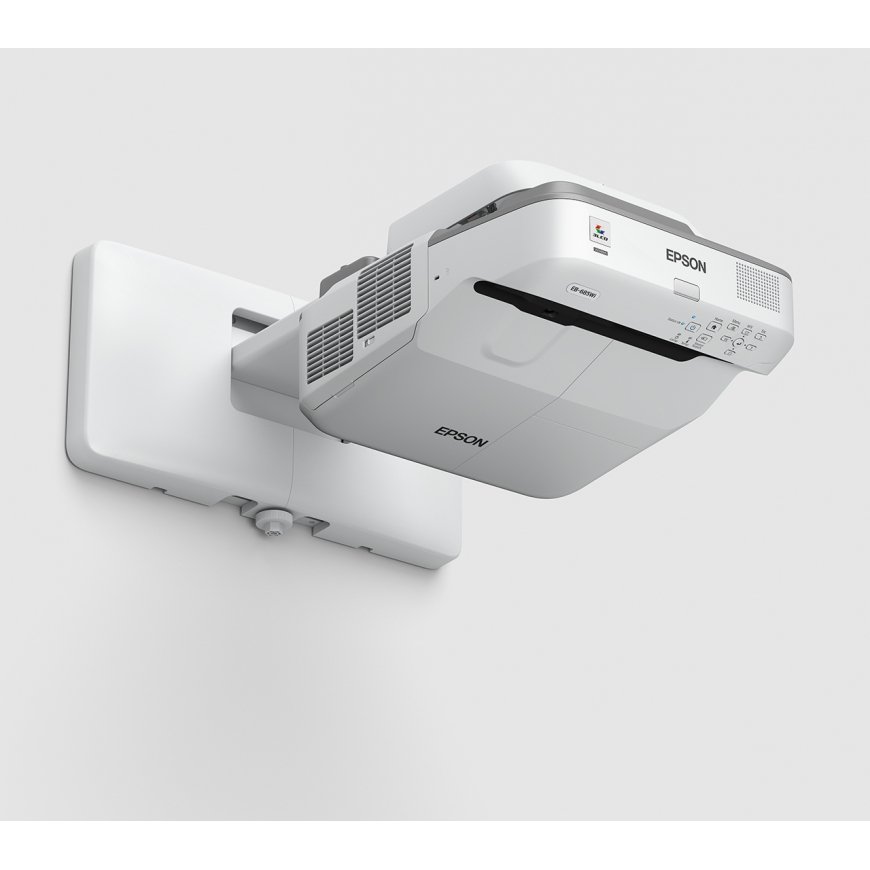

Epson EB-685W Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey
1 659.72 €
Monthly payment from 43,64 €
699756 V11H744040
8715946605210, 4058154183915
Shipping 3-7 b.d.
You are interested in this product?
All about the product
HD-ready classroom projectorInnovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.
The EB-685W's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
-Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Projector | |
| Projection distance | 0.4 - 0.6 m |
| Projection technology | 3LCD |
| Projector brightness | 3500 ANSI lumens |
| Contrast ratio (typical) | 14000:1 |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Projector brightness (economic mode) | 2900 ANSI lumens |
| Matrix size | 1.5 cm (0.59") |
| Contrast ratio (dynamic) | 14000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.6 m |
| Projector native resolution | WXGA (1280x800) |
| Number of colours | 1.07 billion colours |
| Zoom capability | Yes |
| Focal length range | 3.7 mm |
| Country of origin | Philippines |
Light source | |
| Lamp power | 250 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system | |
| Throw ratio | 0.28 - 0.37:1 |
| Zoom ratio | 1.35:1 |
| Digital zoom | 1.35x |
| Focus | Manual |
| Fixed focal length | 3.7 mm |
| Zoom type | Auto |
Video | |
| Full HD | No |
| HD-Ready | Yes |
| 3D | No |
| Video processing | 10 bit |
| Colour modes (2D) | Cinema, Dynamic |
| Video colour modes | Cinema, Dynamic, Blackboard, Presentation, sRGB |
Technical details | |
| Serial interface type | RS-232 |
| Quick start guide | Yes |
| Colour | Yes |
| USB display function | 3 in 1: Image / Mouse / Sound |
| Sustainability certificates | TCO |
| Pallet gross weight | 0 g |

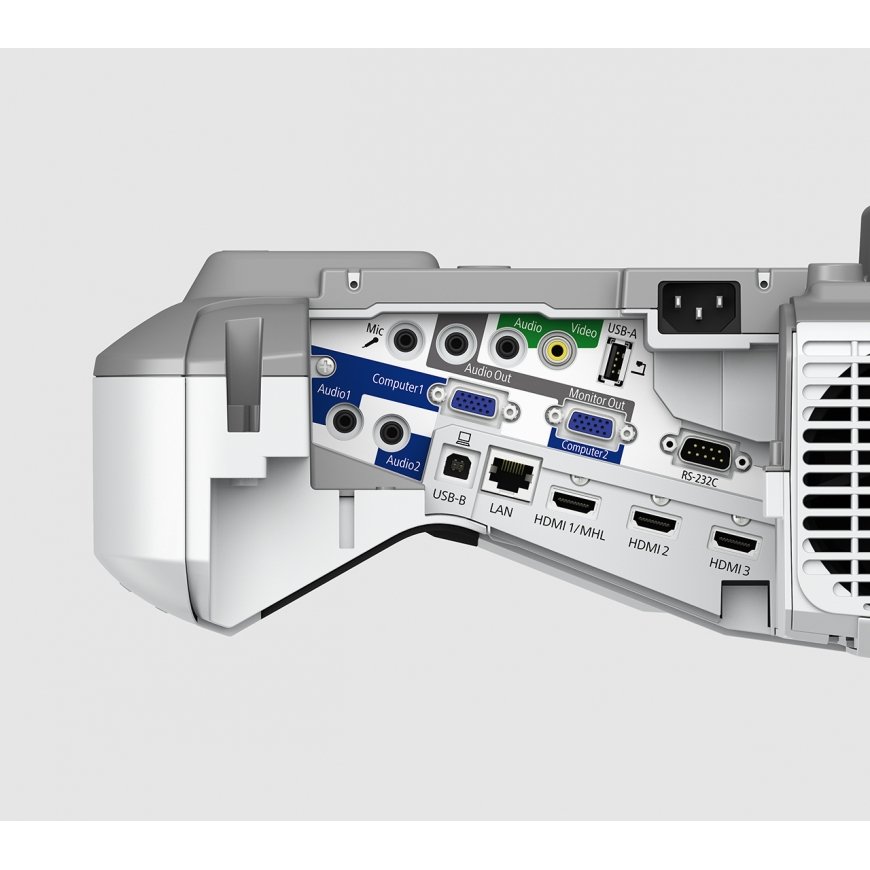

Ports & interfaces | |
| Headphone outputs | 1 |
| S-Video inputs quantity | 0 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Audio (L/R) in | 1 |
| USB 2.0 ports quantity | 2 |
| DVI port | No |
| HDMI ports quantity | 3 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 3 |
| AC (power) in | Yes |
| USB connector type | USB Type-A, USB Type-B |
| Mobile High-Definition Link (MHL) | Yes |
Storage | |
| Card reader integrated | No |
Features | |
| Noise level | 35 dB |
| Air filter | Yes |
| Noise level (economic mode) | 30 dB |
| On Screen Display (OSD) | Yes |
| 2D/3D frequency image | 100 - 120 Hz |
| Password protection | Yes |
| Interactive | No |
Software | |
| Compatible operating systems | Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1 |
| Windows operating systems supported | Windows 8, Windows 10, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Mac compatibility | Yes |
| Software support | via: AMX, Crestron (Network), Control4 |
Multimedia | |
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
Design | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Ultra short throw projector |
| Market positioning | Ulta short throw |
| Placement | Wall |
Colour | |
| Product colour | White, Grey |
Operational conditions | |
| Power consumption (typical) | 354 W |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Power | |
| Power source | AC |
| Power consumption (standby) | 0.37 W |
| Power consumption (economy mode) | 309 W |
| Power consumption (PowerSave) | 310 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
Packaging data | |
| Package weight | 18.5 kg |
| Package width | 490 mm |
| Package depth | 730 mm |
| Package height | 335 mm |
| Quantity per pack | 1 pc(s) |
Weight & dimensions | |
| Weight | 5.7 kg |
| Height | 149 mm |
| Depth | 400 mm |
| Width | 367 mm |
Packaging content | |
| Remote control included | Yes |
| Cables included | AC |
| Remote control type | IR |
| Bundled software | EasyMP Multi PC Projection, Epson Projektor Management |
| Batteries included | Yes |
| Manual | Yes |
| WLAN adapter included | Yes |
Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100 |
Display | |
| Built-in display | No |
Other features | |
| RS-232 ports | 1 |
Logistics data | |
| Products per pallet | 12 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 141 cm |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
| Pallet weight (UK) | 0 g |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 141 cm |
| Harmonized System (HS) code | 85286200 |
