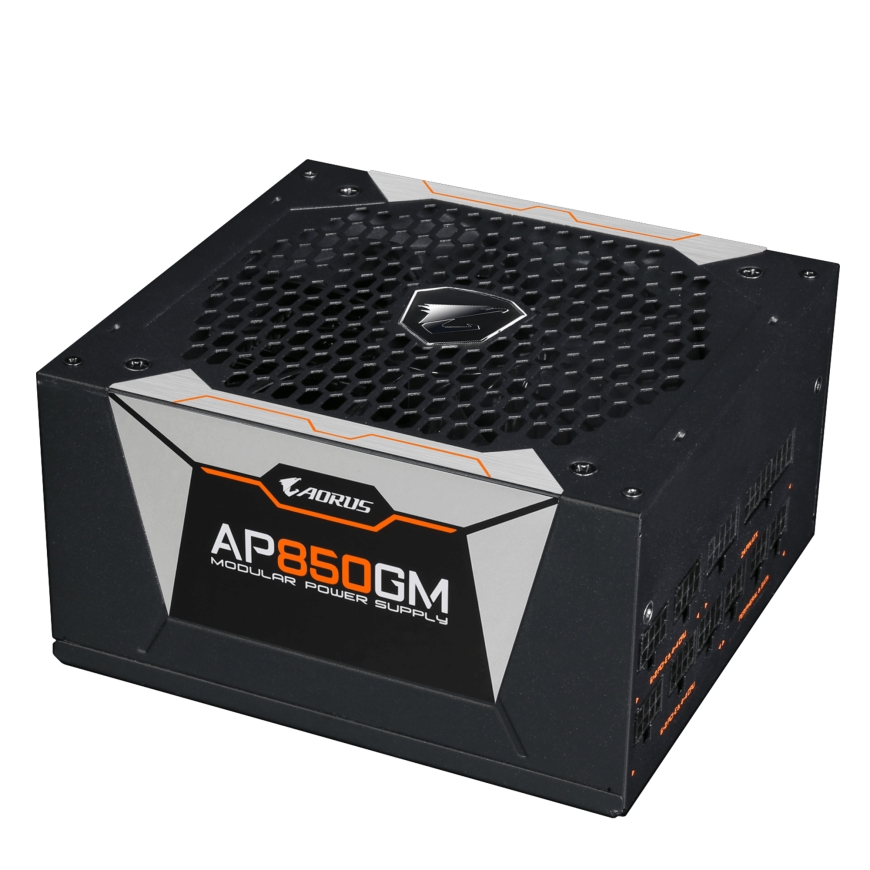

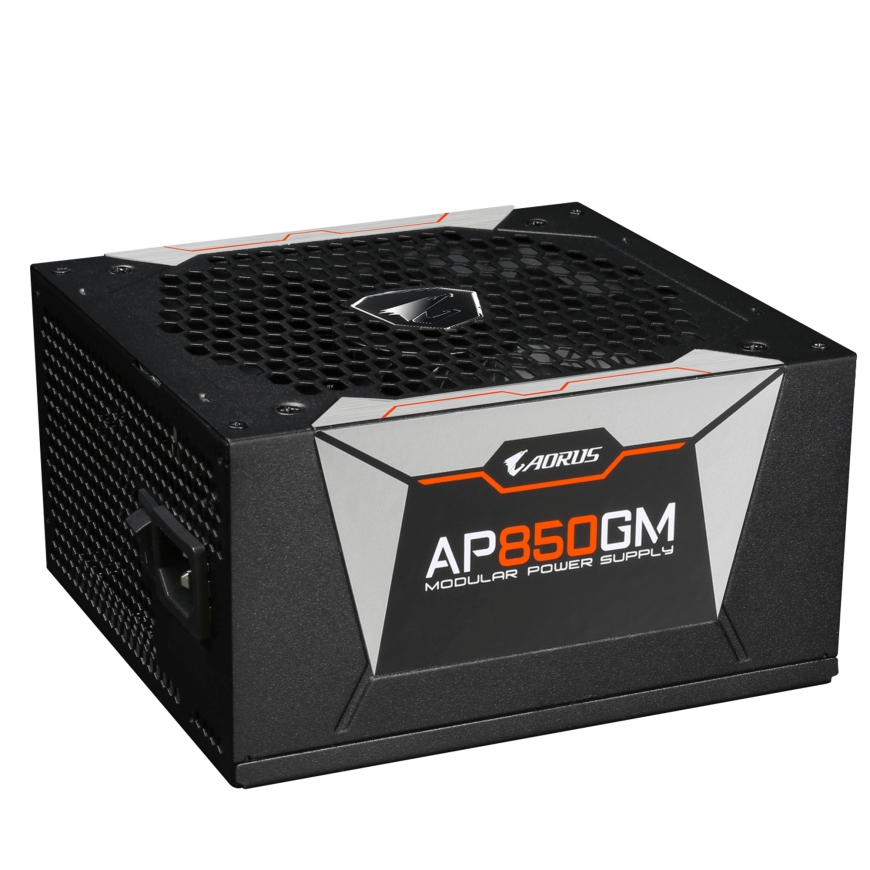

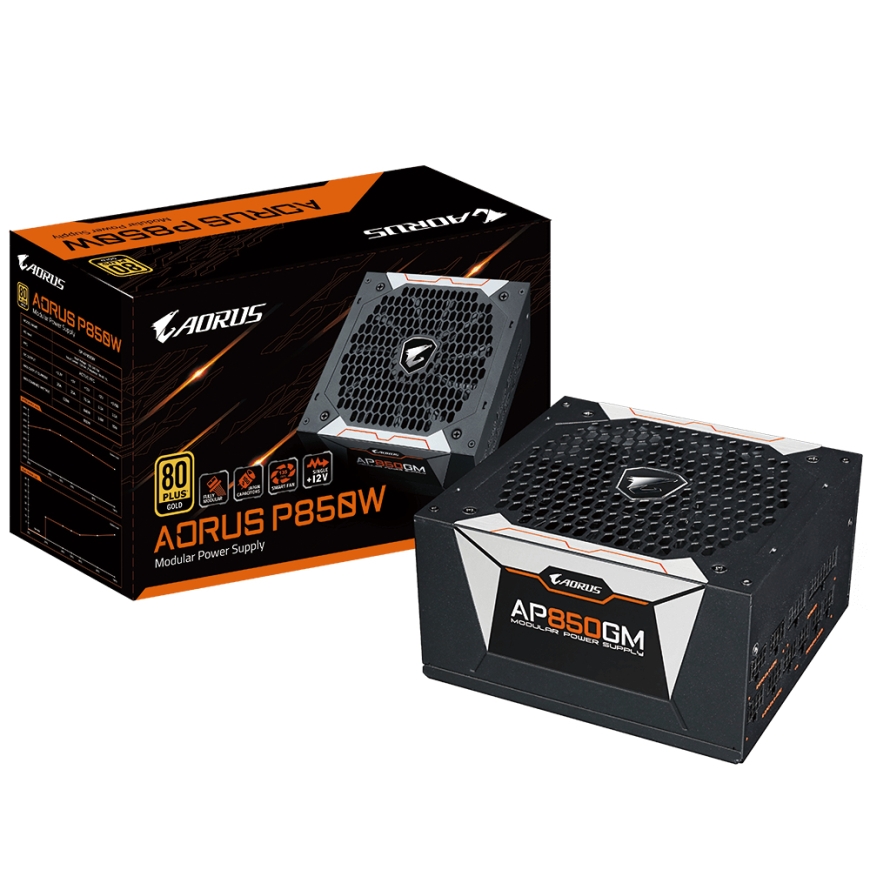

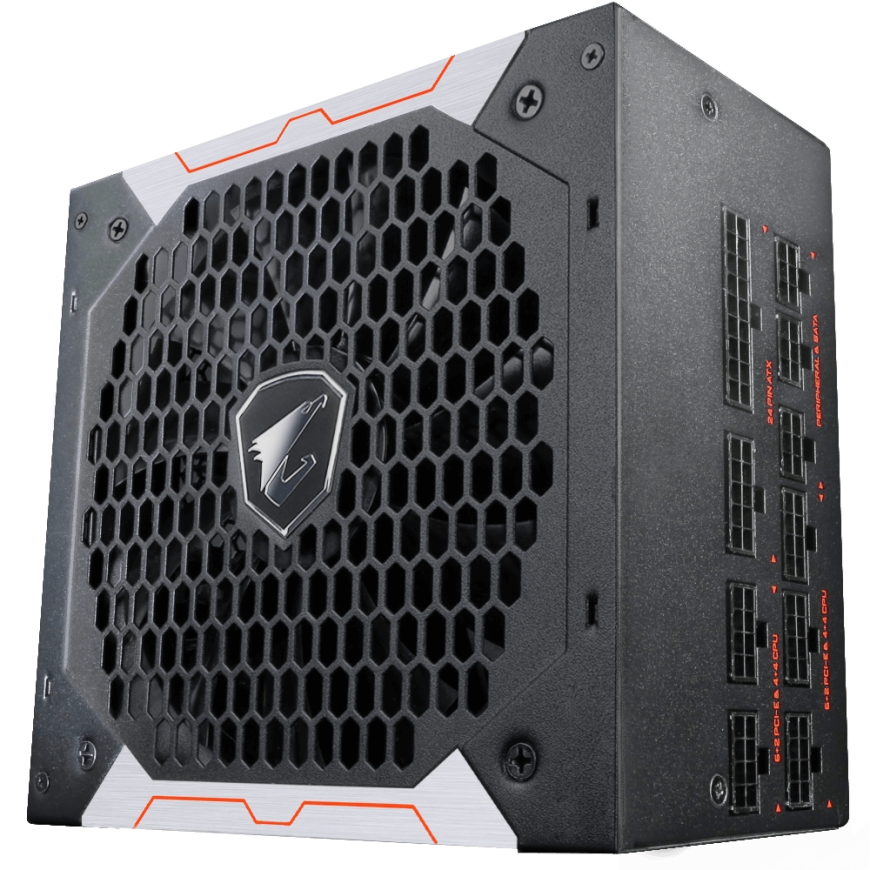

GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
137.31 €
Monthly payment from 4,44 €
695245 28200-AP85GM-1EUR
4719331550912
Shipping 12-13 b.d.
You are interested in this product?
All about the product
High Quality 100% Japanese CapacitorsAll capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

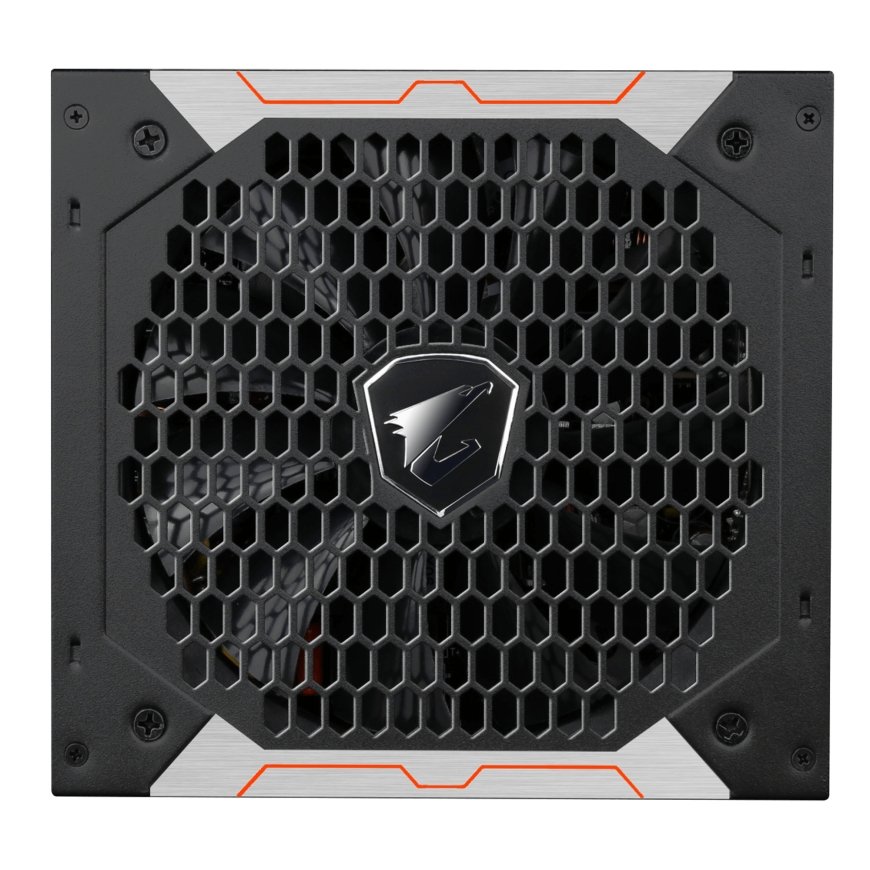

135mm Smart Fan
Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.
2 ball bearing is the most durable fan construction with a durability of over 50,000 hours. The life of the 2 ball bearing is more than 5 years.
80 Plus Gold Certified
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
Protection
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 10 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 850 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 2 |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 450, 550, 750, 650 |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
