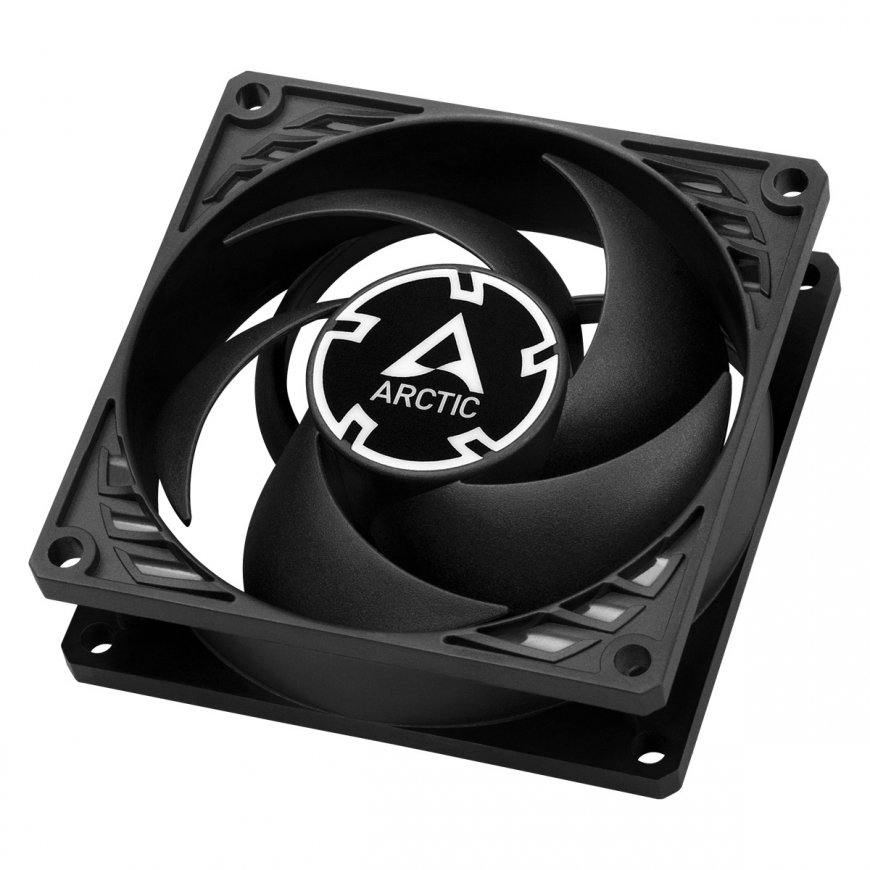

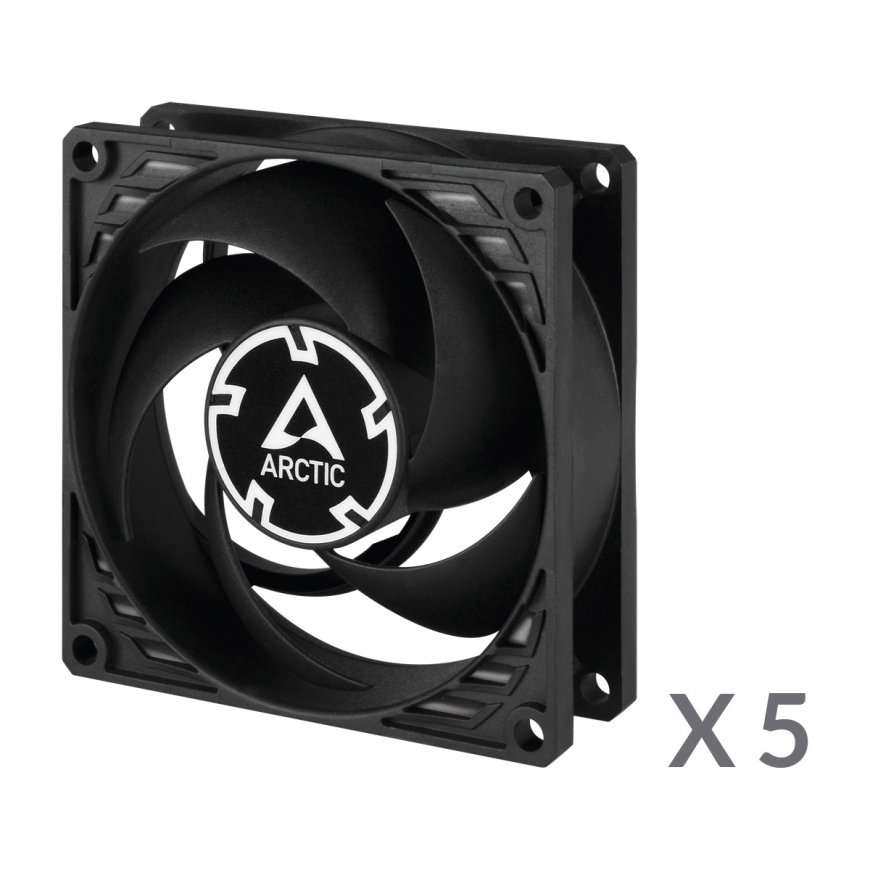

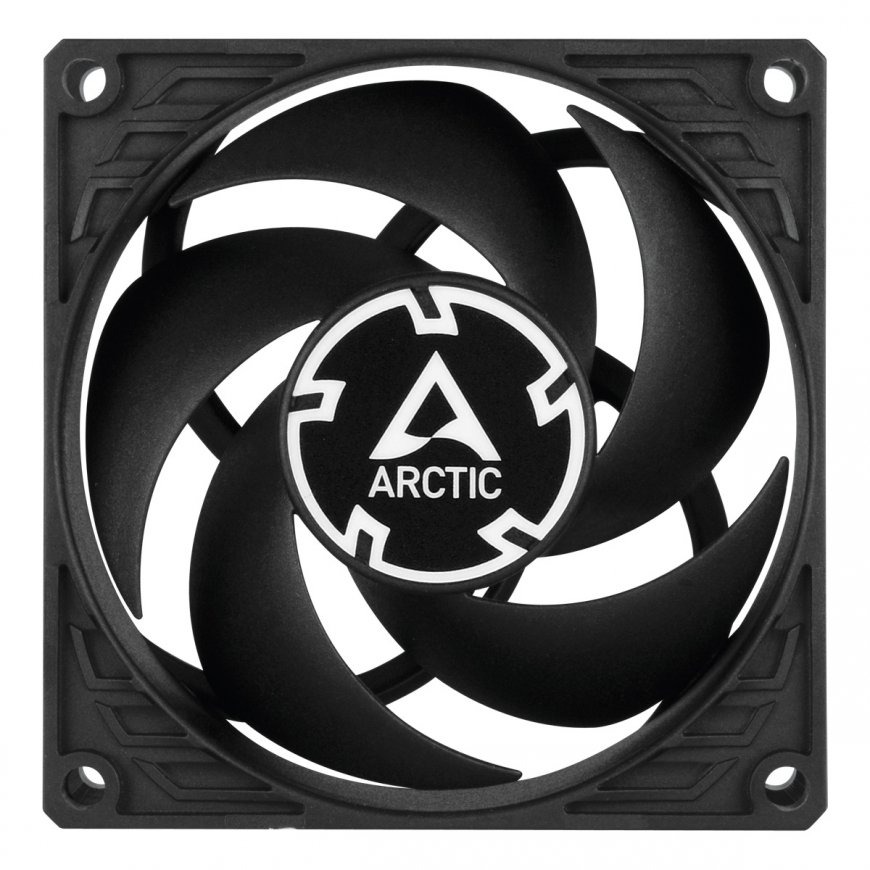

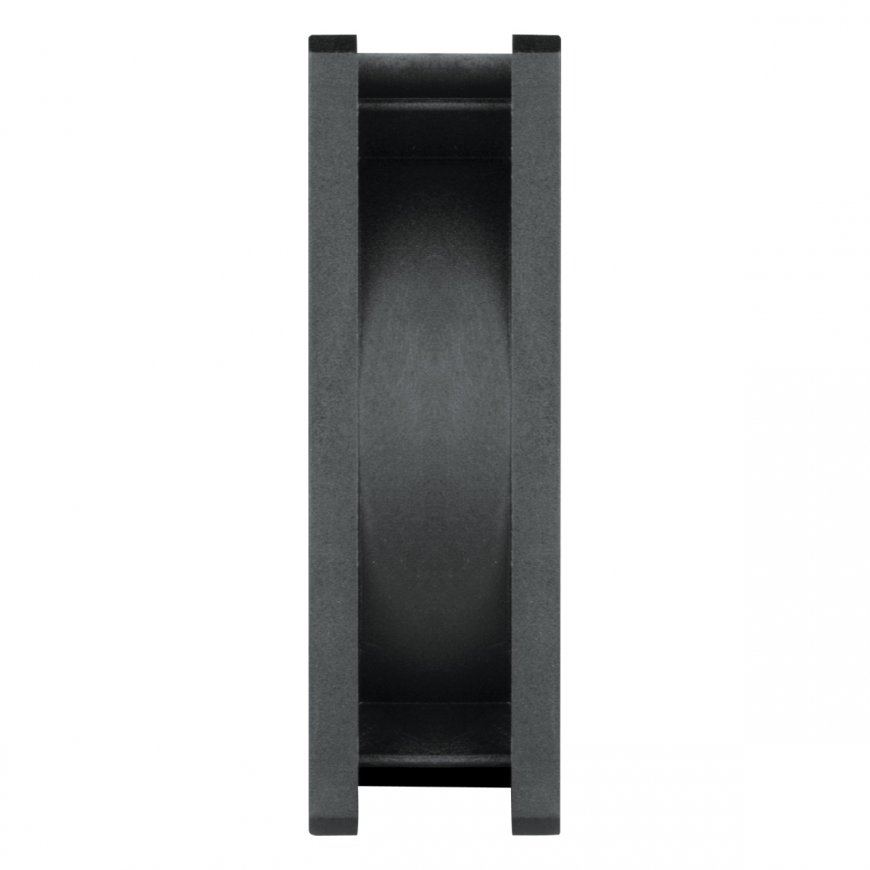

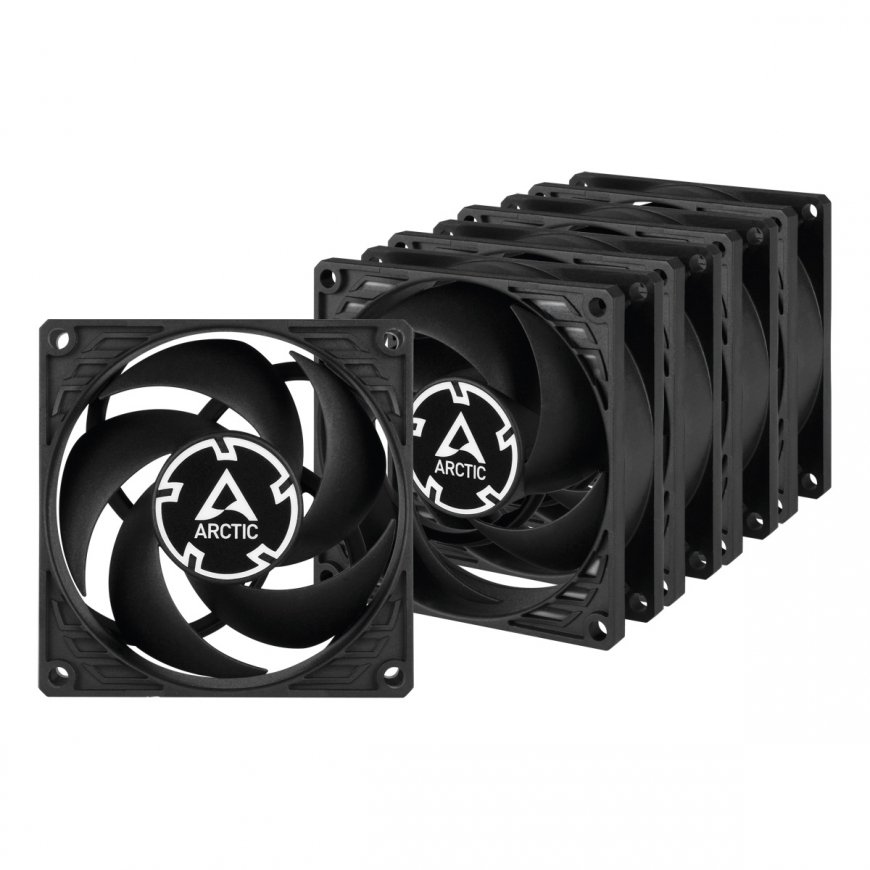

ARCTIC P8 Value Pack - Pressure-optimised 80 mm Fan
691496 ACFAN00153A
4895213702065, 0872767009950
Shipping 1-2 b.d.
Optimised for Static Pressure
During the development of the new P8, special emphasis was placed on a focused airstream and thus a
high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance.
Therefore, the P8 is particularly suitable for use on heatsinks and radiators.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Two Way Installation
Push warm air out of the case
Pull cool air into your cas
Performance | |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | 8 cm |
| Airflow | 40.3 m³/h |
| Maximum airflow | 23.4 cfm |
| Maximum air pressure | 1.9 mmH2O |
| Compatible processor series | Not supported |
| Rotational speed (max) | 3000 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level | 0.3 sone |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Number of fans | 5 fan(s) |
| Fan connector | 3-pin |
| Number of fan blades | 5 |
Power | |
| Rated current | 0.09 A |
| Voltage | 12 V |
Weight & dimensions | |
| Weight | 78.5 g |
| Package weight | 463 g |
| Height | 80 mm |
| Width | 80 mm |
| Depth | 25 mm |
| Cable length | 0.4 m |
| Package height | 89 mm |
| Package width | 127 mm |
| Package depth | 86 mm |
Packaging content | |
| Screws included | Yes |
| Number of screws | 20 |
| Package type | Box |
Other features | |
| Country of origin | China |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
