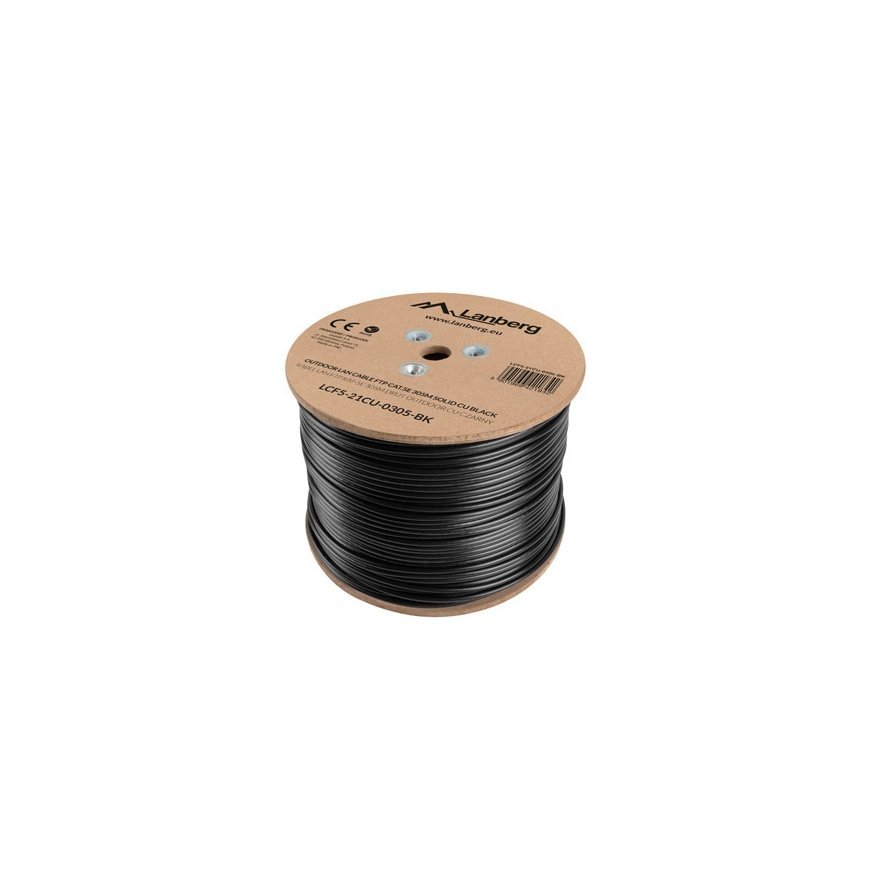

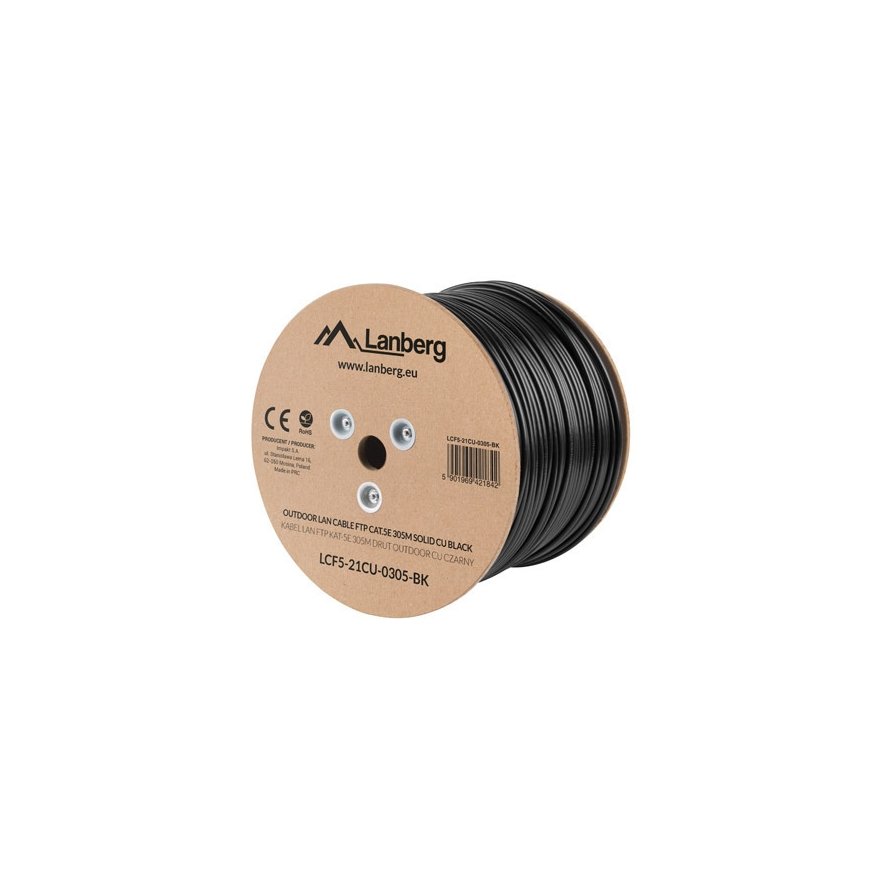

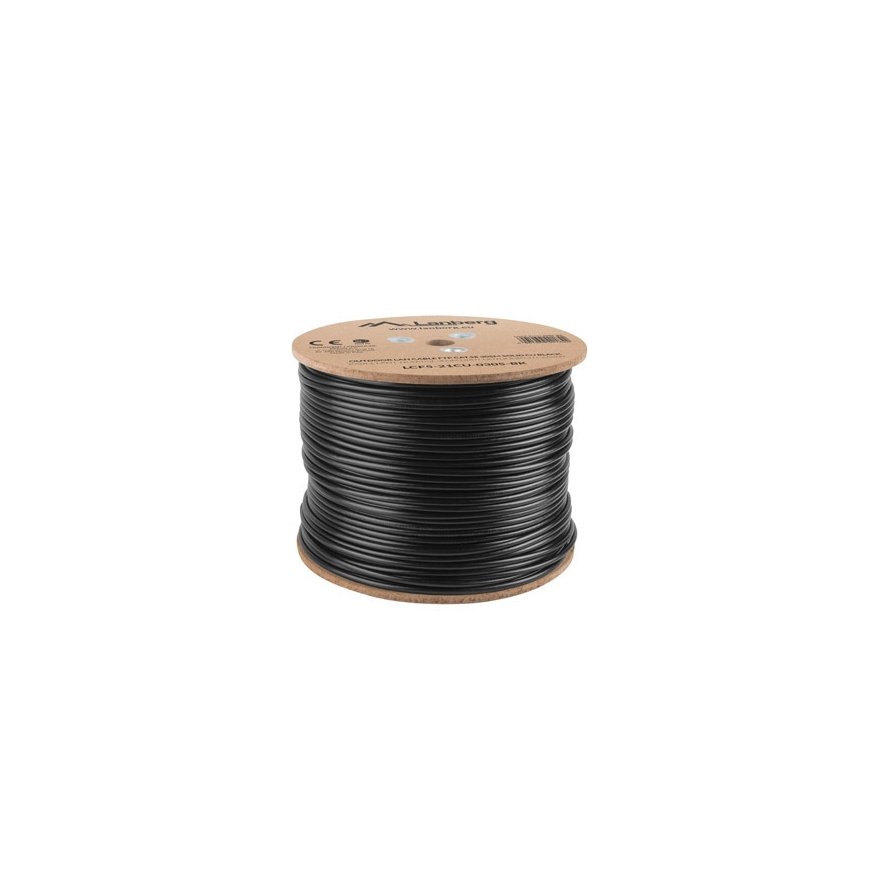

Lanberg LCF5-21CU-0305-BK networking cable Black 305 m Cat5e F/UTP (FTP)
143,51 €
Monthly payment from 4.60 €
687134 LCF5-21CU-0305-BK
5901969421842
2026-07-15
You are interested in this product?
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 24 (4*2*0.51mm).
- Conductor stranding: single wire.
- Color: Black.
- Printed length counter at every meter of cable.
- External PE insulation: 6.0mm.
- HDPE conductor insulation: 1.03mm.
- Operation up to 100Mhz.
- Recommended connector / guide diameter for braided cables: 1.1 mm.
- Package: Wooden drum.
- Packaging dimensions (W x D x H): 35x35x25 cm.
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
Features | |
| Cable type | Cable on reel |
| Cable length | 305 m |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Polyethylene (PE), High-Density Polyethylene (HDPE) |
| Cable standard | Cat5e |
| Cable shielding | F/UTP (FTP) |
| Plug and Play | Yes |
| AWG wire size | 24 |
| Frequency | 100 MHz |
| Conductor material | Copper |
| Product colour | Black |
| Connector 1 gender | No |
| Connector 2 gender | No |
Packaging data | |
| Package height | 250 mm |
| Package width | 350 mm |
| Package depth | 350 mm |
| Package type | Reel |
| Quantity per pack | 1 pc(s) |
Weight & dimensions | |
| Outer diameter | 6 mm |
Operational conditions | |
| Operating temperature (T-T) | -20 - 75 °C |
| Storage temperature (T-T) | 0 - 60 °C |
Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, Fluke |
