D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter
49,00 €
48.68 €
Monthly payment from 2,15 €
672164 DPE-301GS
0790069416675
Shipping 12-13 b.d.
You are interested in this product?
All about the product

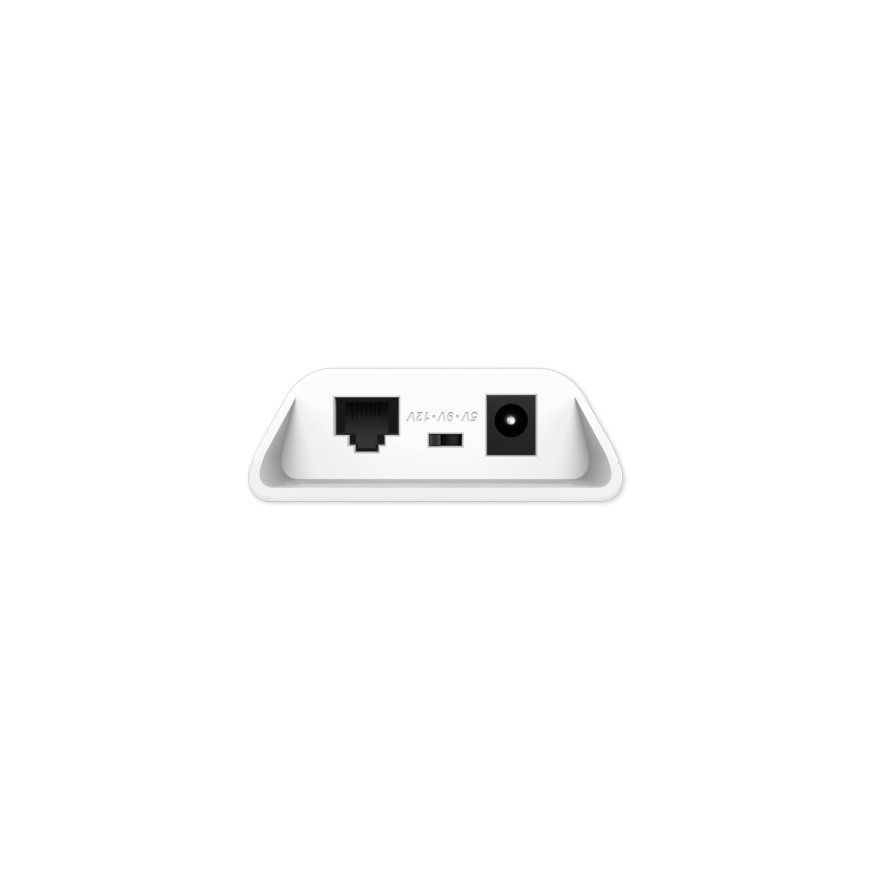

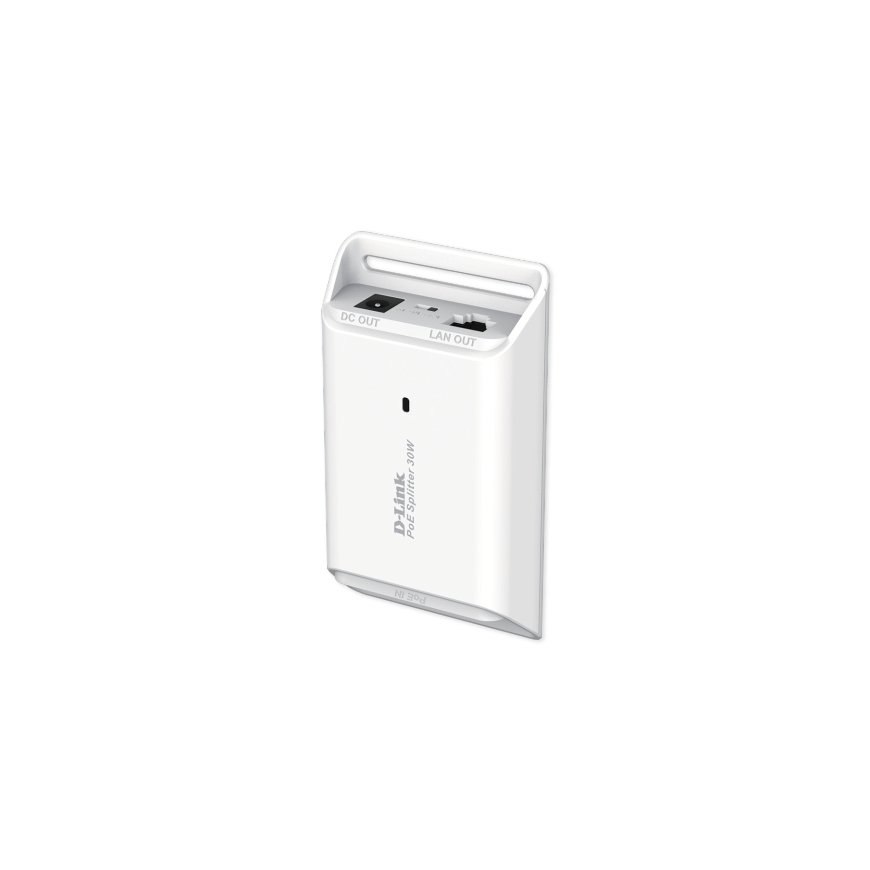

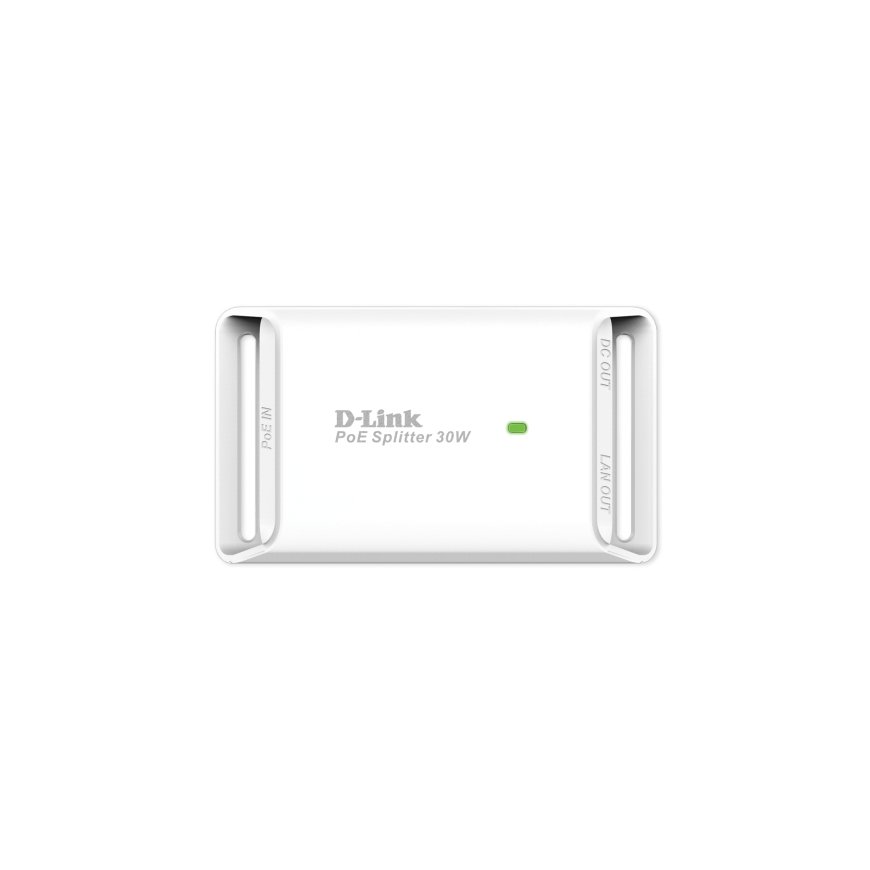

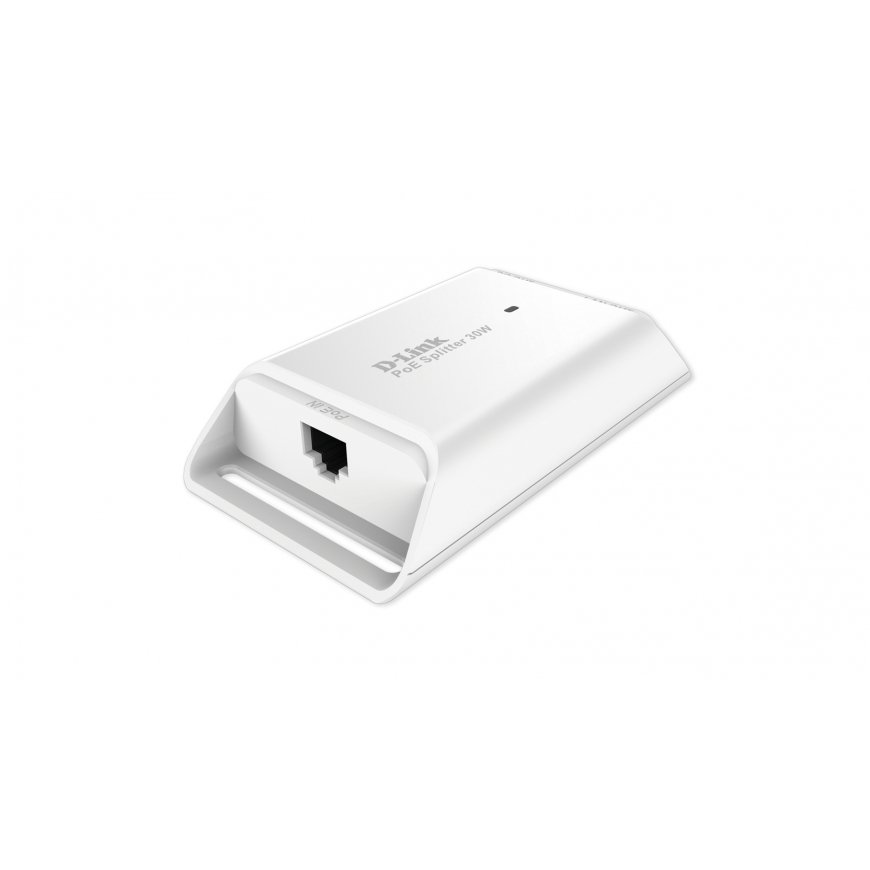

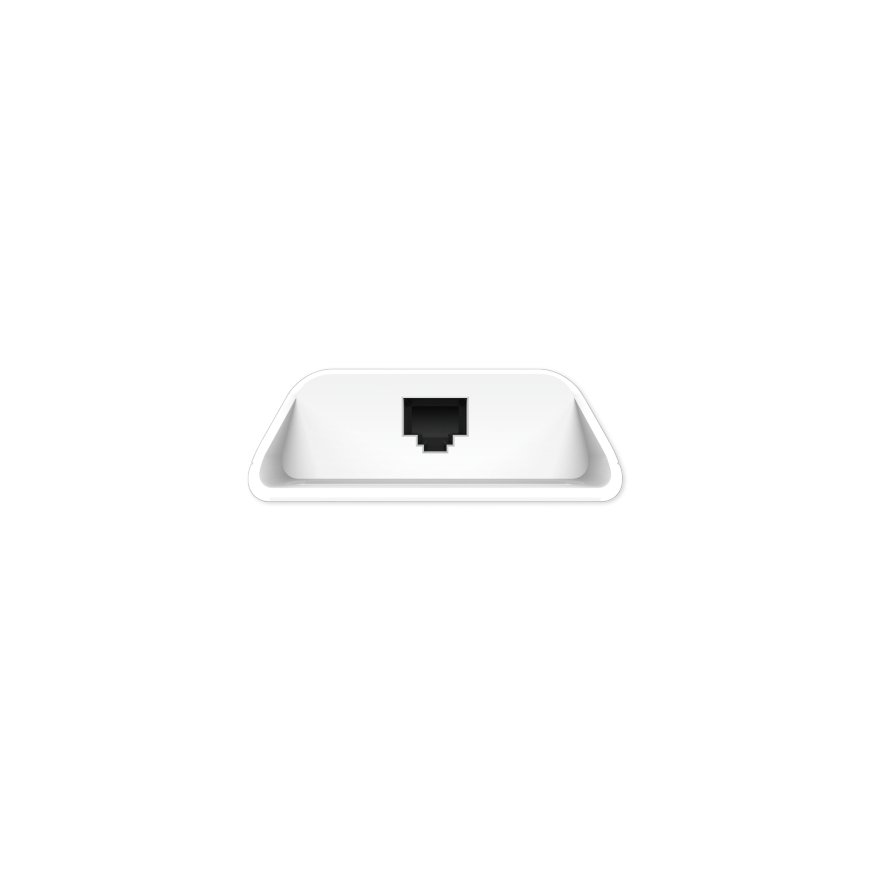

The DPE-301GS PoE splitter is used with end devices such as wireless access points, IP cameras and VoIP phones that don’t natively support PoE, but rather require DC power input of 5V, 9V or 12V. It receives PoE power on a network cable from a PoE switch or midspan injector, and splits the Ethernet and DC power into two separate cables. One cable provides the DC power, and the other cable provides the Ethernet signal. Users can select from 5VDC, 9VDC and 12VDC power for their device using a selectable DIP switch on the device.The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
Design | |
| Product colour | White |
Power | |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Weight | 98 g |
Packaging data | |
| Package width | 106 mm |
| Package depth | 156 mm |
| Package height | 61 mm |
| Package weight | 230 g |
Certificates | |
| Certification | CE, FCC, VCCI, RCM |
Logistics data | |
| Shipping (inner) case height | 32.5 cm |
| Shipping (inner) case width | 33.2 cm |
| Shipping (inner) case length | 44.5 cm |
| Products per shipping (inner) case | 40 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
