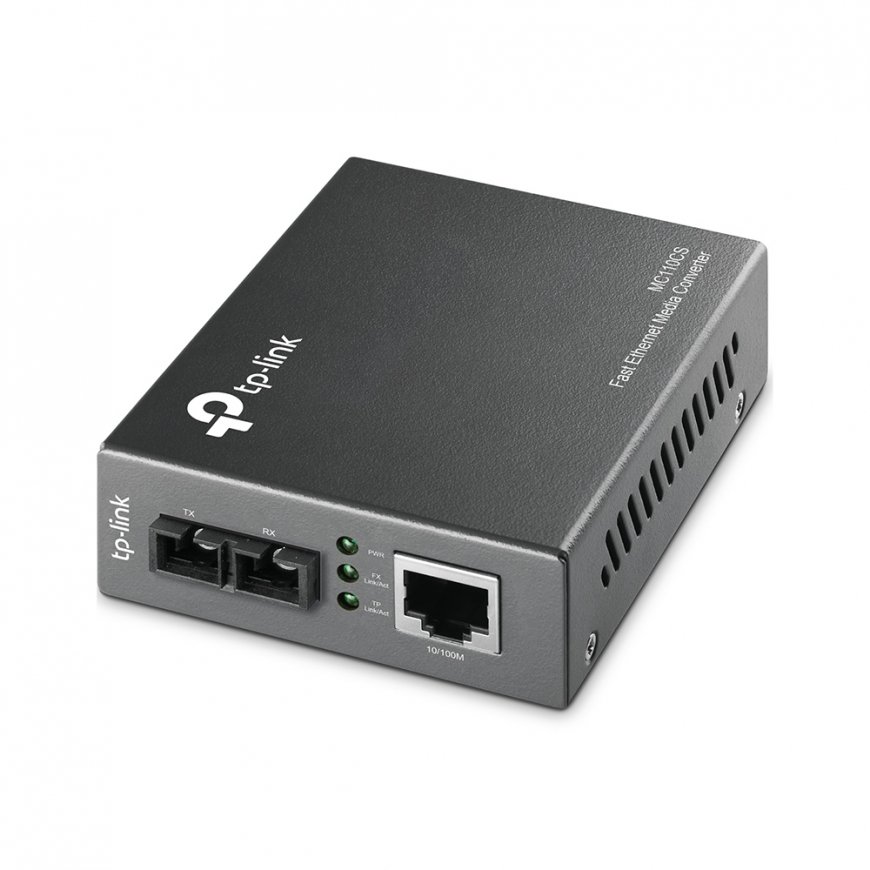

TP-Link 10/100Mbps Single-Mode Media Converter
30.89 €
634065 MC110CS V1
6935364030407, 0112840374064, 0191120078380, 0791445498292, 0806293522812, 0807030489559, 0809385660010, 0845973030407, 0851975726729, 5054484135302, 5054533135307
Goods will arrive at the Tallinn warehouse on 23.10.26
You are interested in this product?
All about the product
What This Product DoesThe MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Cabling technology | 5, UTP 3, 4, 5e |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
Design | |
| LED indicators | Power, Speed |
| Product colour | Black |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
Packaging data | |
| Package width | 165 mm |
| Package depth | 204 mm |
| Package height | 65 mm |
| Package weight | 380 g |
Other features | |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| I/O ports | 1x 100M SC |
| Maximum data transfer rate | 1000 Mbit/s |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Certificates | |
| Certification | FCC, CE, RoHS |
