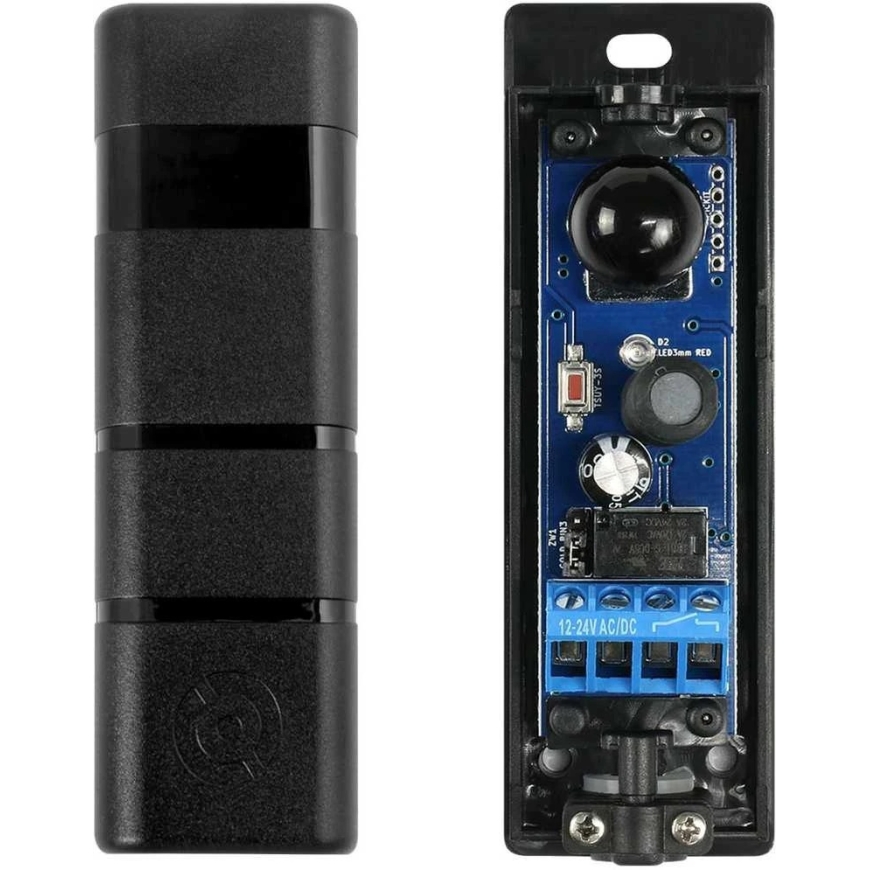

Proxima PMA photoelements (ANTI COLLISION)
40.28 €
Monthly payment from 1,94 €
5098409 PMA
5904151008425
Shipping 8-12 b.d.
You are interested in this product?
All about the product
„Proxima PMA“ Safety Photocells (Collision Prevention)
Model: PMA
Features
PMA is the narrowest analog photocell in the “Proxima” range. It features 190° rotating sending and receiving heads, a microprocessor failure detection system, and four adjustable transmitter power levels.
PMA photocells have a collision prevention function – up to 4 rows of photocells can be used in a single gate lamp without interference.
Technical Specifications
- Power Supply: 12–24 V AC/DC
- Maximum Transmitter Current Consumption : 12 V – 22 mA, 24 V – 12 mA
- Maximum Receiver Current Consumption : 12 V – 12 mA, 24 V – 7 mA
- Output Signal: 30 V DC, 0.5 A
- Wavelength : 950 nm
- Transmission and Reception Angle : +/- 5°, rotation 190°
- Maximum Operating Range: 15 m
- Protection Class: IP54
- Number of Collision Prevention Channels: 4
- Dimensions: 34 x 103 x 32 mm
- Weight: 89 g
