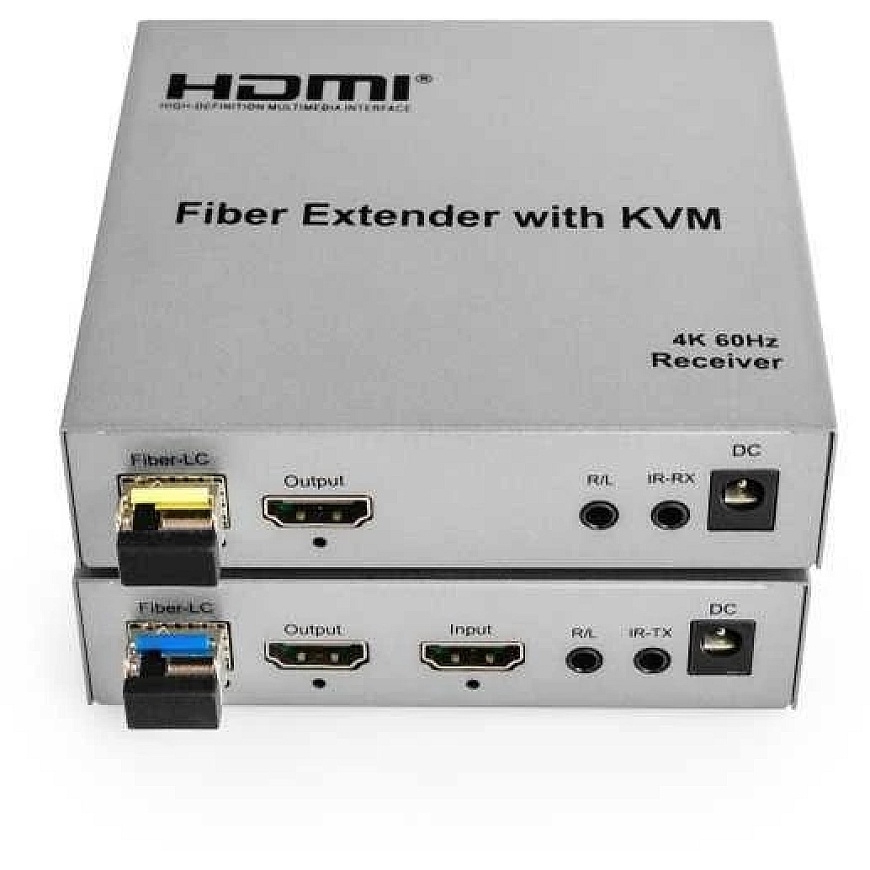

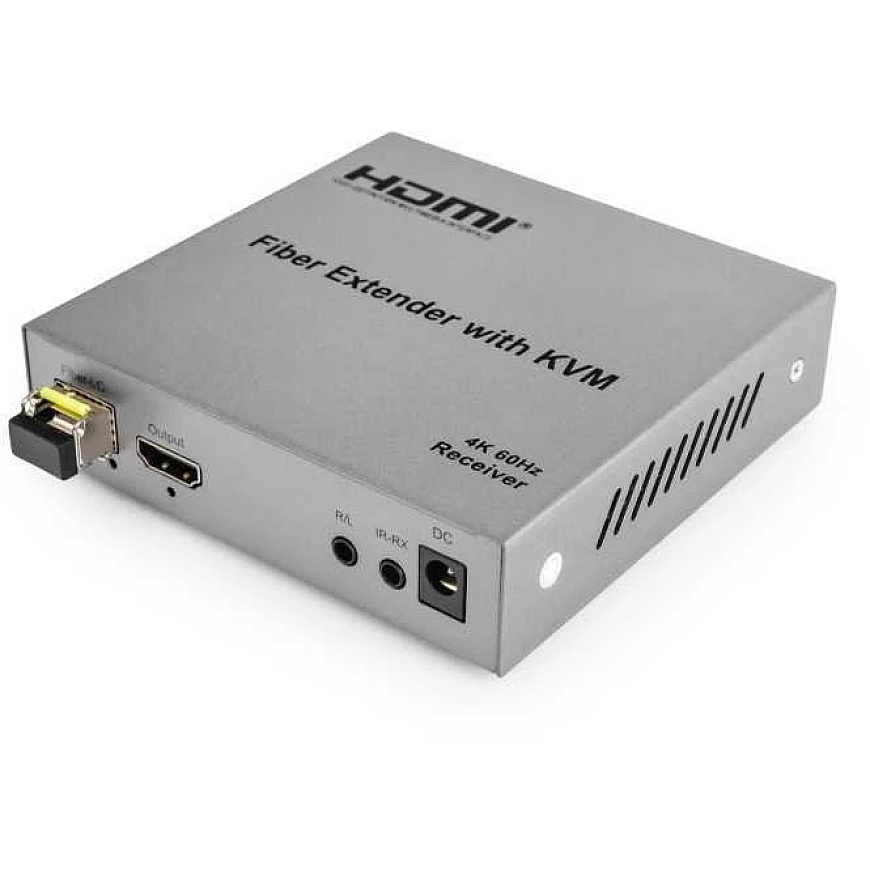

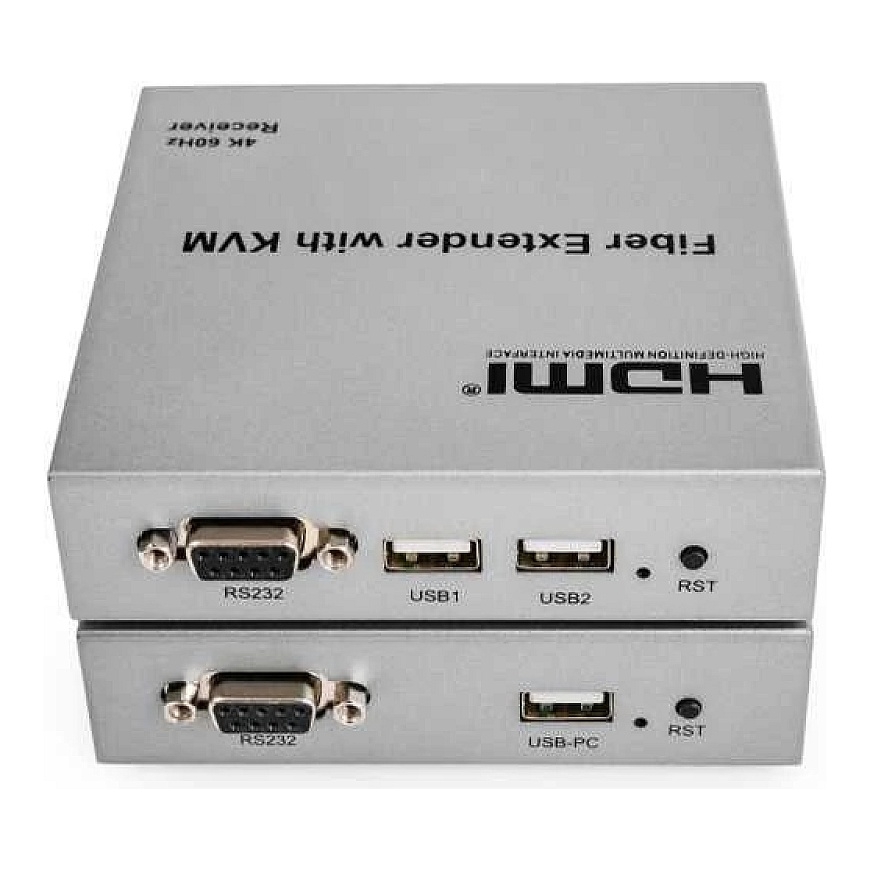

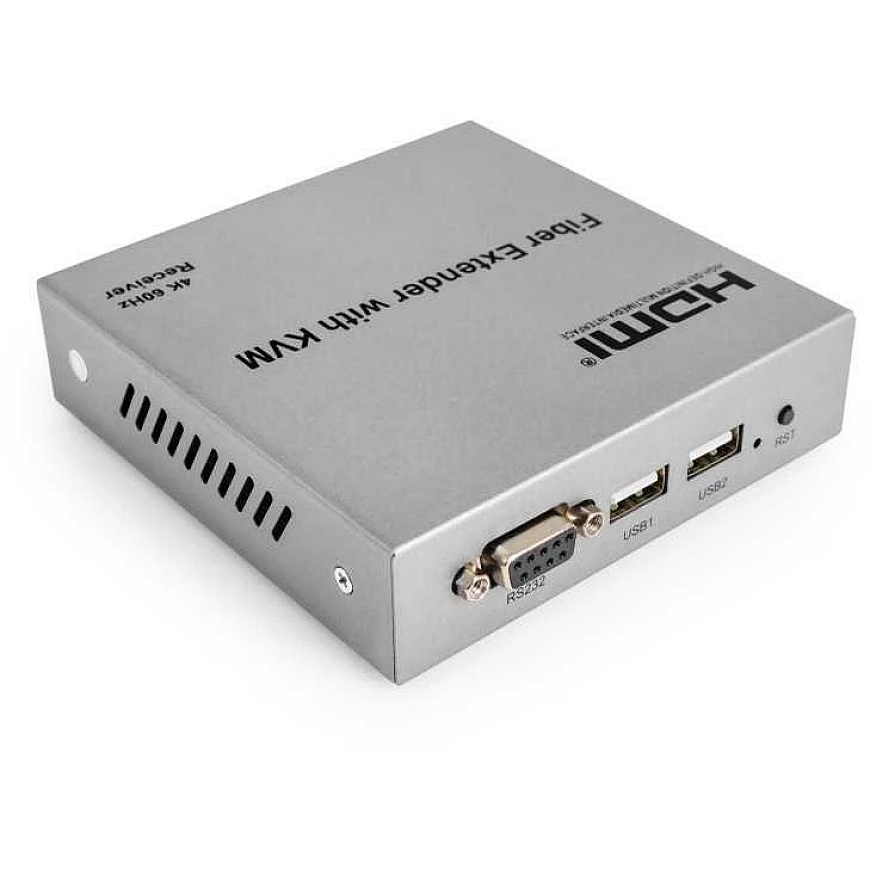

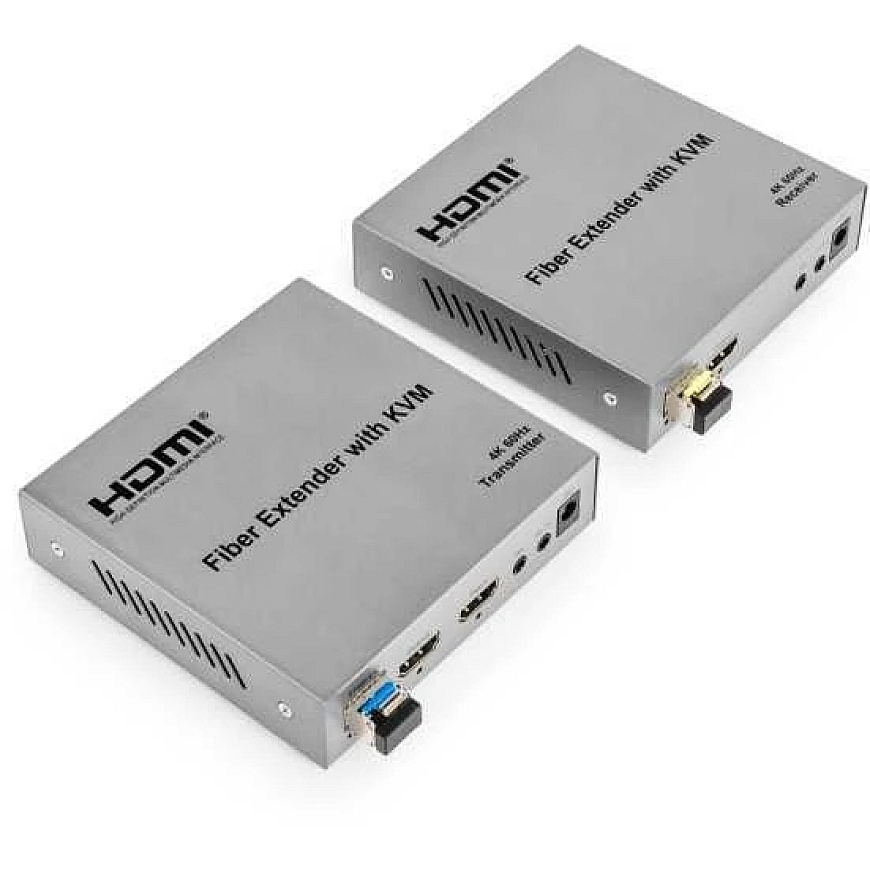

Spacetronik HDMI to Optical Fiber Converter SPH-FO11 KVM 4K 60Hz
5097632 5903031041125
Shipping 8-11 b.d.
All about the product
Main Information
The SPH-FO11 HDMI to fiber optic KVM converter can be used up to 4K 60 Hz resolution for transmitting audio and video signals over a single LC fiber optic cable up to 20 km. The converter supports HDMI, HDCP 2.2, KVM, IR, and RS232. It operates in a point-to-point mode, has an HDMI loop output, and a 3.5 mm stereo audio output. Installation is simple and quick, with no additional software required.
Application
Designed for long-distance HDMI signal transmission, monitoring, signal transfer between buildings, large screen installations, and integration with KVM and RS232 systems. Compatible with standard SFP MSA and SFF-8472 protocols.
Specification
Video and Audio Parameters
- HDMI input and output: 4K @ 60Hz, 1080p, 720p, 480p
- HDMI loop output (HDMI input/output loop)
- 3.5 mm stereo audio output
- Audio format: L-PCM
- 3.5 mm IR socket support
- USB KVM support
- RS232 support
Transmission and Connections
- Single-mode LC optical fiber
- Wavelength: 1310 nm, 1550 nm
- Transmission range: up to 20 km
- Complies with SFP MSA and SFF-8472 standards
Power Supply and Operating Conditions
- Power supply: 1.5 A / 5 V DC (sending), 1.2 A / 5 V DC (receiving)
- Operating temperature: -10 to +55 °C
- Humidity range: 5–90 % (non-condensing)
Dimensions and Weight
- Dimensions: 106 x 106 x 17 mm
- Weight: 273 g
Contents of the Set
- 1x transmitter TX
- 1x RX receiver
- 2x Power supplies 230V 12V 2.0A
- 1x USB cable
- 1x IR receiver and transmitter
Certificates
- CE, FCC, RoHS, REACH, ISO9001, HDMI RECEIVER, HDCP RECEIVER
