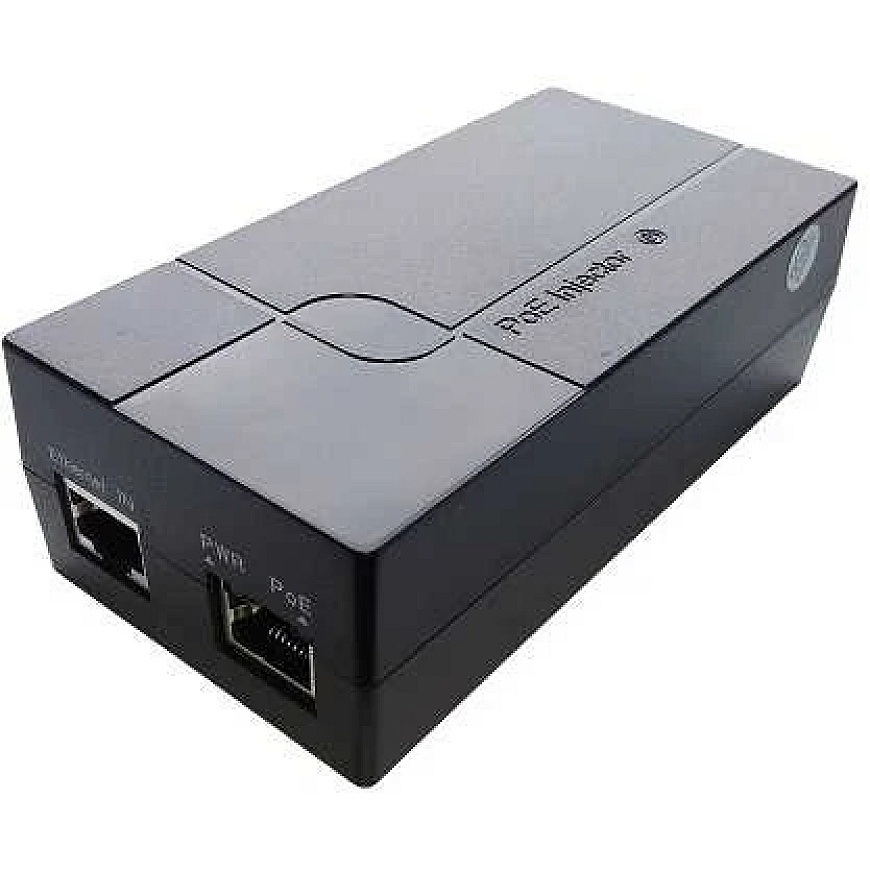

PoE Injector - Extra Digital 60 W Gigabit Injector
51.27 €
Monthly payment from 2,22 €
5097378 9990000990139
Shipping 10-12 b.d.
You are interested in this product?
All about the product
Extra Digital 60W PoE Gigabit Injector
60 W Gigabit PoE injector with 100–240 V AC input and 52 V PoE output, designed to transmit Ethernet data and power over a single RJ45 connection. The fanless design supports 10/100/1000 Mbps speeds and features an LED status indicator.
- 60 W Gigabit PoE injector for powering and transmitting data to compatible network devices over a single Ethernet cable
- Supports 10/100/1000 Mbps Ethernet, 52 V PoE output, and up to 100 m transmission distance
- Compatible with mid-span and end-span power pin configurations, suitable for various devices
- Fanless design ensures passive heat dissipation and silent operation on a desk or wall-mounted
Product Information | |
|---|---|
| Product Type | Gigabit Power over Ethernet (PoE) injector |
| Model | Extra Digital 60W PoE Gigabit Injector |
| Function | Transmits Ethernet data and power to a compatible network device over a single RJ45 cable |
Technical Specifications | |
| LAN Input | 1 × 10/100/1000 Mbps RJ45 port |
| PoE Output | 1 × 10/100/1000 Mbps RJ45 port |
| PoE Output Voltage | 52 V |
| AC Input | 100–240 V AC, 50–60 Hz |
| PoE Pin Configuration | Supports mid-span and end-span configurations: 4/5 and 7/8 pairs or 1/2 and 3/6 pairs |
| Transmission Distance | Up to 100 m using Cat 5 or higher UTP cable |
| LED Indicator | PoE operational status |
Construction and Usage Conditions | |
| Cooling | Natural heat dissipation without a fan |
| Mounting | On a desk or wall-mounted |
| Dimensions | 108 × 44 × 33 mm |
| Operating Temperature | −20 °C–+55 °C |
| Operating Humidity | 10–90 % relative humidity, non-condensing |
| Compliance Standards | IEC 61000-4-2 ESD, CE, FCC Part 15 Class B, RoHS |
Safety Warning | |
| Warning | Use only with compatible PoE network devices and do not exceed specified limits for voltage, power, temperature, and cable. Disconnect the injector from the AC network before installation or maintenance. Protect the device from moisture, ensure adequate ventilation, and do not use if the enclosure, cable, or connectors are damaged. |
