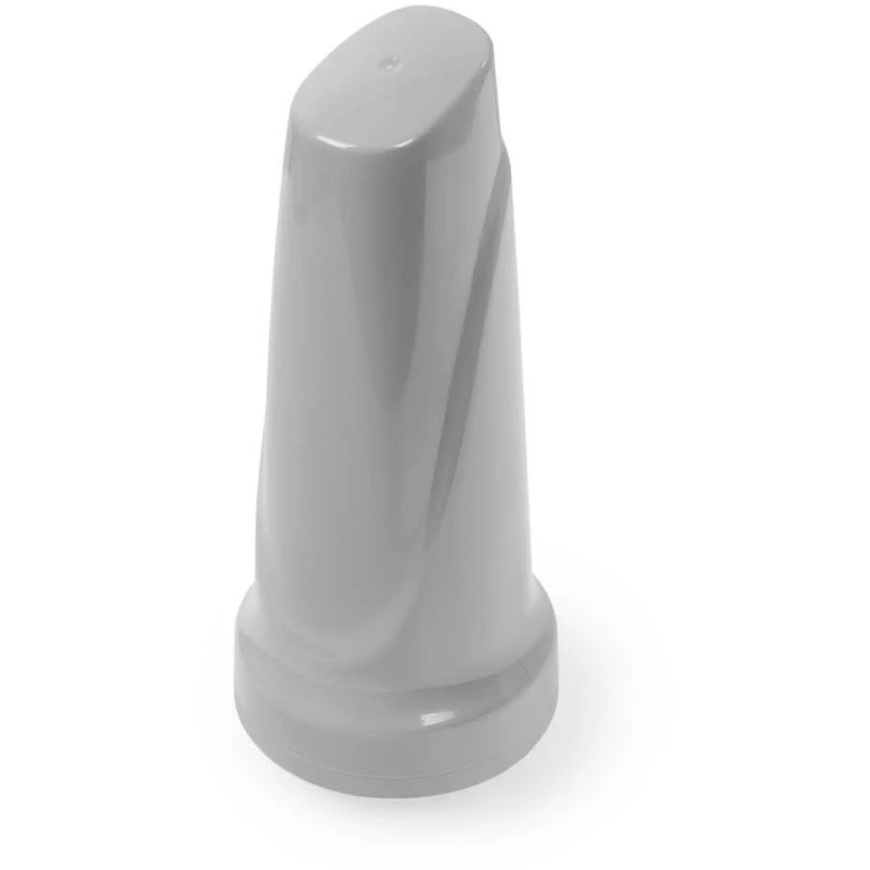

"Wi-Fi Poynting OMNI-706" 2.4 and 5 GHz antenna
5097319 A-OMNI-0706-V1-01
6009710922224
Shipping 8-11 b.d.
All about the product
Main Information
The dual-band Poynting OMNI-706 omnidirectional Wi-Fi antenna. Supports 2.4 GHz and 5 GHz frequencies. Gain 4 dBi (2.4 GHz) and 5.5 dBi (5 GHz). N-type female connector. Enclosure with IP 69K and IK 10 certifications. Mounted on a pole or wall.
Application

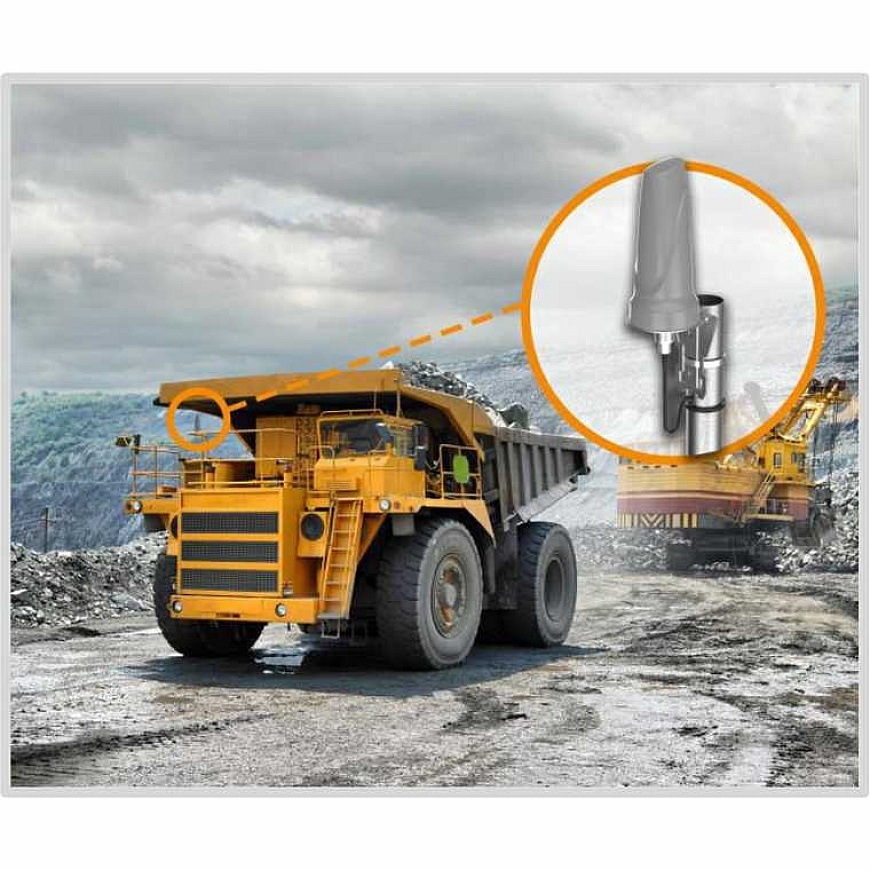

Designed for use in harsh environments such as mines, construction sites, and construction vehicles, it can be used in smart metering devices, industrial automation, M2M systems, smart buildings, and environmental systems.
Specification
Frequency and Gain
- Frequency ranges: 2.4–2.5 GHz, 5–6 GHz
- Gain: 4 dBi (2.4 GHz), 5.5 dBi (5 GHz)

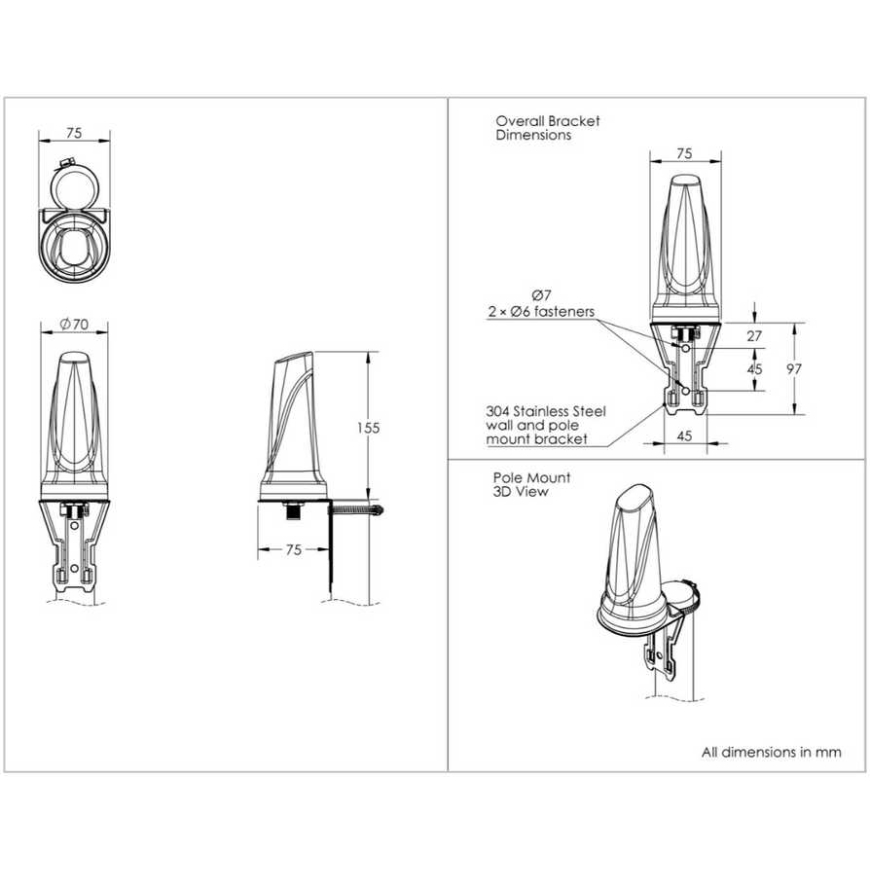

Mechanical Parameters

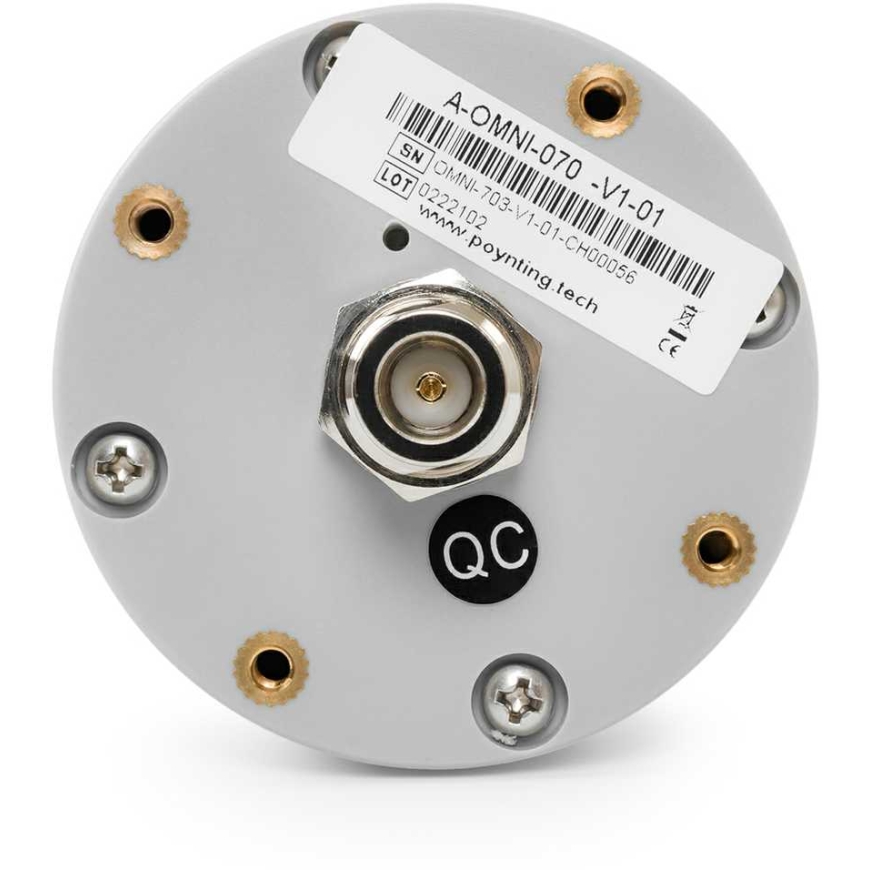

- Connector type: N-type female
- Mounting: on pole or on wall
- Protection class: IP 69K, IK 10
