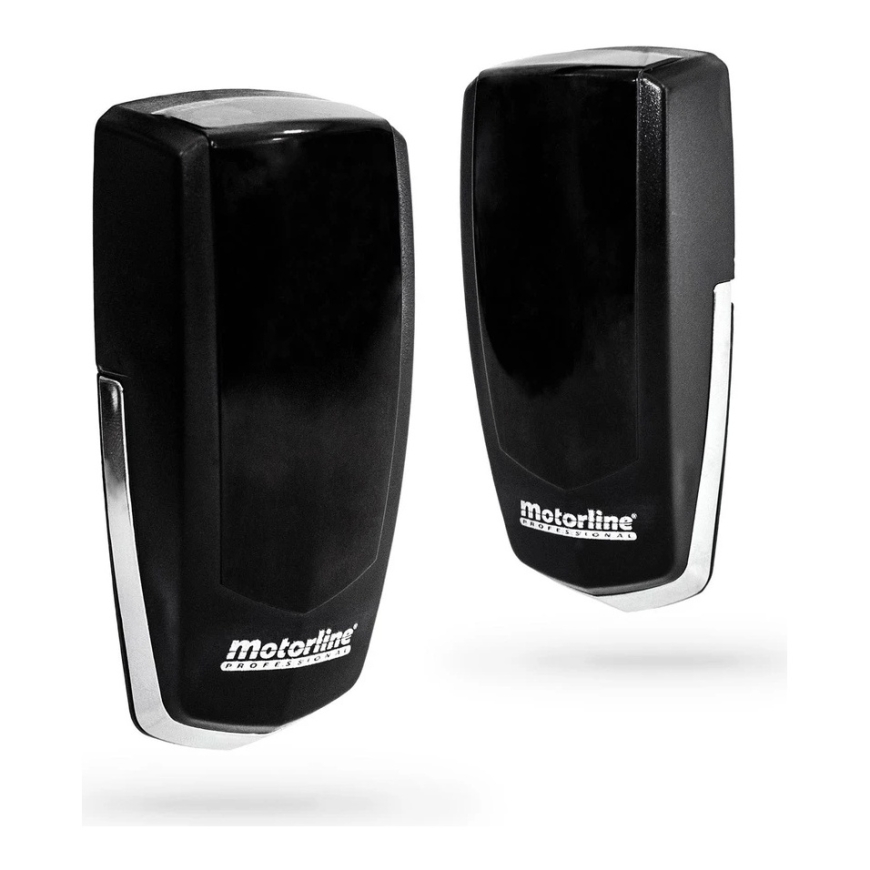

Doerr "Motorline MF30" relay photoelectric sensors (001PLM10217017)
32.12 €
5096959 001PLM10217017
5600843847838
Shipping 8-12 b.d.
You are interested in this product?
All about the product
„Motorline MF30“ relay photoelectric sensors (001PLM10217017)
Model: 001PLM10217017
Purpose
Universal relay photoelectric sensors (four-wire) with dimensions of 100 x 41 mm (ideal for replacing the once-popular NICE BF photoelectric sensors). Operating temperature from -20 °C to +70 °C ensures reliable operation in almost any weather conditions, and the range of up to 25 meters ensures they can protect even very long sliding gates.
They are intended for entrance gates, garage doors, and barriers.
Technical specifications:
- Power supply: 12–24 V AC; 12–24–36 V DC
- Dimensions: 100 x 41 mm
- Range: up to 25 meters
- Operating current: 30 mA at 24 V DC
- Wavelength: 940 nm
- Frequency: 192 kHz
- Operating temperature range: from -20 °C to +70 °C
- Relay capacity: from 1 A to 30 V DC; from 0.5 A to 125 V AC.
