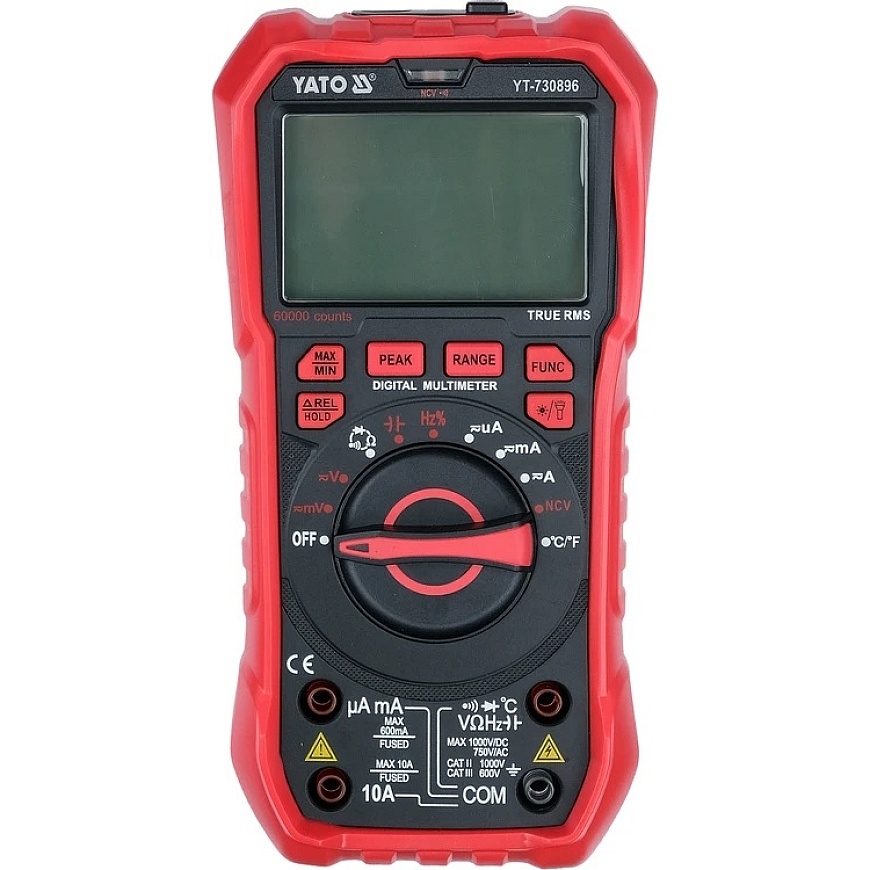

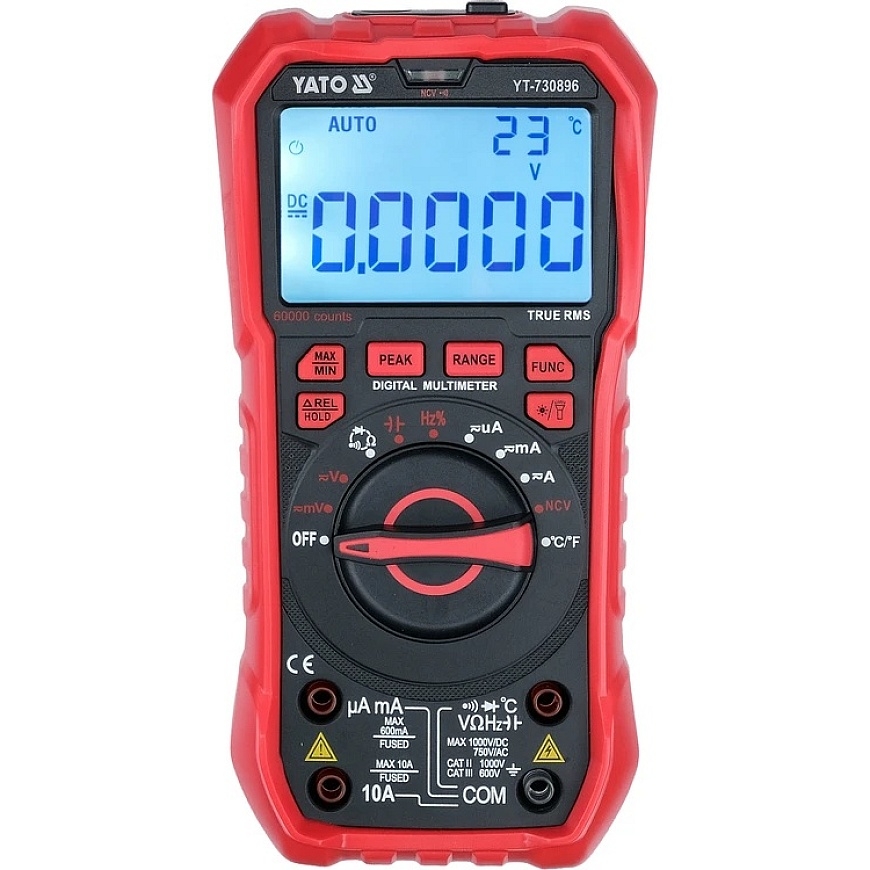

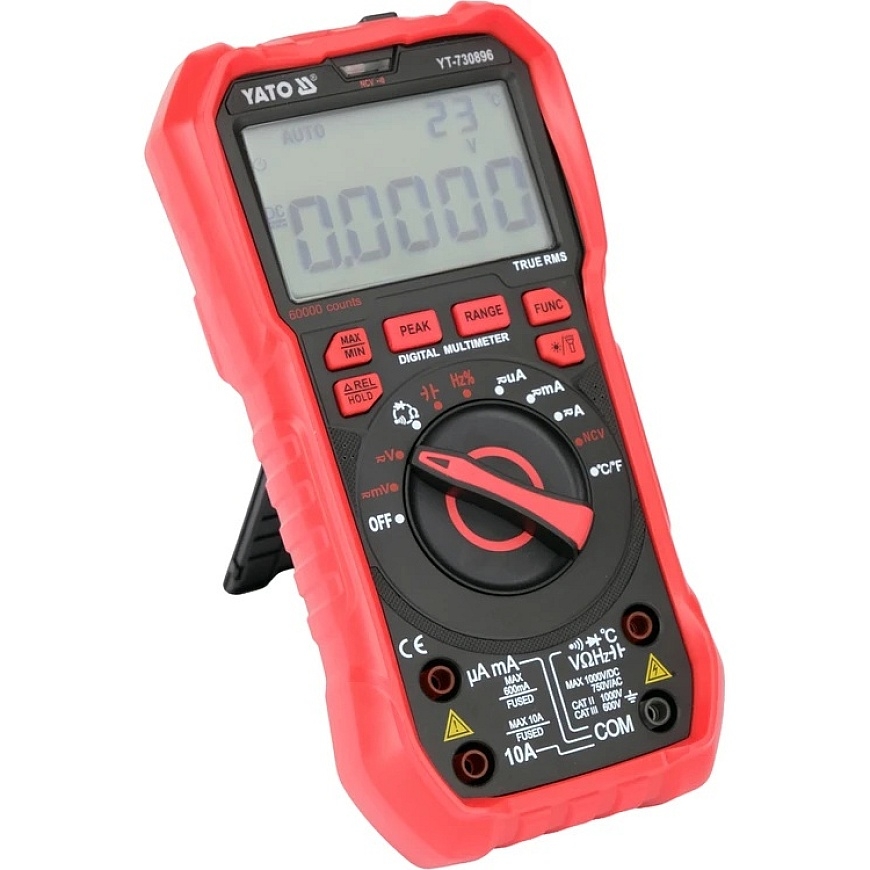

Digital Multimeter with True RMS Measurement | Display up to 60000 (YT-730896)

The YATO YT-730896 digital multimeter is designed for measuring various electrical quantities. Key selection parameters: 5-digit LCD display up to 60000, True RMS mode for AC voltage and current, measuring probes, and a thermocouple included.

The multimeter features a plastic casing, a backlit display, a parameter selector, and measurement connections. A wider selection of measuring tools can be found in the www.atsuktuvas.lt assortment.

Technical Information

• Product type: digital multimeter


• Display: LCD, 5 digits


• Maximum displayed result: 60000


• Measurement frequency: 3 times per second


• DC voltage measurement range: up to 1000 V


• AC voltage measurement range: up to 750 V


• DC and AC current measurement range: up to 10 A


• Resistance measurement range: up to 60 MΩ


• Capacitance measurement range: up to 60 mF


• Frequency measurement range: up to 25 MHz


• Temperature measurement range: −50–+1000 °C


• Power supply: 3 x AAA batteries, 3 x 1.5 V


• Batteries included: no


• Operating temperature: 0–40 °C


• Storage temperature: −10–+50 °C


• Dimensions: 187 x 95 x 55 mm


• Weight without batteries: 370 g


• Brand: YATO


• Code: YT-730896


• Manufacturer code: 5906083133787

Features and Usage

• True RMS measurement for AC voltage and current


• Measurement of voltage, current, resistance, capacitance, frequency, and temperature


• Diode test and continuity test


• Non-contact AC voltage detection NCV


• HOLD, REL, RANGE, MAX / MIN, and PEAK functions

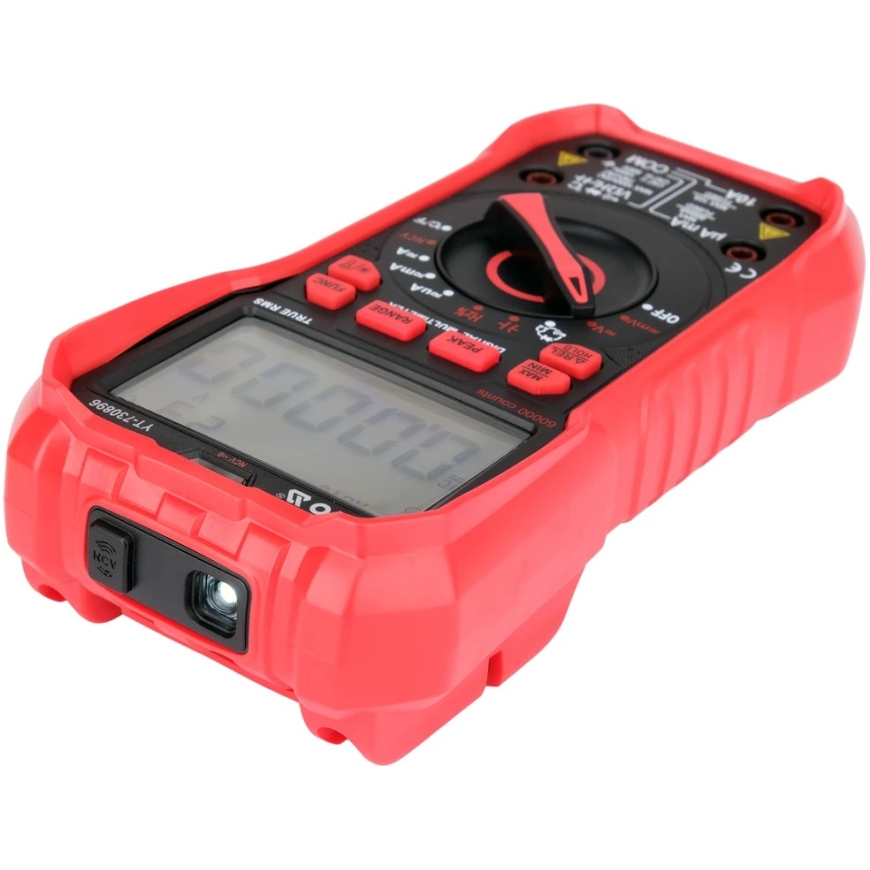

• Display backlight and LED illumination


• Automatic shutdown after approximately 15 minutes of inactivity


• Includes measuring probes and a thermocouple
